Richelieu AT00LD100 Atmos aiR System InstructionsRichelieu AT00LD100 Atmos - aiR System offers a cutting-edge solution for modern cabinetry with its unique 107° ascending opening mechanism. Remarkably strong and user-friendly, this system eliminates the need for traditional hinges, allowing for a straightforward installation by simply screwing it into place inside your cabinet. Available in three sophisticated finishes-Black, Gray Anthracite, and Two-toned White-Atmos seamlessly complements your kitchen accessories and drawer sides, ensuring a cohesive look. This versatile system accommodates a range of applications with three power factors: light, medium, and heavy charge, making it ideal for various project needs. The Atmos system is equipped with a soft-close mechanism, providing a smooth and gentle closing motion. Users can easily adjust the power of this mechanism to suit the weight and dimensions of any door, enhancing usability and convenience. Designed for wood and wide aluminum-framed doors, Atmos supports door heights ranging from 7 7/8 inches to 19 5/8 inches and lengths up to 47 1/4 inches. With its discreet design and reliable performance, the Richelieu AT00LD100 Atmos - aiR System stands out as an essential choice for any cabinetry project, merging functionality with elegance.
Atmos - aiR System
Richelieu is launching aiR, its new line of opening systems!
Atmos is the very first series from this new line of opening systems.

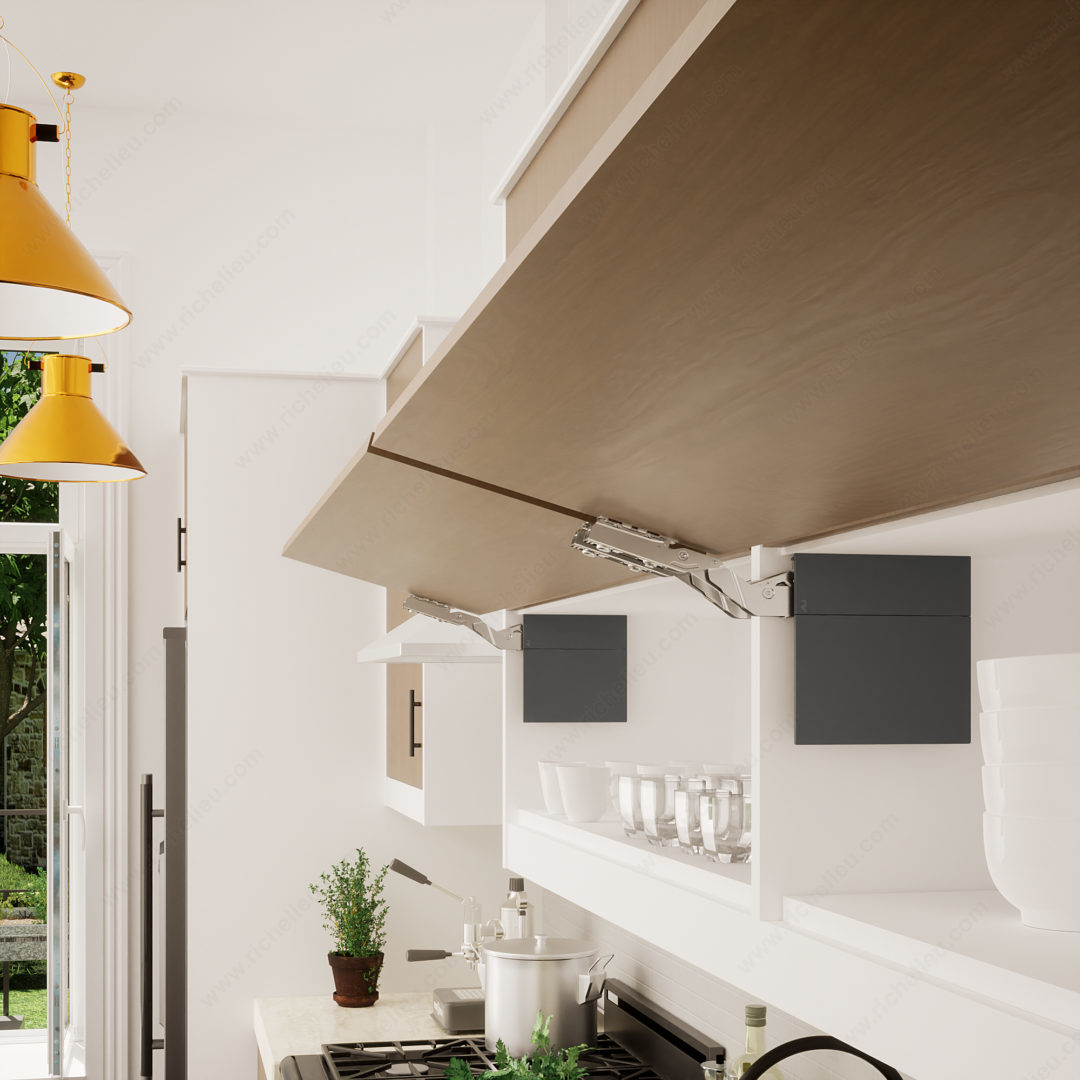

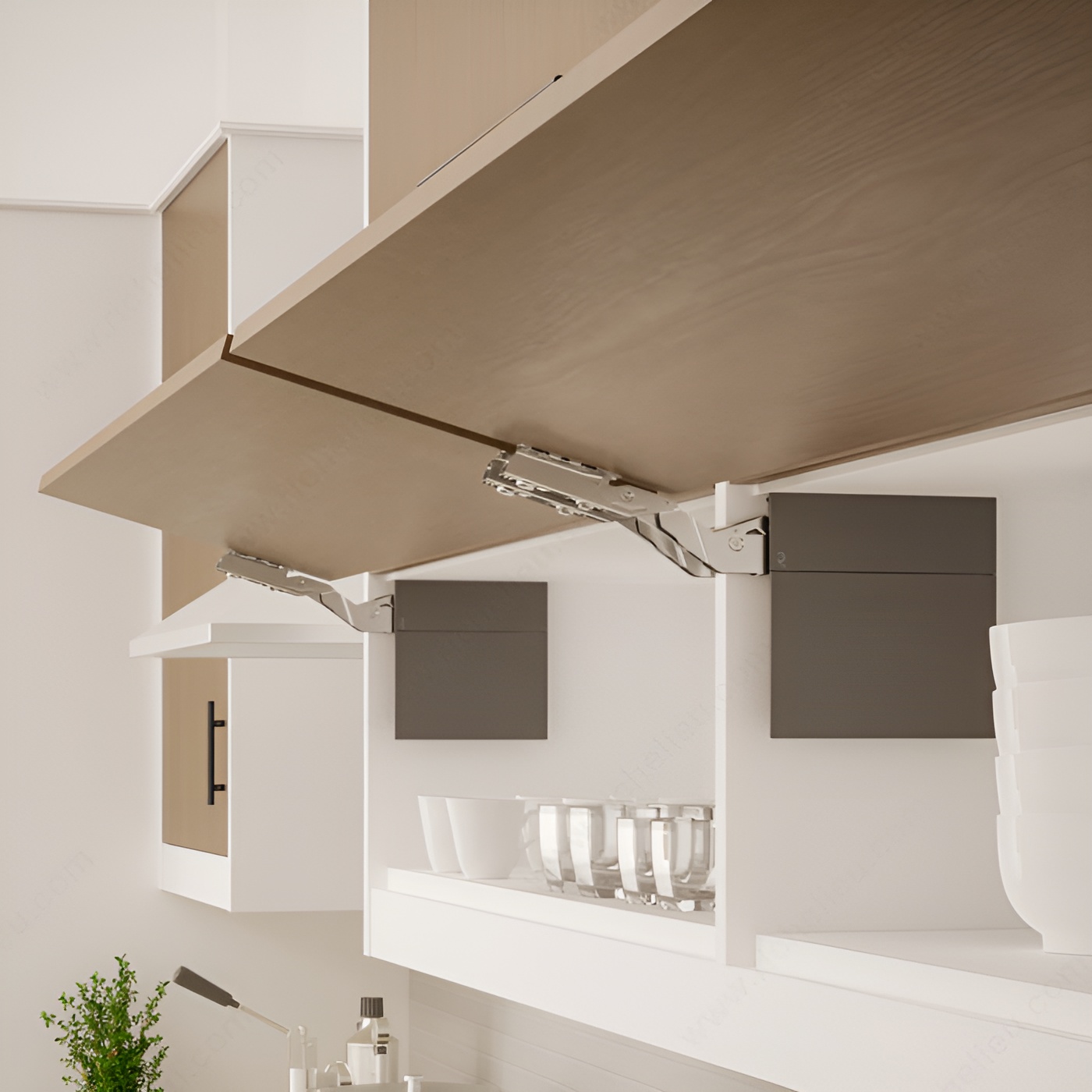

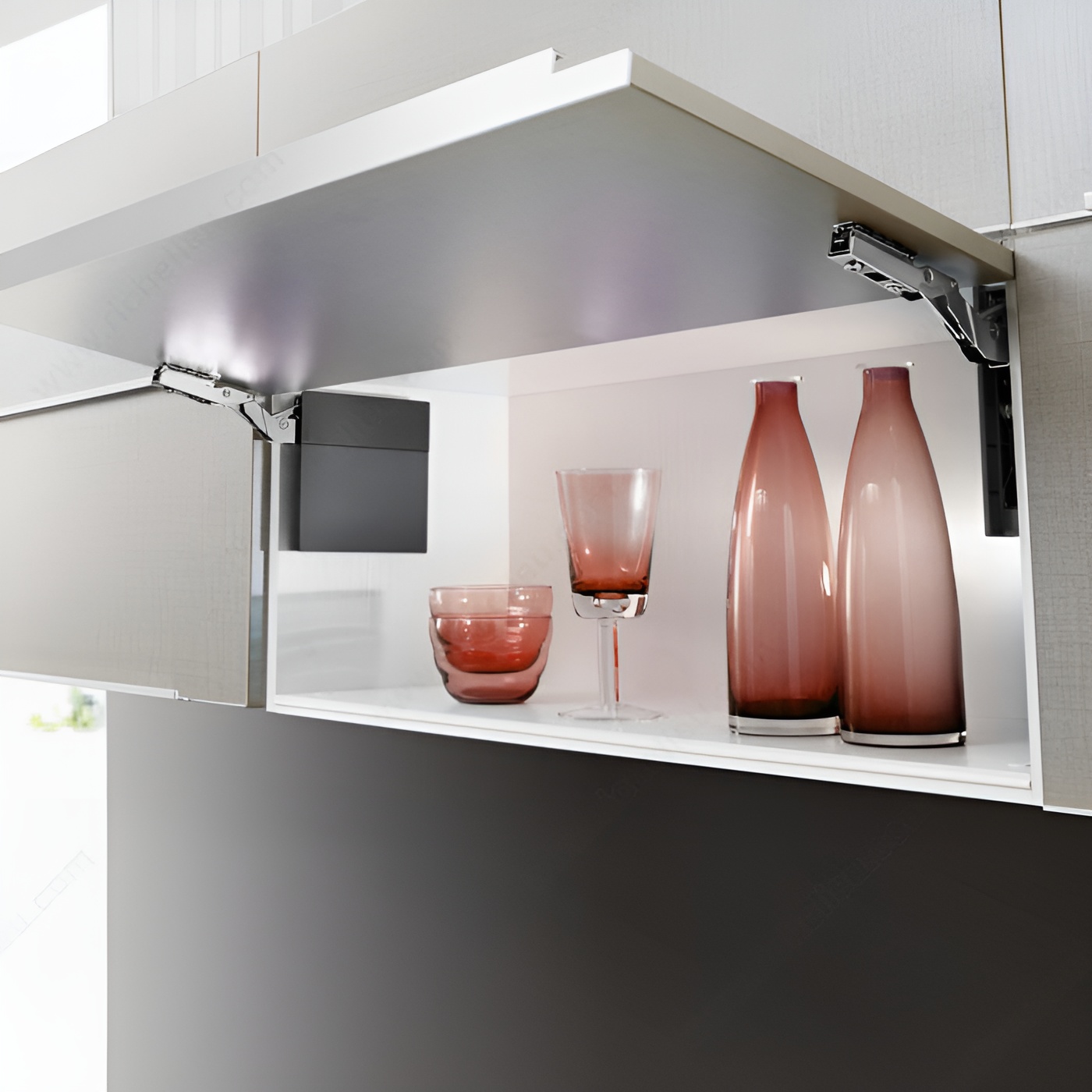

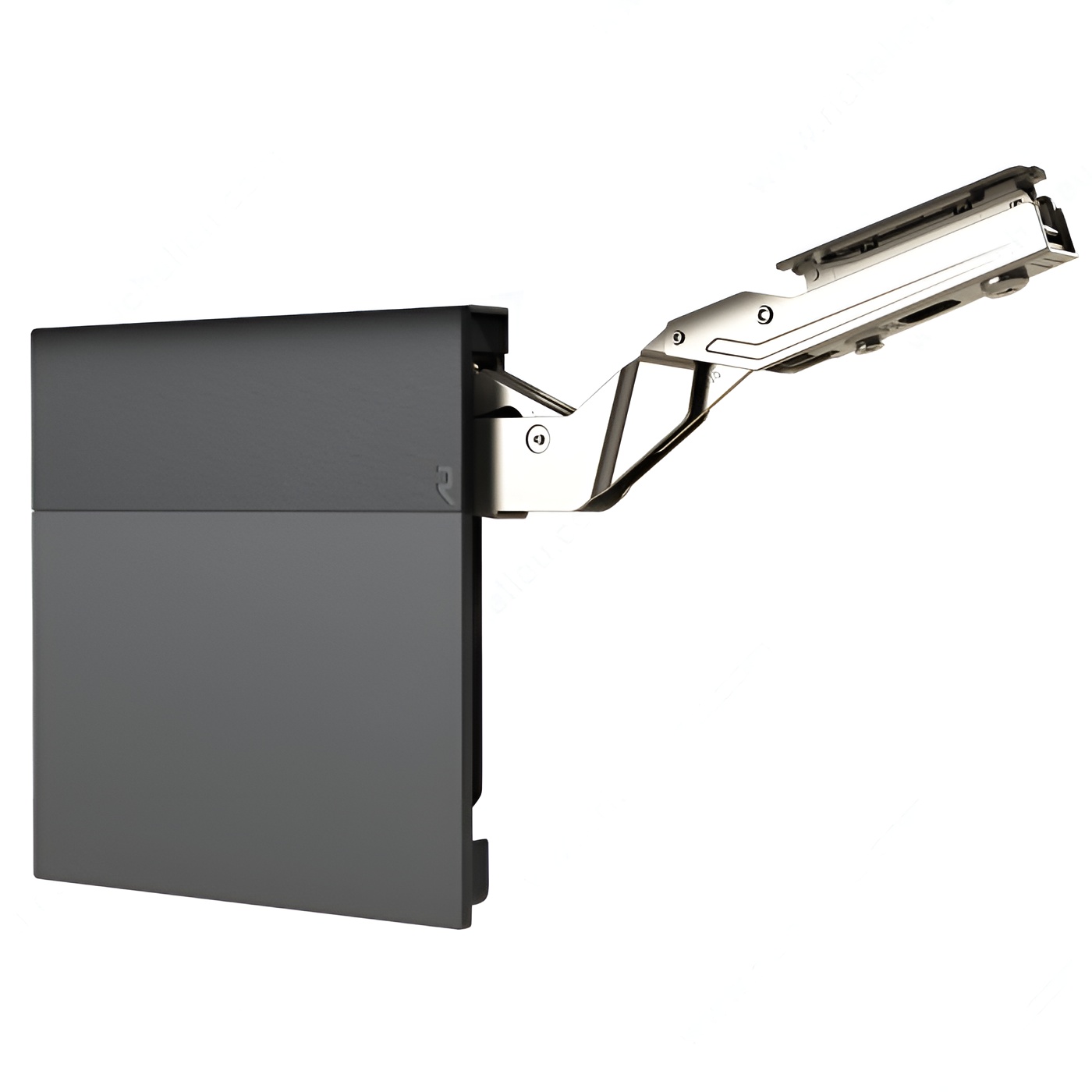

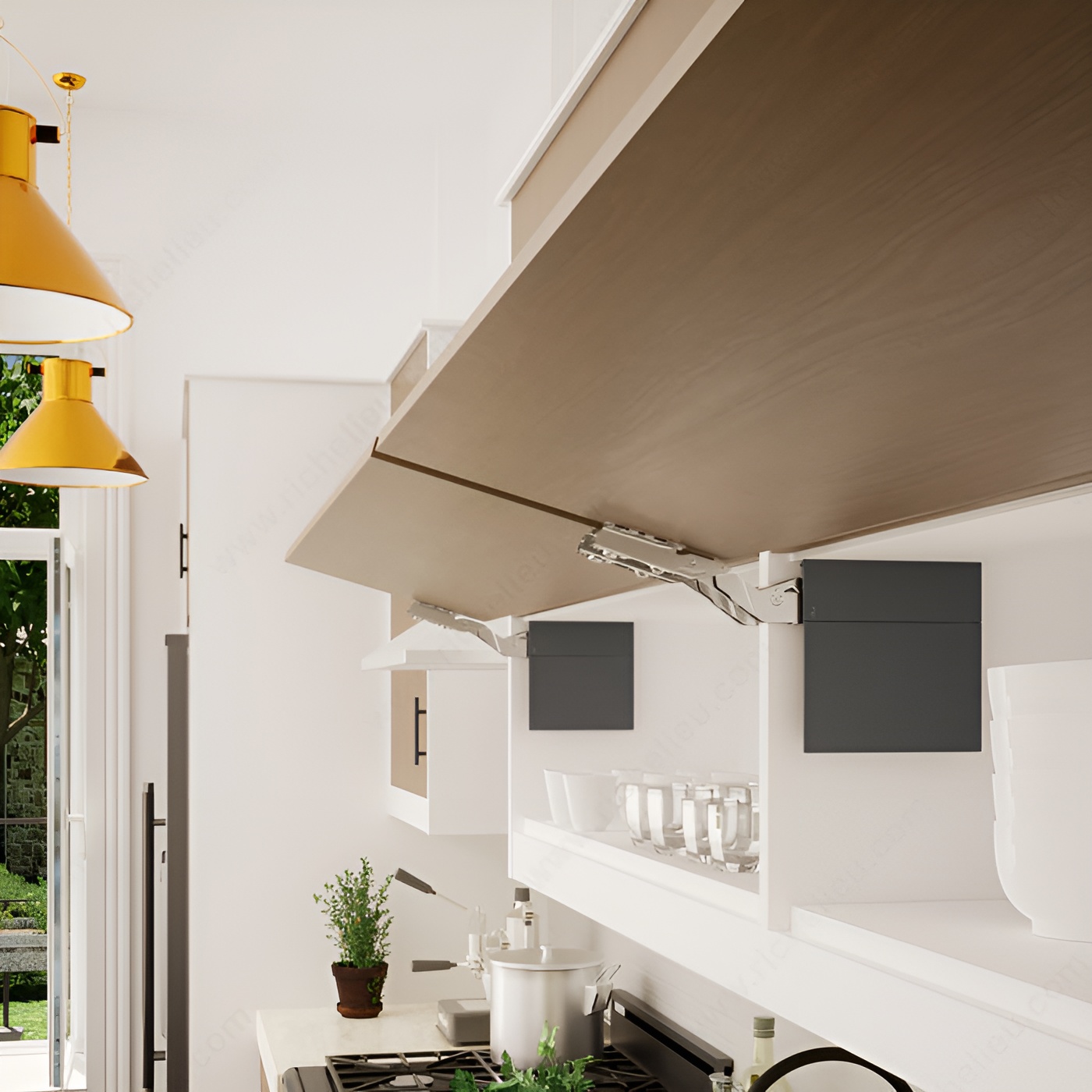

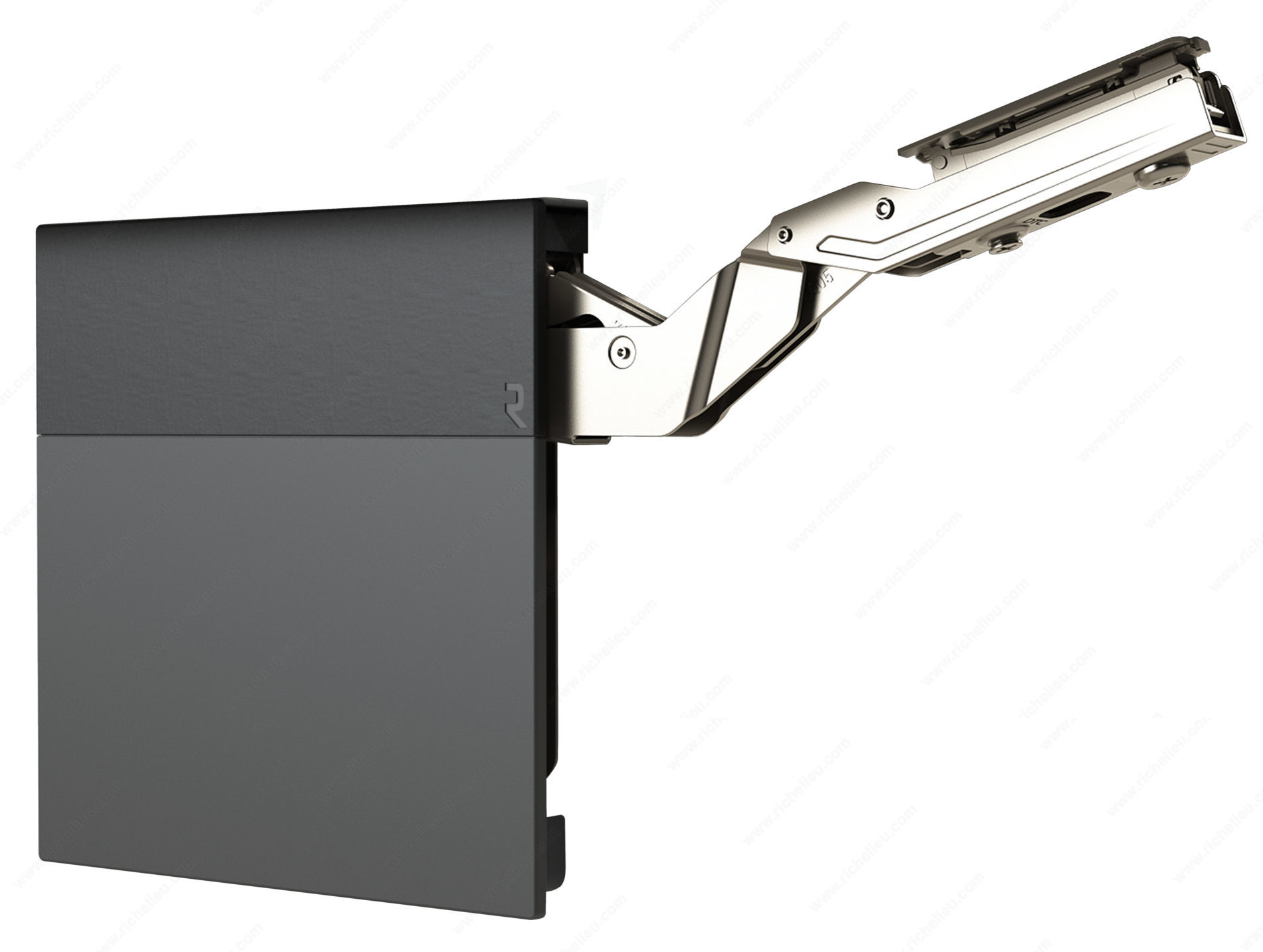

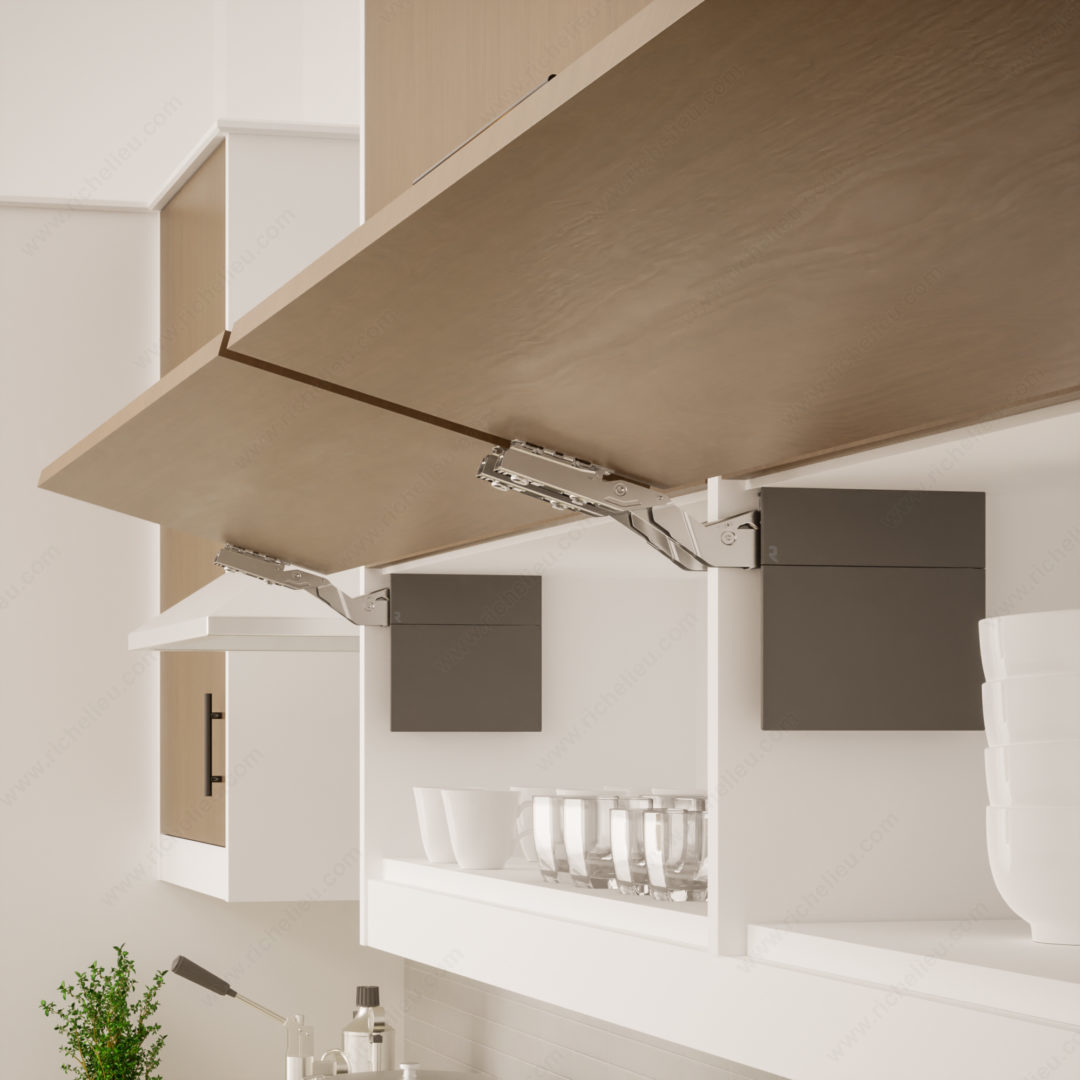

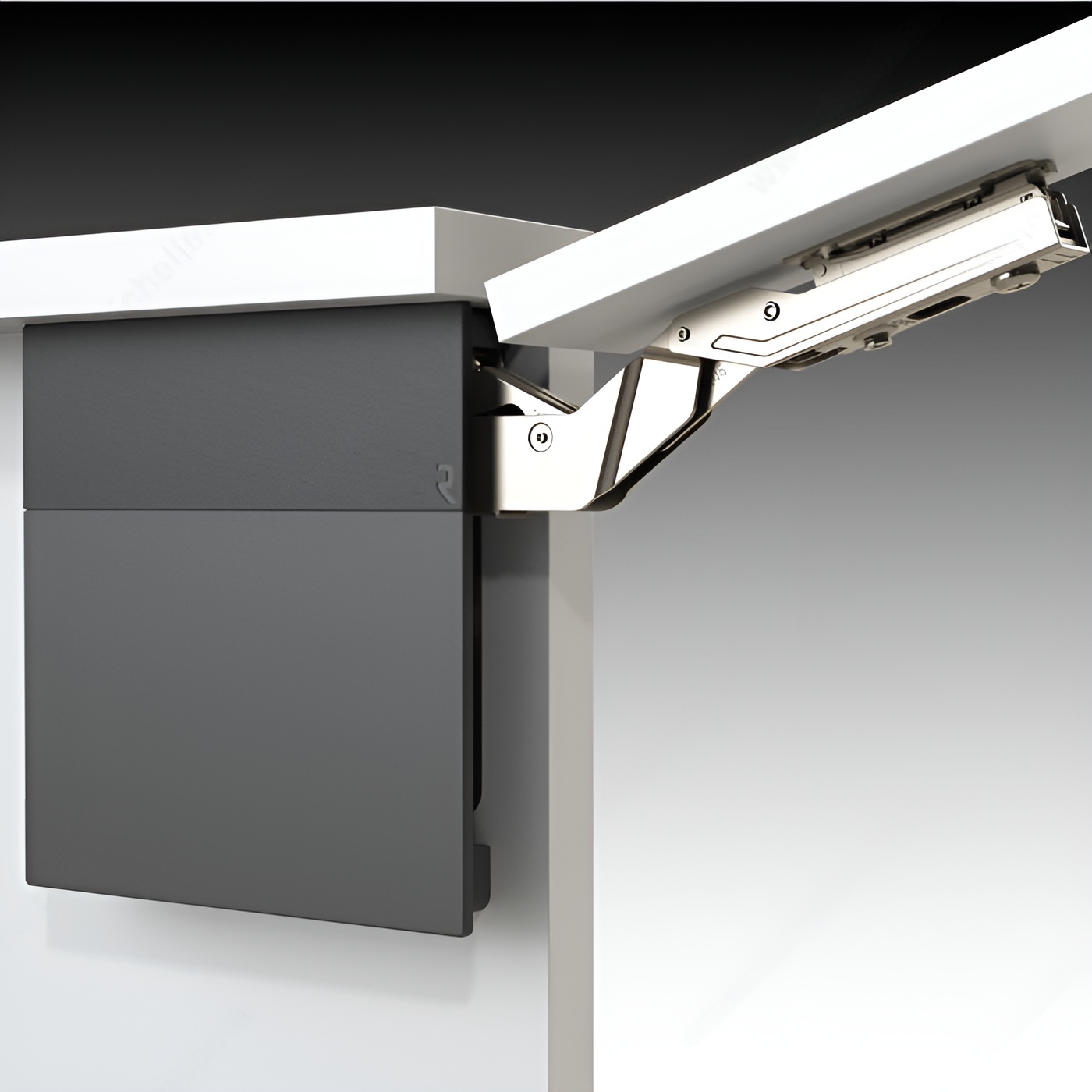

Atmos is a 107° ascending opening system that is incredibly strong and easy to install. In fact, Atmos works without any hinges! Simply screw inside your cabinet.
Discreet and elegant, this Richelieu-brand opening system is offered in three finishes:
- Black
- Gray anthracite
- Two-toned white
You can therefore choose your finish with ease to match your drawer sides and kitchen accessories. What's more, thanks to its three power factors (light, medium, and heavy charge), this system is suited to cover a wide variety of applications.
When opening Atmos, the system will stop at your chosen position. When closing Atmos, the integrated soft-close mechanism will offer a smooth movement. You can also adjust the power of the closing mechanism to adapt it to the weight and dimensions of any door.
Ideal for all your projects, Atmos adapts to meet your needs!
Attributes
Brand: Richelieu
Compatible with aluminum frame doors: Yes
Door Height: 200 to 500 mm
Door Length: 0 to 1 200 mm

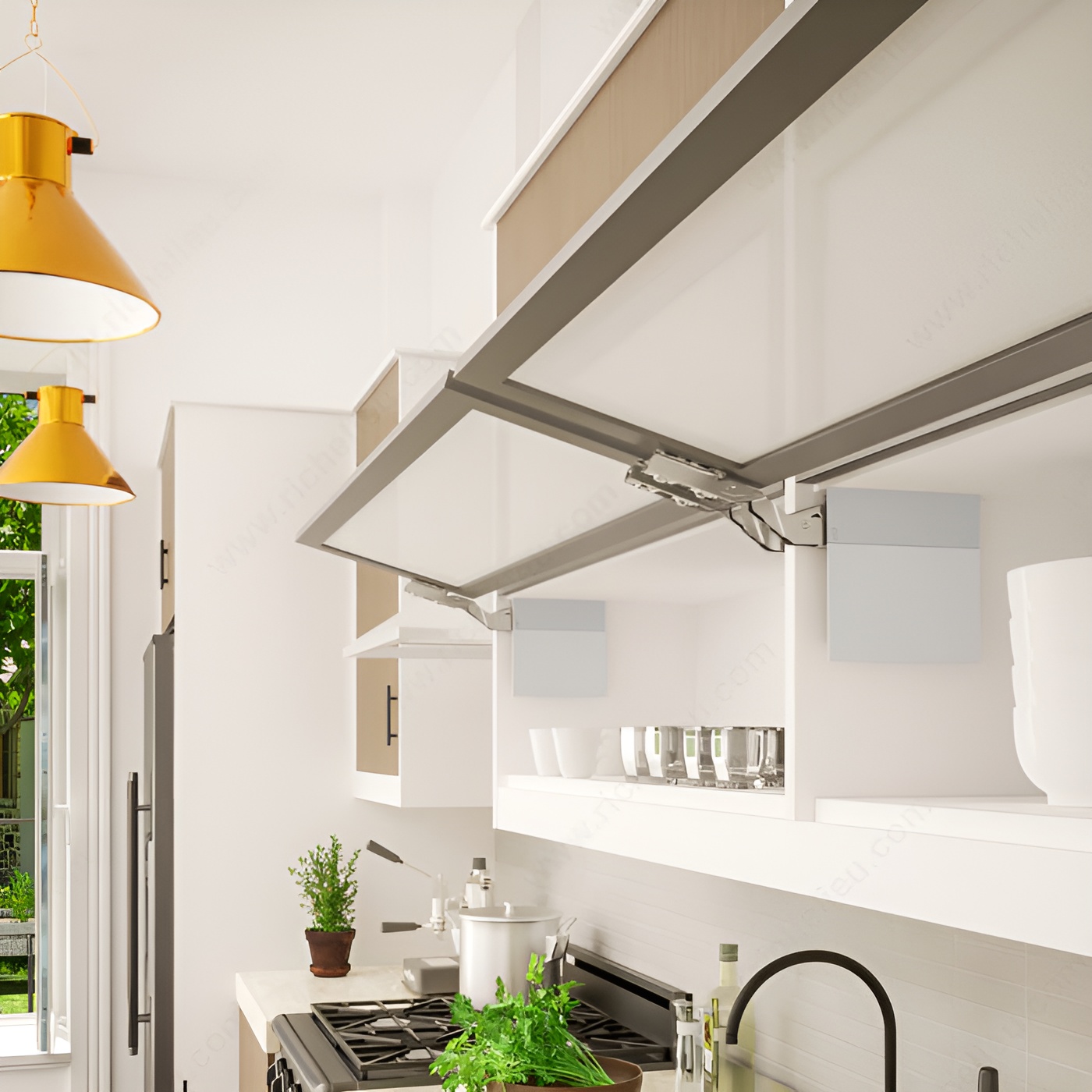

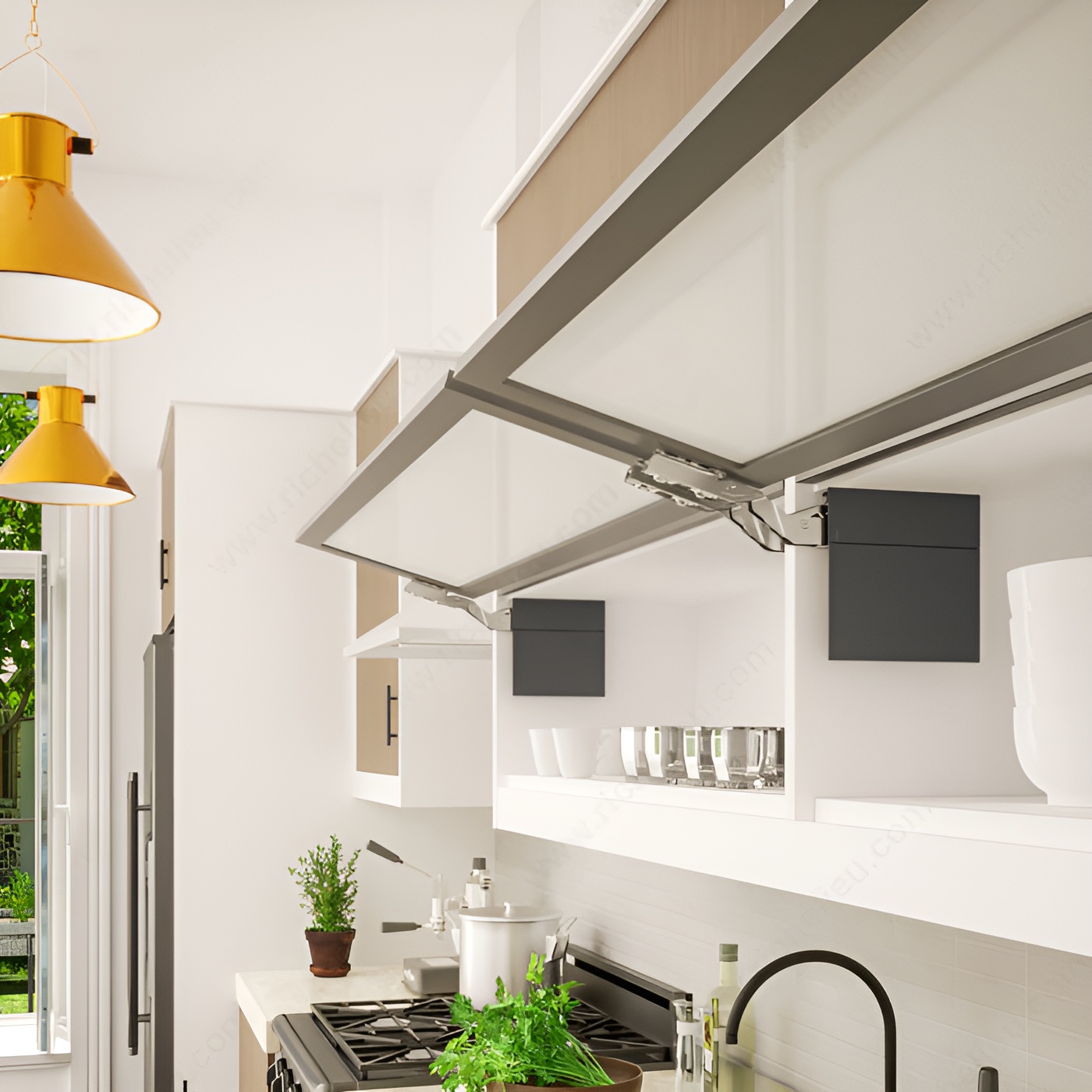

Door Type: Wood Door, Wide Aluminum-Framed Door
Finish: Dark Gray
Hinge Opening Angle: +107°
Material: Plastic, Metal
Mechanism Strength: Light Weight
Model: aiR-Atmos
Motion Technology: Soft-Close, Stay Open
Opening Angle: 107°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 580 to 1 105
Product #: AT00LD100
Product number: AT00LD100
Product №: AT00LD100
Screw/ Nail: Screw/Nail (Included)
Side: 2 Sides
Standards and Certifications: KCMA
System Name: aiR Range - Atmos Series
Unit: Set
Unit 1: case - 10
Unit 2: case - 10
