Richelieu AT00MD100 Atmos aiR SystemRichelieu AT00MD100 Atmos - aiR System is the first offering in Richelieu's innovative line of opening systems, designed to enhance functionality while maintaining an elegant aesthetic. The Atmos system features a unique 107° ascending opening mechanism that operates without hinges, making installation a breeze-simply screw it into your cabinet. Available in three sophisticated finishes-Black, Gray Anthracite, and Two-Toned White-this system allows for seamless integration with various drawer sides and kitchen accessories. The Atmos is versatile, accommodating door heights from 7 7/8 to 19 5/8 inches and lengths up to 47 1/4 inches, making it suitable for wood and wide aluminum-framed doors. The integrated soft-close mechanism ensures smooth, controlled closure, while the system's adjustable power factor-ranging from light to heavy-allows it to handle a wide variety of applications. When opening, the Atmos system pauses at your desired position, providing personalized convenience. Constructed from durable plastic and metal, the Atmos system meets KCMA standards, ensuring quality and reliability. With the ability to adapt to your project's specific needs, Richelieu AT00MD100 Atmos - aiR System is an excellent choice for professionals and discerning homeowners alike.
Atmos - aiR System
Richelieu is launching aiR, its new line of opening systems!
Atmos is the very first series from this new line of opening systems.

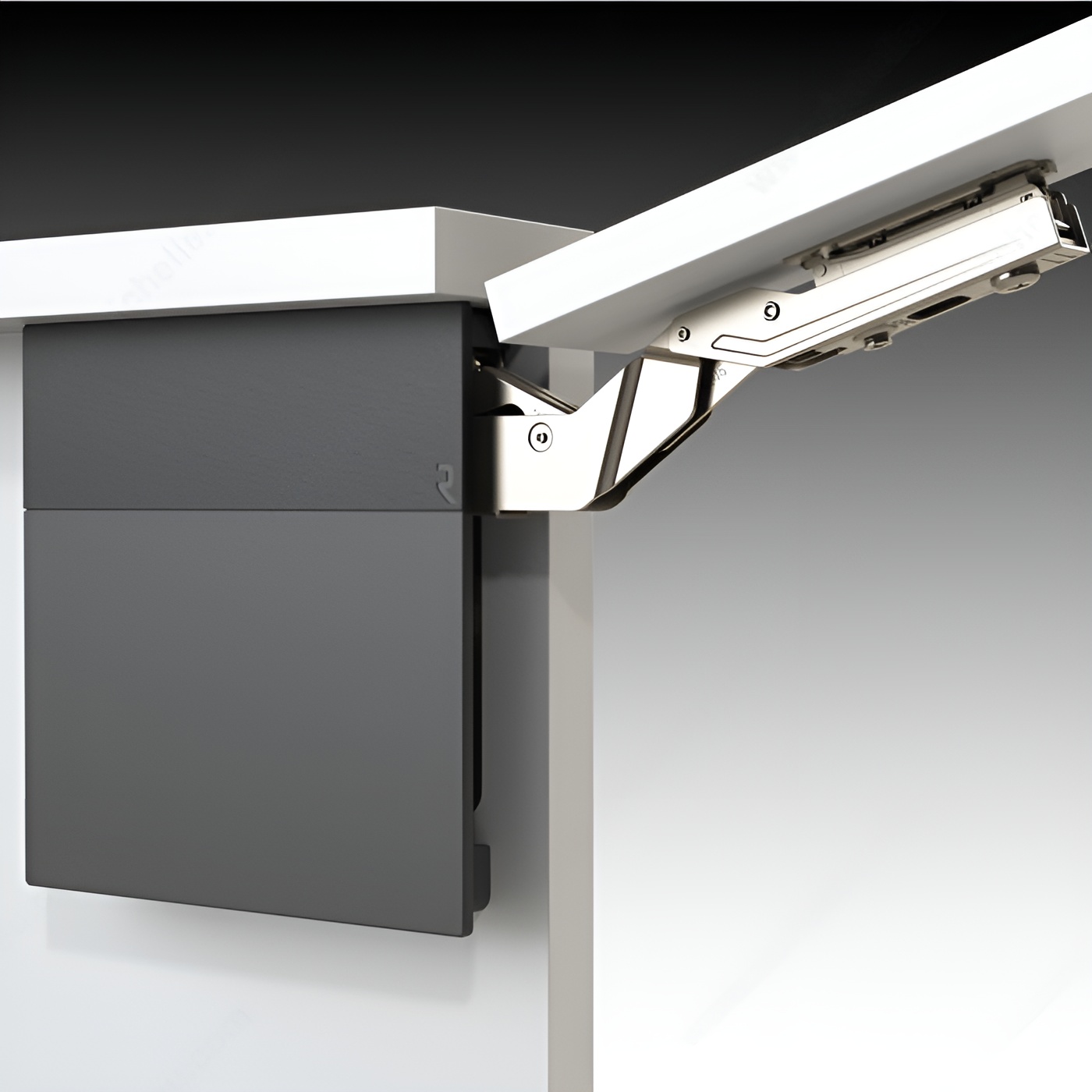

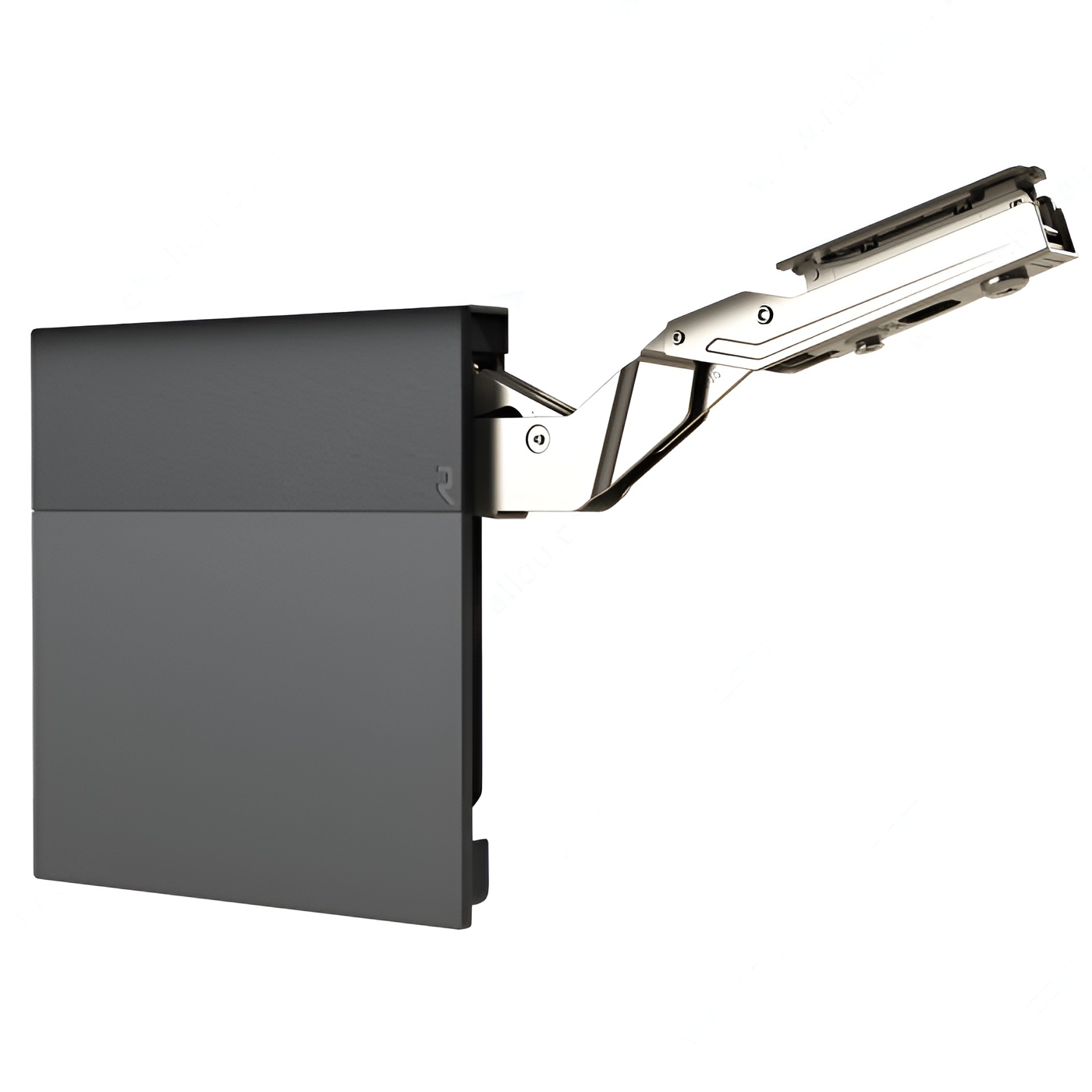

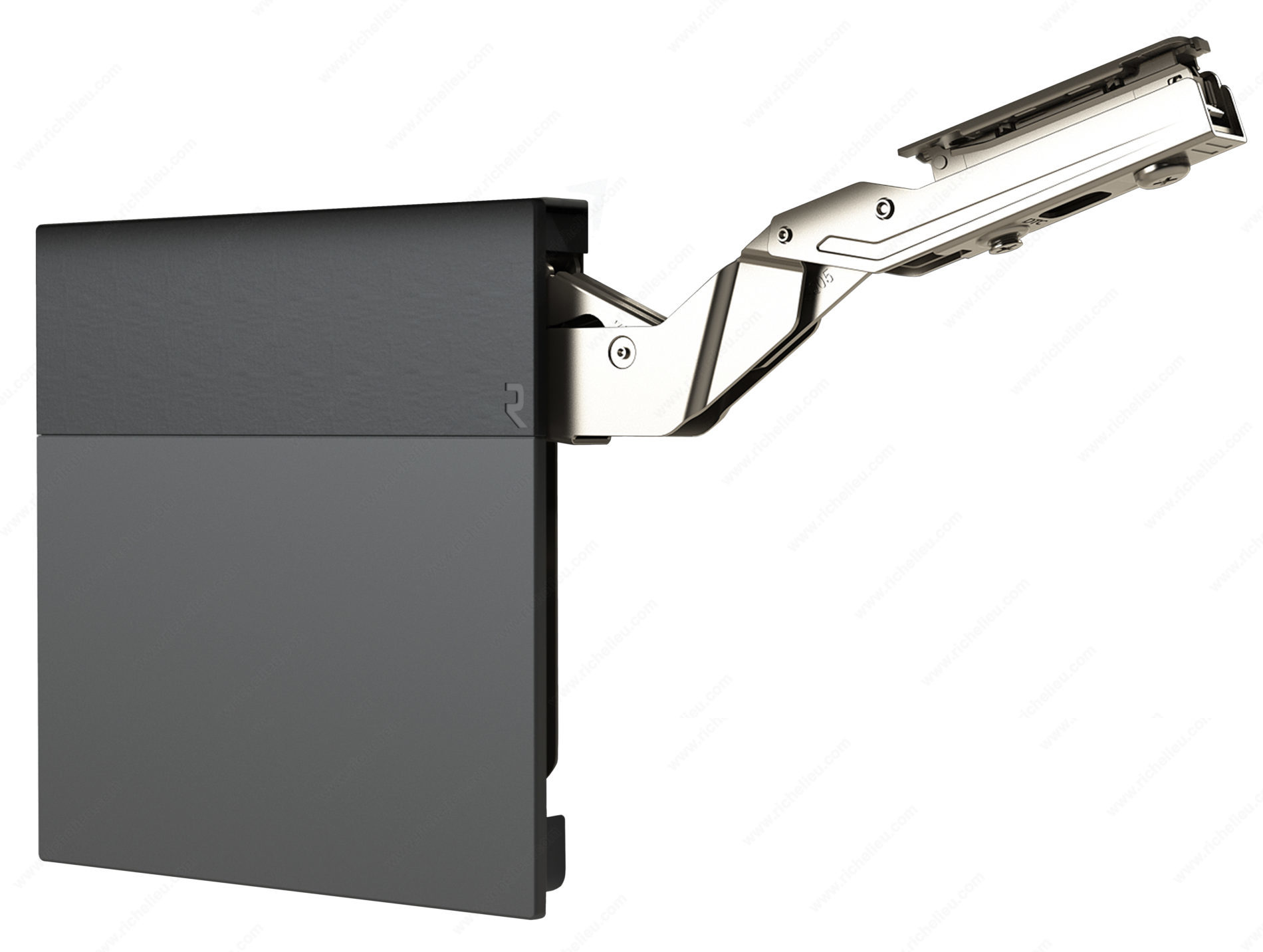

Atmos is a 107° ascending opening system that is incredibly strong and easy to install. In fact, Atmos works without any hinges! Simply screw inside your cabinet.
Discreet and elegant, this Richelieu-brand opening system is offered in three finishes:
- Black
- Gray anthracite
- Two-toned white
You can therefore choose your finish with ease to match your drawer sides and kitchen accessories. What's more, thanks to its three power factors (light, medium, and heavy charge), this system is suited to cover a wide variety of applications.
When opening Atmos, the system will stop at your chosen position. When closing Atmos, the integrated soft-close mechanism will offer a smooth movement. You can also adjust the power of the closing mechanism to adapt it to the weight and dimensions of any door.
Ideal for all your projects, Atmos adapts to meet your needs!
Attributes
Brand: Richelieu
Compatible with aluminum frame doors: Yes
Door Height: 200 to 500 mm
Door Length: 0 to 1 200 mm
Door Type: Wood Door, Wide Aluminum-Framed Door
Finish: Dark Gray
Hinge Opening Angle: +107°
Material: Plastic, Metal
Mechanism Strength: Medium Weight
Model: aiR-Atmos
Motion Technology: Soft-Close, Stay Open
Opening Angle: 107°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 1 105 to 1 920
Product #: AT00MD100
Product number: AT00MD100
Product №: AT00MD100
Screw/ Nail: Screw/Nail (Included)
Side: 2 Sides
Standards and Certifications: KCMA
System Name: aiR Range - Atmos Series
Unit: Set
Unit 1: case - 10
Unit 2: case - 10
