Richelieu AT00MD30 Atmos aiR SystemRichelieu AT00MD30 Atmos - aiR System redefines the way cabinets operate with its innovative opening mechanism. As part of Richelieu's new aiR line, the Atmos series features a robust 107° ascending opening system that eliminates the need for traditional hinges, allowing for a seamless installation. Simply screw it into your cabinetry for a clean, unobtrusive look. Offered in three sophisticated finishes-Black, Gray Anthracite, and Two-toned White-this system can easily complement your drawer sides and kitchen accessories. Its versatile design accommodates door heights ranging from 7 7/8 to 19 5/8 inches and lengths up to 47 1/4 inches, making it suitable for wood doors and wide aluminum-framed doors alike. Atmos stands out with its integrated soft-close mechanism, ensuring a smooth and controlled closing action. You can also adjust the closing power to fit the weight and dimensions of any door, enhancing functionality across various applications. With its light, medium, and heavy charge options, this system is adaptable to your specific project needs. Certified by KCMA standards, the Richelieu AT00MD30 Atmos - aiR System combines elegance with practicality, making it an ideal choice for modern cabinetry solutions.
Atmos - aiR System
Richelieu is launching aiR, its new line of opening systems!
Atmos is the very first series from this new line of opening systems.

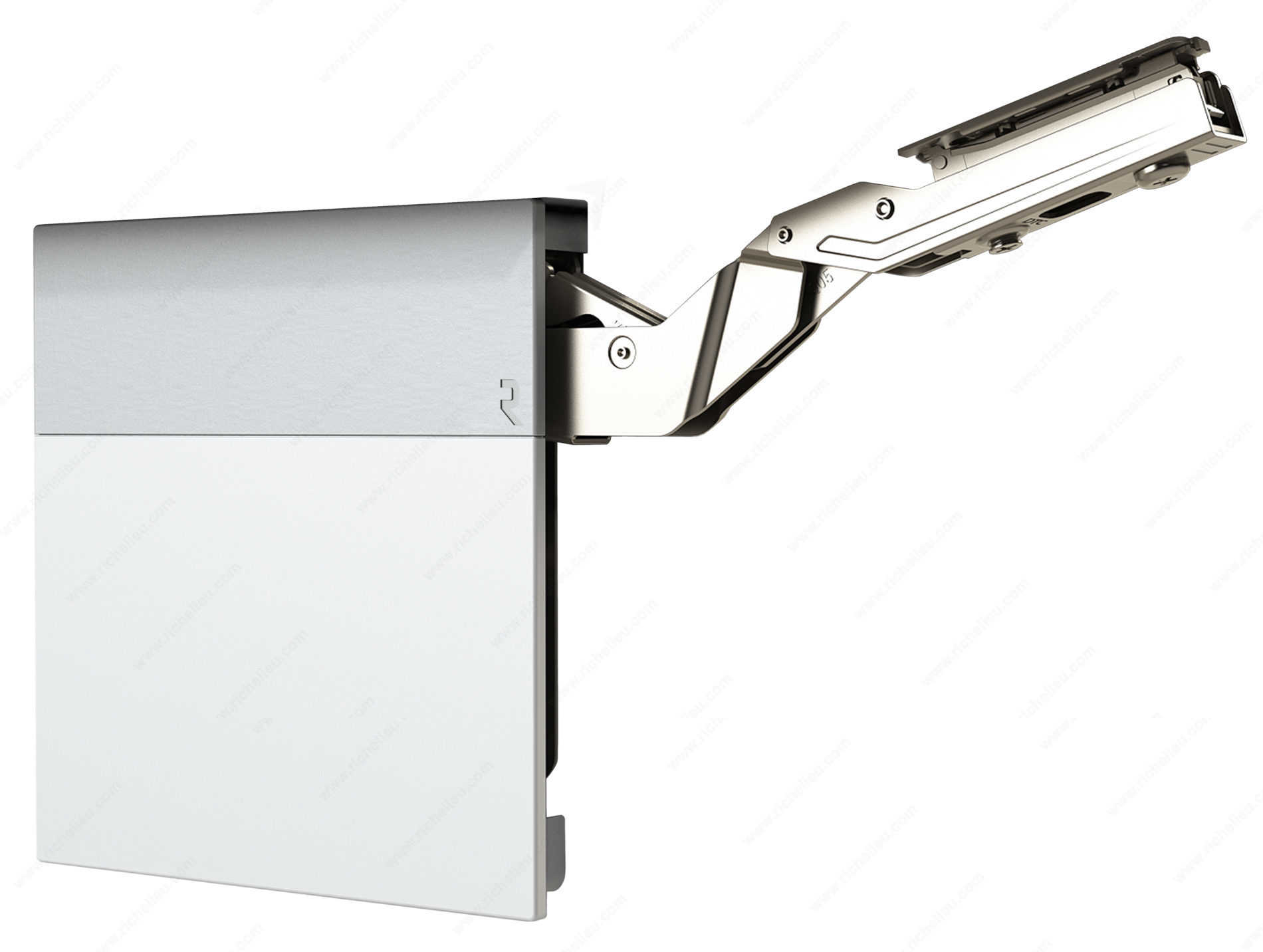

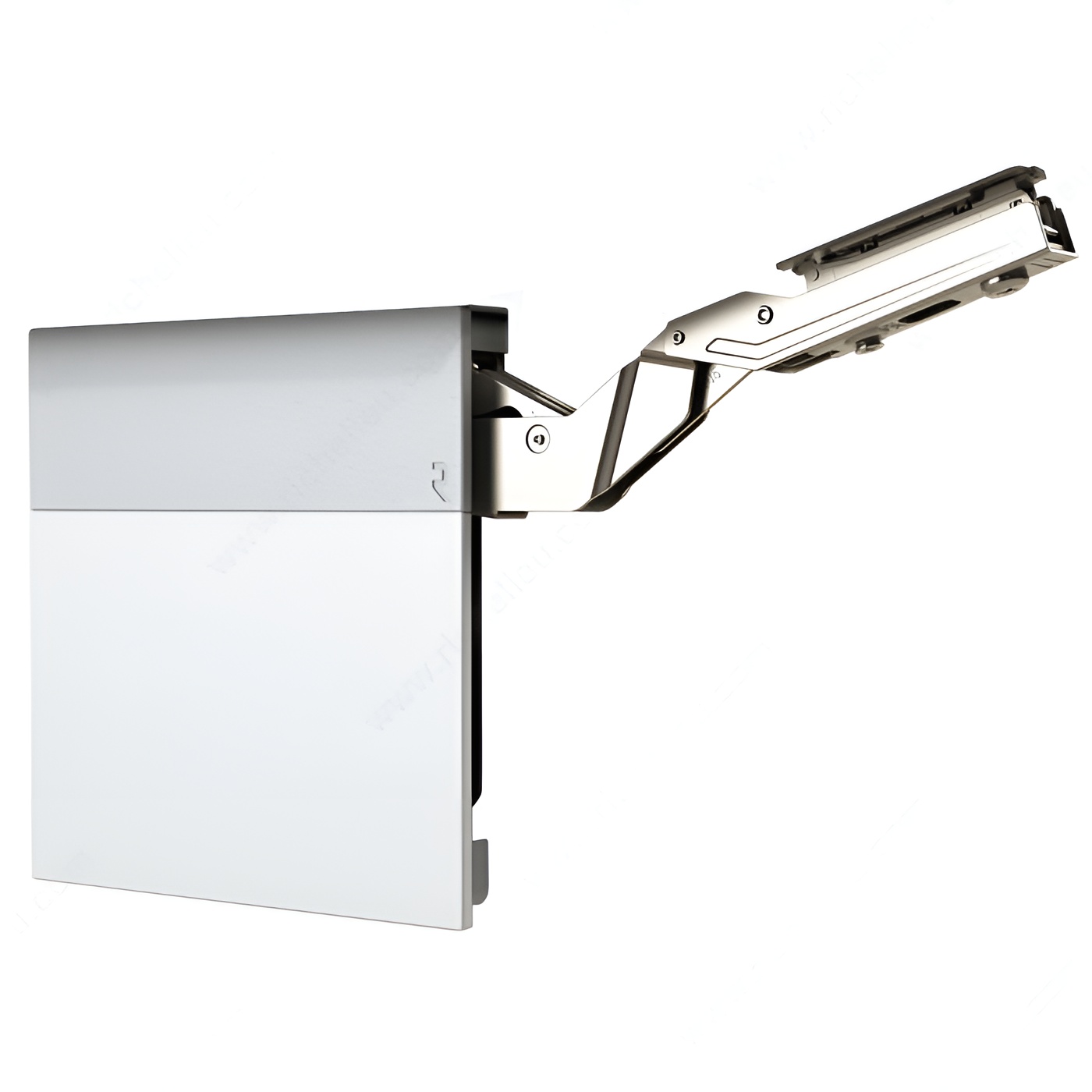

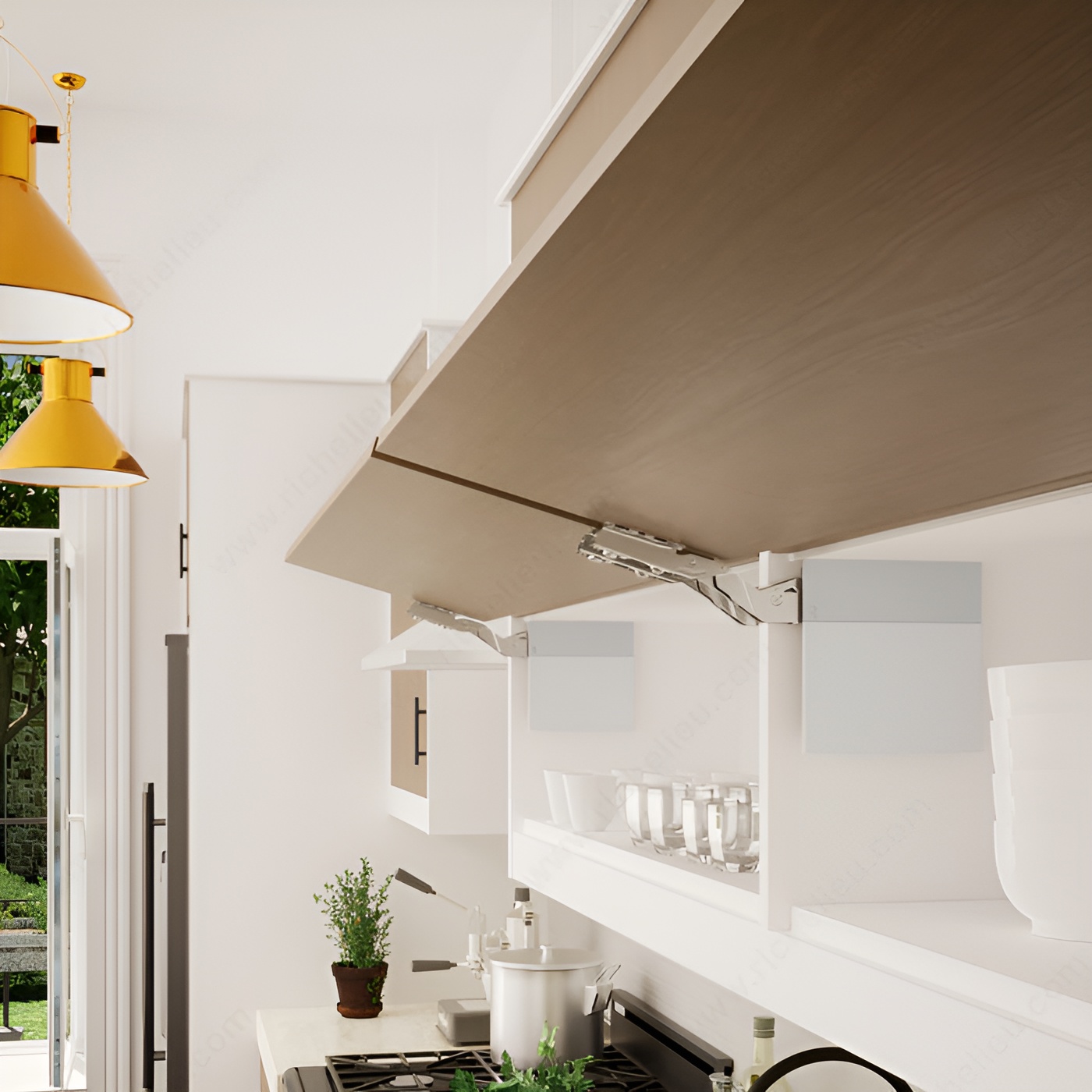

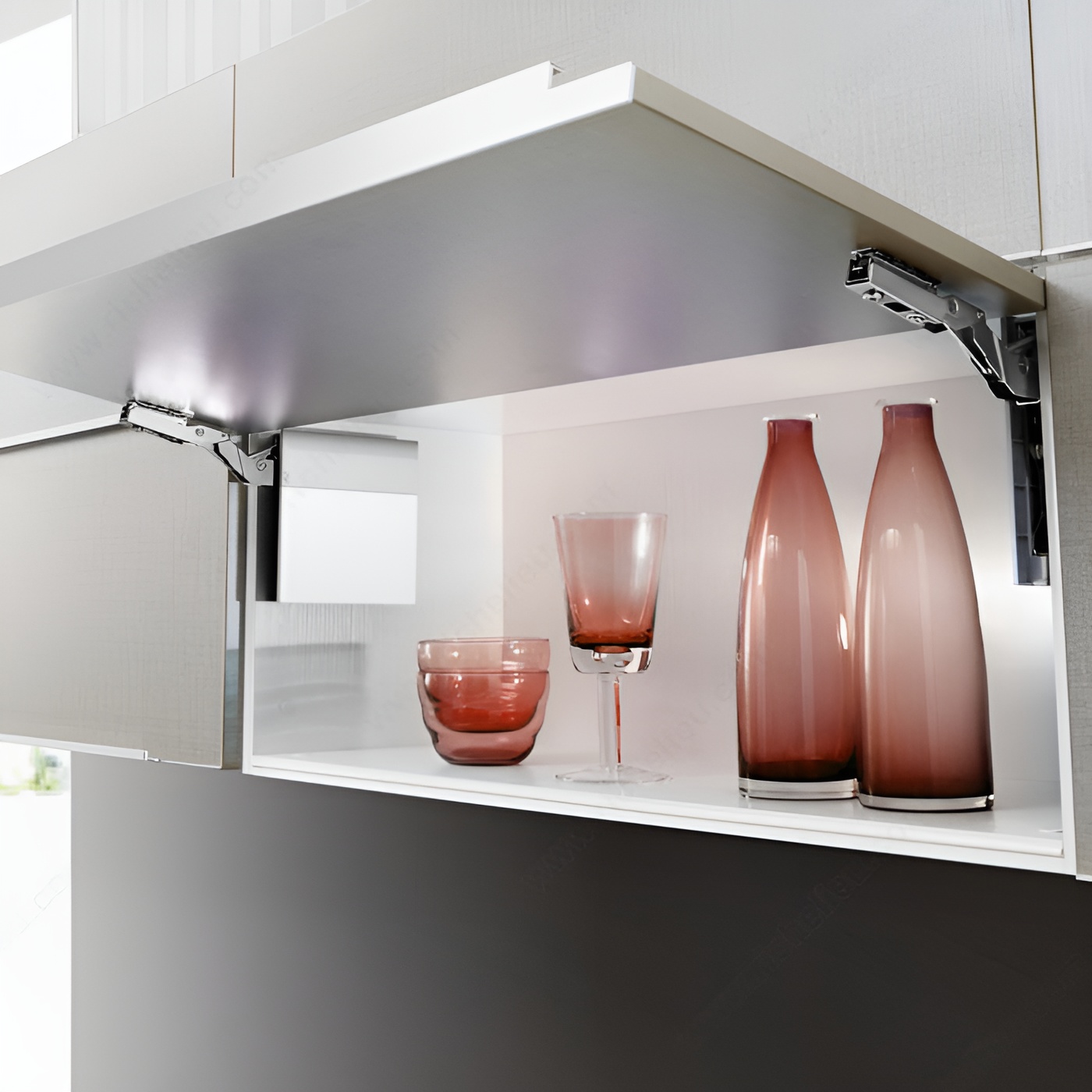

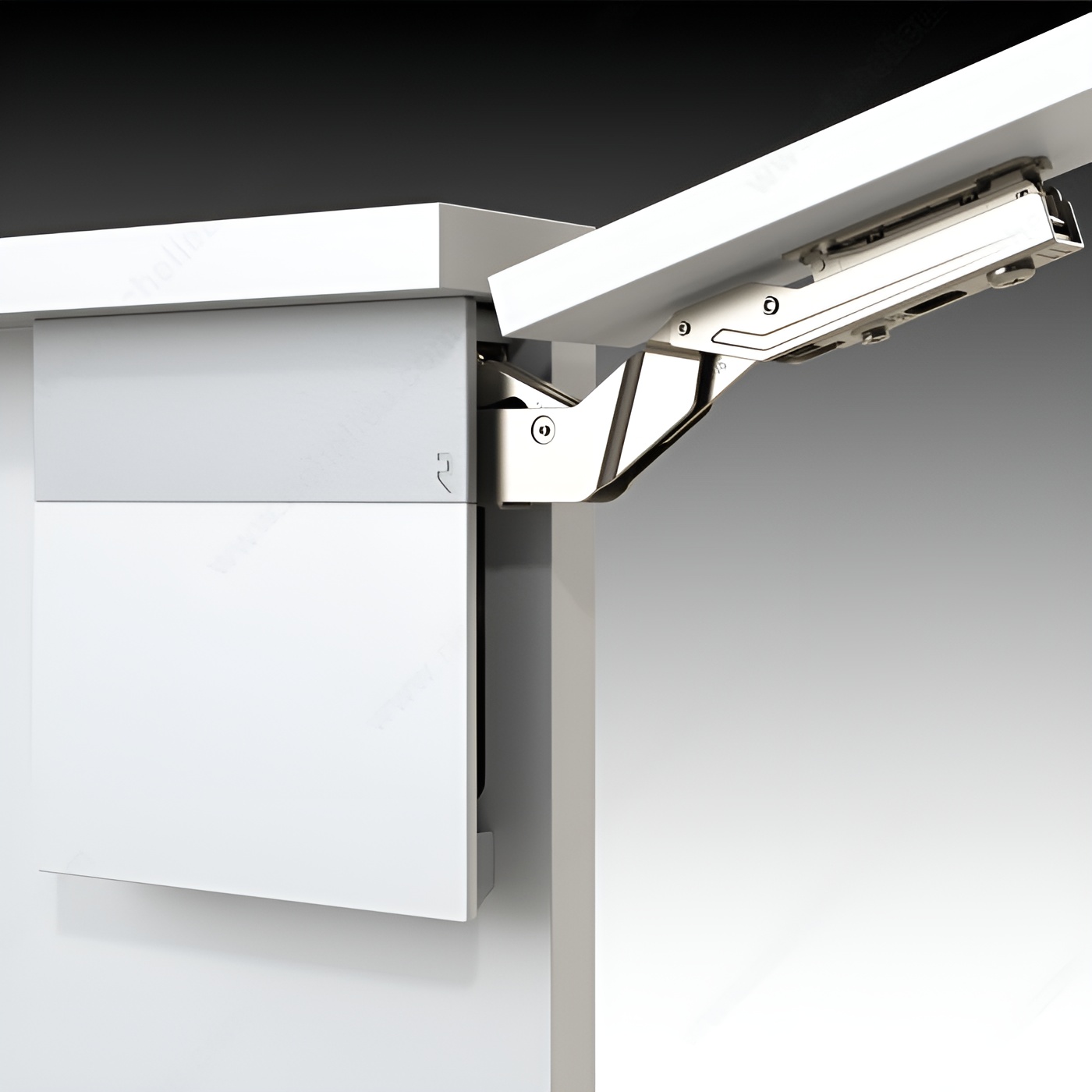

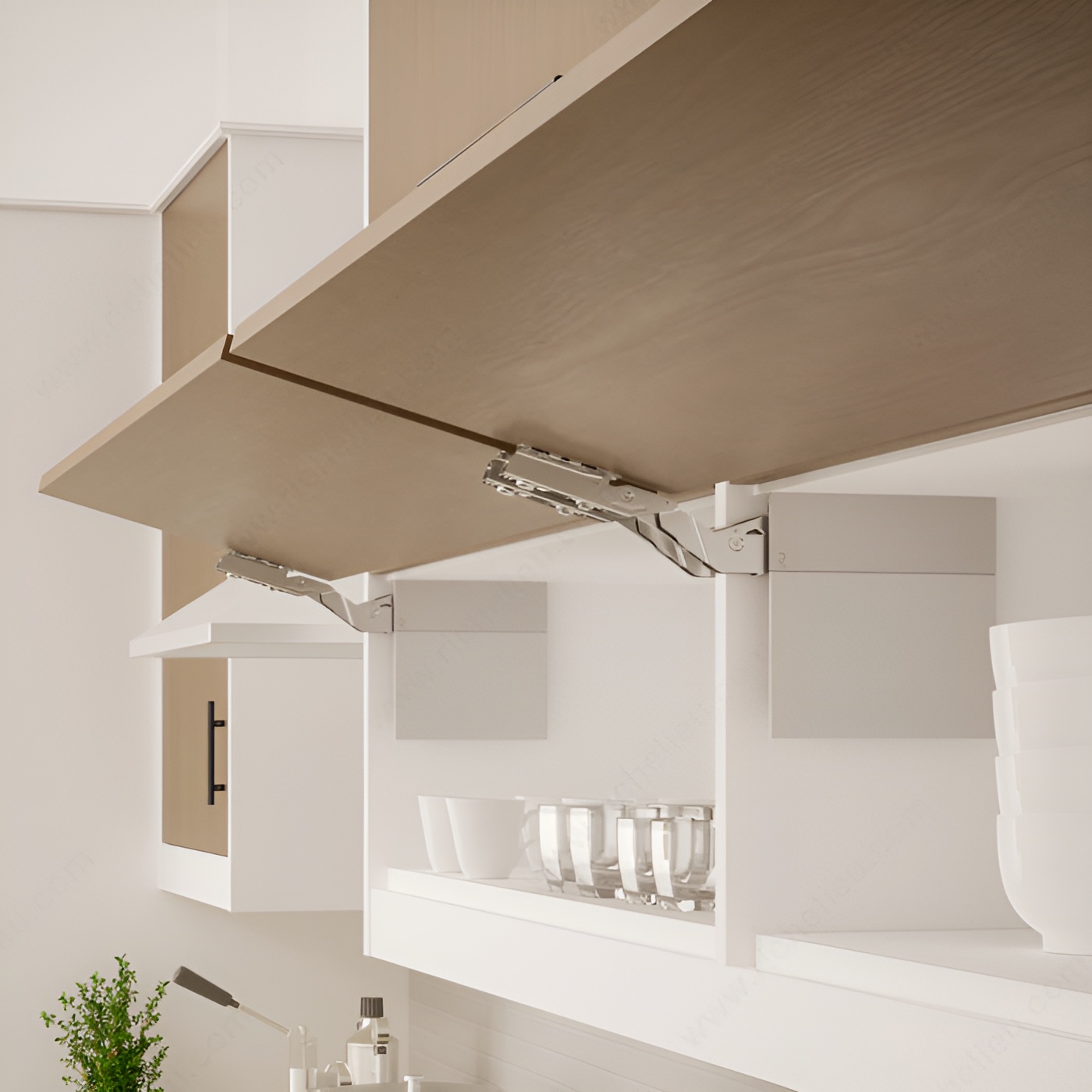

Atmos is a 107° ascending opening system that is incredibly strong and easy to install. In fact, Atmos works without any hinges! Simply screw inside your cabinet.
Discreet and elegant, this Richelieu-brand opening system is offered in three finishes:
- Black
- Gray anthracite
- Two-toned white
You can therefore choose your finish with ease to match your drawer sides and kitchen accessories. What's more, thanks to its three power factors (light, medium, and heavy charge), this system is suited to cover a wide variety of applications.
When opening Atmos, the system will stop at your chosen position. When closing Atmos, the integrated soft-close mechanism will offer a smooth movement. You can also adjust the power of the closing mechanism to adapt it to the weight and dimensions of any door.
Ideal for all your projects, Atmos adapts to meet your needs!
Attributes
Brand: Richelieu
Compatible with aluminum frame doors: Yes
Door Height: 200 to 500 mm
Door Length: 0 to 1 200 mm

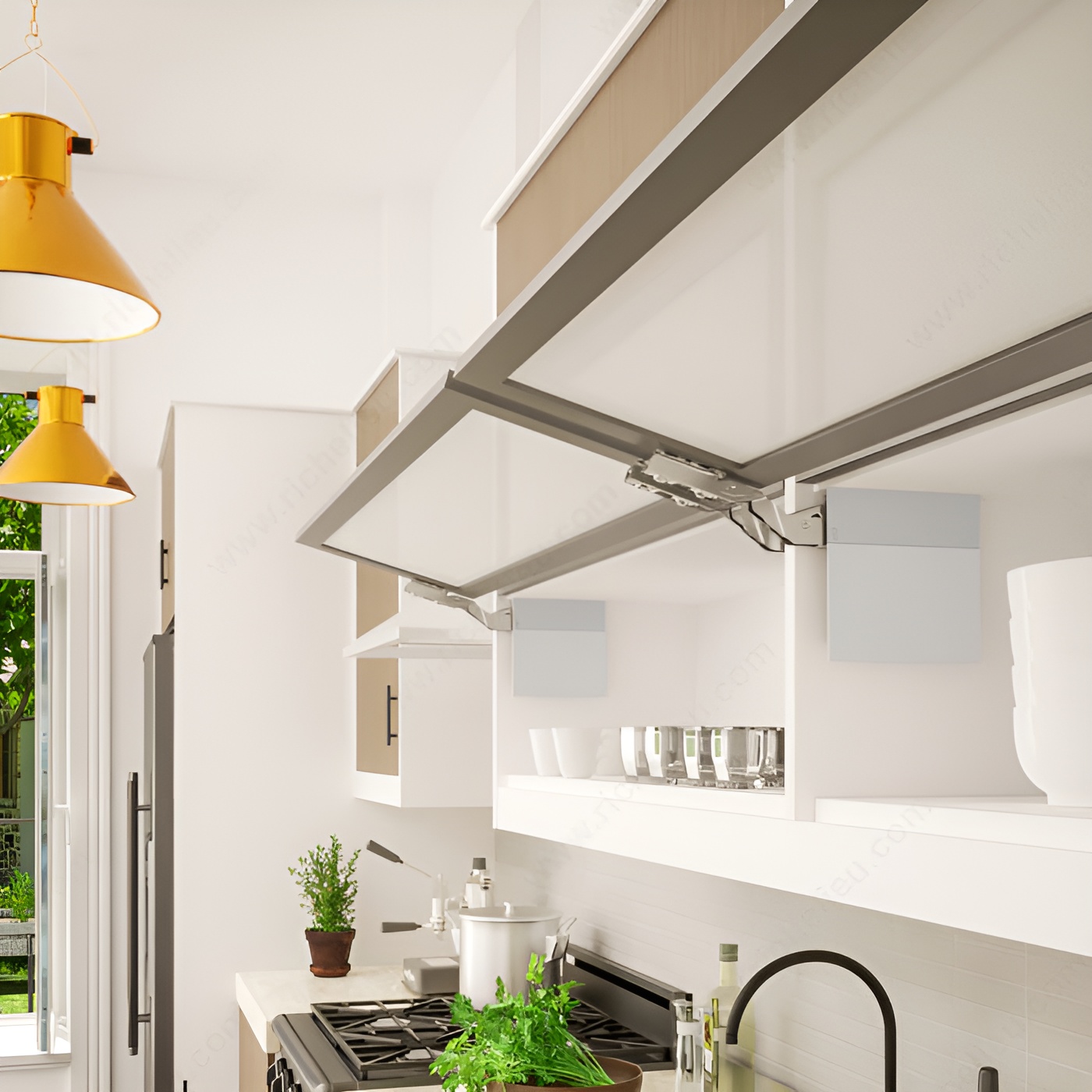

Door Type: Wood Door, Wide Aluminum-Framed Door
Finish: Silk White/Dust Gray
Hinge Opening Angle: +107°
Material: Plastic, Metal
Mechanism Strength: Medium Weight
Model: aiR-Atmos
Motion Technology: Soft-Close, Stay Open
Opening Angle: 107°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 1 105 to 1 920
Product #: AT00MD30
Product number: AT00MD30
Product №: AT00MD30
Screw/ Nail: Screw/Nail (Included)
Side: 2 Sides
Standards and Certifications: KCMA
System Name: aiR Range - Atmos Series
Unit: Set
Unit 1: case - 10
Unit 2: case - 10
