Richelieu AT00MD900 Atmos aiR SystemRichelieu AT00MD900 Atmos - aiR System redefines convenience with its innovative 107° ascending opening mechanism that requires no hinges for installation. This discreet and elegant system simply screws into your cabinetry, making it exceptionally user-friendly for both professionals and DIY enthusiasts. Available in three stylish finishes-Black, Gray Anthracite, and Two-Toned White-Atmos ensures you can easily match it to your drawer sides and kitchen accessories. Designed to accommodate a wide range of applications, the Atmos system features three power factors (light, medium, and heavy charge), making it suitable for various door sizes and weights. With a door height capacity of 7 7/8 to 19 5/8 inches and a length of up to 47 1/4 inches, it can handle both wood and wide aluminum-framed doors effortlessly. The integrated soft-close mechanism offers smooth operation, and you can adjust the closing power to suit the dimensions and weight of any door. When opened, Atmos will stay in your desired position, providing both functionality and ease of use. Certified by KCMA, this system is an ideal choice for any project requiring reliable and stylish door solutions. Enhance your space with the Richelieu Atmos System today.
Atmos - aiR System
Richelieu is launching aiR, its new line of opening systems!
Atmos is the very first series from this new line of opening systems.

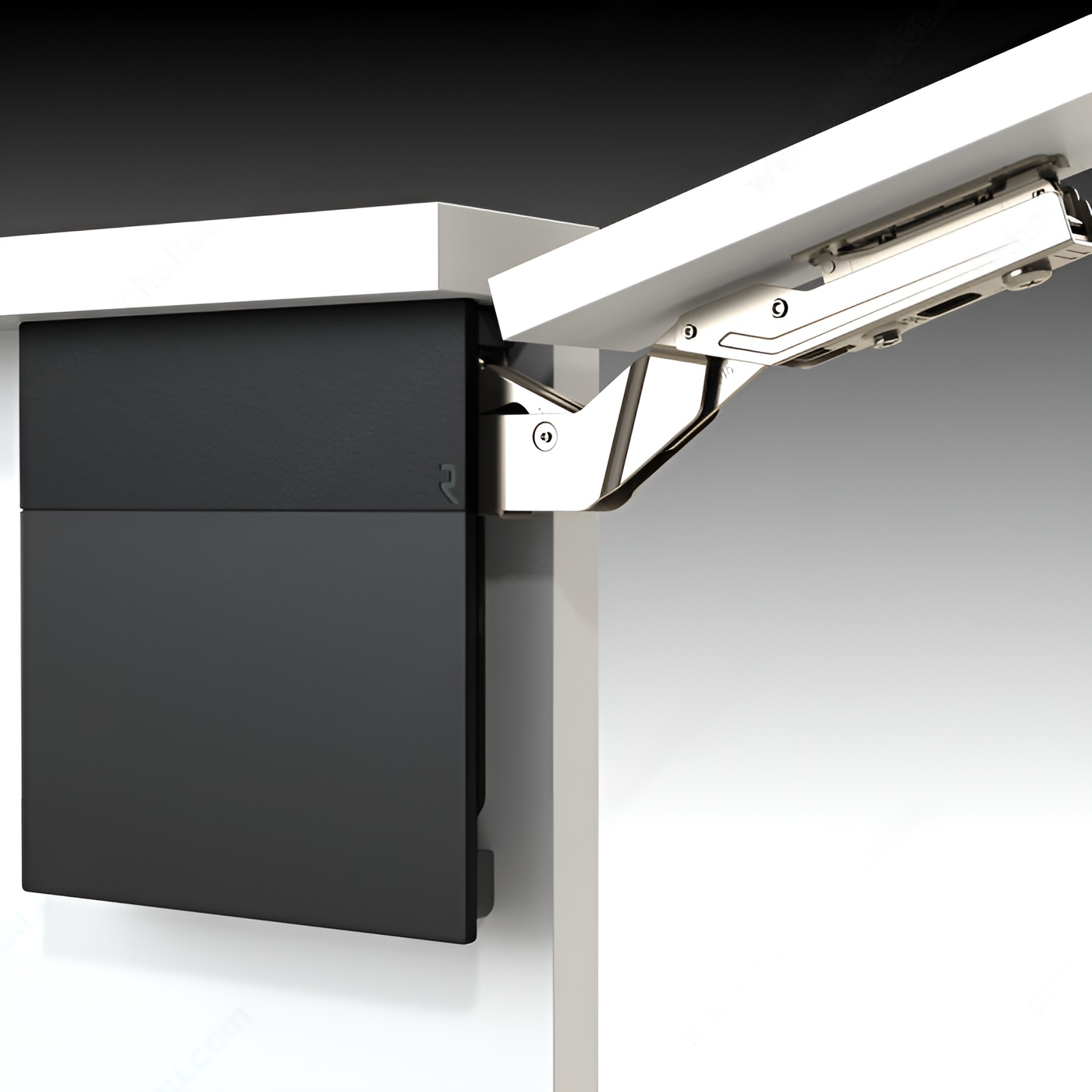

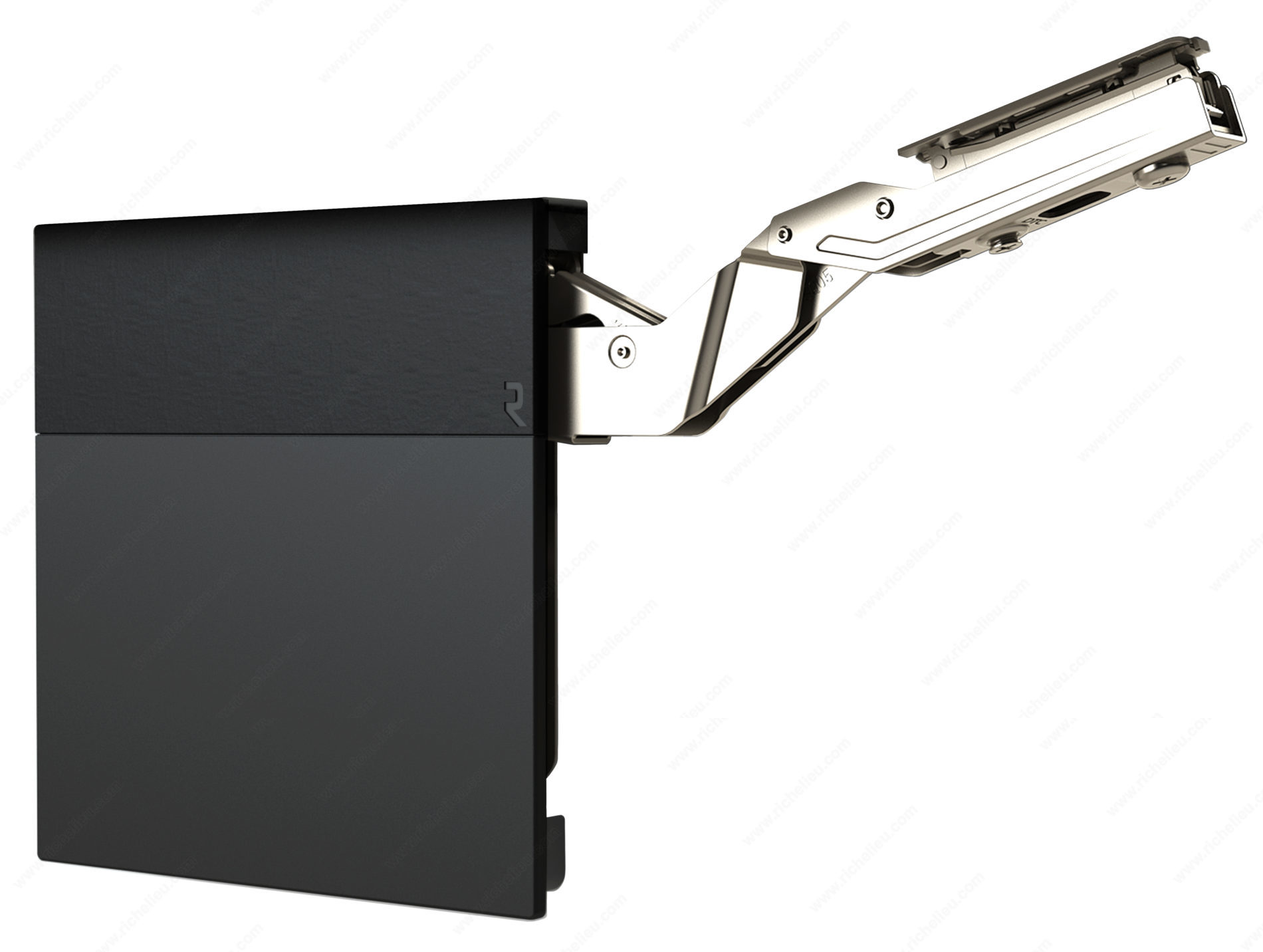

Atmos is a 107° ascending opening system that is incredibly strong and easy to install. In fact, Atmos works without any hinges! Simply screw inside your cabinet.
Discreet and elegant, this Richelieu-brand opening system is offered in three finishes:
- Black
- Gray anthracite
- Two-toned white
You can therefore choose your finish with ease to match your drawer sides and kitchen accessories. What's more, thanks to its three power factors (light, medium, and heavy charge), this system is suited to cover a wide variety of applications.
When opening Atmos, the system will stop at your chosen position. When closing Atmos, the integrated soft-close mechanism will offer a smooth movement. You can also adjust the power of the closing mechanism to adapt it to the weight and dimensions of any door.
Ideal for all your projects, Atmos adapts to meet your needs!
Attributes
Brand: Richelieu
Compatible with aluminum frame doors: Yes
Door Height: 200 to 500 mm
Door Length: 0 to 1 200 mm
Door Type: Wood Door, Wide Aluminum-Framed Door
Finish: Black
Hinge Opening Angle: +107°
Material: Plastic, Metal
Mechanism Strength: Medium Weight
Model: aiR-Atmos
Motion Technology: Soft-Close, Stay Open
Opening Angle: 107°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 1 105 to 1 920
Product #: AT00MD900
Product number: AT00MD900
Product №: AT00MD900
Screw/ Nail: Screw/Nail (Included)
Side: 2 Sides
Standards and Certifications: KCMA
System Name: aiR Range - Atmos Series
Unit: Set
Unit 1: case - 10
Unit 2: case - 10
