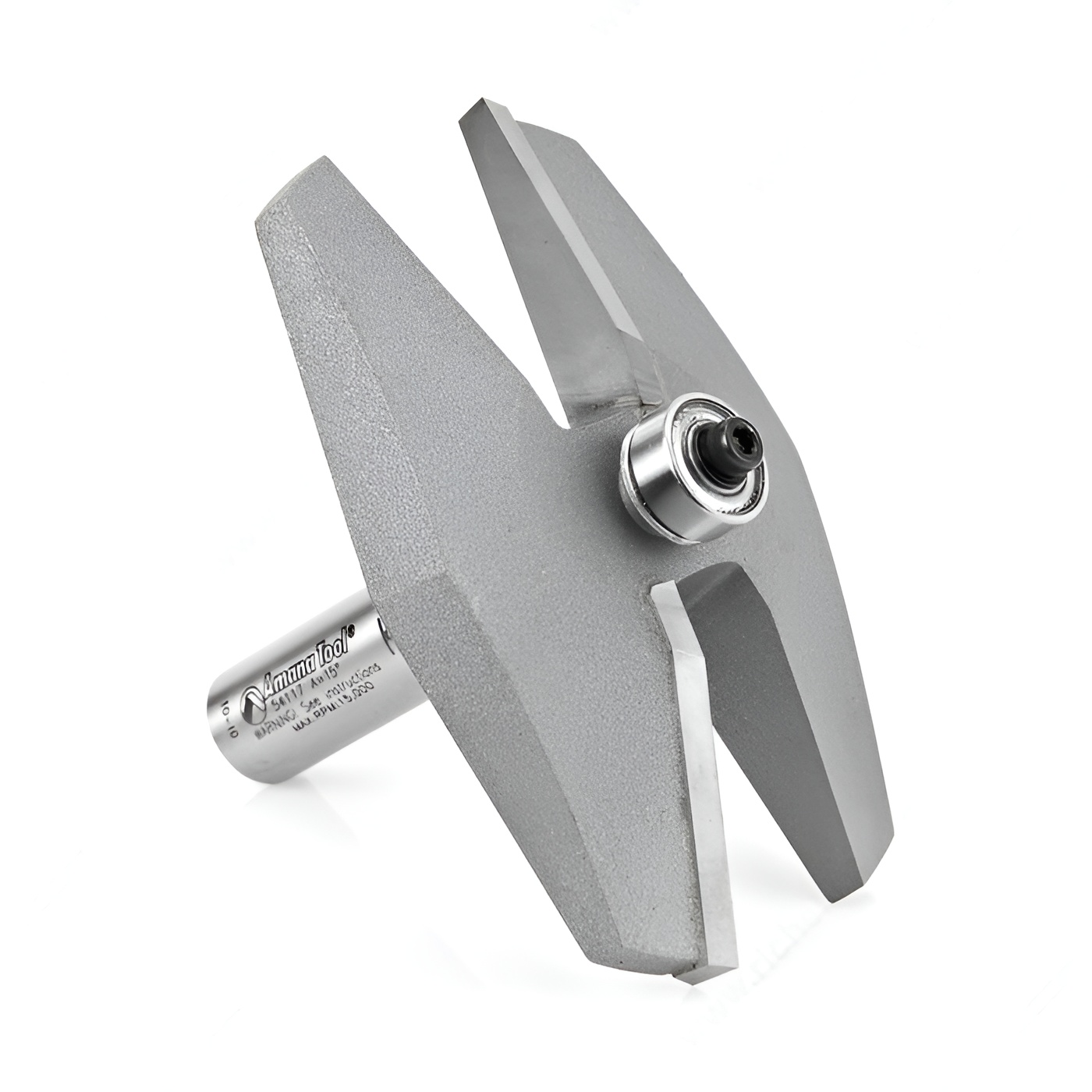

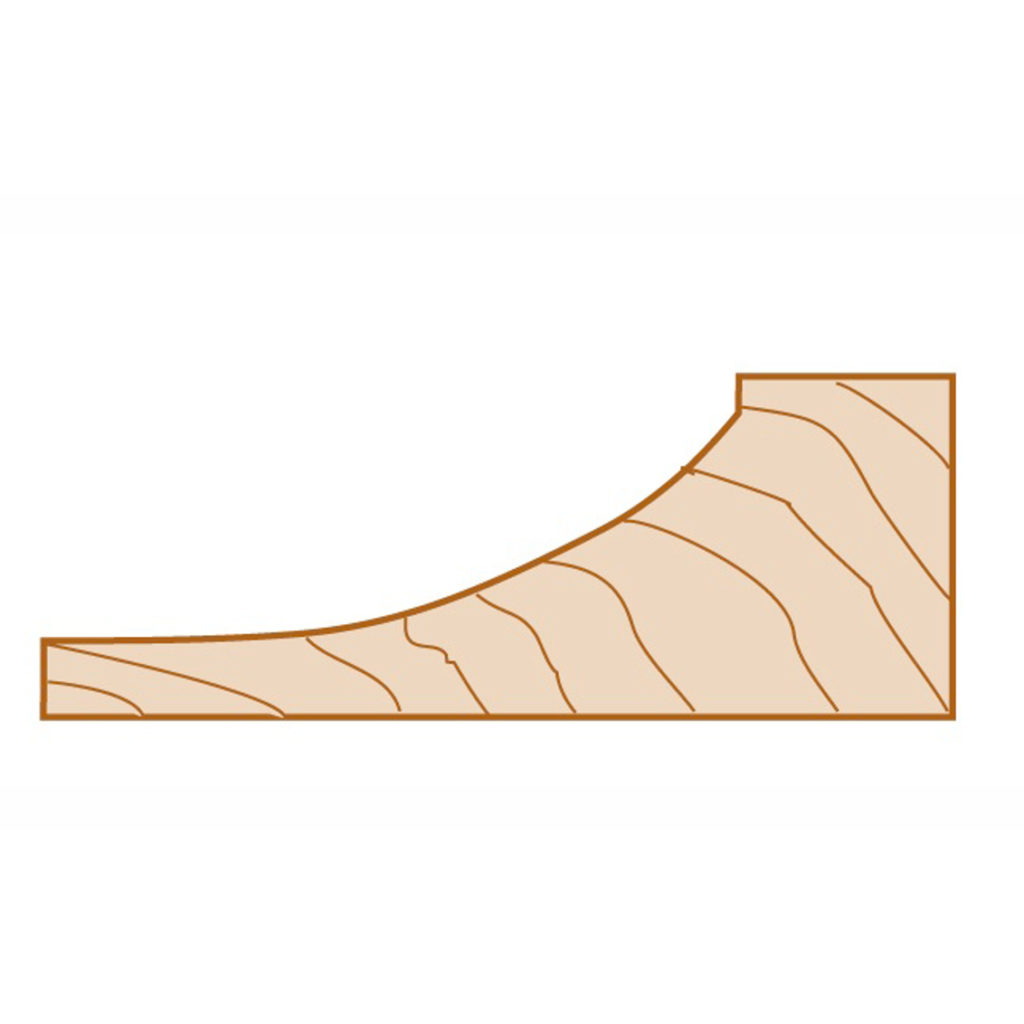

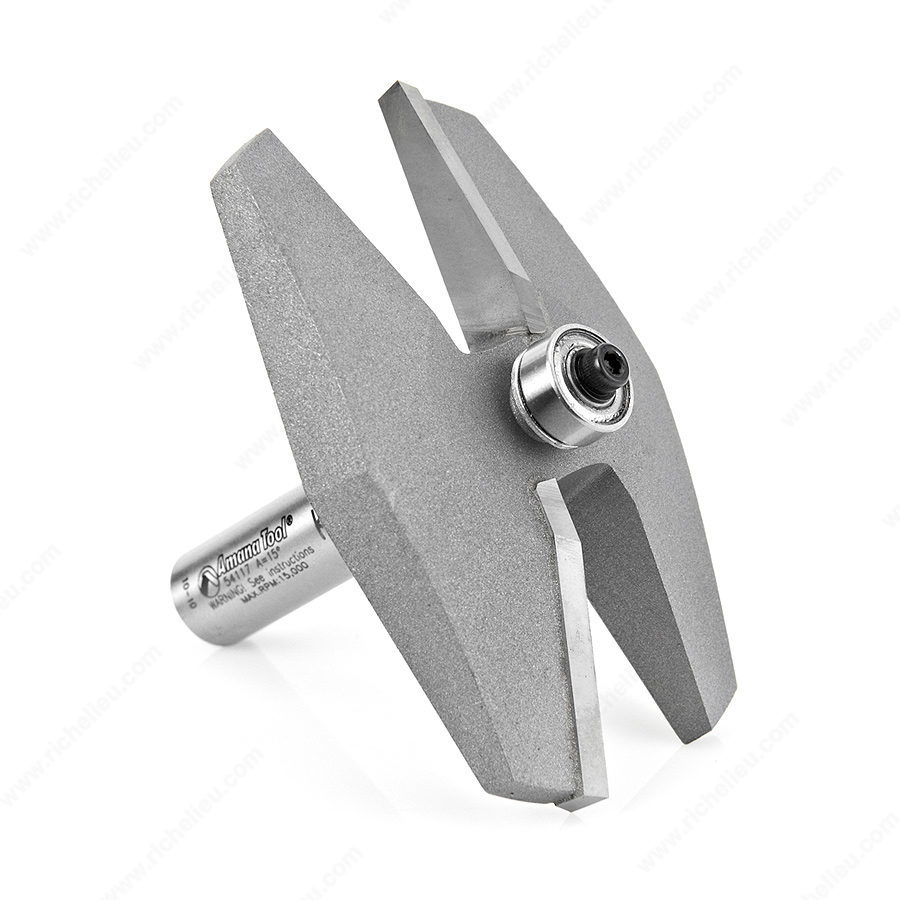

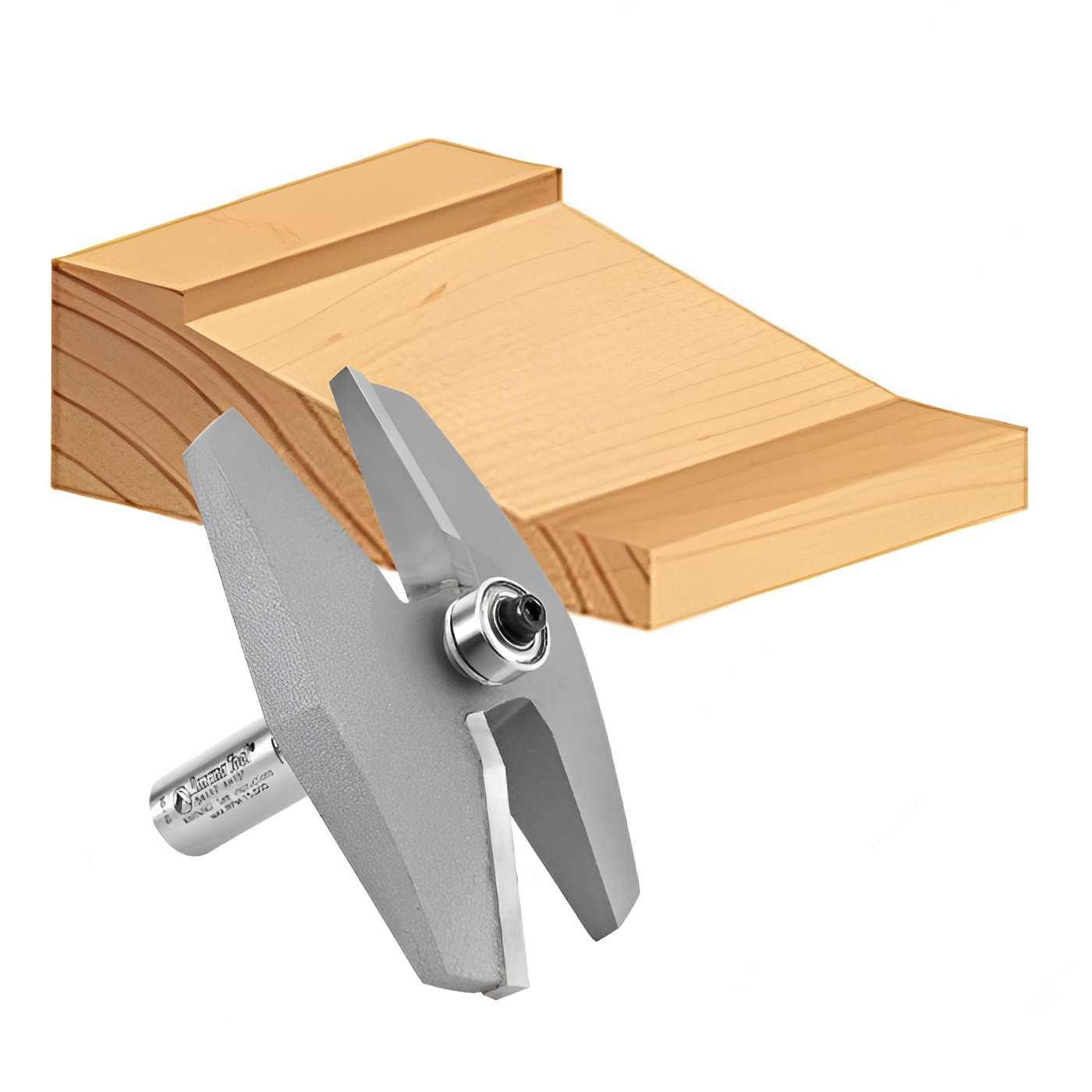

Richelieu AT54117 Traditional Raised Panel Bit is your go-to tool for creating elegantly raised panels on cabinet doors, frame-and-panel furniture, and architectural paneling. Designed for precision, this router bit features a cutter that forms a fillet to clearly delineate the raised field, complemented by a shaped band around the perimeter. An integral tongue ensures a perfect fit within the panel groove of frame members, making it ideal for projects requiring attention to detail. With a cut diameter of 3 3/8 inches and an overall length of 2 3/8 inches, this carbide-tipped bit excels in profiling and rabbeting applications. It is designed to be used with a table-mounted router of 3+ horsepower, operating at a maximum RPM of 14,000 and at reduced speeds for optimal performance. Multiple passes are recommended, especially for panels with curved edges, ensuring a smooth and professional finish. The versatility of the Richelieu AT54117 extends to solid hardwood, softwood, MDF plywood, and even abrasive materials like plastic and Corian. Its sturdy 1/2-inch shank ensures compatibility with both portable and stationary routing machines. Elevate your woodworking projects with this essential raised panel bit from Richelieu.
Traditional Raised Panel Bit
Angle: 15°
Application: Profiling and Rabbeting
Brand: Amana
Cut Diameter: 3 3/8 in
Material: Carbide Tipped
Overall Length: 2 3/8 in
Product #: AT54117
Product number: AT54117
Product №: AT54117
Shank: 1/2 in
Shank Diameter: 1/2 in
Tool: Router
