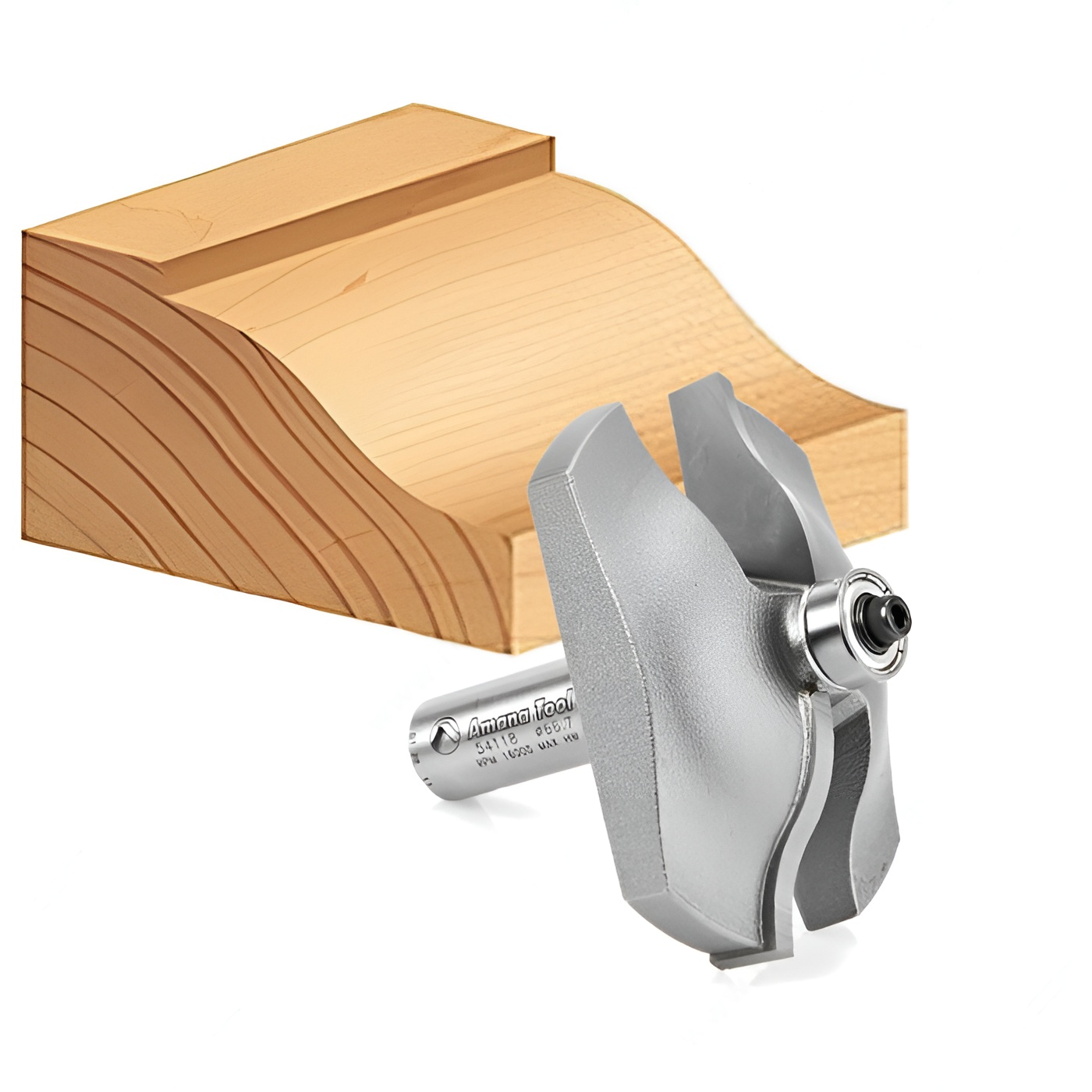

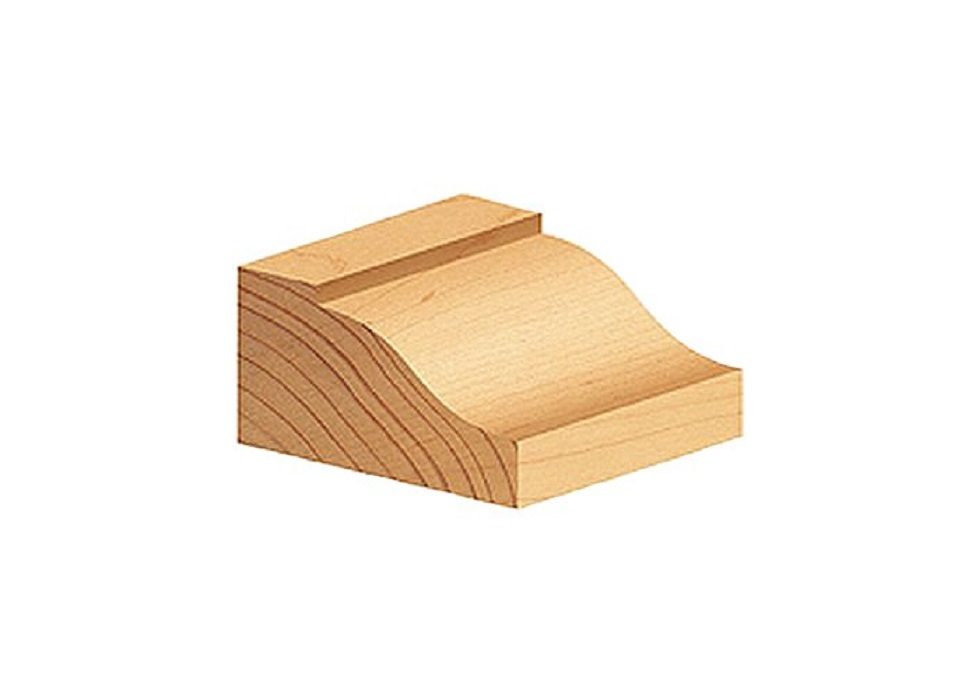

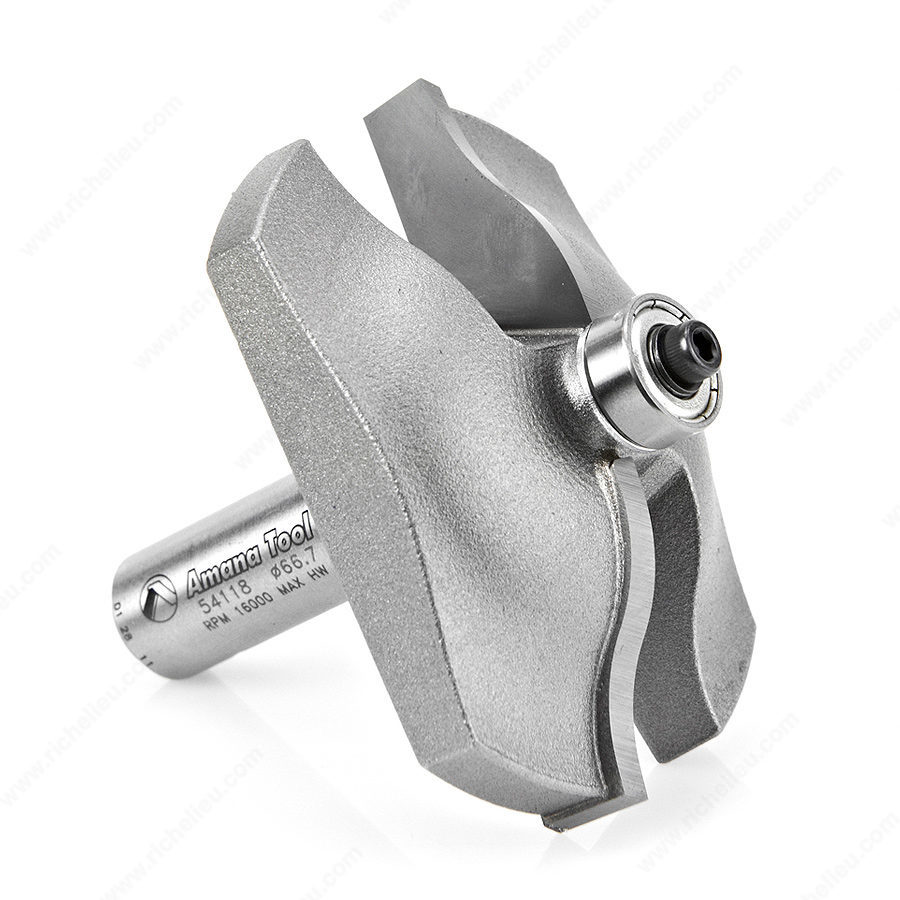

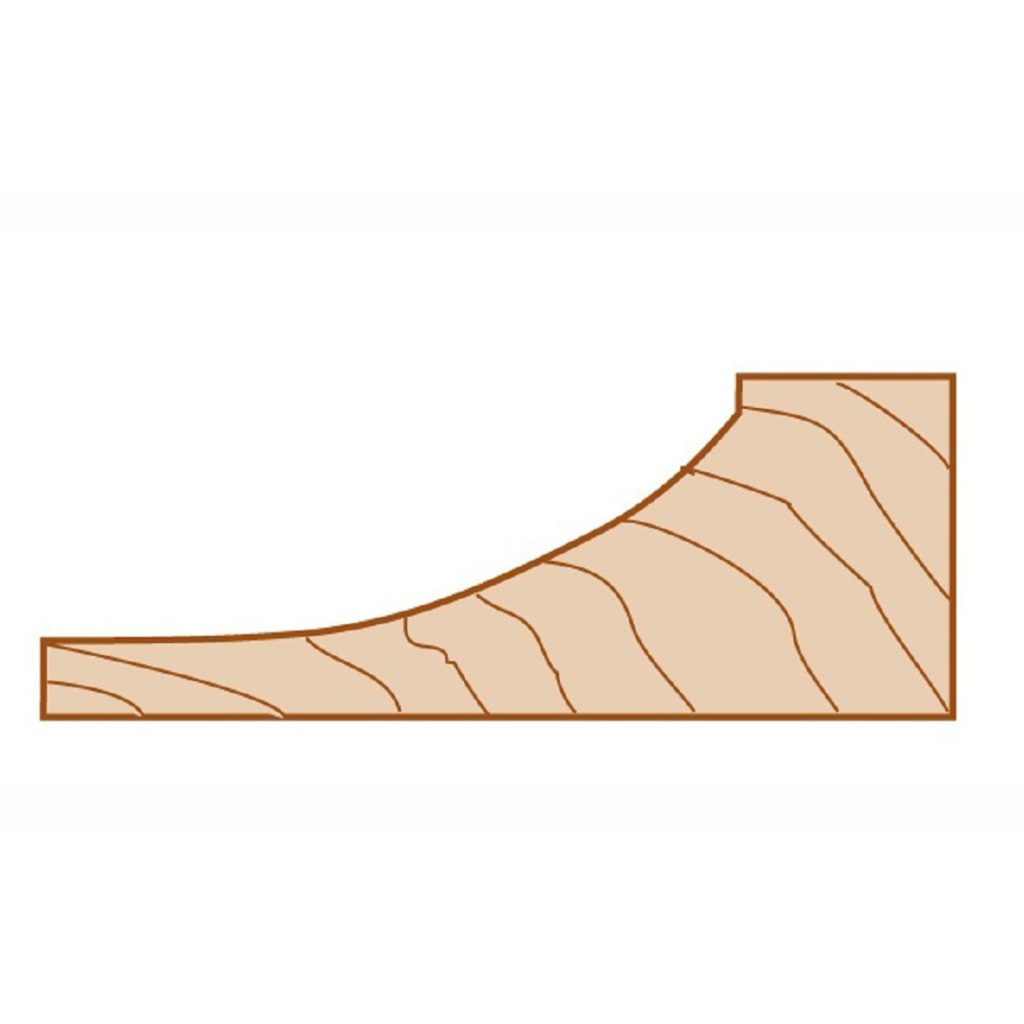

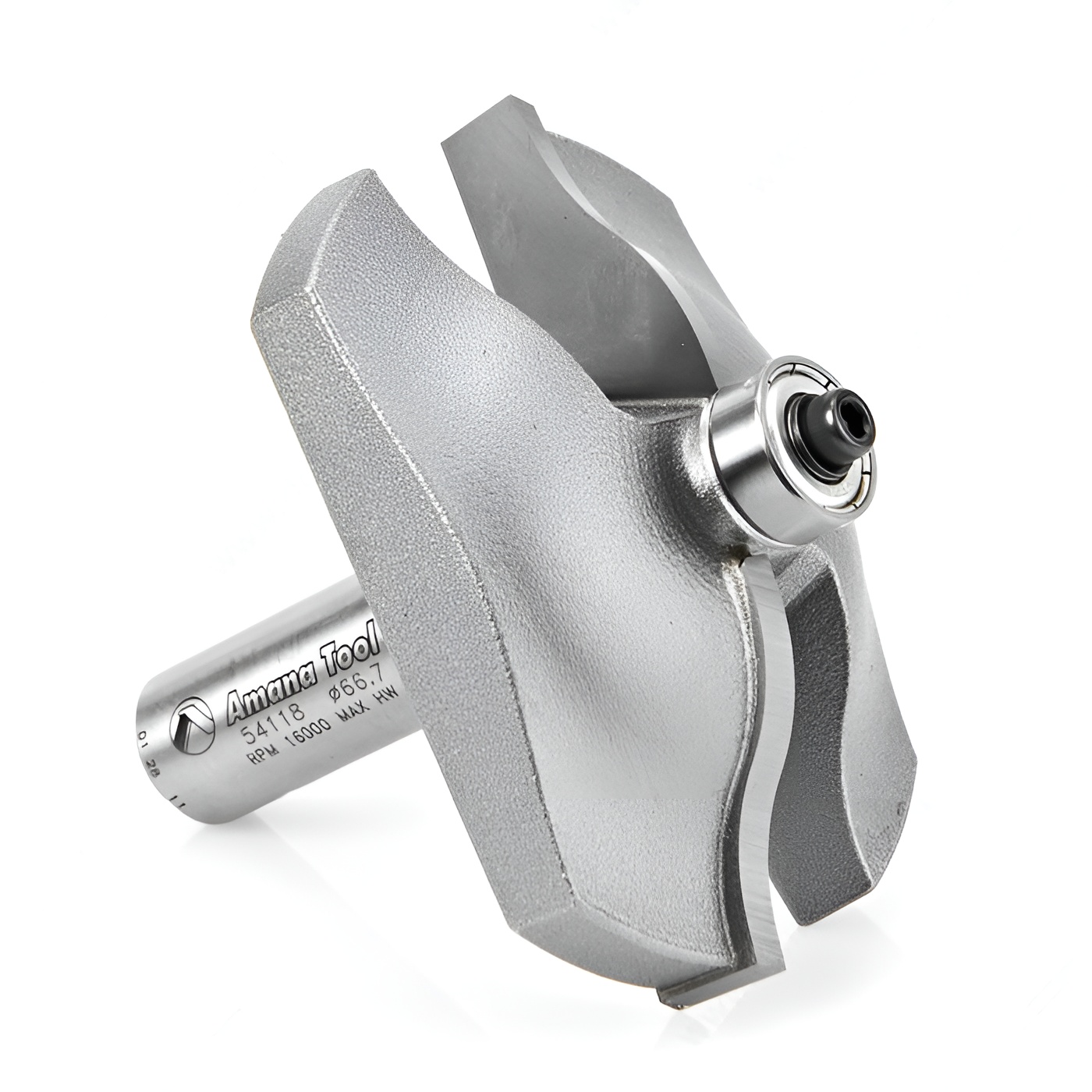

Richelieu AT54118 Ogee Raised Panel Bit empowers craftsmen to create exquisite raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling. Designed for precision, this cutter forms a fillet to clearly define the raised field, with a shaped band surrounding it and an integral tongue that fits perfectly into the panel groove of frame members. Notably, the profile contour and reveal width can be customized to meet your design needs. Constructed with carbide-tipped materials, this router bit excels in delivering a polished finish across a variety of substrates including solid hardwood, softwood, MDF, plywood, and even abrasive materials like plastic and Corian. The cutter measures a cut diameter of 2 5/8 inches, with an overall length of 2 1/2 inches and a 3/4 inch radius, ensuring versatility in your projects. Its 1/2 inch shank makes it compatible with table-mounted routers of 3+ horsepower, and it should be operated at reduced speeds for optimal performance. For best results, multiple passes are recommended, especially when working with panels that feature curved edges. Elevate your woodworking projects with the precision of the Richelieu AT54118 Ogee Raised Panel Bit.
Ogee Raised Panel Bit
Application: Profiling and Rabbeting
Brand: Amana
Cut Diameter: 2 5/8 in
Material: Carbide Tipped
Overall Length: 2 1/2 in
Product #: AT54118
Product number: AT54118
Product №: AT54118
Radius: 3/4 in
Shank: 1/2 in
Shank Diameter: 1/2 in
Tool: Router
