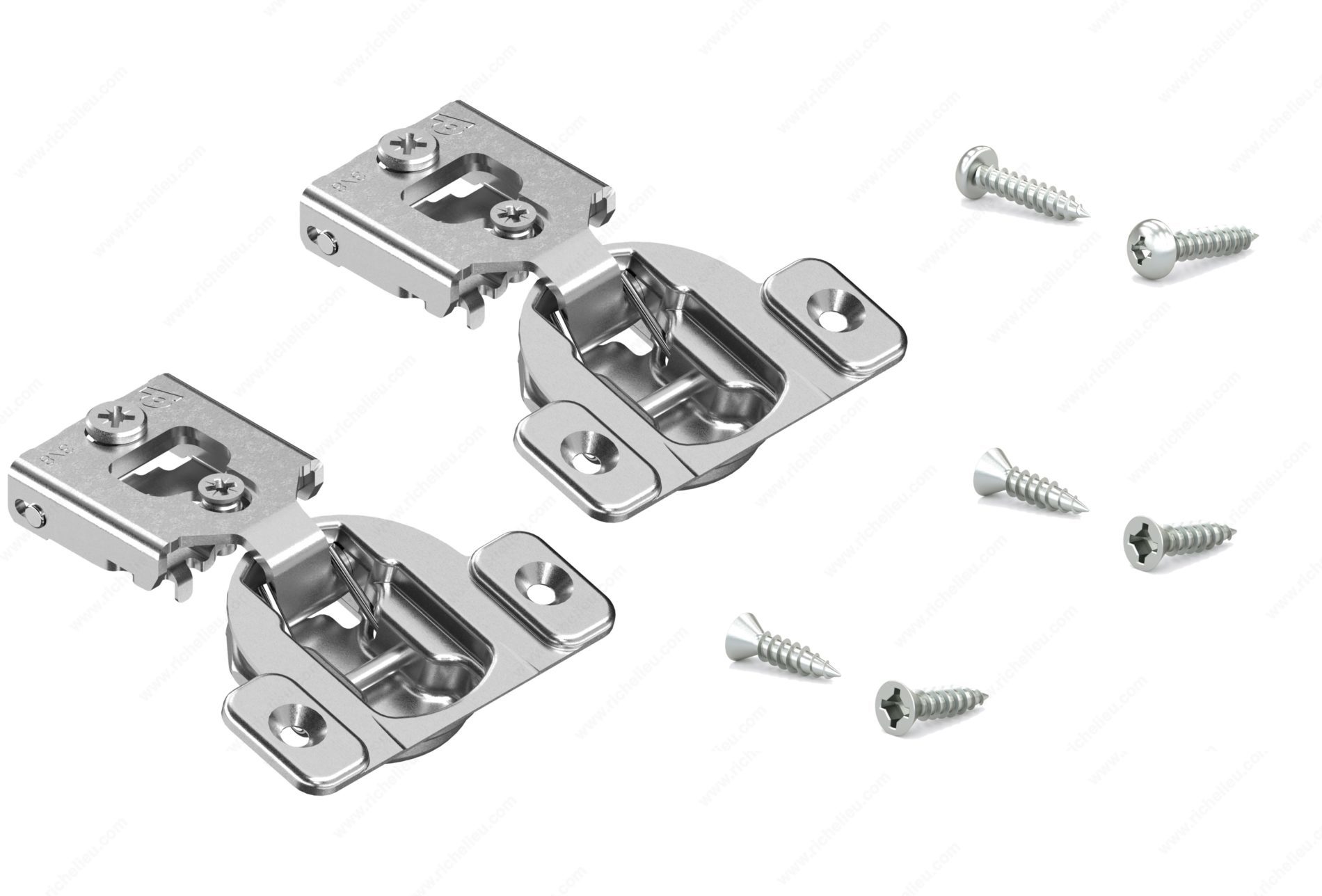

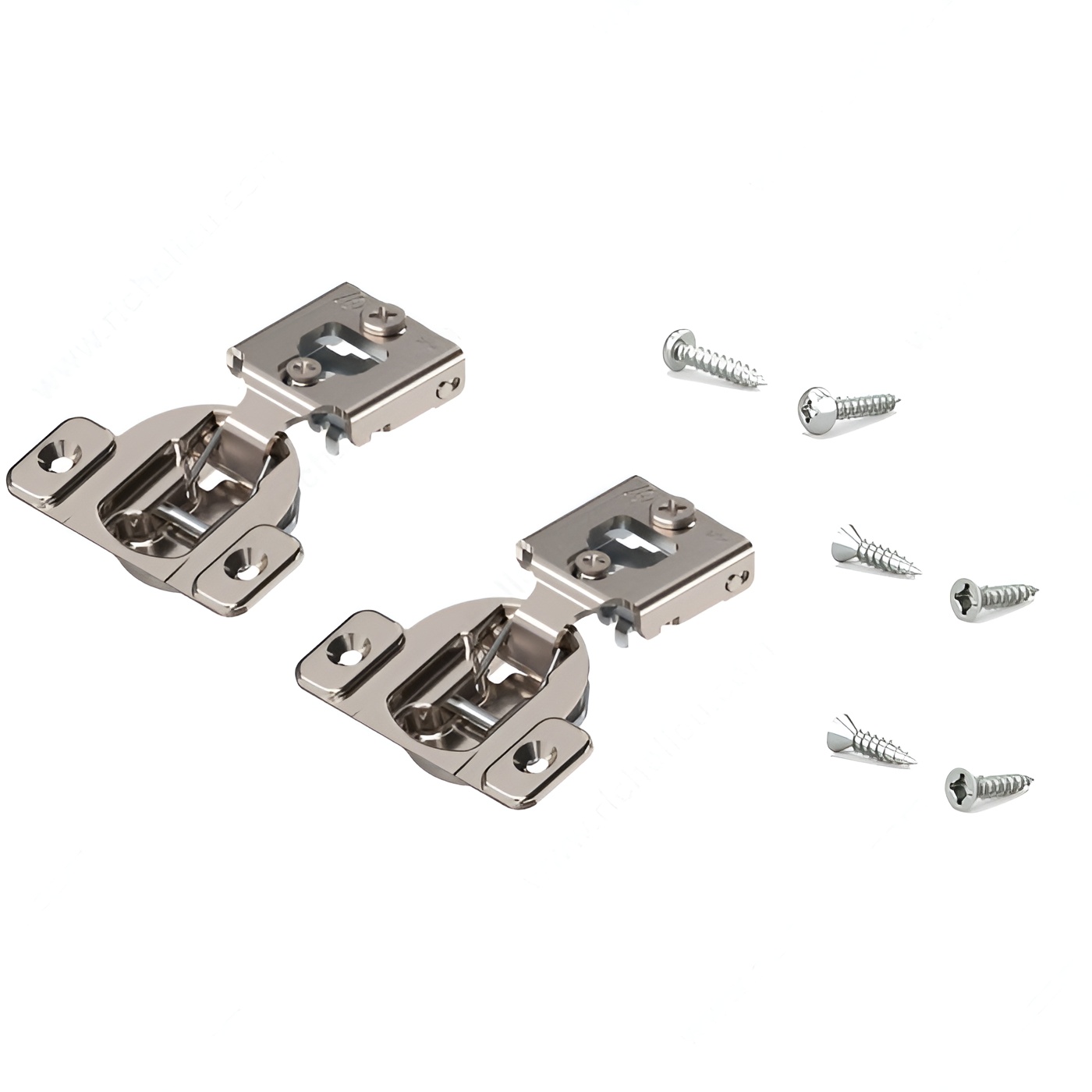

Richelieu BP38N35508180S COMPACT 38N Hinge 105 offers a seamless solution for your face frame cabinet needs. Designed with versatility in mind, these concealed hinges are adjustable in side, height, and depth, making them suitable for both small and large overlays. This adaptability allows for a wide range of applications, ensuring a perfect fit for your cabinetry. Crafted from durable steel, the hinge features a spring closing mechanism that enhances functionality, providing a smooth and reliable door operation. With a hinge opening angle of +105°, access to cabinet interiors is both convenient and efficient. The maximum cabinet and door thickness is 3/4 inch, allowing compatibility with standard cabinetry. The BP38N35508180S hinge is designed for a half overlay door position and features a wrap-around mount that simplifies installation. Each package includes two units, complete with screws for easy fixing. The hinge is designed for use with standard doors, providing a robust and reliable solution for your cabinetry projects. Experience the quality and performance of Richelieu’s COMPACT hinges, perfect for both professionals and discerning homeowners alike.
COMPACT 38N Hinge 105
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Max. 3/4 in
Fixing Type: Screw-On

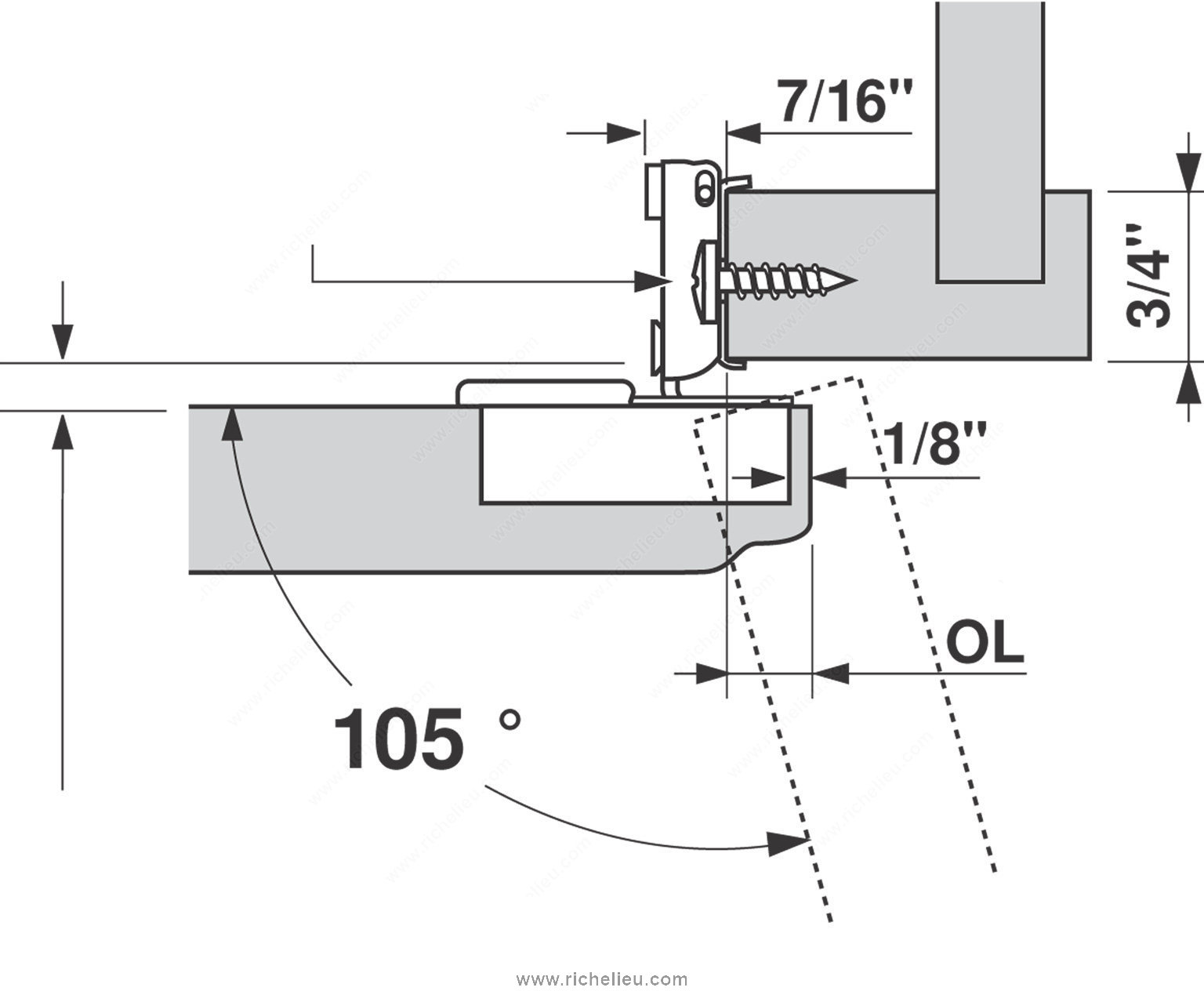

Hinge Opening Angle: +105°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing

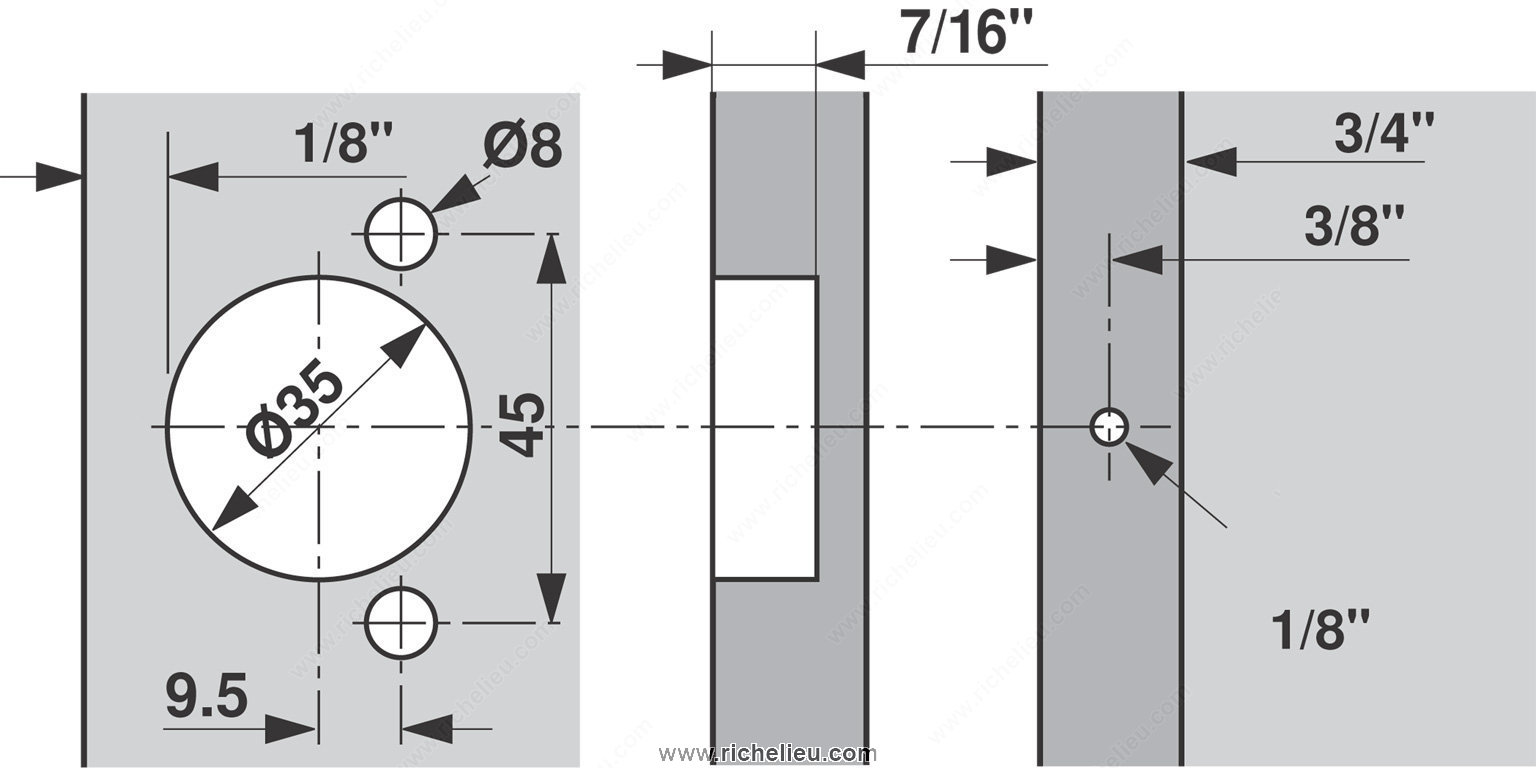

Milling Depth: 7/16 in
Milling Diameter: 35 mm

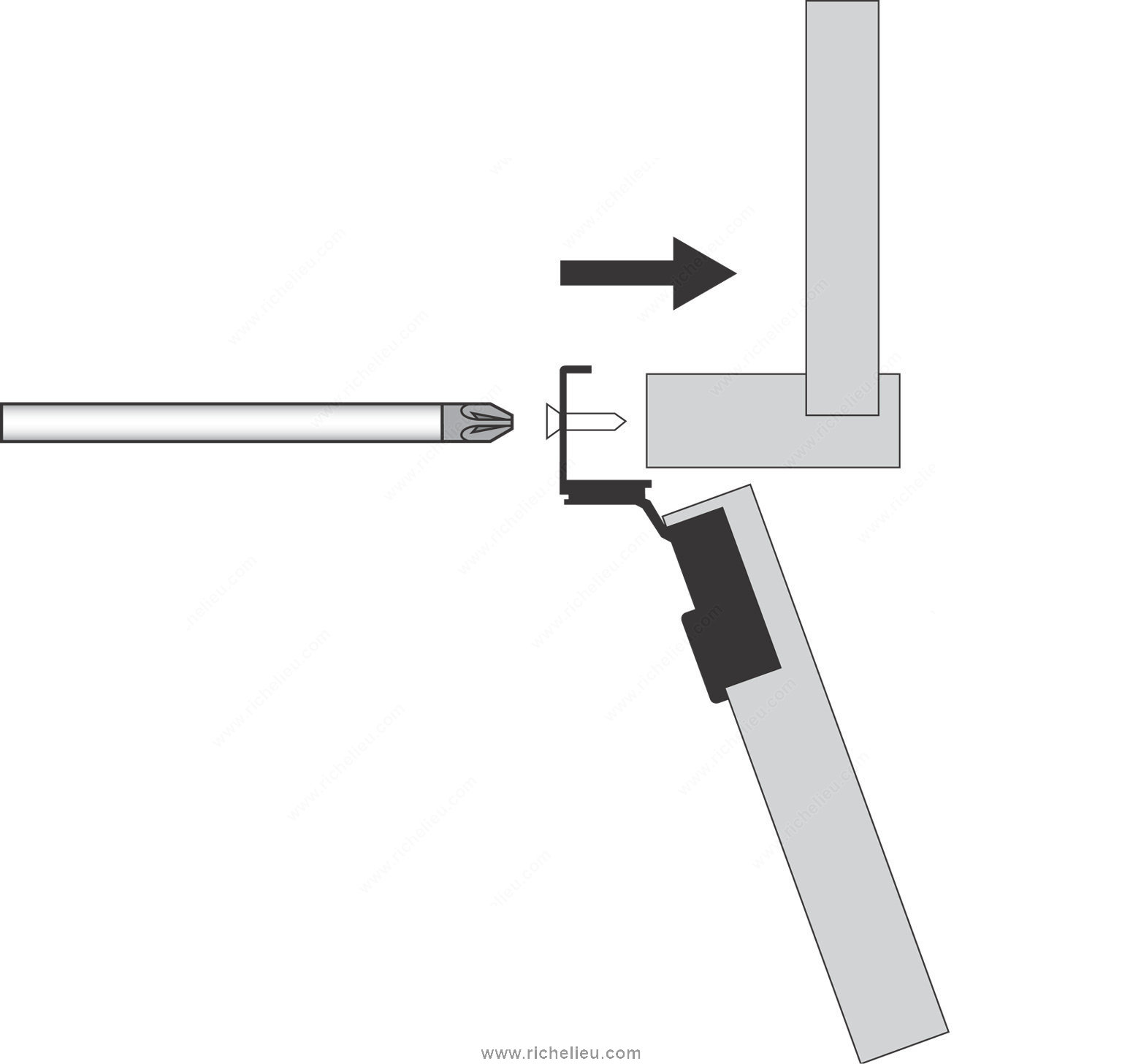

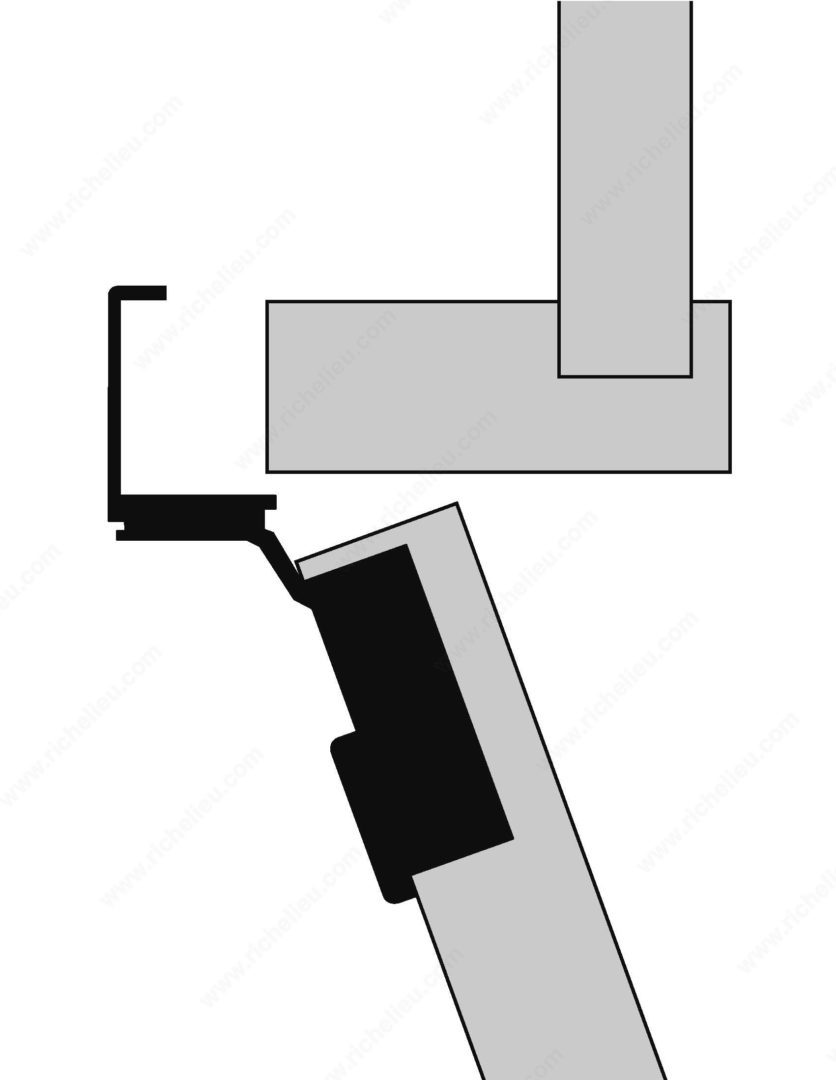

Mounting Type: Wrap-around Mount
Overlay: 1/2 in

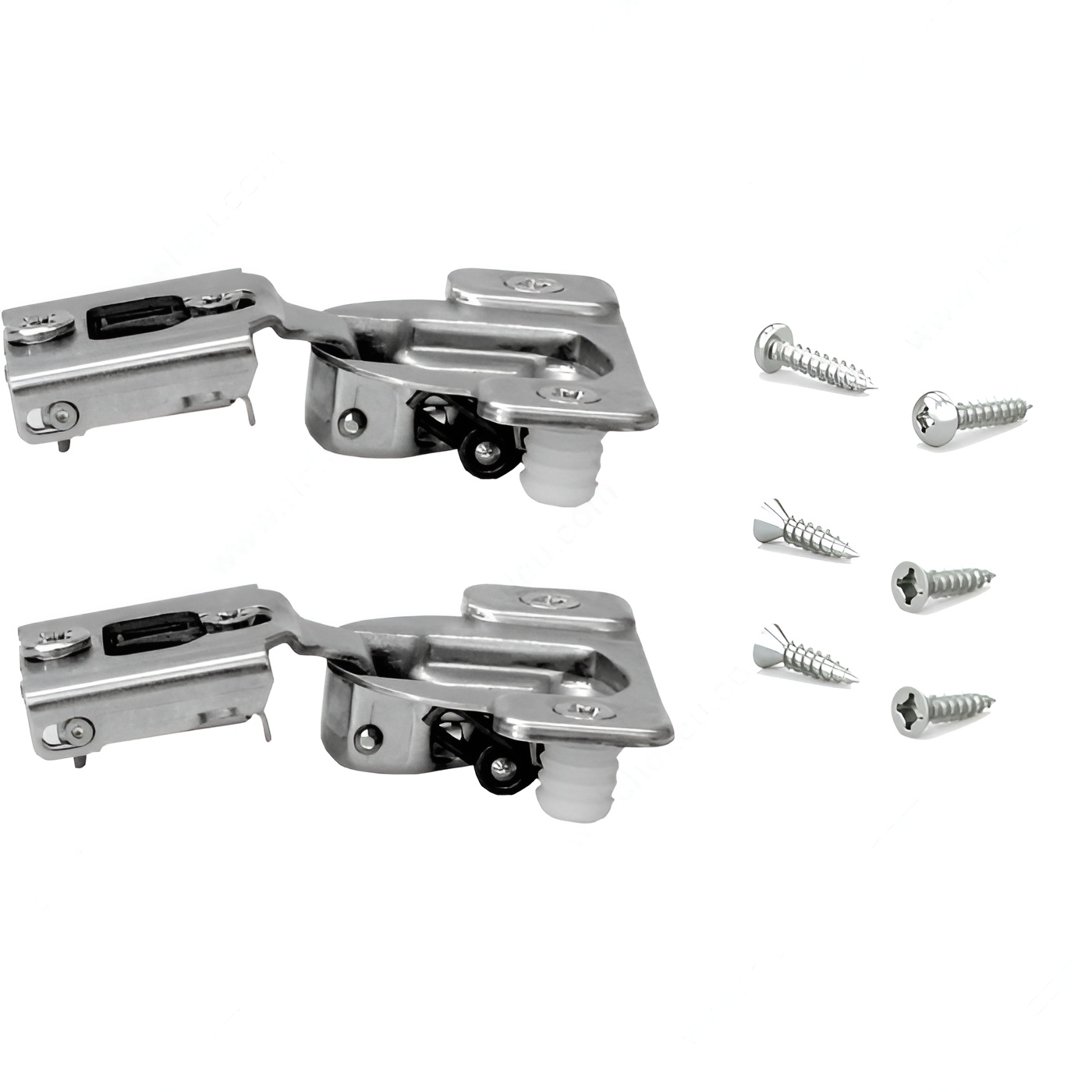

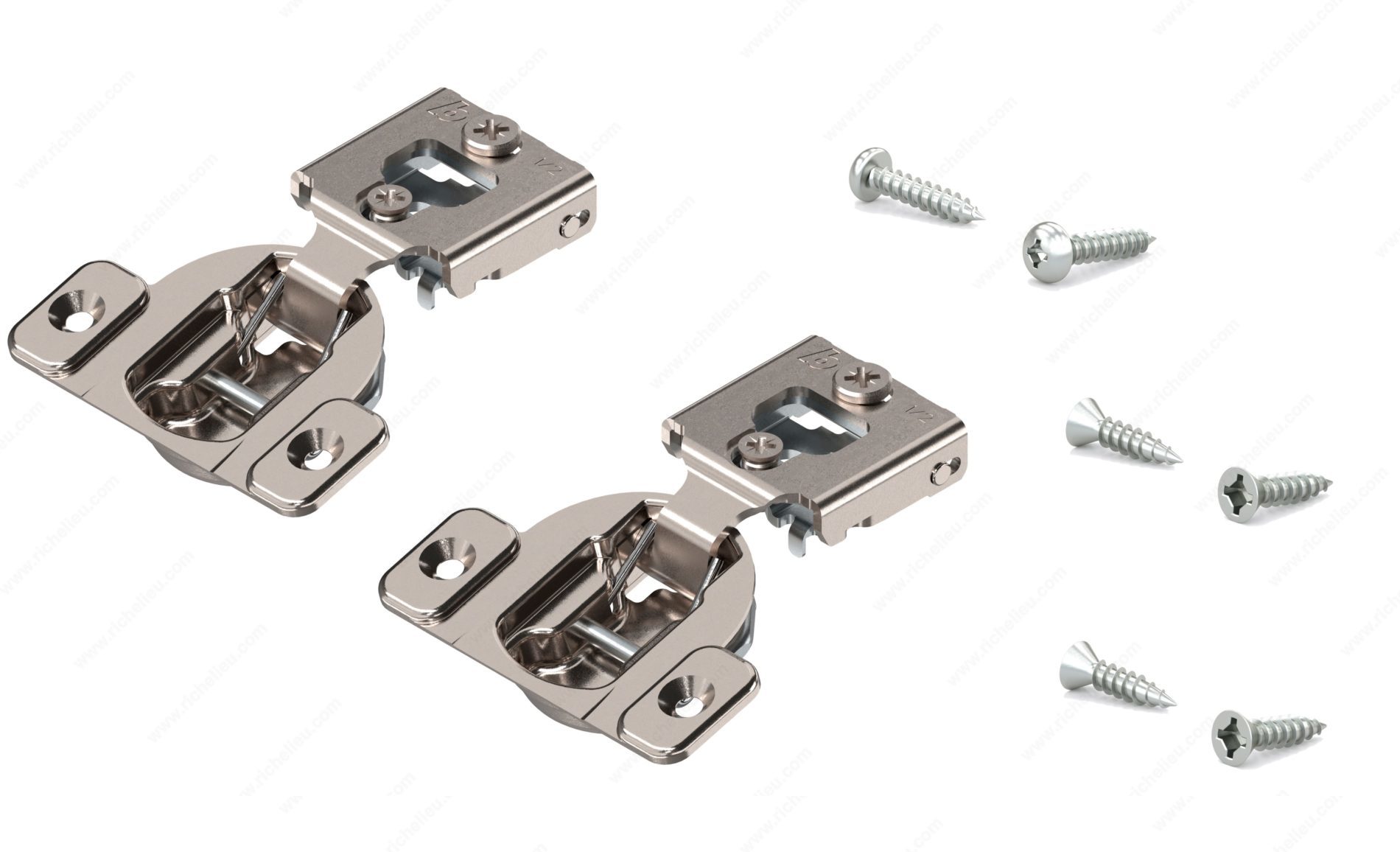

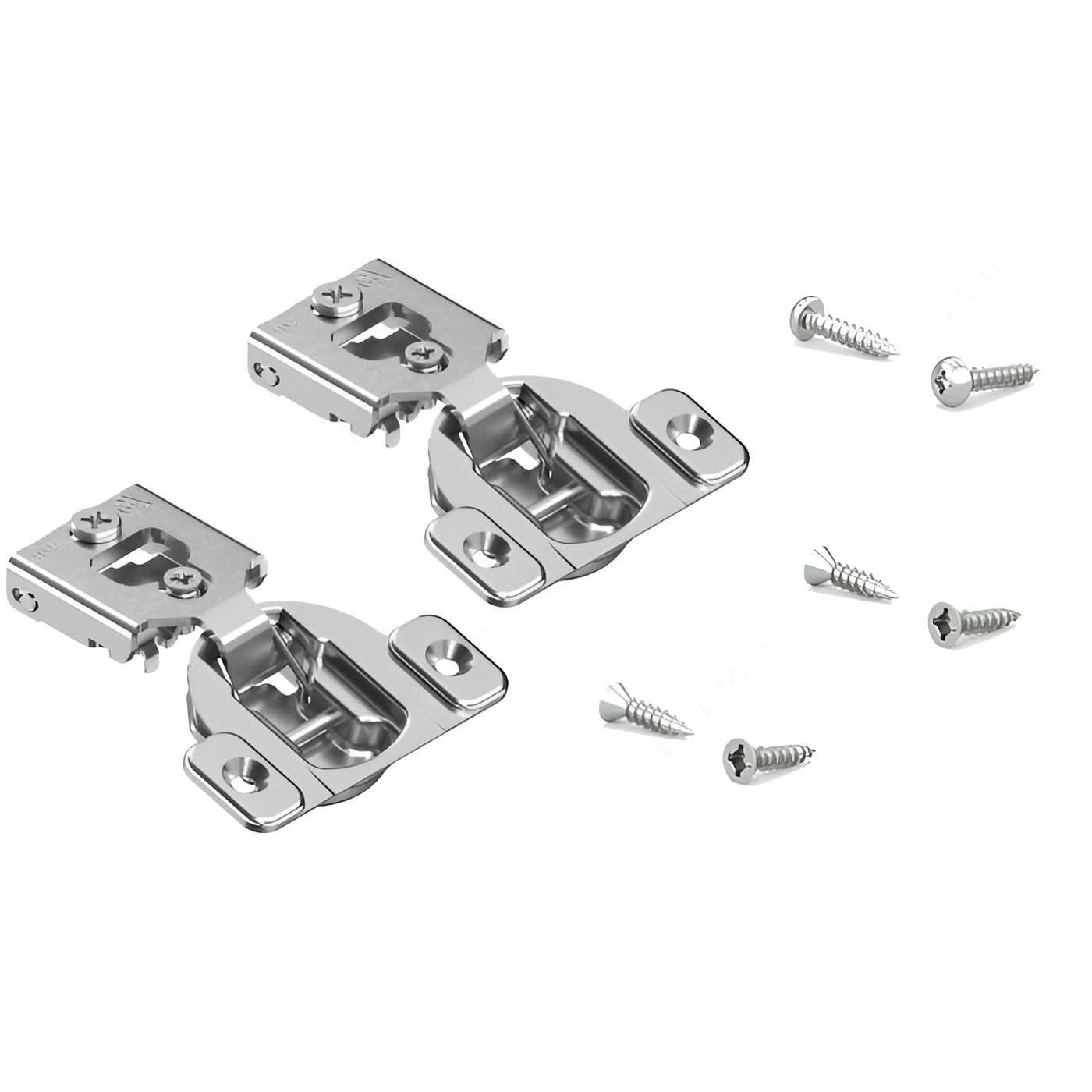

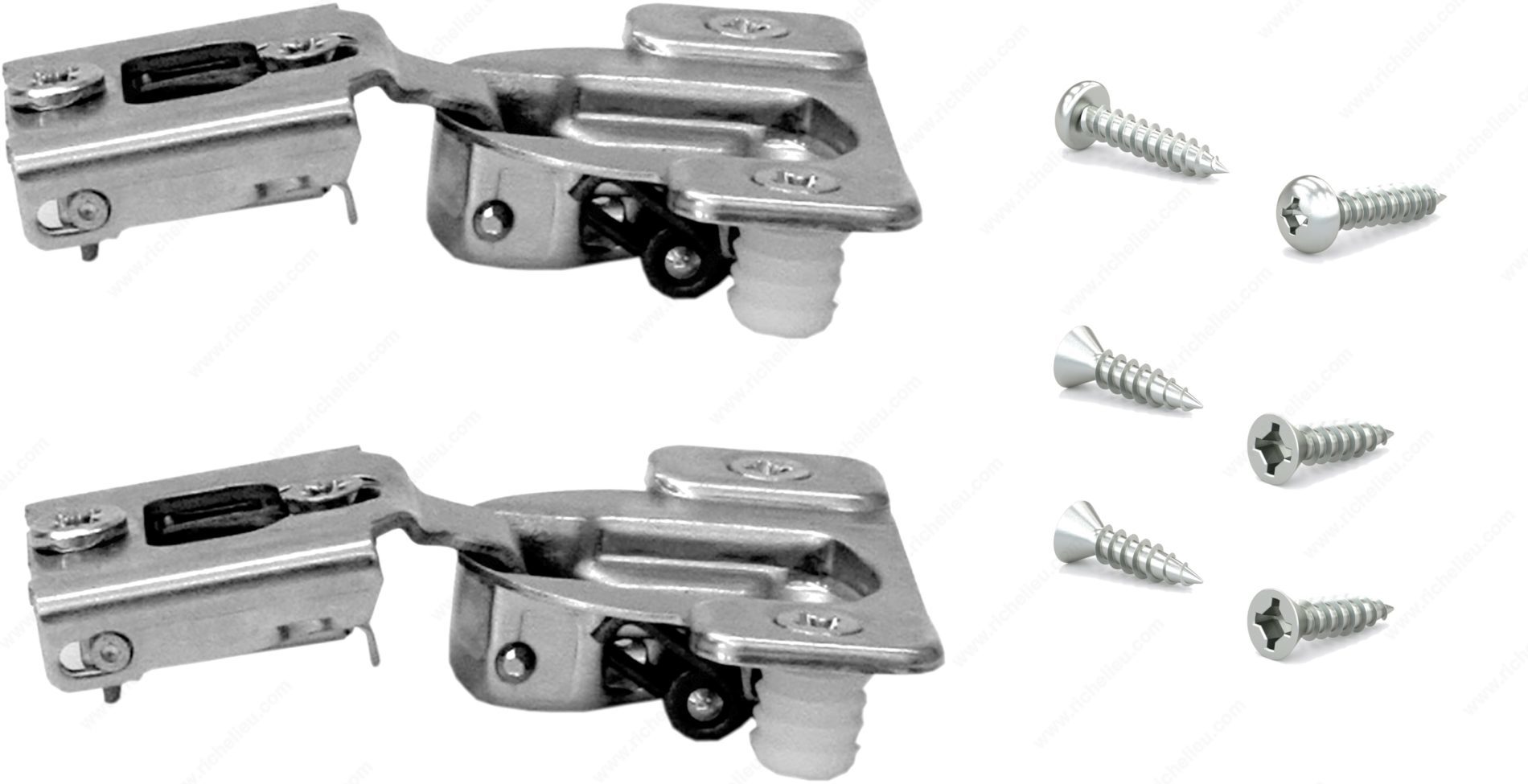

Packaging format: Bag of 2 units
Plate Included: Yes
Product #: BP38N35508180S
Product number: BP38N35508180S
Required Frame Width: 19 mm
Screw/ Nail: Included
Unit: Bag of 2 units
Unit 2: carton - 10
Unit 3: case - 120
Use Type: Standard Door
