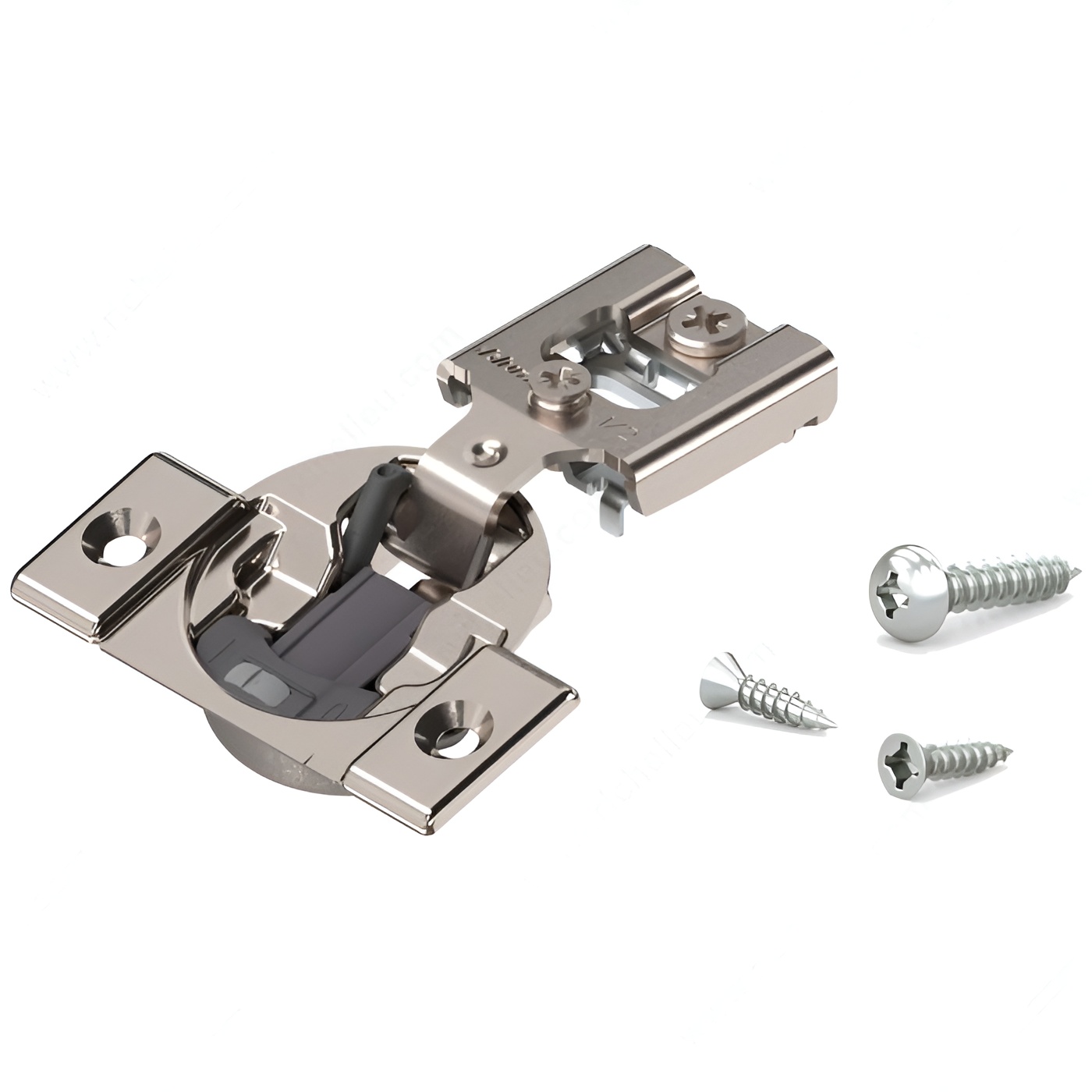

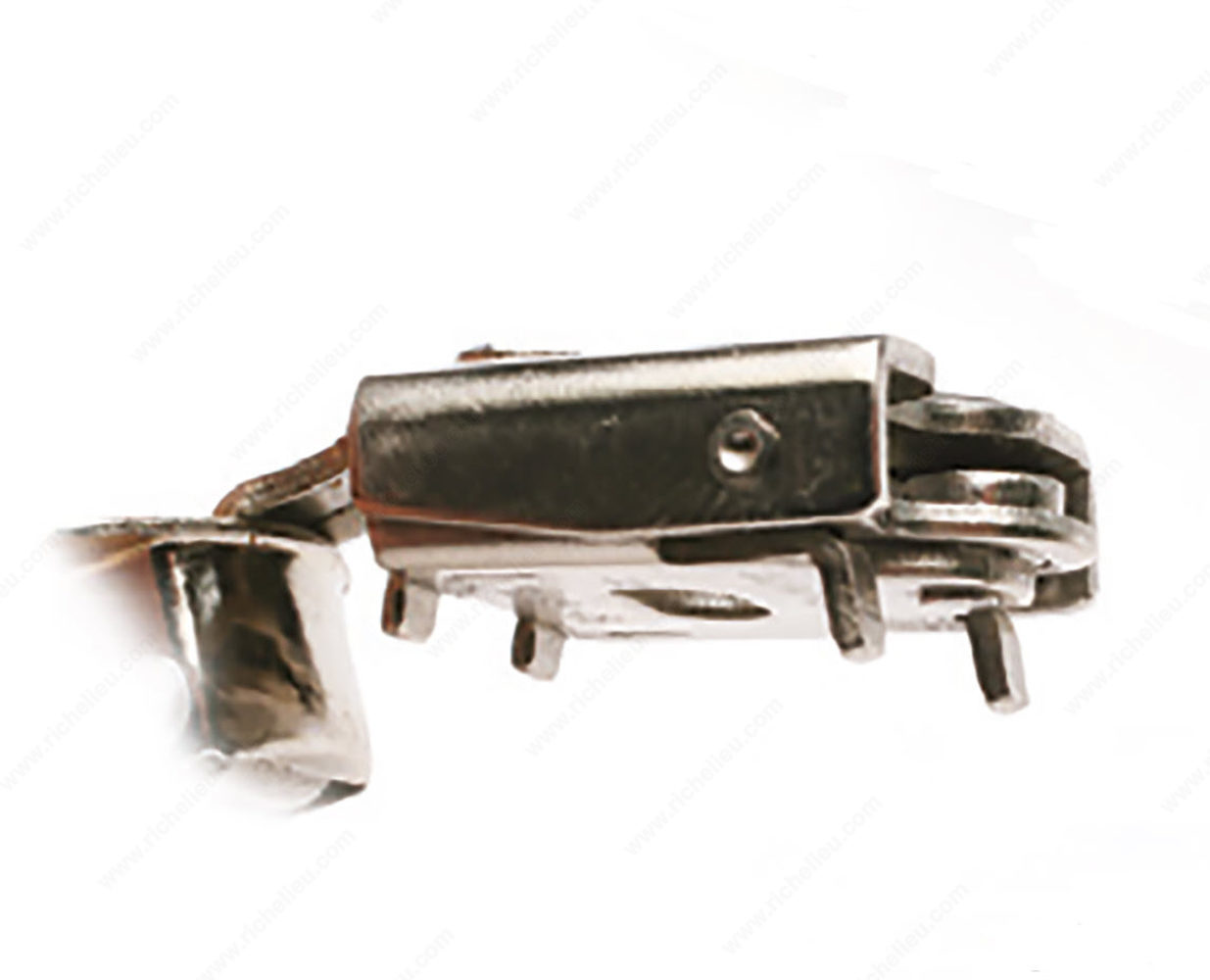

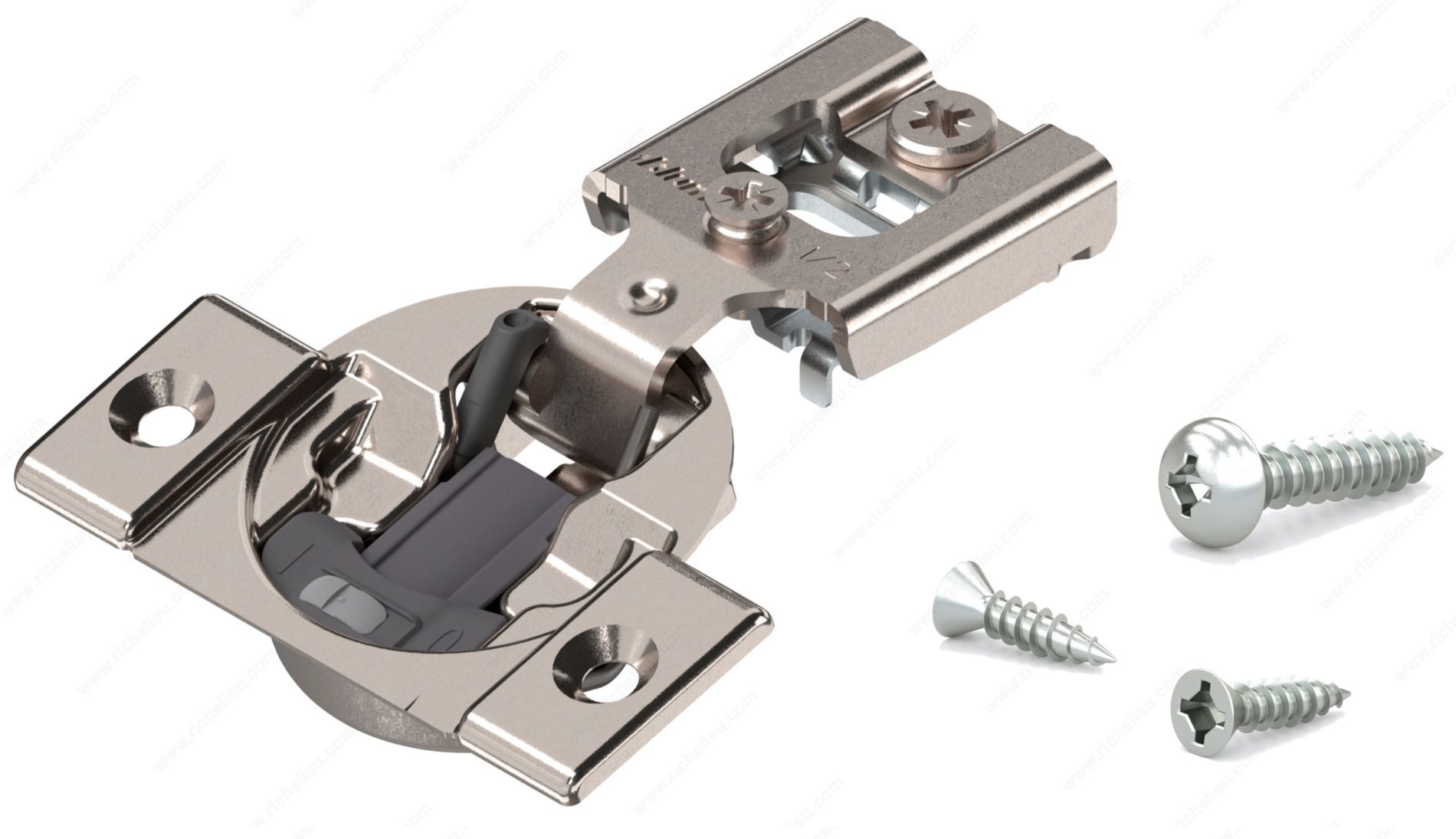

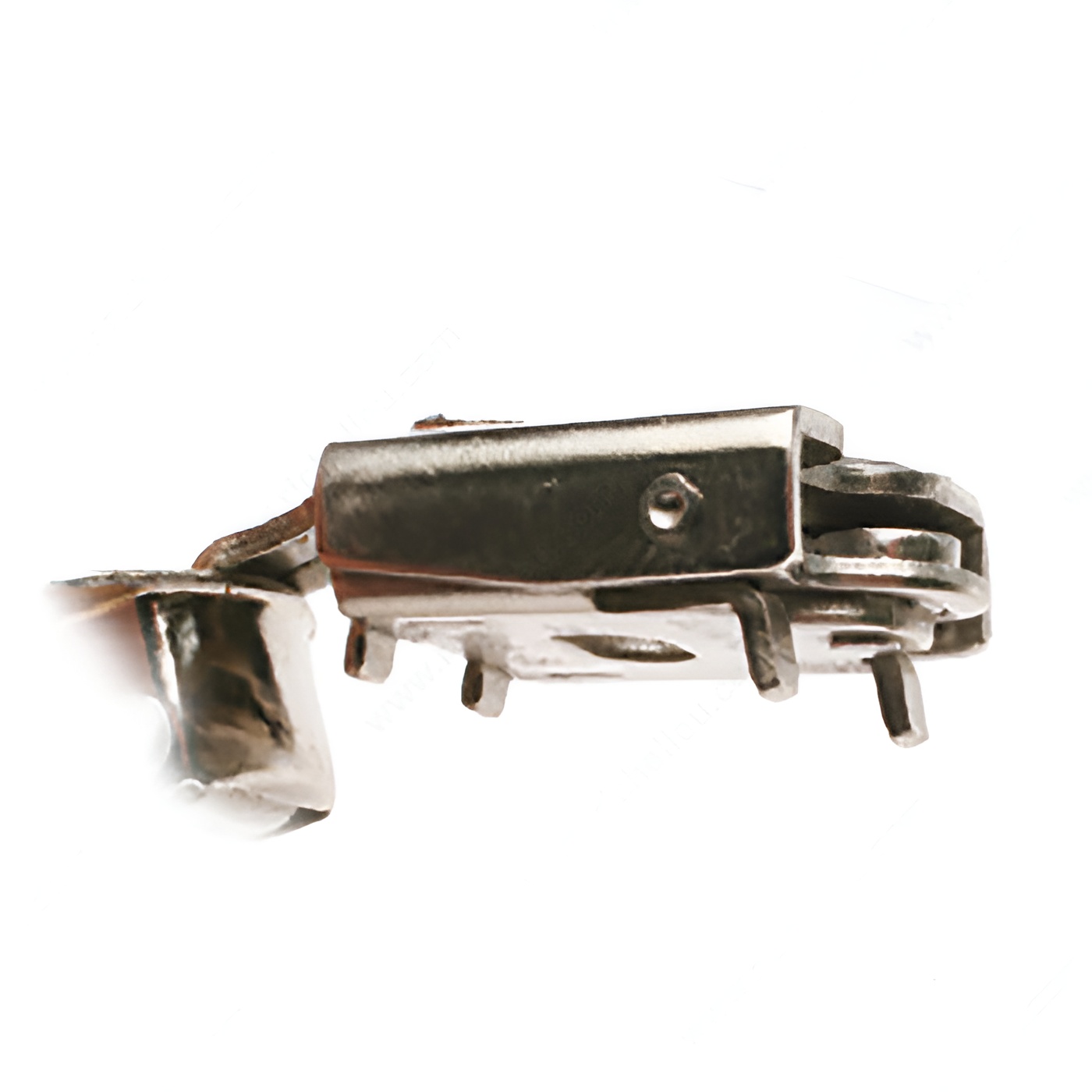

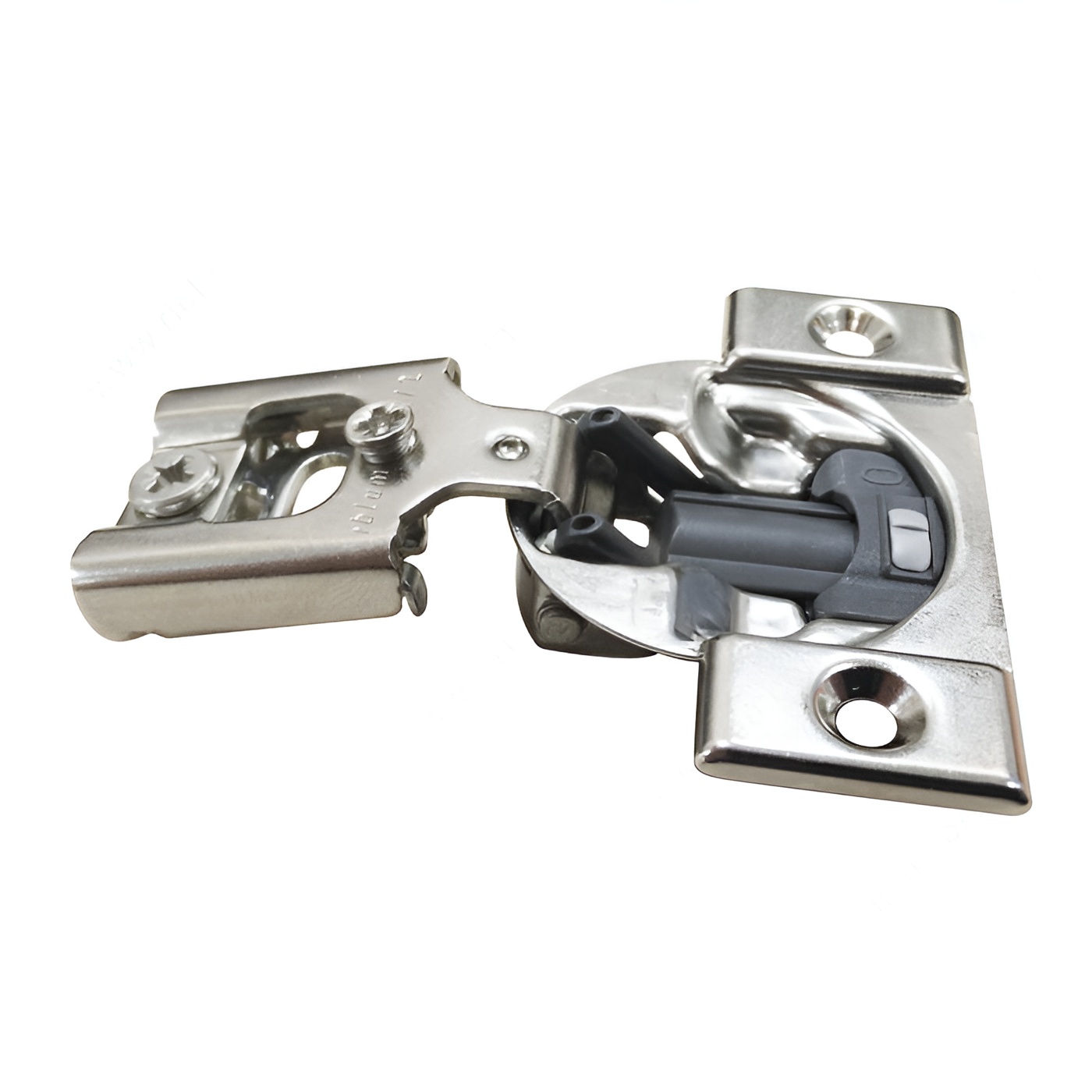

Richelieu BP38N355B08180U COMPACT BLUMOTION Hinge 38N 105 is expertly crafted for framed cabinets, offering a seamless blend of functionality and elegance. This innovative hinge features an integrated soft-closing mechanism, ensuring doors close quietly and smoothly, enhancing the overall user experience. Ideal for face frame cabinet designs, it accommodates a minimum cabinet thickness of 5/8 inches and a door thickness of the same measurement. With a hinge opening angle of +105°, the BP38N355B08180U allows for easy access while maintaining a sleek aesthetic. The unique BLUMOTION function can be conveniently deactivated, making it perfect for lighter or smaller doors that require a different closing style. The hinge is constructed from durable steel and finished in a sophisticated nickel, ensuring both longevity and visual appeal. Designed for wrap-around mounting, this hinge includes screws for easier installation. Its milling specifications-7/16 inches in depth and 1 3/8 inches in diameter-make it a versatile choice for various cabinetry projects. The overlay of 1/2 inch further enhances its adaptability. Packaged in a bag format, the COMPACT BLUMOTION hinge is a practical solution for professionals and homeowners alike, delivering quality and reliability with every use.
COMPACT BLUMOTION Hinge 38N 105
Brand: Blum
Cabinet Thickness: Min. 5/8 in*
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

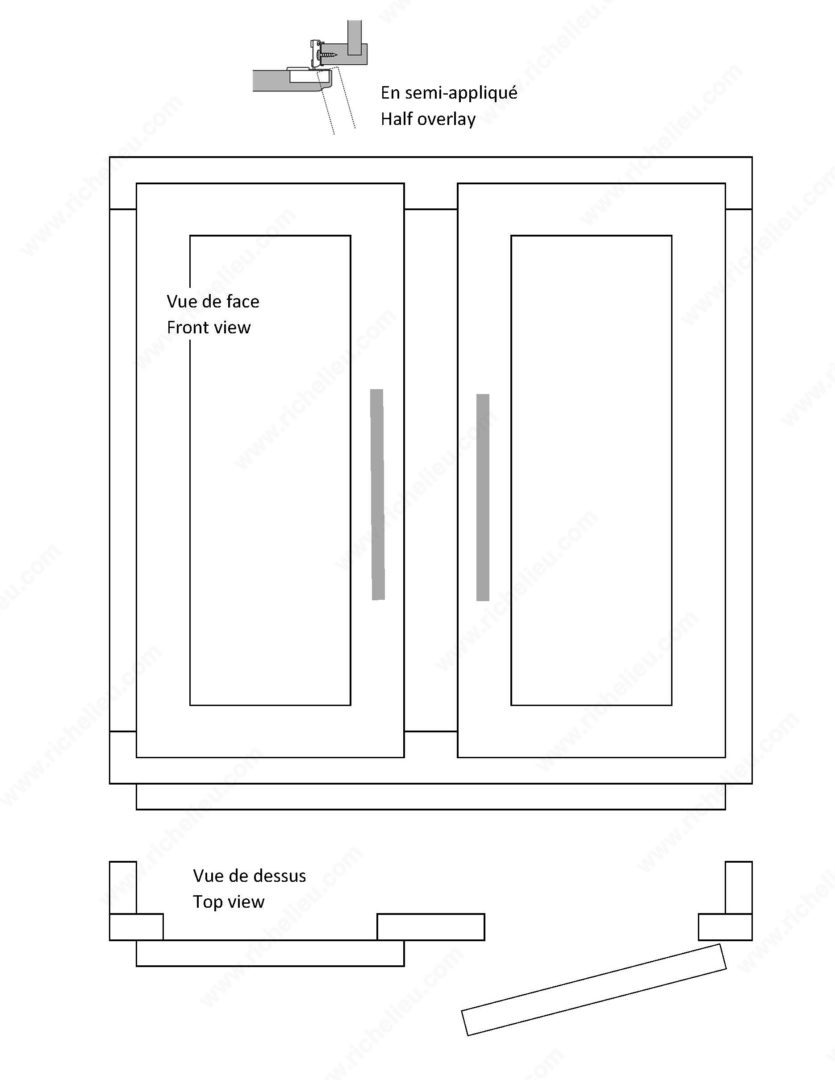

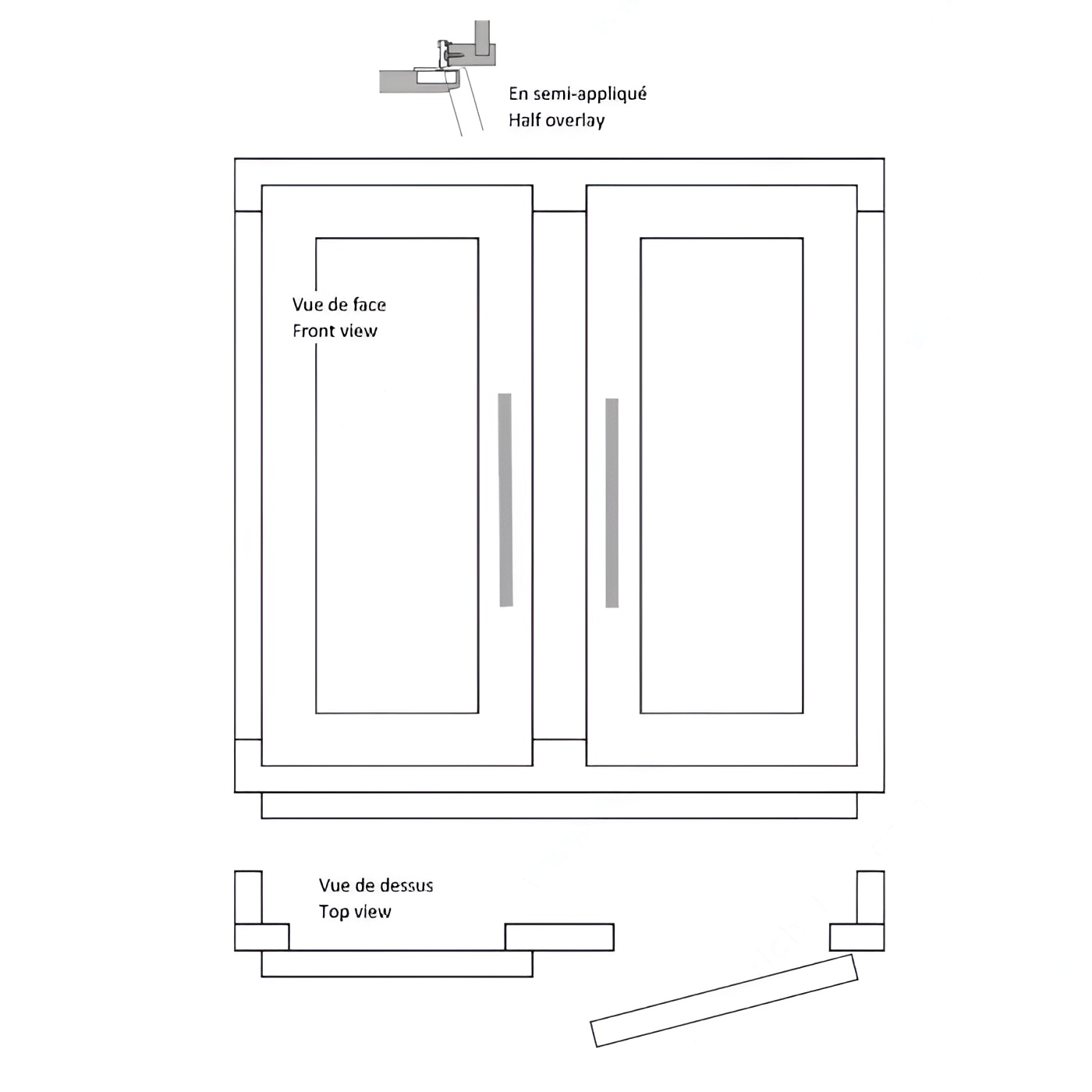

Door Position: Half Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Hinge Type: COMPACT BLUMOTION
Material: Steel
Mechanism: Soft-Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*

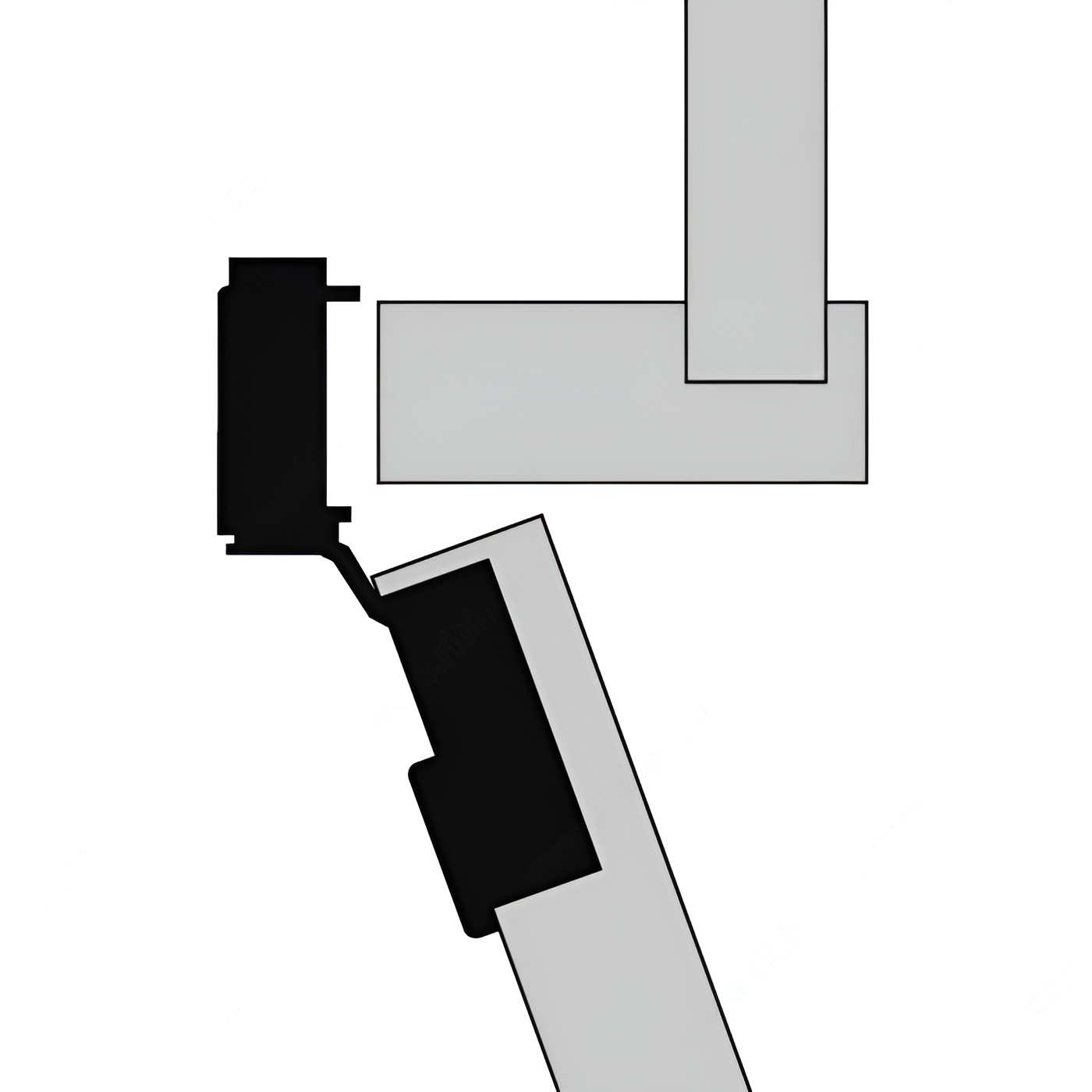

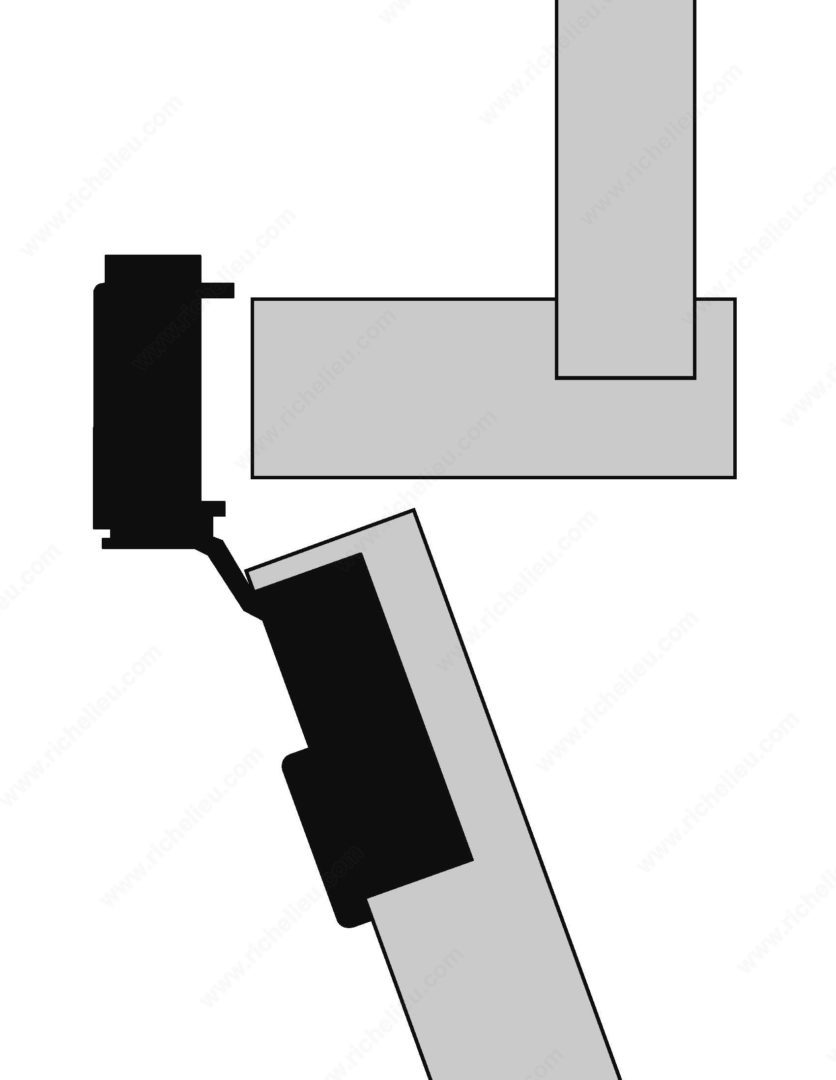

Mounting Type: Wrap-around Mount
Overlay: 1/2 in
Packaging format: Bag
Product #: BP38N355B08180U
Product number: BP38N355B08180U
Screw/ Nail: Included
Unit: Bag
Unit 2: carton - 20
Unit 3: case - 240
Use Type: Standard Door
