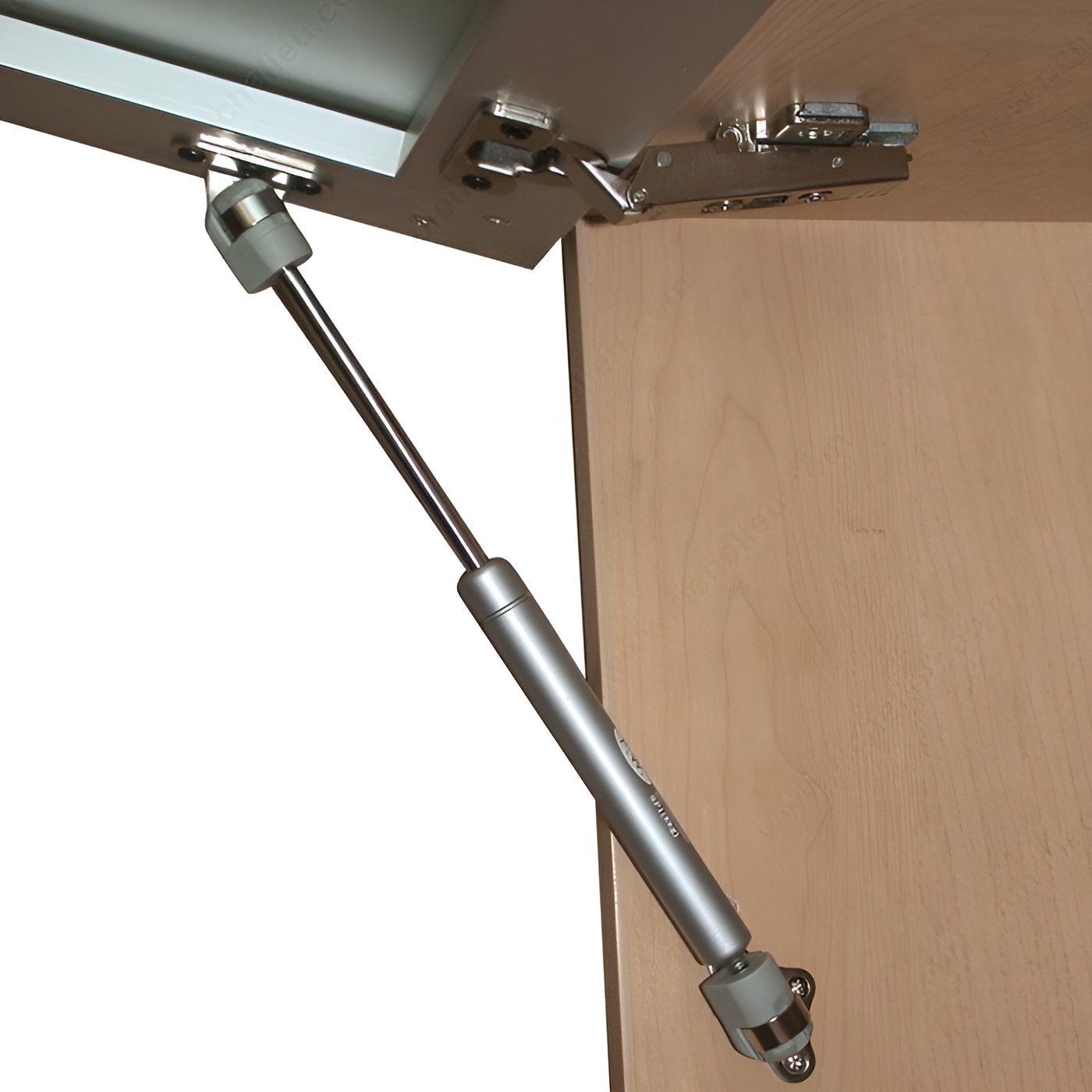

Richelieu BP57812105 Pneumatic Lift System offers an innovative solution for seamless door operation in modern cabinetry. This piston-driven vertical opening system allows doors to swing open between 80° and 100°, providing ample access while ensuring ease of use. Simply initiate the opening, and the pneumatic piston takes over, completing the operation smoothly and effortlessly. Designed to accommodate doors with heights ranging from 15 3/4 to 23 5/8 inches and lengths from 17 3/4 to 27 1/2 inches, this system demonstrates versatility in application. With a load capacity of 17.6 to 26.5 pounds, it is suitable for various cabinetry needs. The system is constructed from durable metal with a sleek silver finish, ensuring both longevity and aesthetic appeal. The Richelieu BP57812105 is reversible, making it adaptable to different installation requirements. Packaged conveniently in a bag, it is easy to handle and ship via UPS, facilitating a hassle-free procurement process. Whether in a residential or commercial setting, this lift-up opening system enhances functionality while maintaining a polished, professional look. Upgrade your cabinetry with this advanced pneumatic lift system and experience the perfect blend of form and function.

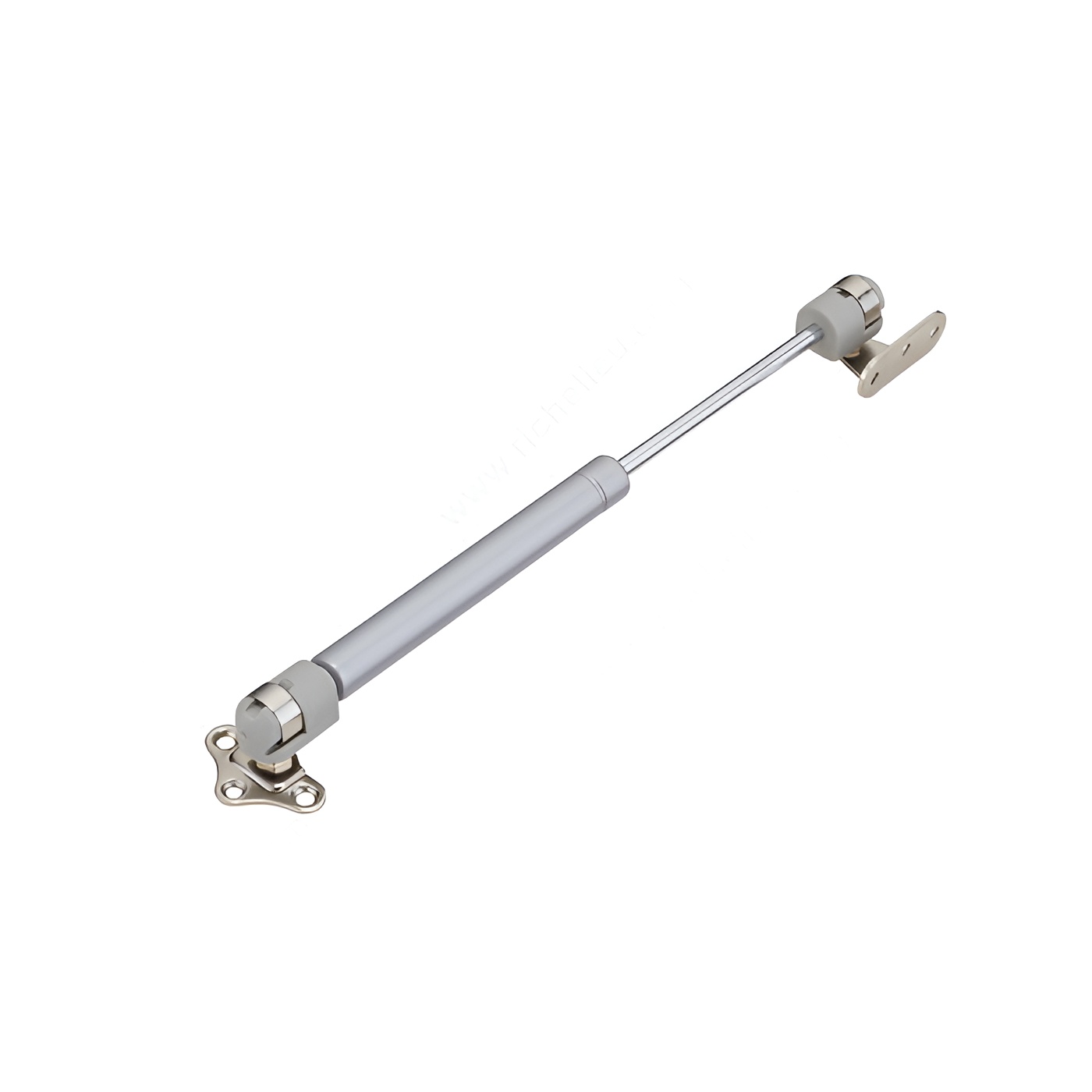

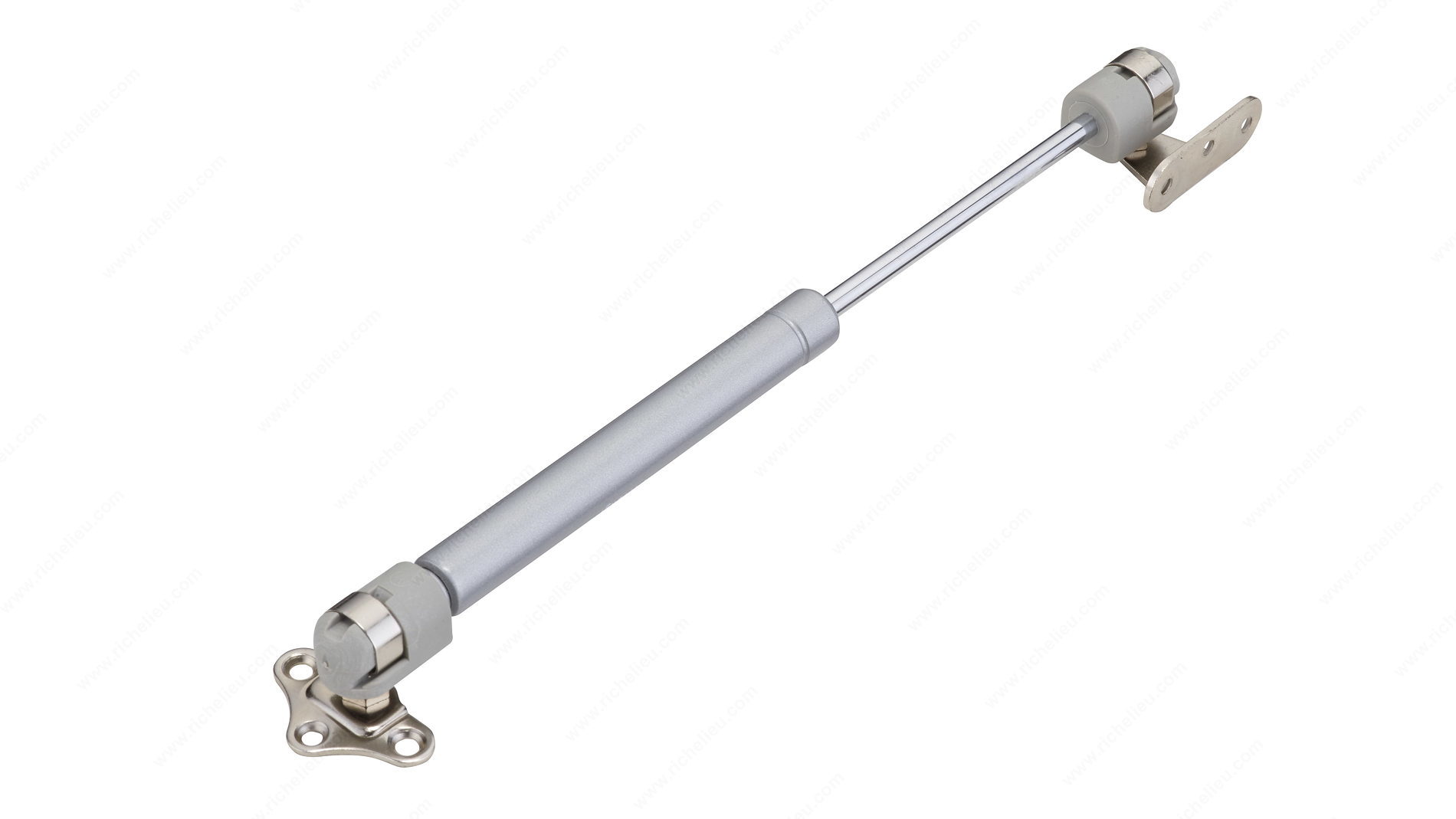

Pneumatic Lift System
Brand: Richelieu
Door Height: 400 to 600 mm
Door Length: 450 to 700 mm
Finish: Silver
Length: 255 mm
Load Capacity: 8 to 12 kg
Material: Metal
Opening Angle Adjustability: 80°-100°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Packaging format: Bag
Product #: BP57812105
Product number: BP57812105
Product №: BP57812105
Side: Reversible
System Type: Piston
Type of Opening: Lift-Up Opening
Unit: Bag
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 100
