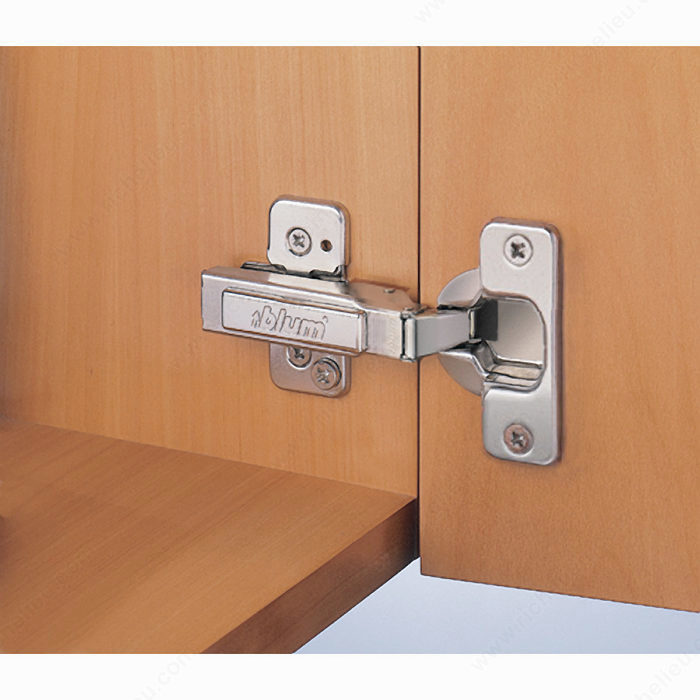

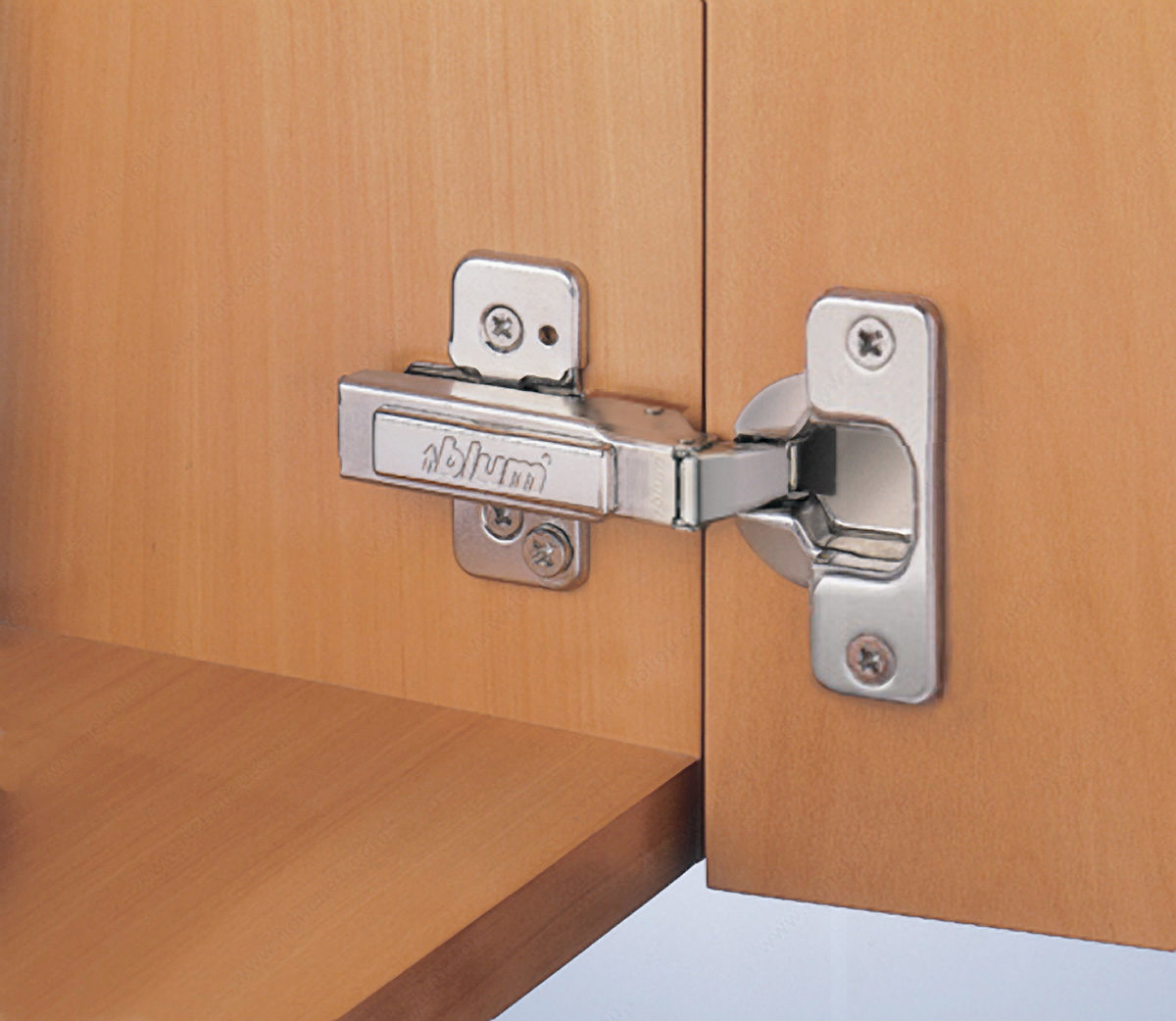

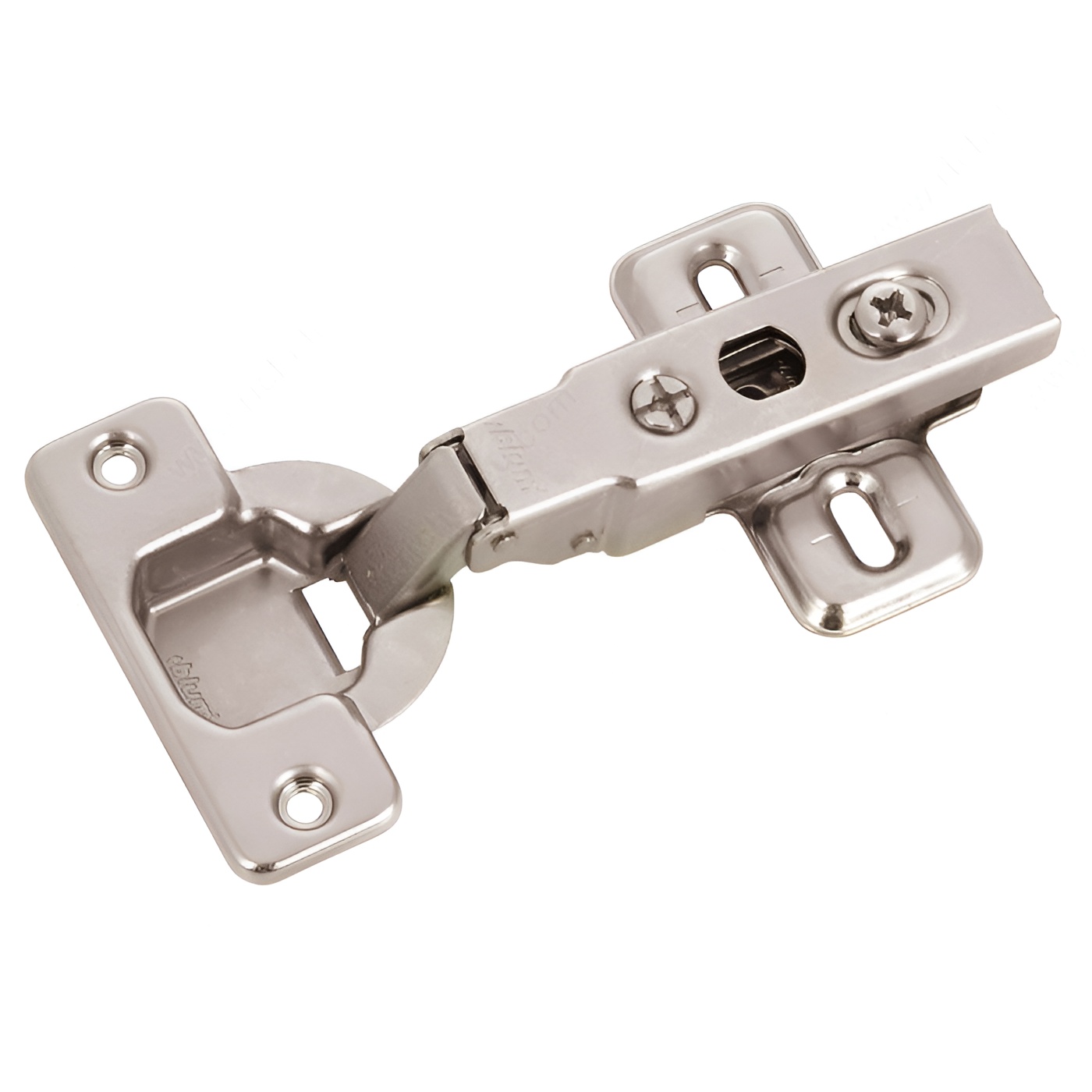

Richelieu BP71M25521180 CLIP Hinge - 100 offers an ergonomic design that prioritizes user-friendliness while ensuring a reliable and secure connection to the mounting plate. This hinge is specifically crafted for frameless cabinets with a thickness of 5/8 inches, making it an ideal choice for standard door applications. One of the standout features of this hinge is its impressive opening angle of +100°, allowing for easy access and improved functionality. The screw-on fixing type facilitates a straightforward installation process, while the spring-closing mechanism ensures that doors close smoothly and consistently. With a milling depth of 13/32 inches and a milling diameter of 1 3/8 inches, the BP71M25521180 is designed to fit seamlessly into your cabinetry. Each package includes two units, packaged in a convenient bag for easy handling. This hinge is suitable for doors with a minimum thickness of 5/8 inches, making it versatile for various projects. The product is shipped via UPS, ensuring prompt delivery. Elevate your cabinetry with the reliability and performance of Richelieu's BP71M25521180 CLIP Hinge, designed to meet the demanding needs of building professionals and knowledgeable homeowners alike.
CLIP Hinge - 100
Cabinet Thickness: 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

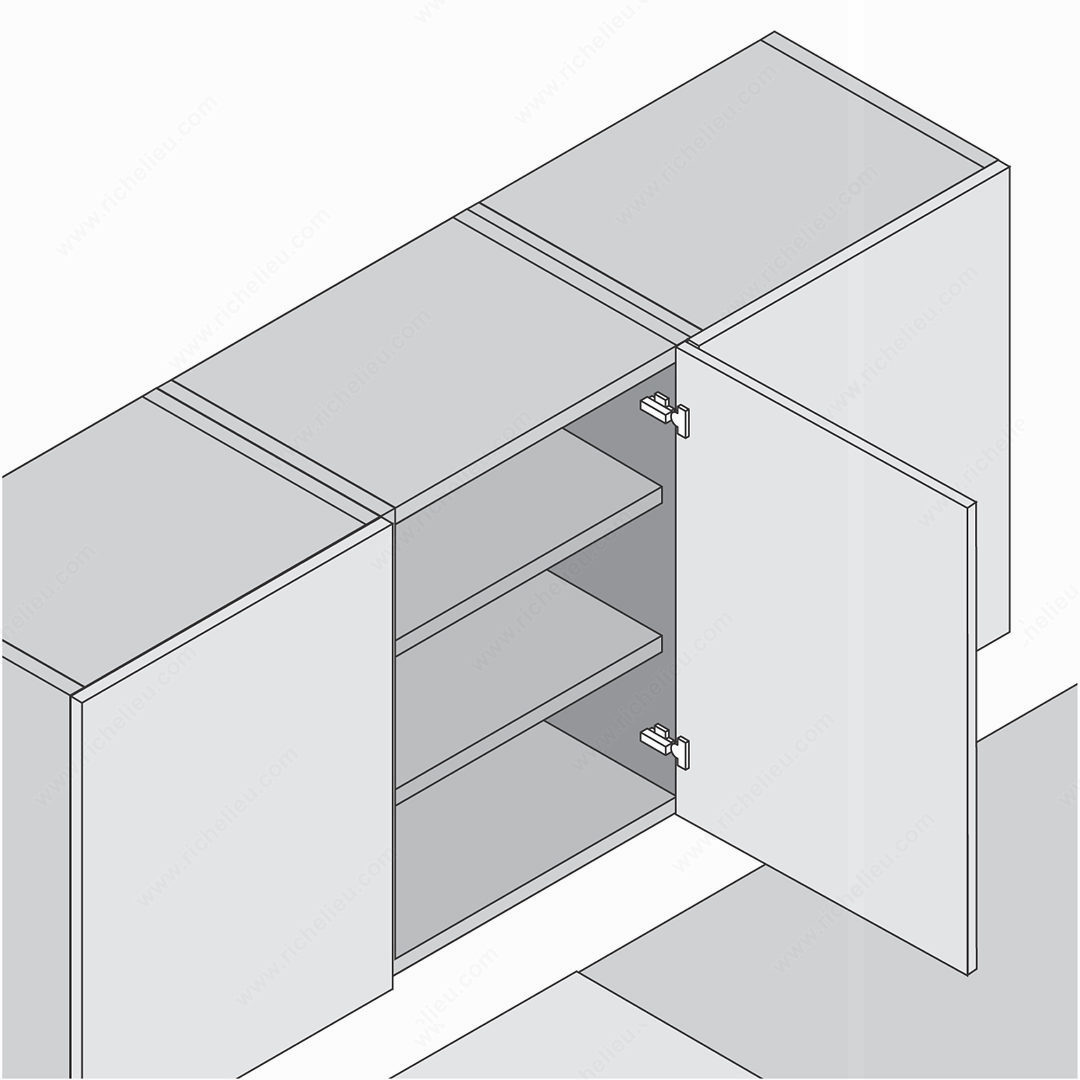

Door Position: Full Overlay
Door Thickness: Min. 16 mm
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing

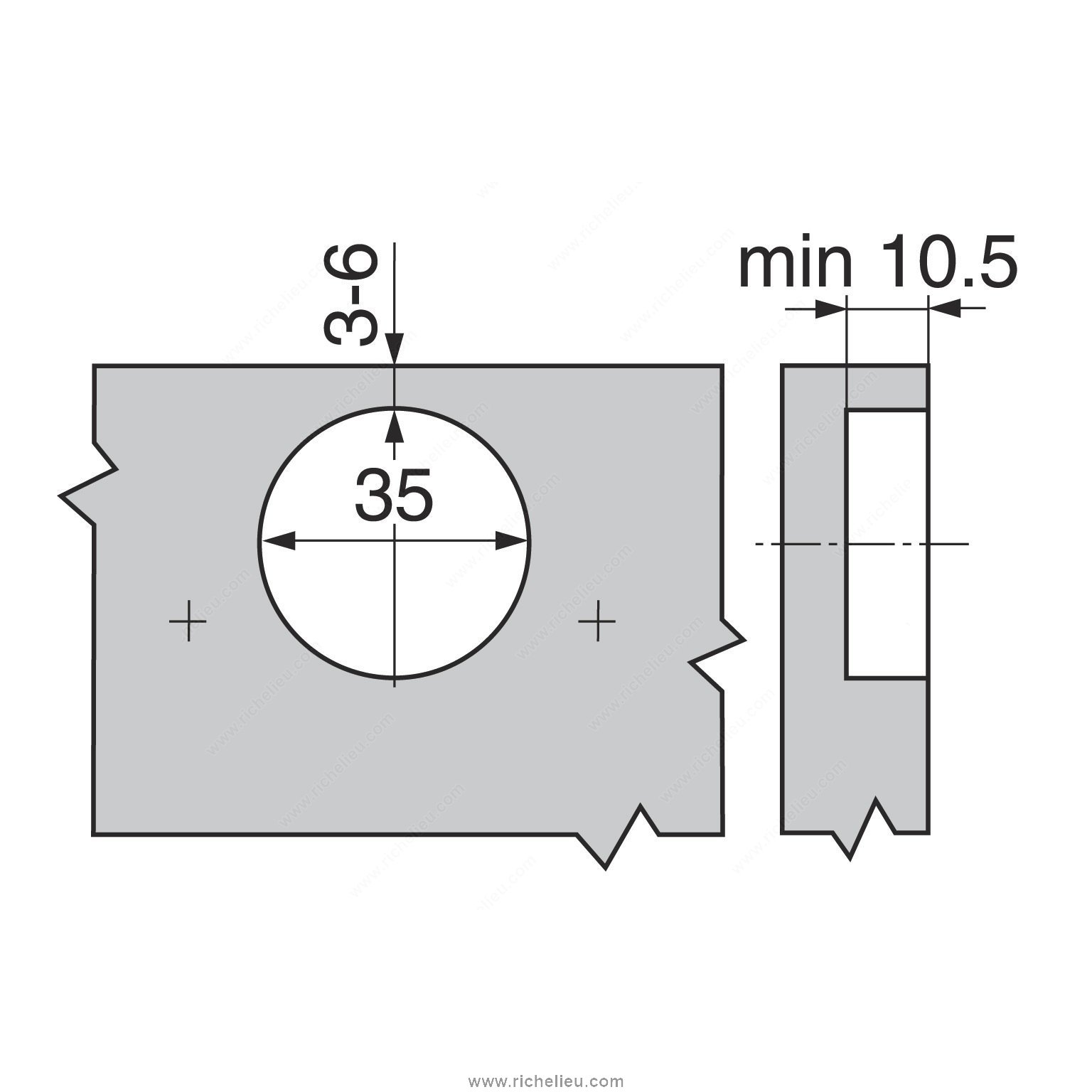

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: UPC Code
Packaging format: Bag of 2 units
Product #: BP71M25521180
Product number: BP71M25521180
Screw/ Nail: Wood
Unit: Bag of 2 units
Unit 2: package - 10
Unit 3: case - 60
Use Type: Standard Door
