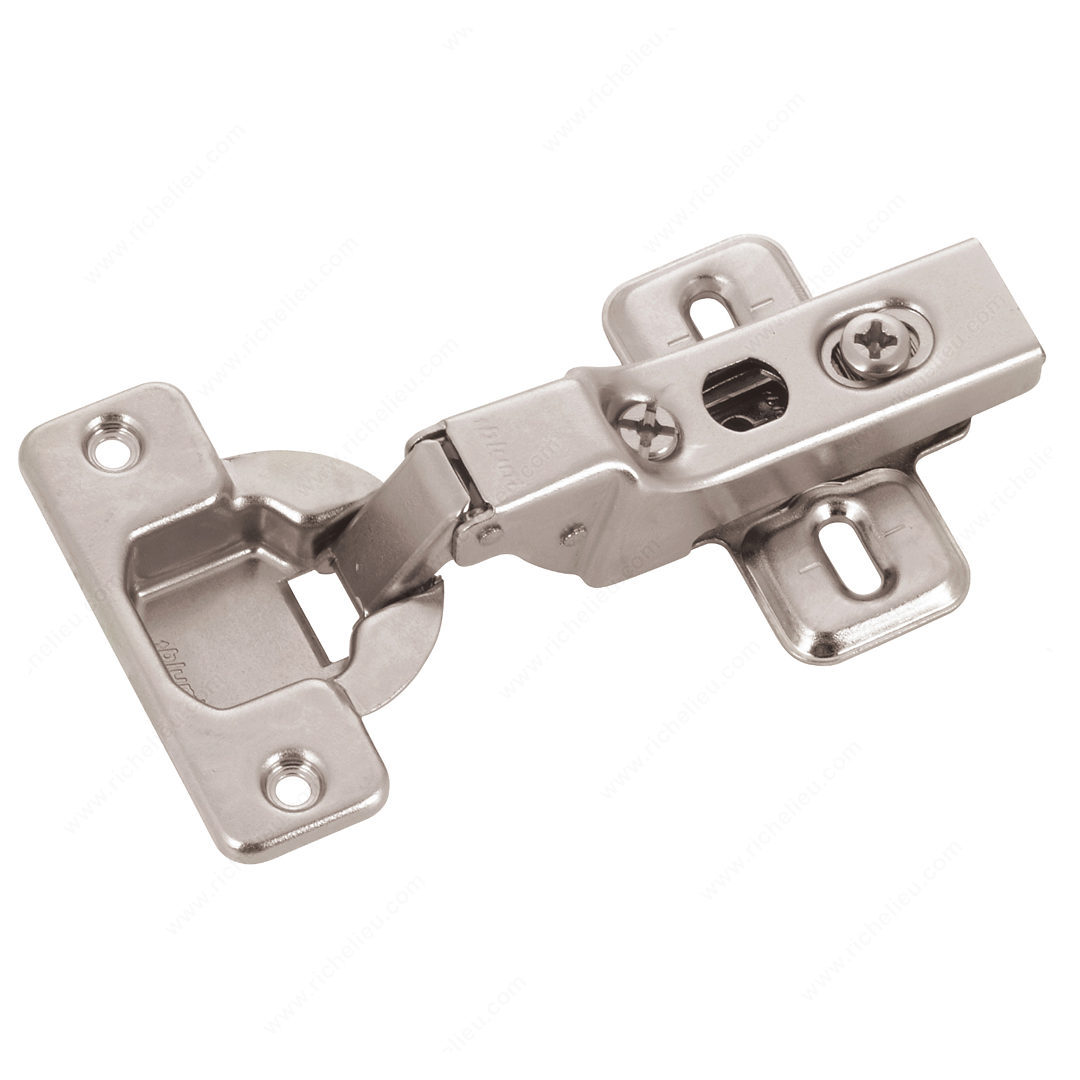

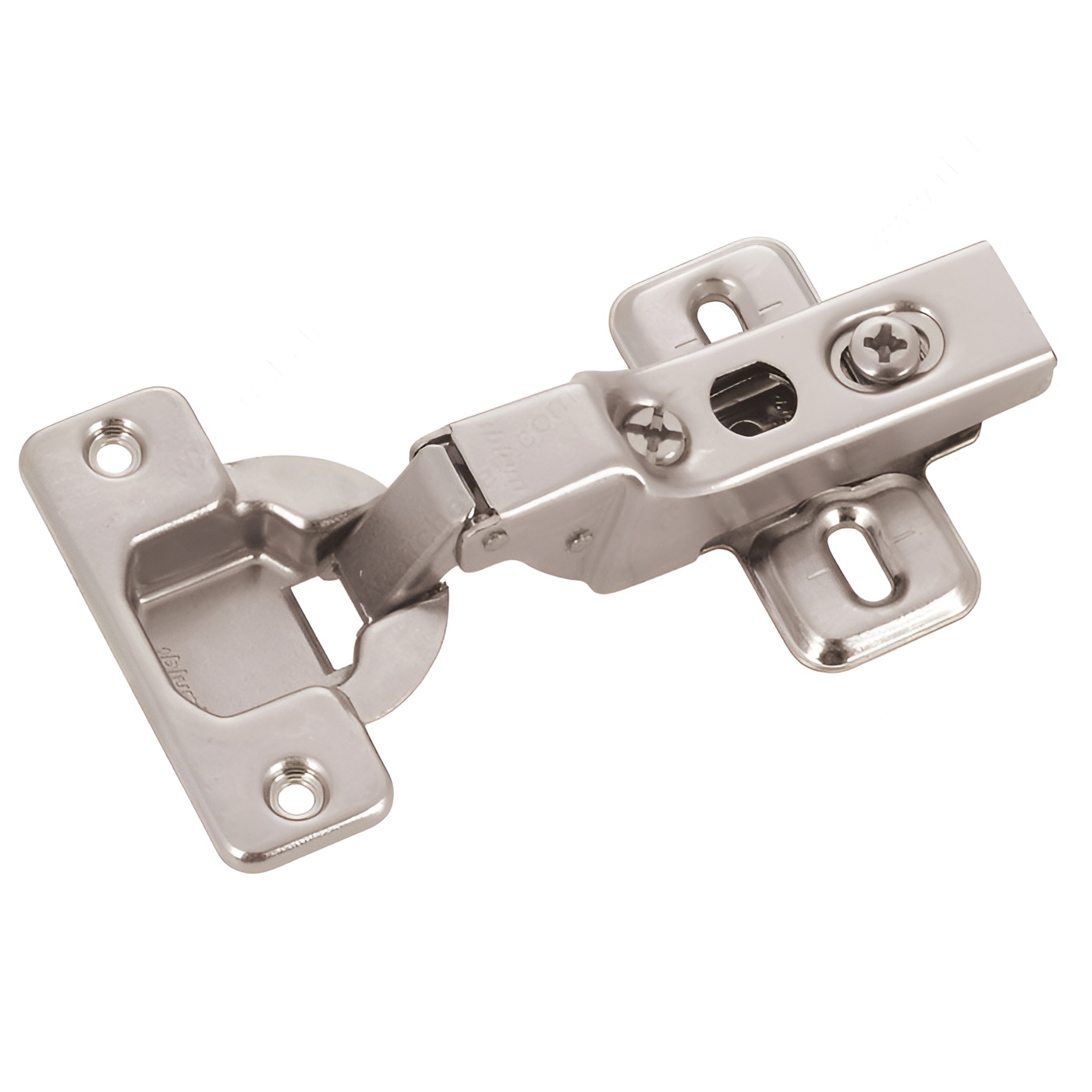

Richelieu BP71M26521180 CLIP Hinge - 100 offers an ergonomic design that ensures ease of handling, making it a reliable choice for professionals and DIY enthusiasts alike. This hinge features a unique fixing mechanism that provides rapid and secure connections to the mounting plate, enhancing installation efficiency. Designed specifically for frameless cabinets, the BP71M26521180 is suitable for a door thickness of a minimum of 5/8 inches and accommodates a cabinet thickness of the same dimension. Its half overlay door position allows for a seamless appearance in modern cabinetry. The hinge opens to an impressive angle of +100°, providing ample access for everyday use. The screw-on fixing type ensures a robust installation, and with a milling depth of 13/32 inches and a diameter of 1 3/8 inches, it meets the needs of standard door applications. This product comes conveniently packaged in bags of two units, allowing for easy inventory management on the job site. Whether you're renovating kitchens or building custom cabinetry, the Richelieu BP71M26521180 CLIP Hinge - 100 is a dependable choice that combines functionality with a sleek design, making it an essential component of any professional-grade project.
CLIP Hinge - 100
Cabinet Thickness: 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

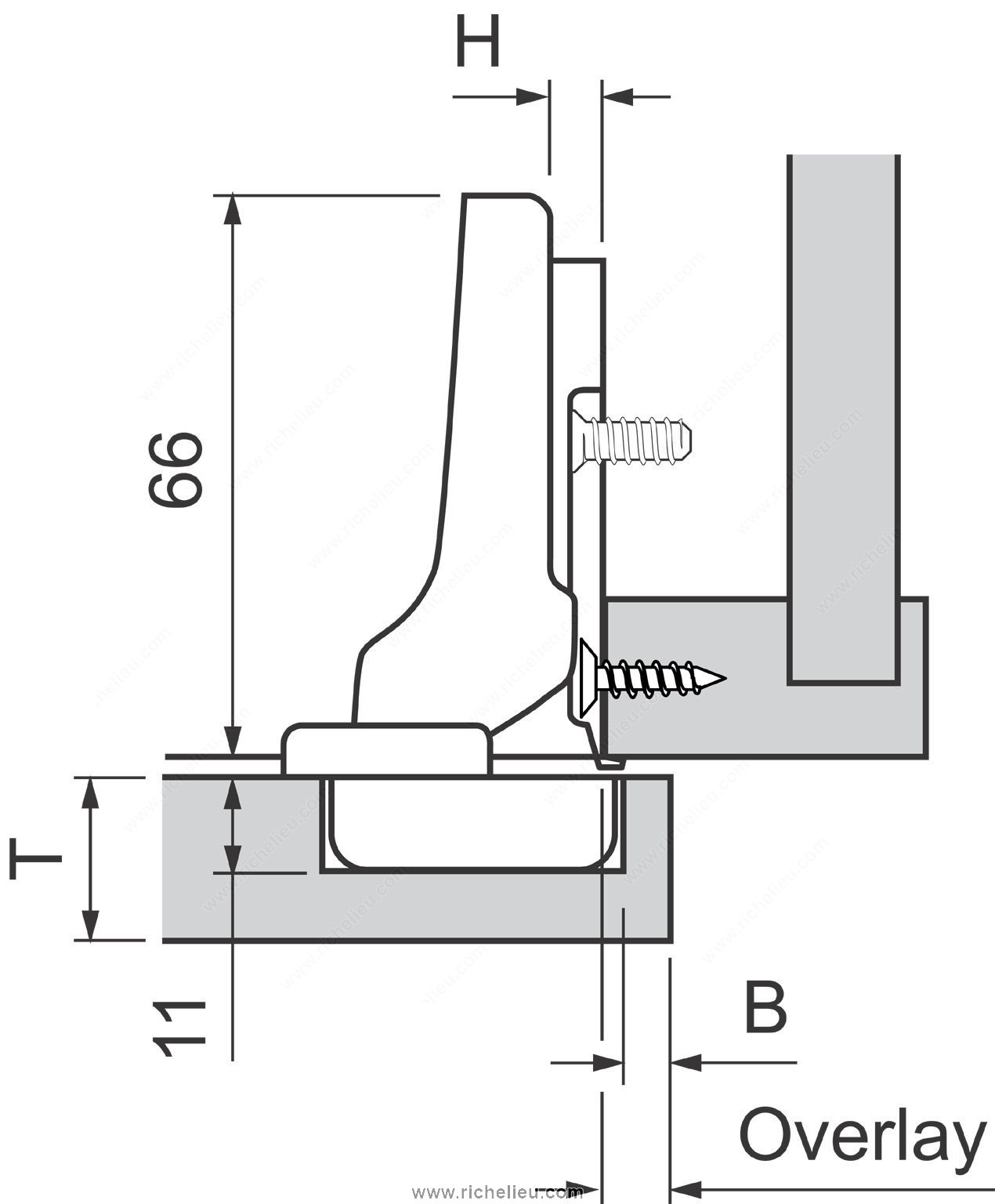

Door Position: Half Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing

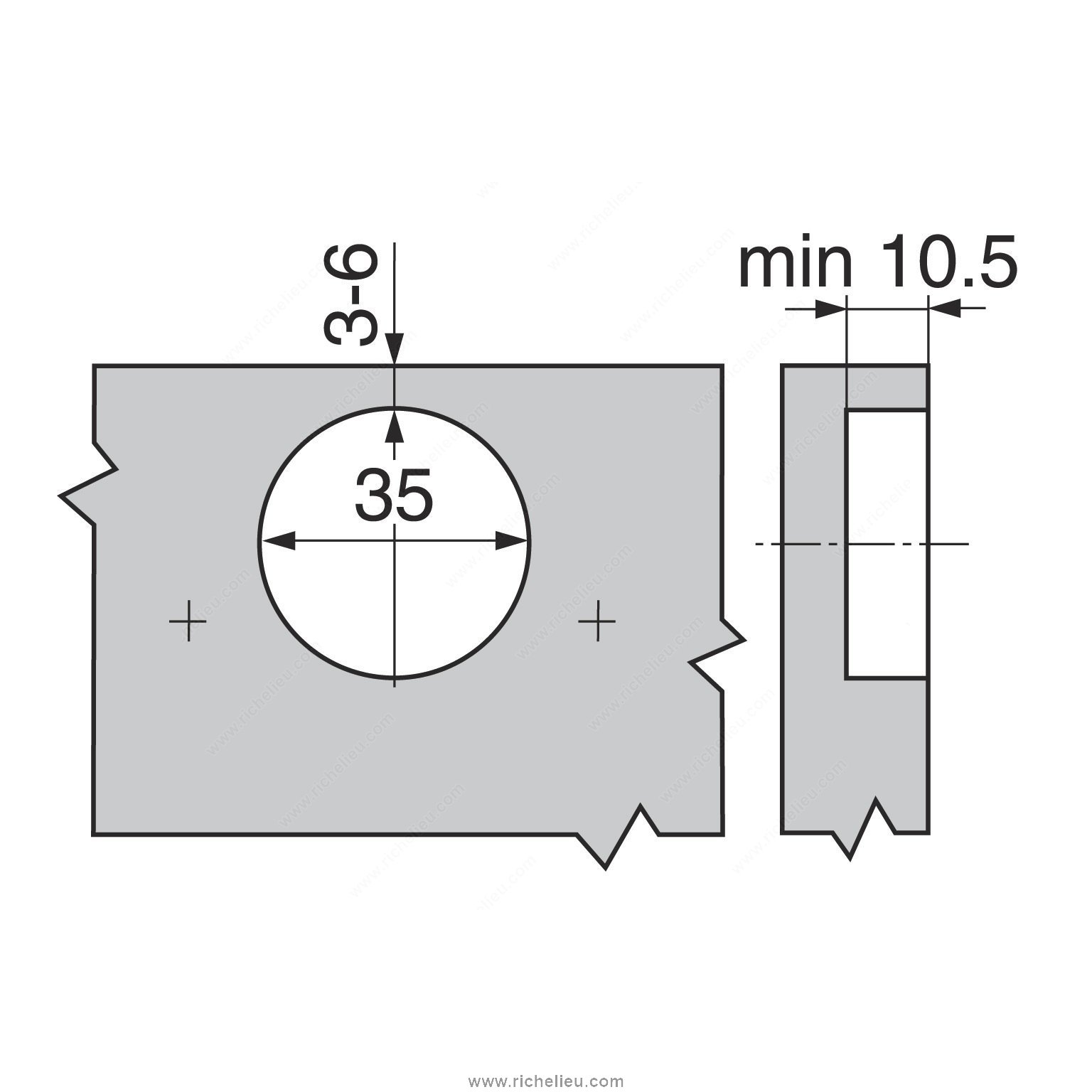

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: UPC Code
Packaging format: Bag of 2 units
Product #: BP71M26521180
Product number: BP71M26521180
Screw/ Nail: Wood
Unit: Bag of 2 units
Unit 2: package - 10
Unit 3: case - 60
Use Type: Standard Door
