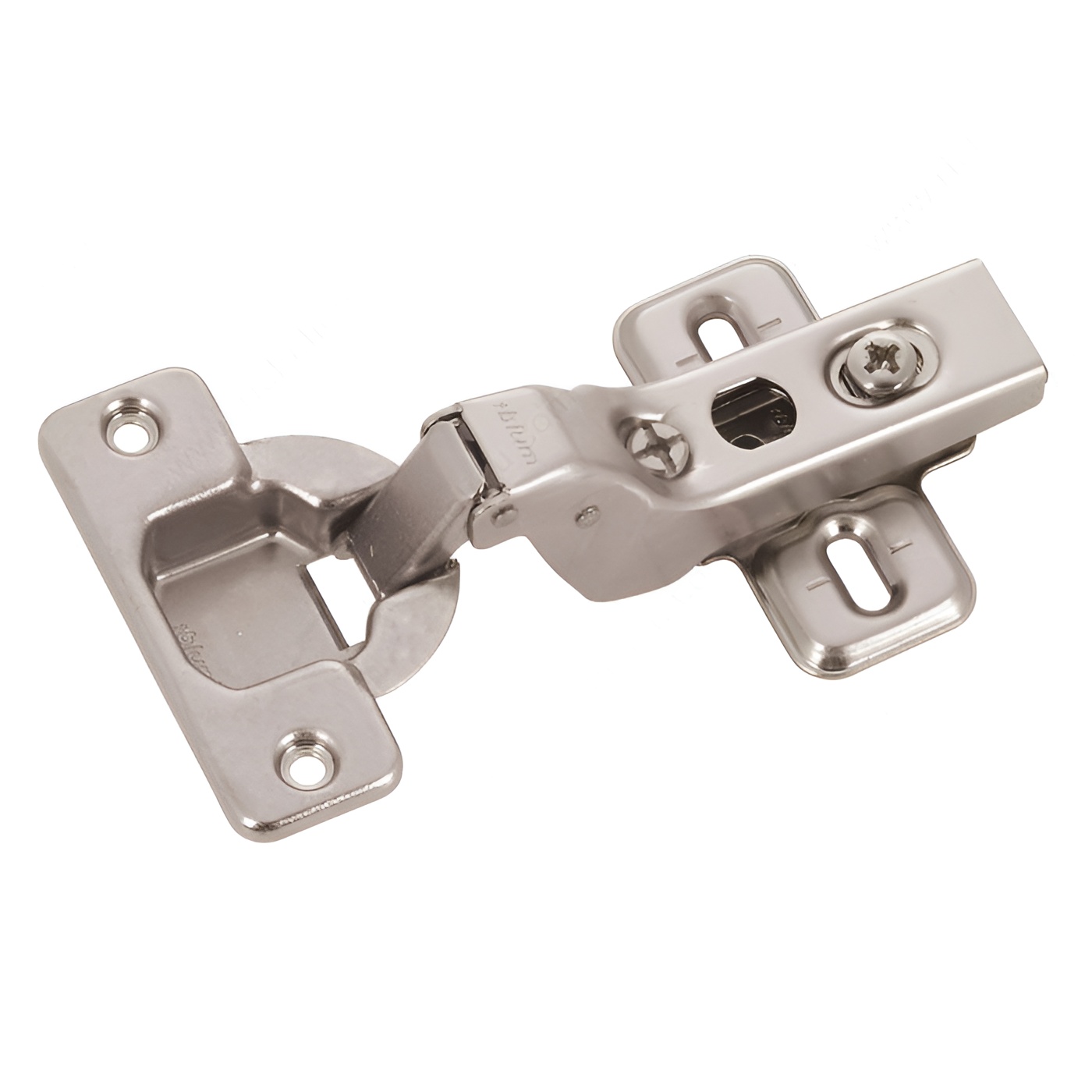

Richelieu BP71M27521180 CLIP Hinge - 100 offers an ergonomic design that simplifies handling while ensuring a rapid and secure connection to the mounting plate. This clip hinge is specifically crafted for frameless cabinets with a door thickness of at least 5/8 inches, making it an ideal choice for standard door applications. With a hinge opening angle of +100°, it allows for easy access to cabinet interiors. The spring closing mechanism enhances usability, ensuring doors close smoothly and reliably. Designed for cabinets with a thickness of 5/8 inches, it features a milling depth of 13/32 inches and a milling diameter of 1 3/8 inches, providing precise fitment for seamless integration. The hinge is fixed using a screw-on method, which contributes to its structural integrity and ease of installation. Packaged in convenient bags of two units, the Richelieu BP71M27521180 CLIP Hinge is ready to ship via UPS, making it a practical choice for building professionals and knowledgeable homeowners alike. With its robust construction and thoughtful design, this hinge is an essential component for any cabinetry project, ensuring both functionality and aesthetic appeal.
CLIP Hinge - 100
Cabinet Thickness: 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Inset
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing

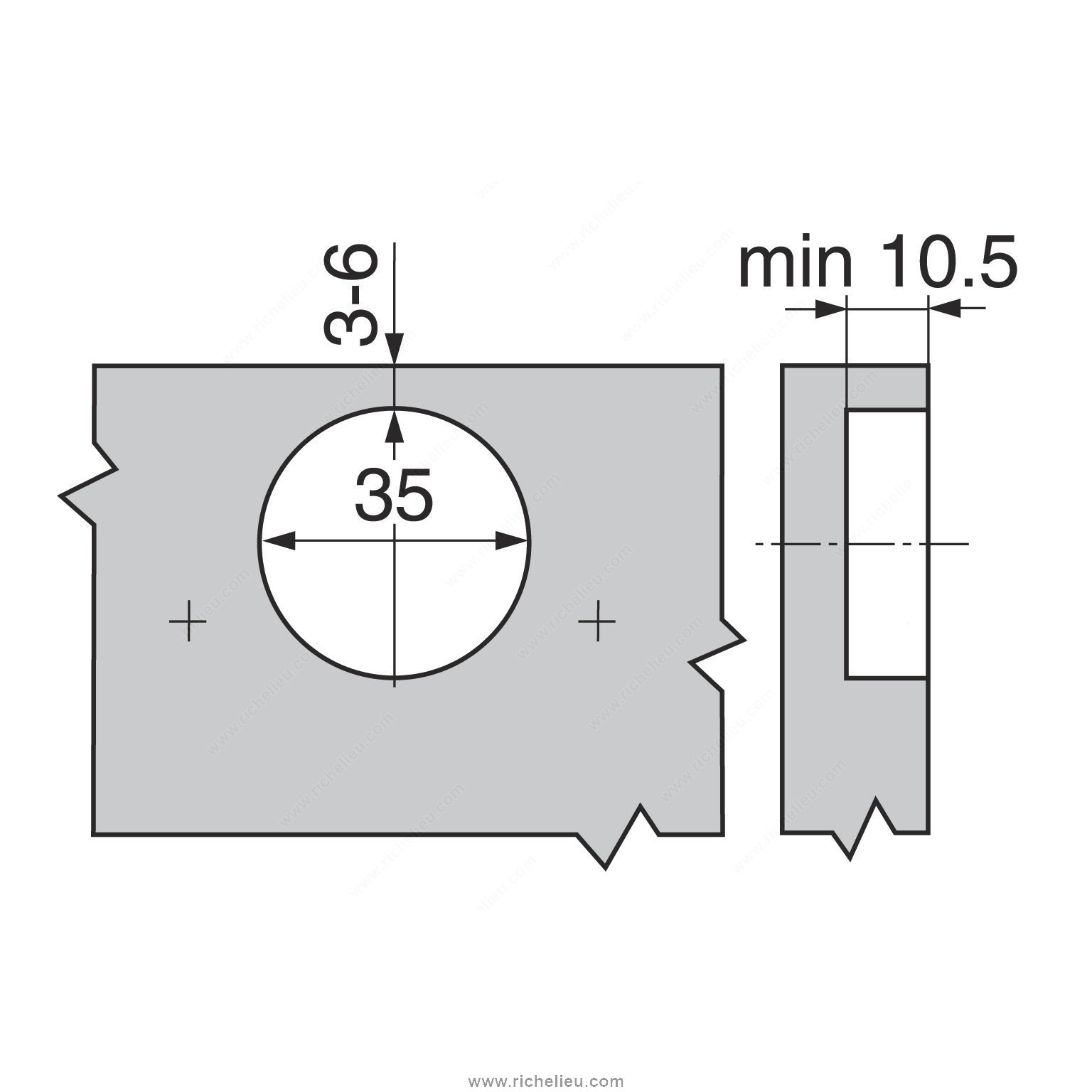

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: UPC Code
Packaging format: Bag of 2 units
Product #: BP71M27521180
Product number: BP71M27521180
Screw/ Nail: Wood
Unit: Bag of 2 units
Unit 2: package - 10
Unit 3: case - 60
Use Type: Standard Door
