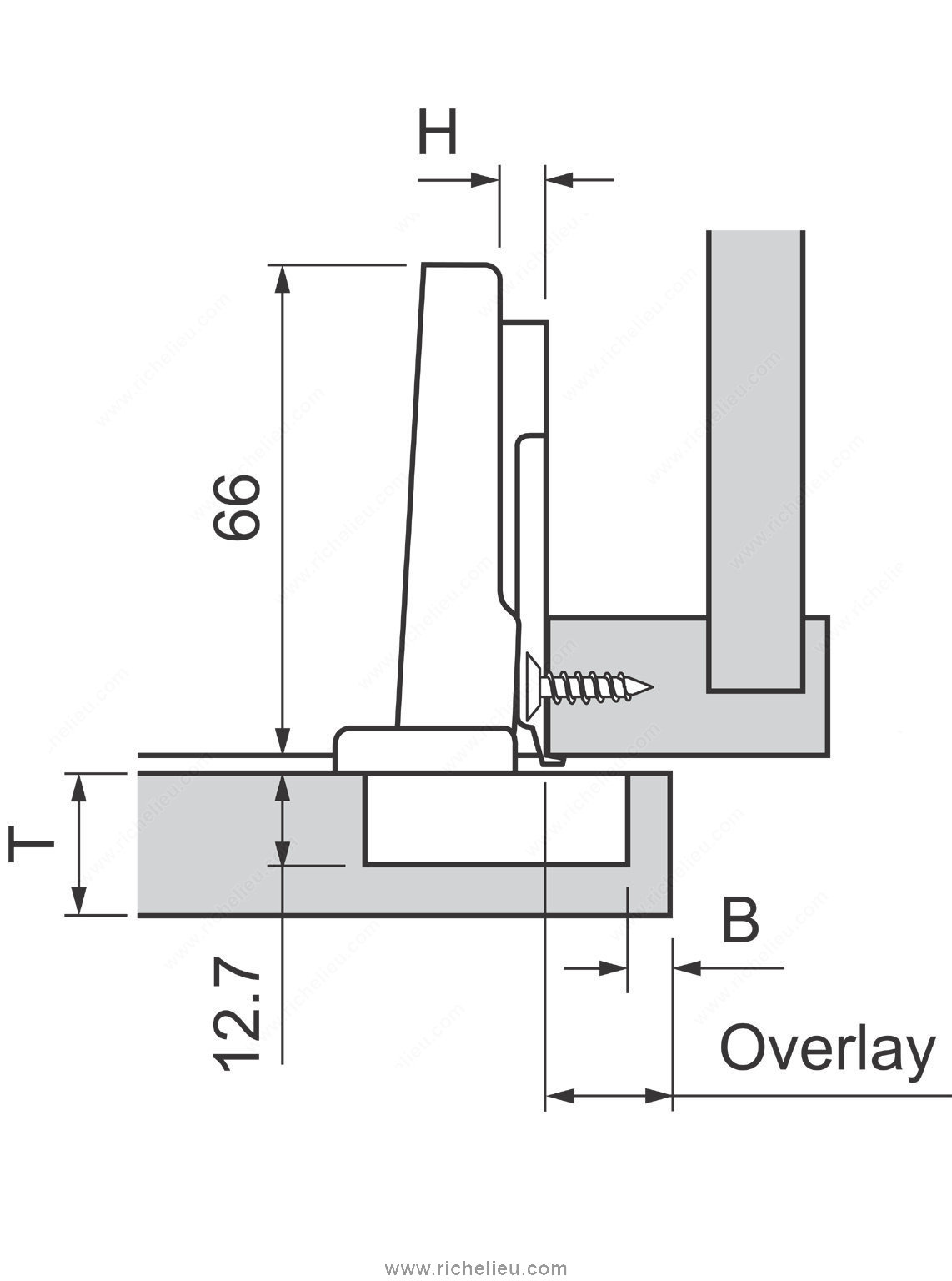

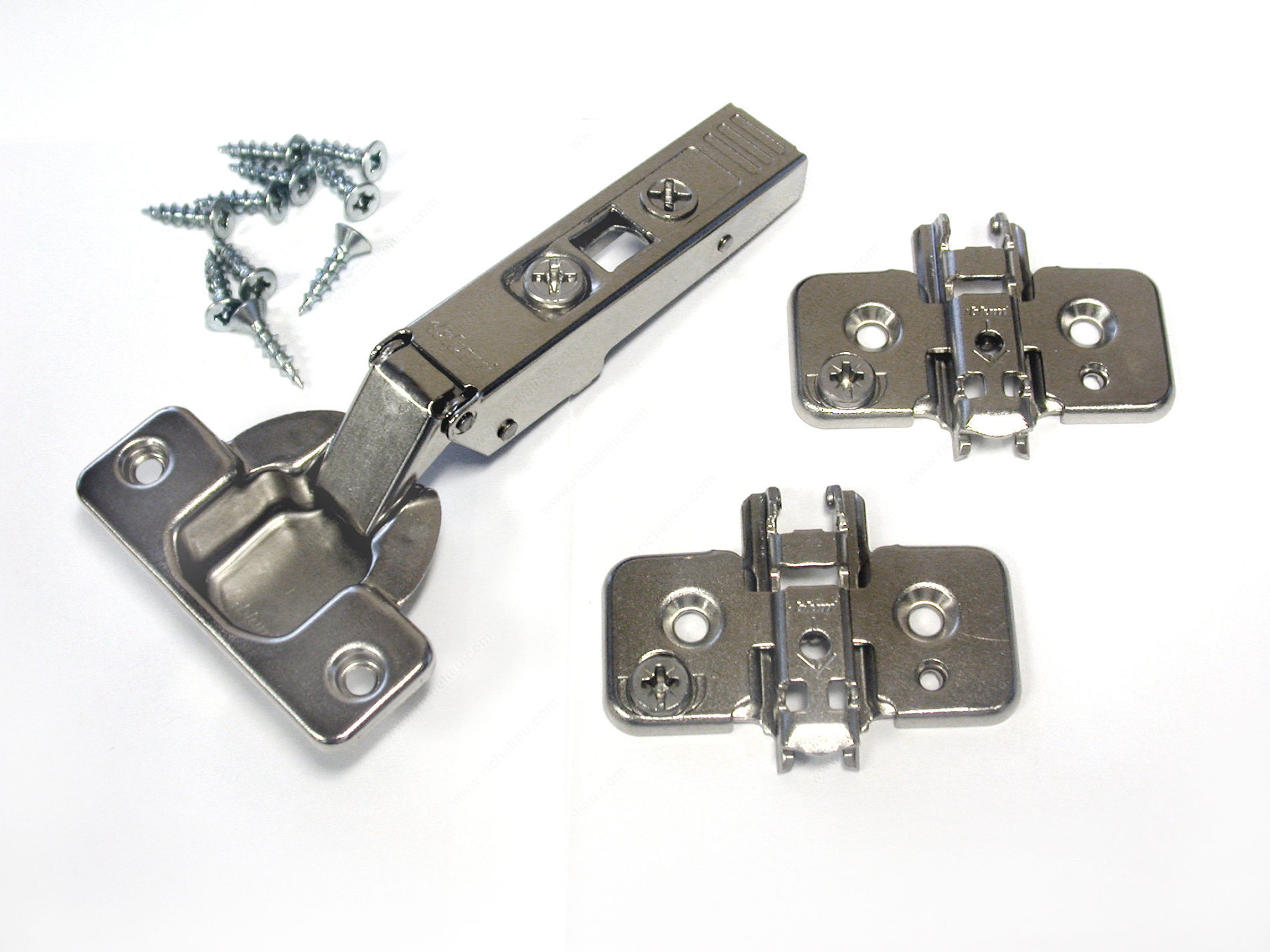

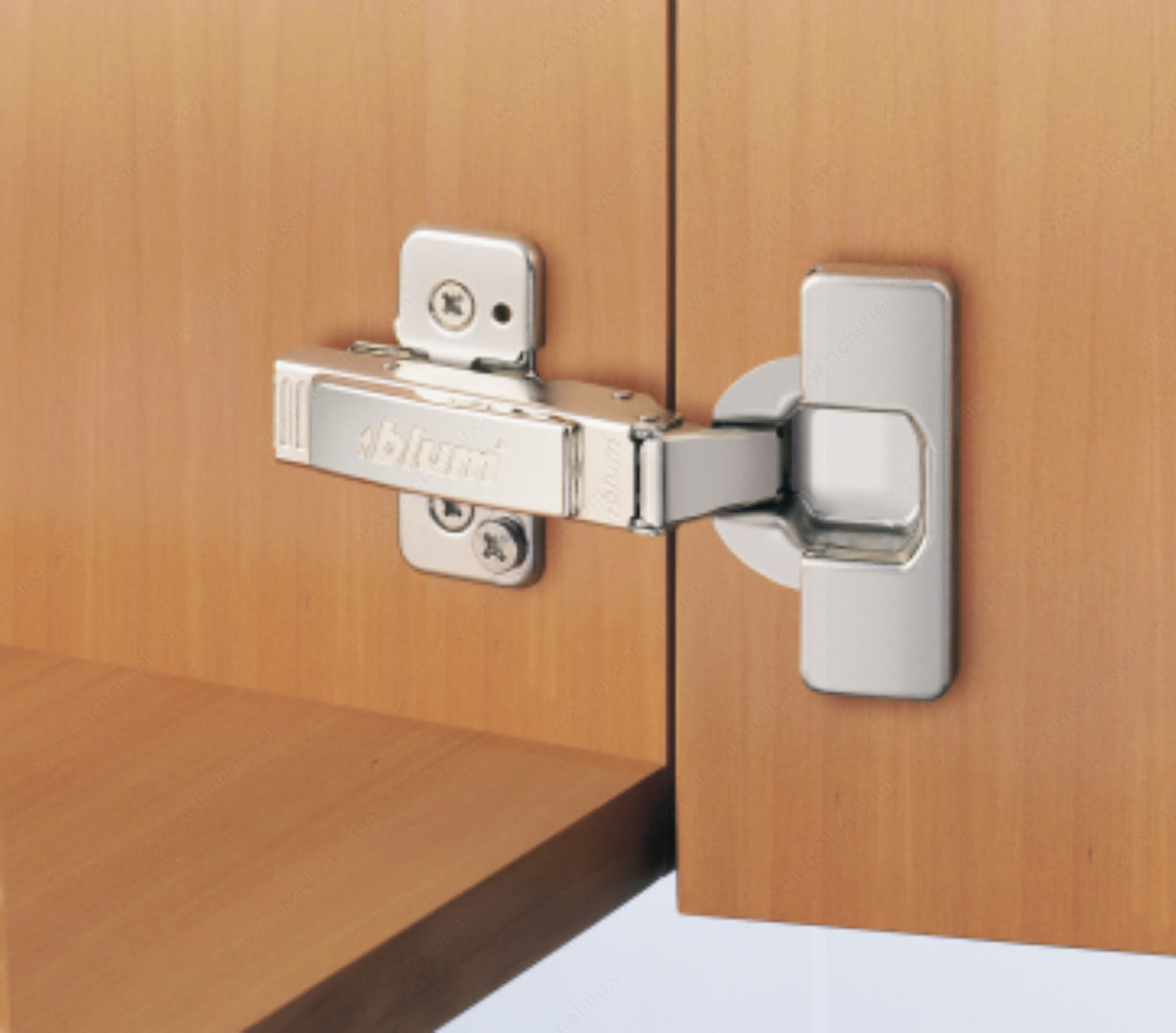

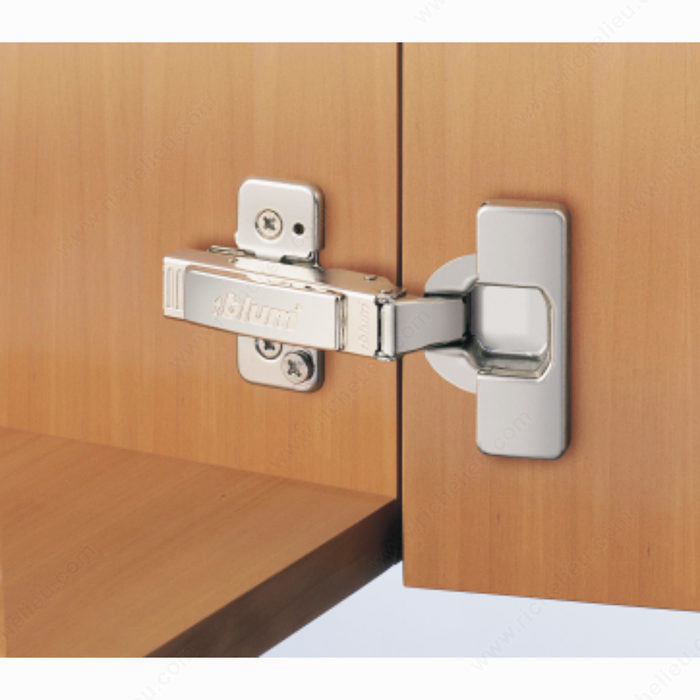

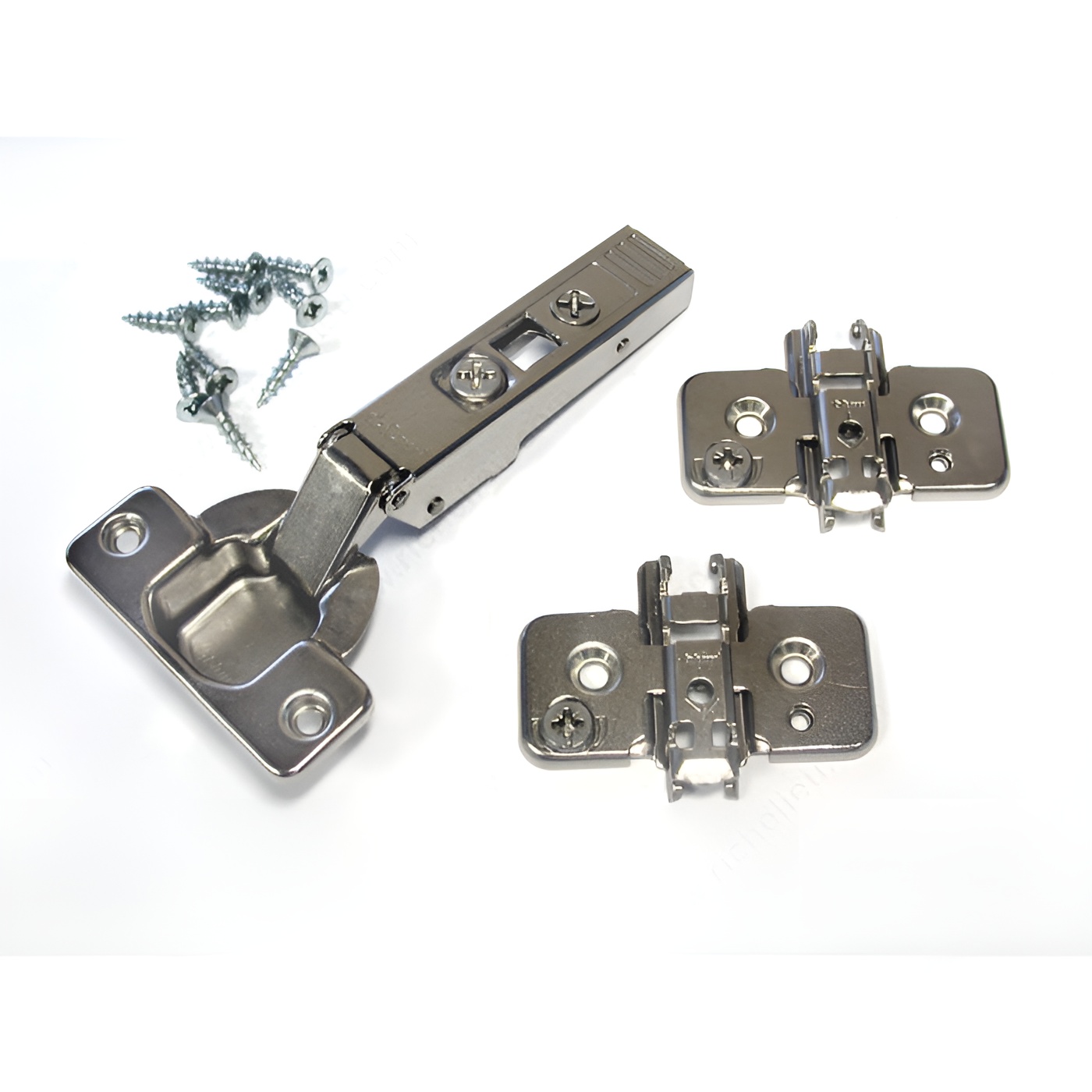

Richelieu BP71T55523180 CLIP top Hinge - 120 offers an ideal solution for frameless cabinetry with its exceptional design and functional performance. This hinge is engineered for full overlay doors, ensuring a seamless appearance while maximizing accessibility. With a minimum cabinet thickness of 5/8 inch, it provides robust support for standard doors, making it a versatile choice for various applications. Featuring a generous hinge opening angle of +120°, the BP71T55523180 allows for smooth and easy door operation, enhancing user convenience. Its spring-closing mechanism ensures that doors securely shut, adding an extra layer of functionality. The screw-on fixing type simplifies installation, allowing for quick setup without compromising stability. For milling requirements, this hinge has a milling diameter of 1 3/8 inches and a milling depth of 1/2 inch, making it compatible with standard cabinetry practices. Packaged in a convenient bag of two units, it is perfect for larger projects or replacements. Whether you are a building professional or a knowledgeable homeowner, the Richelieu BP71T55523180 CLIP top Hinge - 120 is a reliable choice for enhancing your cabinetry with stylish and effective hardware.
CLIP top Hinge - 120
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

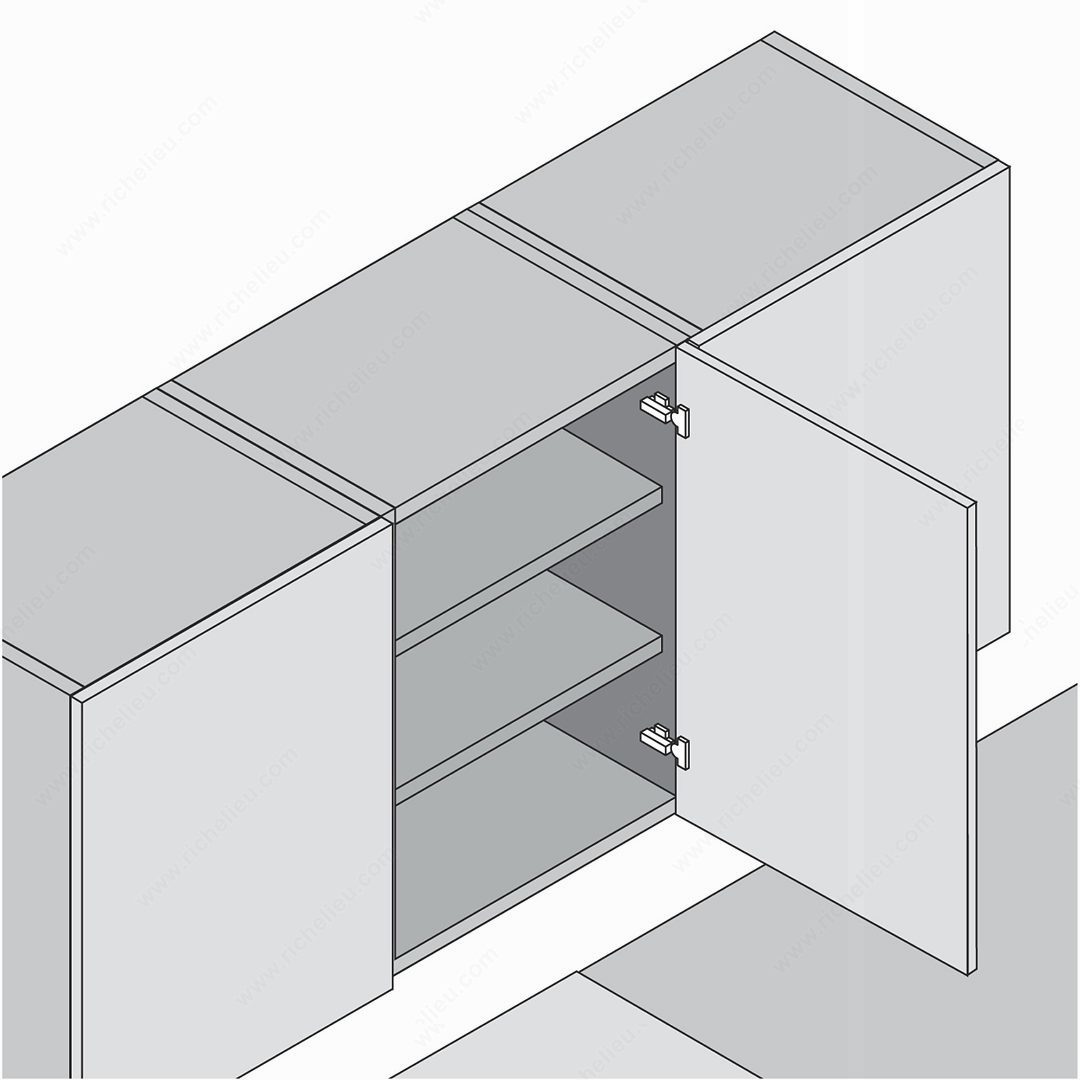

Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel

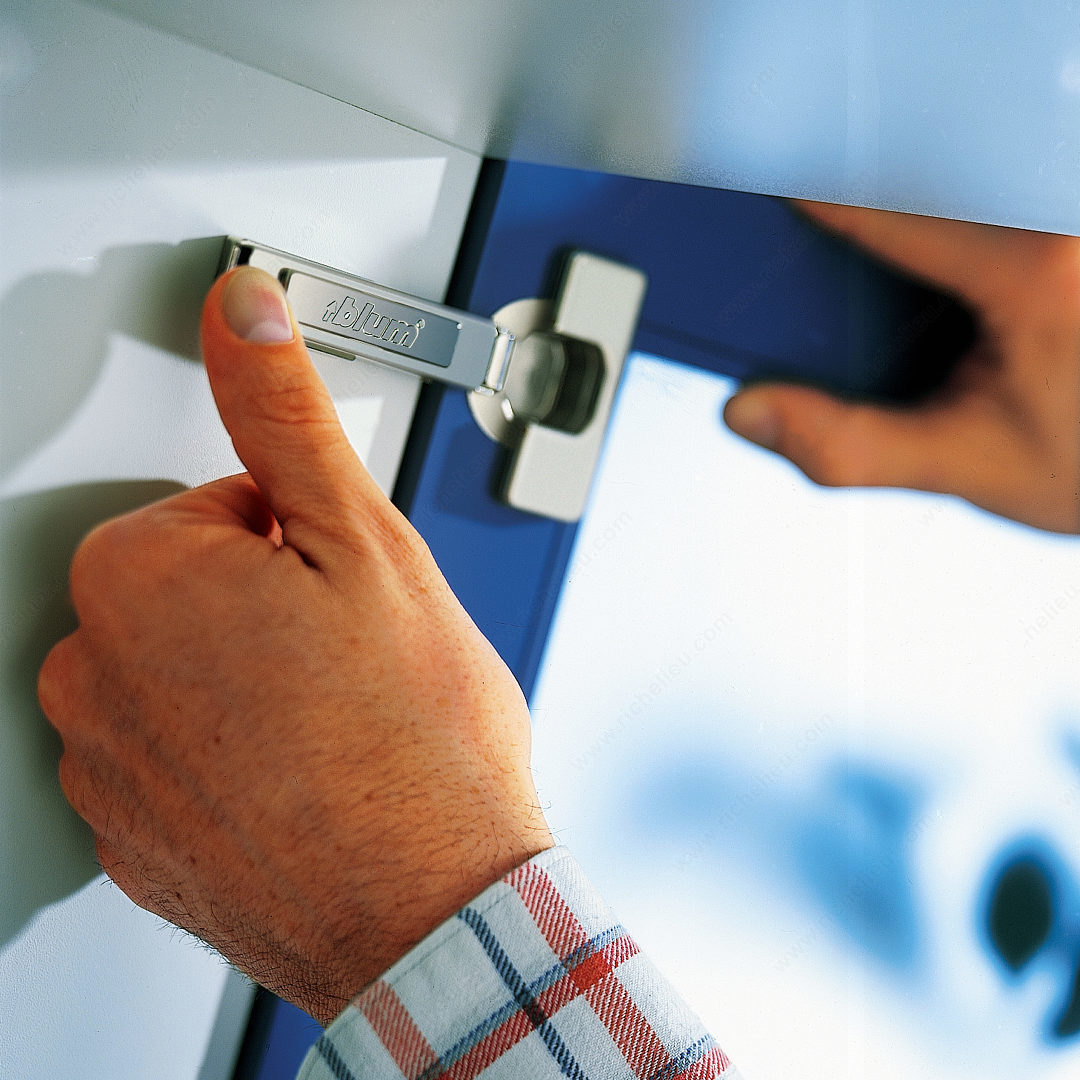

Fixing Type: Screw-On
Hinge Opening Angle: +120°
Hinge Type: CLIP top
Mechanism: Spring Closing

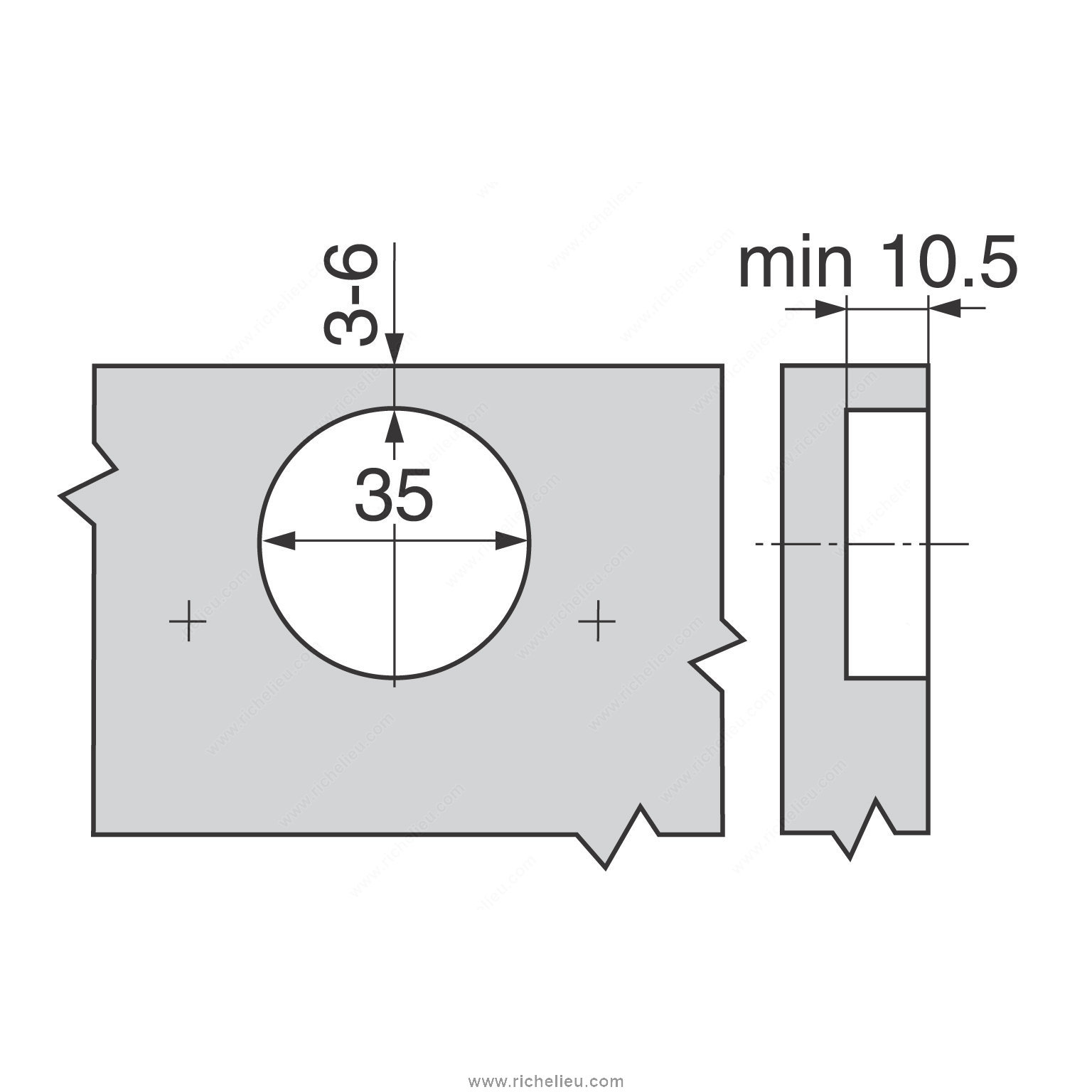

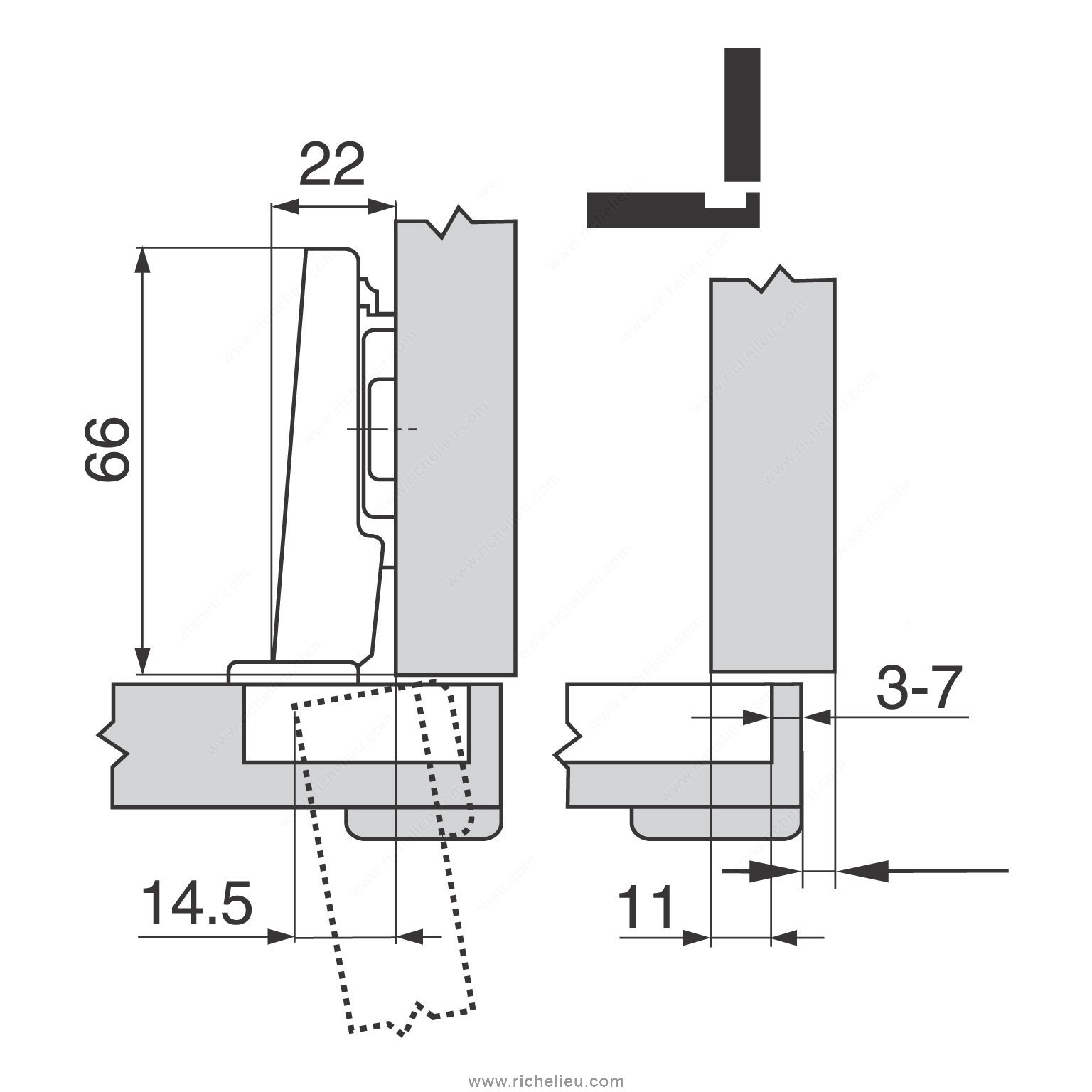

Milling Depth: 12.6 to 12.8 mm
Milling Diameter: 35 mm
Packaging format: Bag of 2 units
Product #: BP71T55523180
Product number: BP71T55523180
Unit: Bag of 2 units
Unit 2: package - 10
Unit 3: case - 60
Use Type: Standard Door
