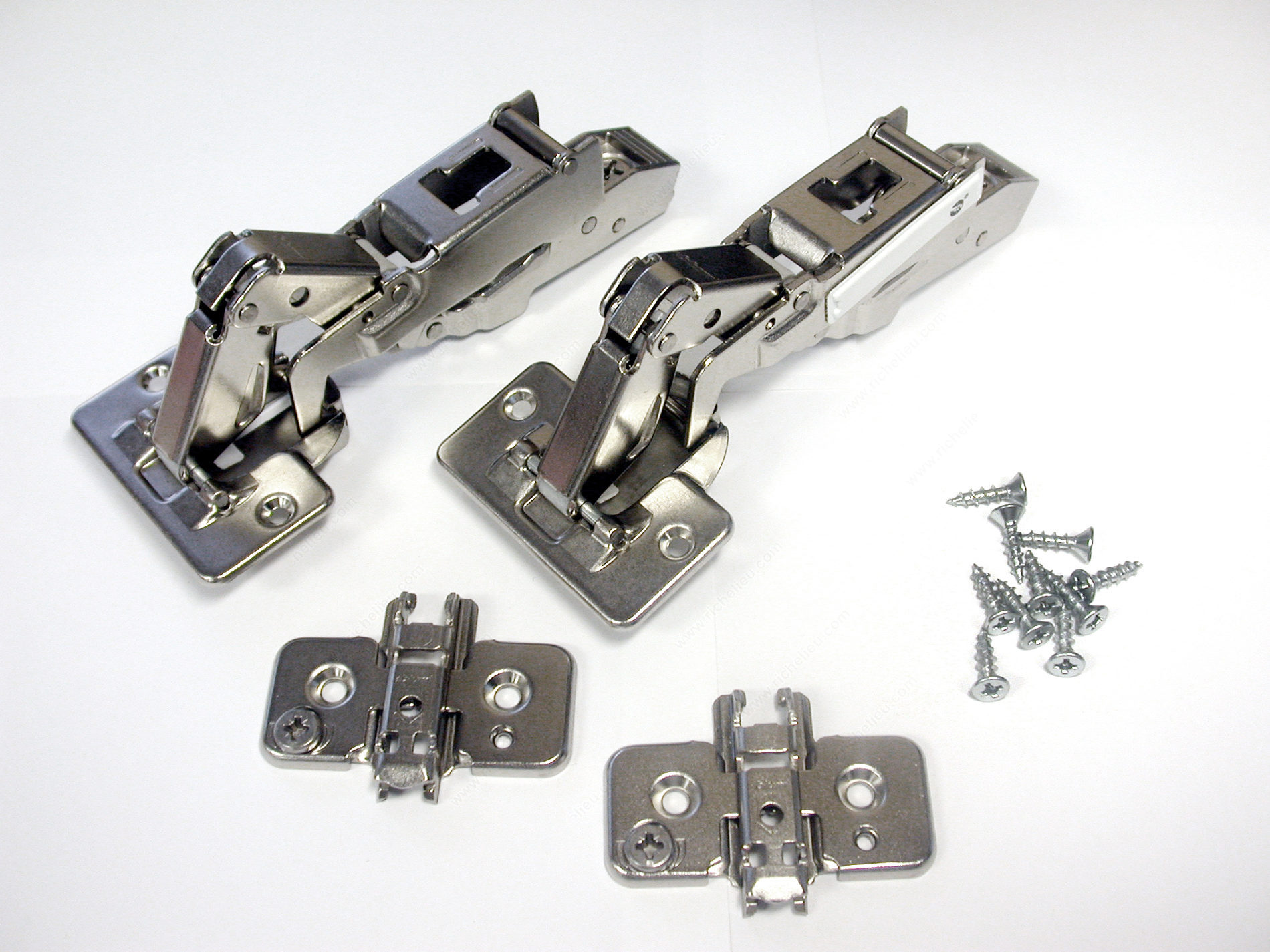

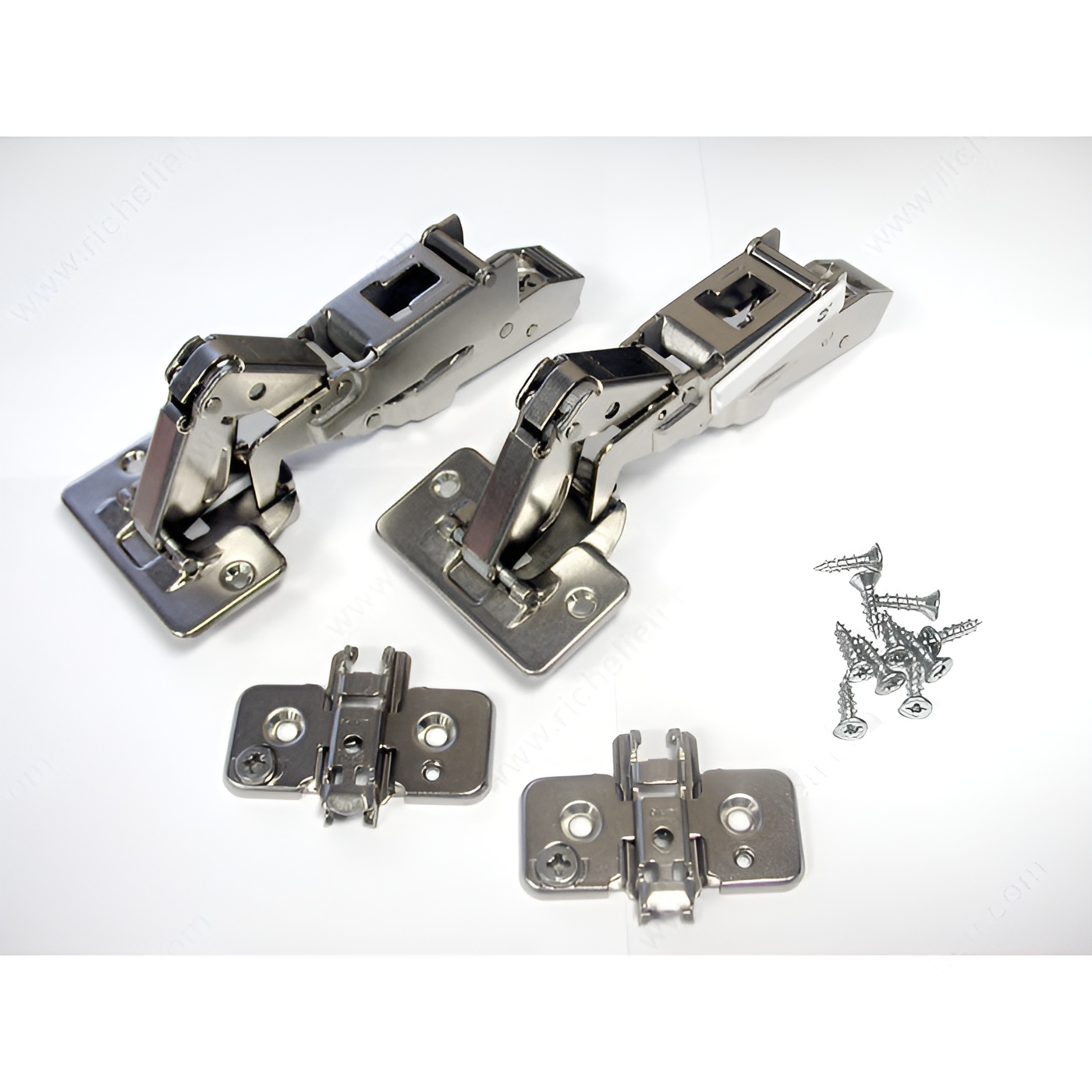

Richelieu BP71T65523180 CLIP top Hinge 170 offers an innovative solution for cabinet doors with its concealed design, ensuring a clean, seamless look when doors are closed. Ideal for both frameless and face frame cabinets, this hinge provides versatility in various applications thanks to the wide array of compatible mounting plates. With a remarkable hinge opening angle of +170°, the BP71T65523180 allows for full accessibility, making it perfect for bi-fold door setups. Designed for cabinets with a minimum thickness of 5/8 inch, it accommodates door thicknesses of the same measurement, ensuring a secure fit. The hinge is made from durable steel and Zamac, promising longevity and reliability in daily use. The screw-on fixing type ensures straightforward installation, while the option to upgrade to a soft-closing BLUMOTION mechanism enhances functionality and user experience. Each package contains two units, making it a convenient choice for projects requiring multiple hinges. Whether you're a building professional or a knowledgeable homeowner, the Richelieu BP71T65523180 CLIP top Hinge 170 stands out for its functionality, adaptability, and sleek appearance-an essential component for any modern cabinetry project.
CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Spring Closing
Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Bag of 2 units
Product #: BP71T65523180
Product number: BP71T65523180
Unit: Bag of 2 units
Unit 2: package - 10
Unit 3: case - 30
Use Type: Bi-Fold Door
