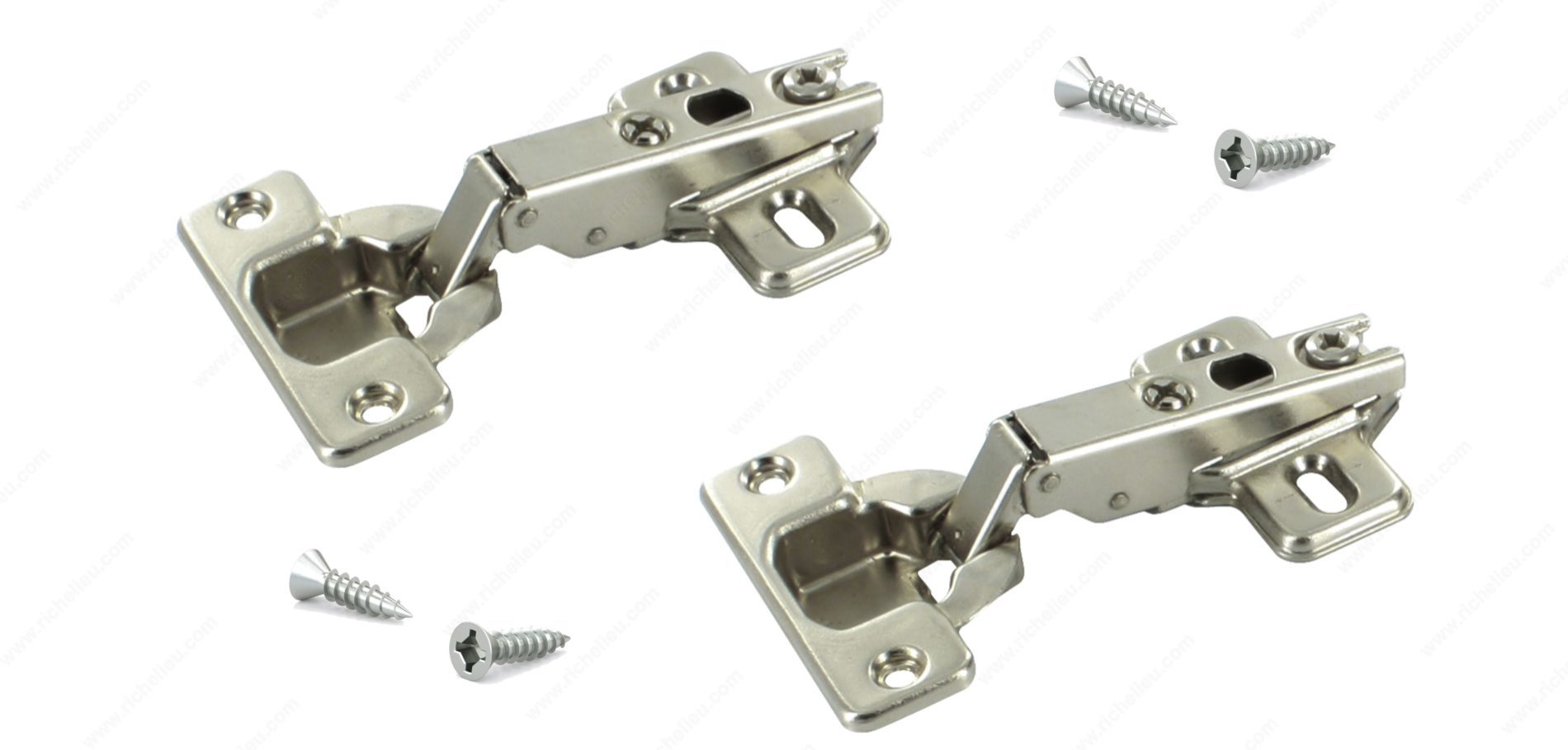

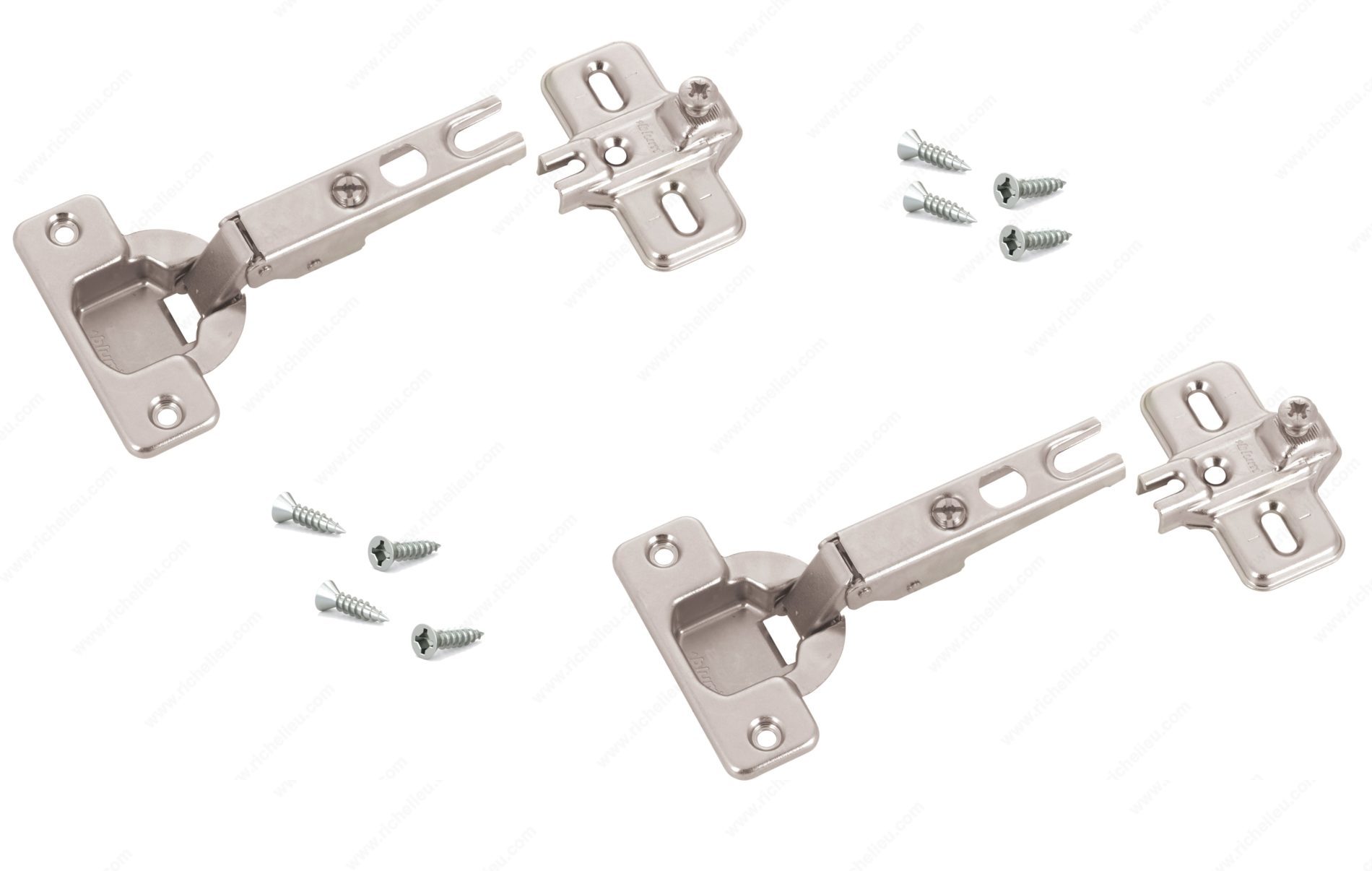

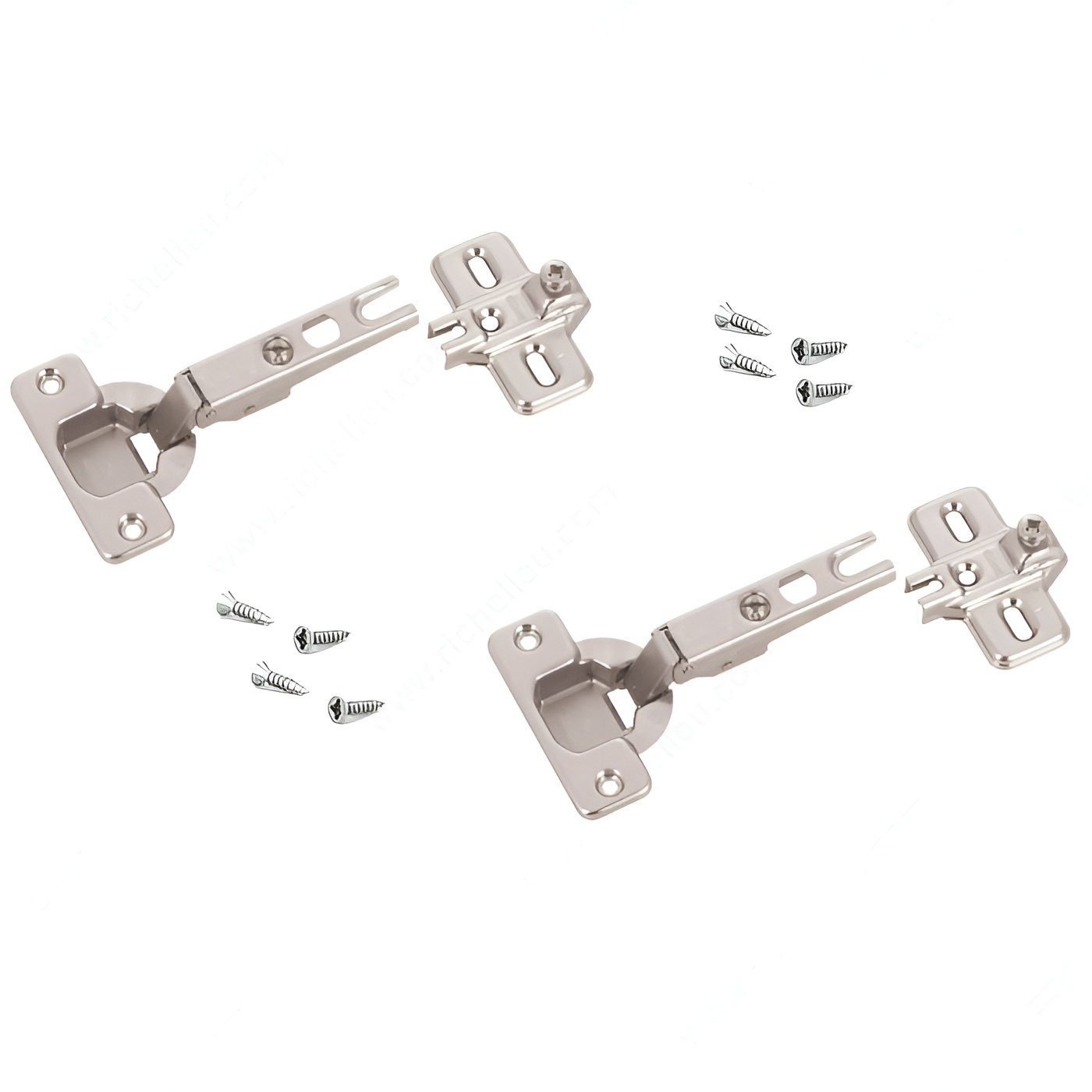

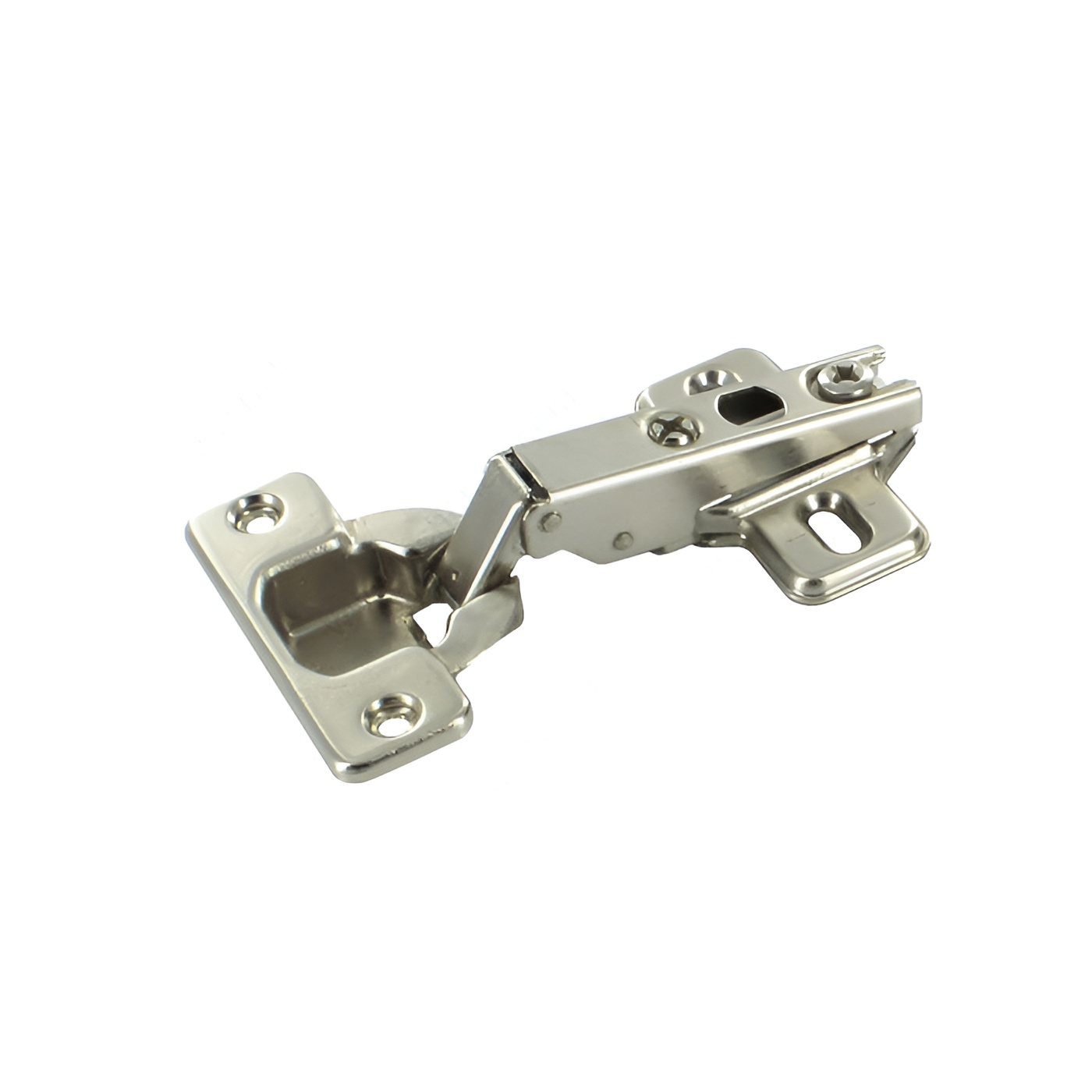

Richelieu BP91M25521180 MODUL Hinge - 100 offers a reliable solution for furniture manufacturers looking for quality and ease of use. Renowned for its sliding and plug-in technology, the MODUL hinge has established itself as a preferred choice over the years. Designed for frameless cabinets, this hinge features a short glide path that simplifies the mounting of doors, ensuring an efficient assembly process. The hinge provides three-dimensional adjustment capabilities, allowing for precise alignment and a balanced play pattern, making installation straightforward. Additionally, the integrated unhooking safety device ensures that doors remain securely in place during operation, enhancing safety and functionality. Crafted from durable steel, the hinge accommodates a minimum cabinet thickness of 5/8 inch and supports door thicknesses of the same measurement. With a hinge opening angle of +100°, it delivers excellent accessibility. Each pack contains two units along with the necessary screws for easy installation. Whether you are a professional builder or a knowledgeable homeowner, the Richelieu BP91M25521180 MODUL Hinge is a valuable addition to your hardware collection, combining practicality and quality to enhance your cabinetry projects.
MODUL Hinge - 100
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

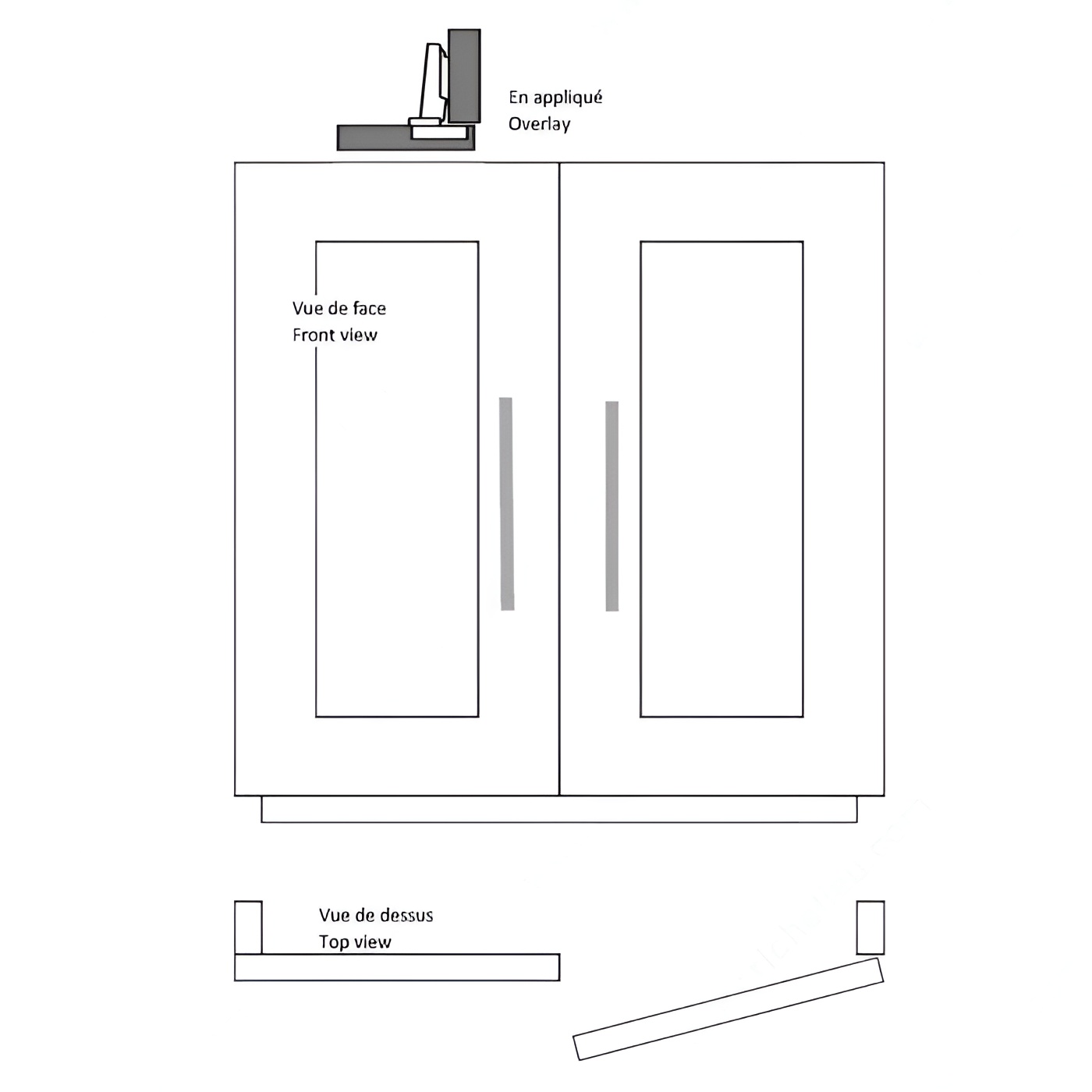

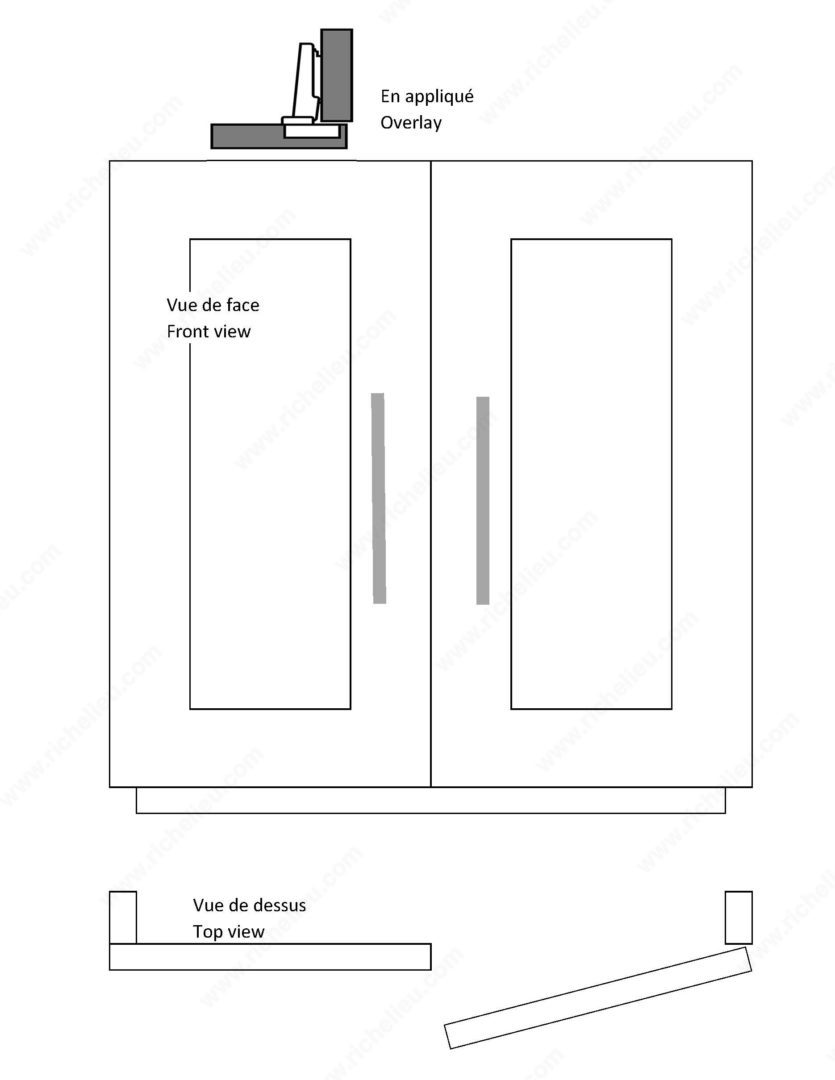

Door Position: Full Overlay
Door Thickness: 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: MODUL
Material: Steel
Mechanism: Spring Closing

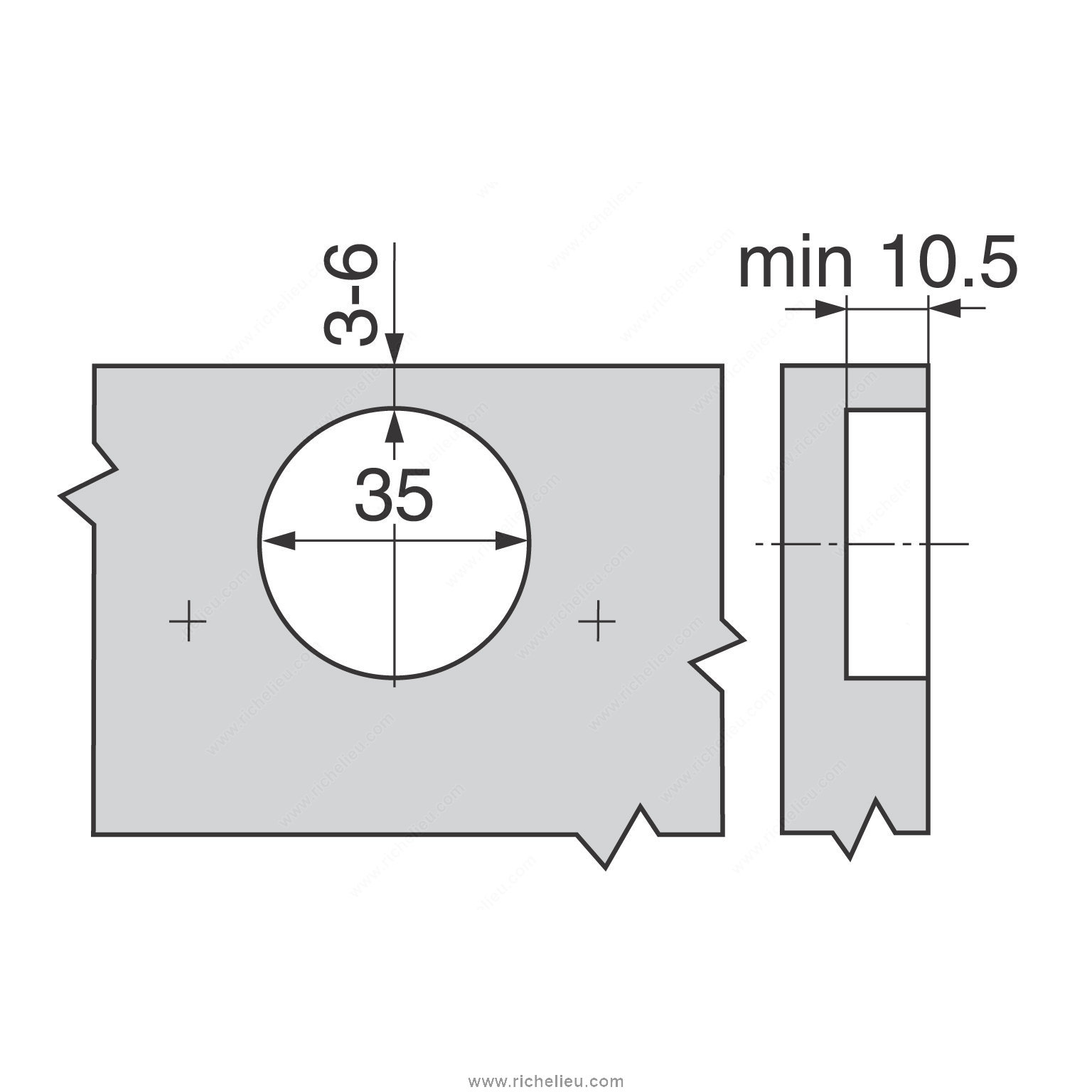

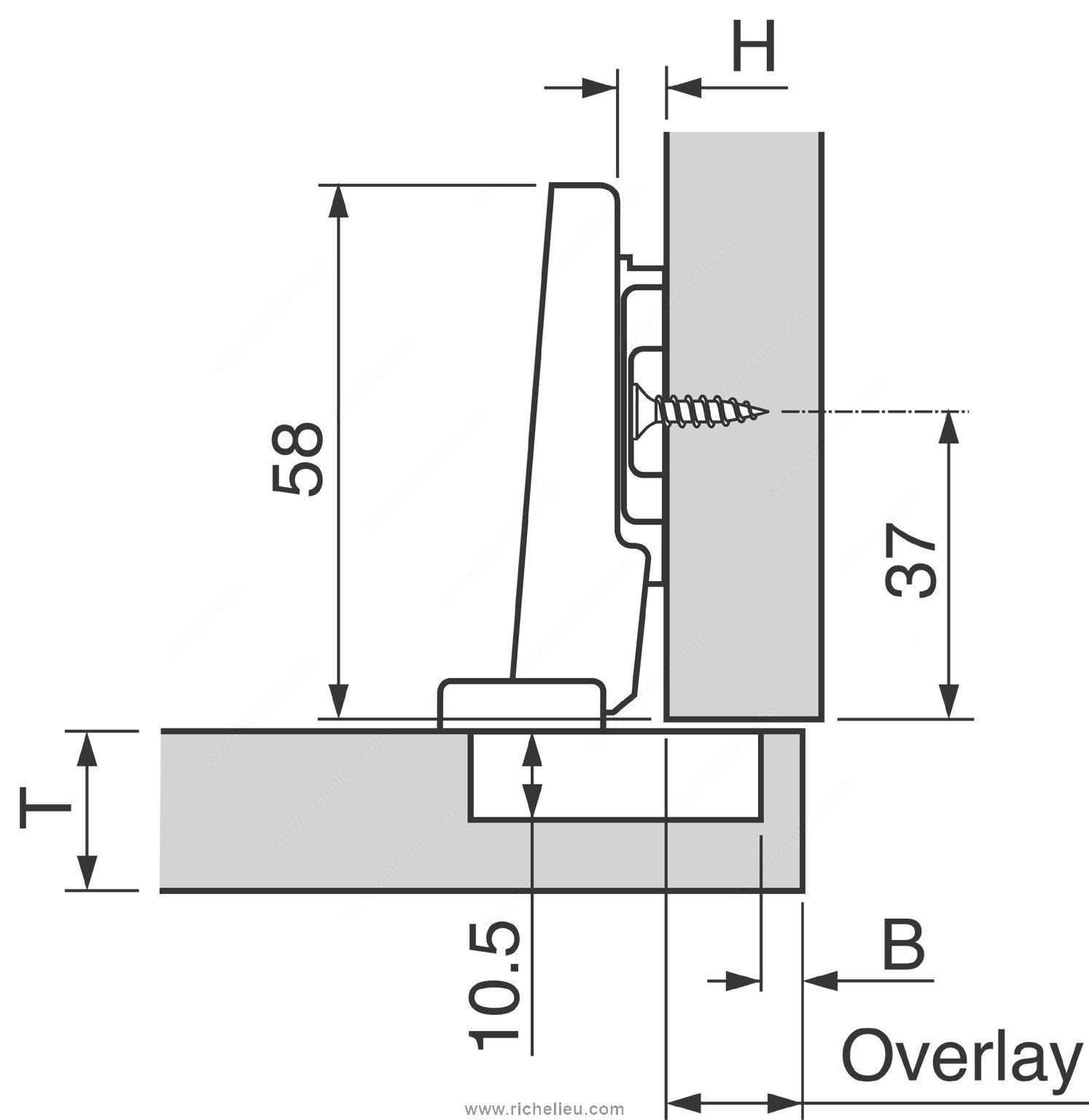

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: UPC Code

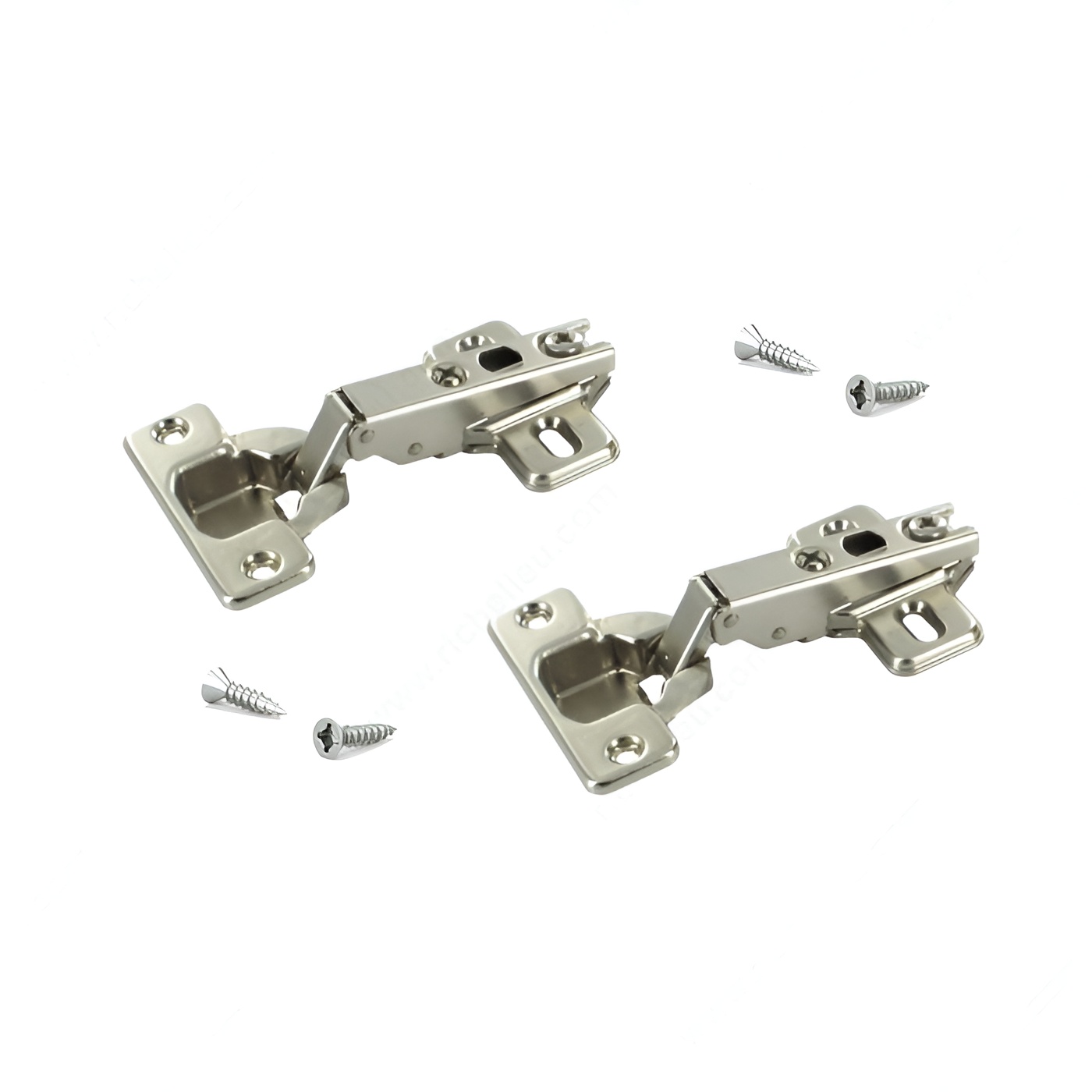

Packaging format: Bag of 2 units
Product #: BP91M25521180
Product number: BP91M25521180
Screw/ Nail: Included
Unit: Bag of 2 units
Unit 2: package - 10
Unit 3: case - 60
Use Type: Standard Door
