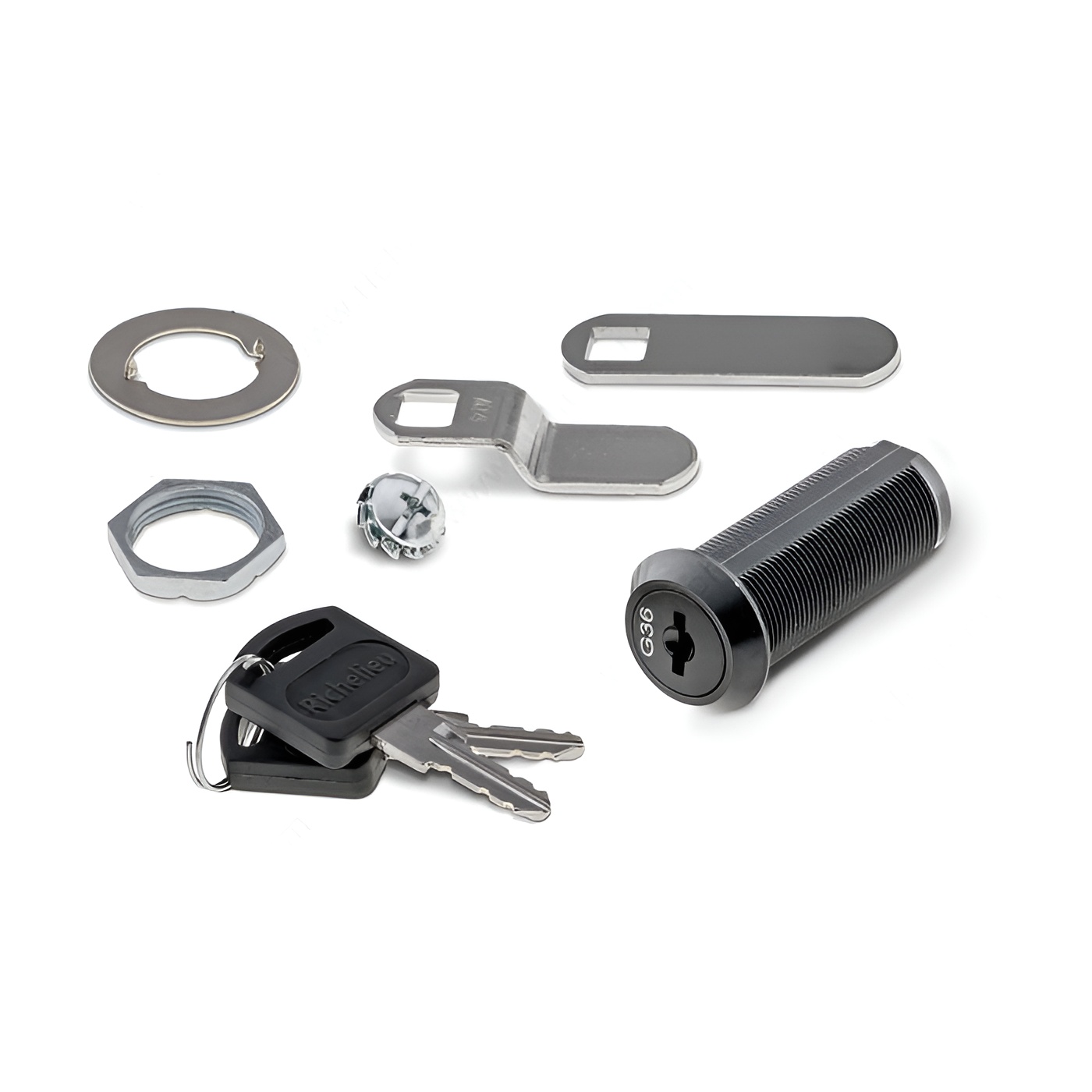

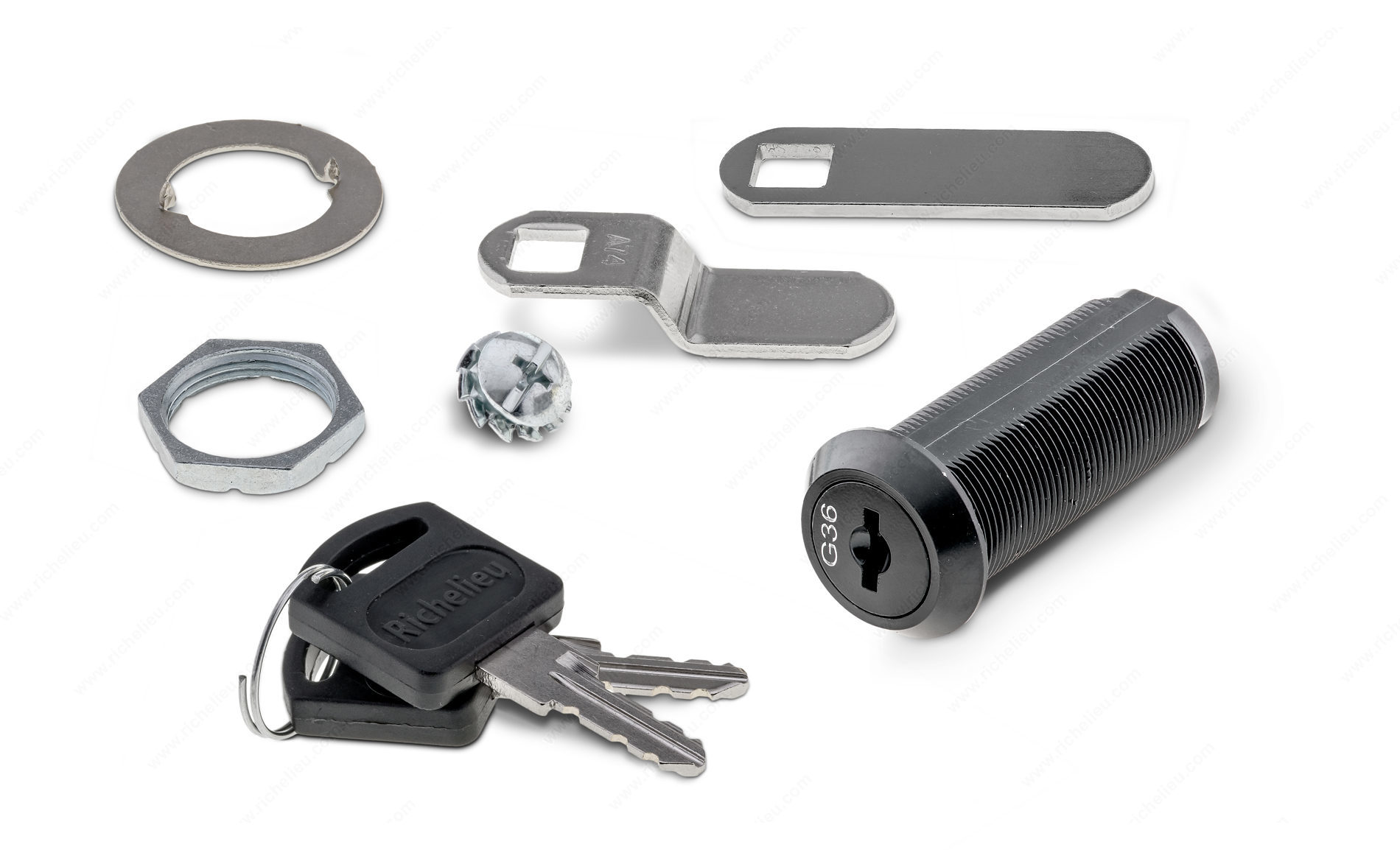

Richelieu BP140450090 Cam Lock for Panel Thickness up to 38 mm (1-1/2'') is designed for optimal security and functionality in wooden drawers and doors. This versatile cam lock accommodates both lipped/overlay and flush constructions, allowing for tailored application based on your specific needs. For overlay installations, the thickness of the front and frame must not exceed 38 mm (1-1/2’’), ensuring a snug fit. Crafted from durable zinc alloy with a sleek black finish, this lock combines aesthetics with strength. It includes two keys and two cam options-straight and offset-to cater to various installation scenarios. The key can be removed in both locked and unlocked positions, adding convenience to its operation. With a cylinder diameter of 3/4 inch and a length of 1 25/32 inches, the lock features a disc mechanism type and offers a standard security level. Reversible positioning enhances versatility, making it suitable for a range of applications from cabinet doors to single drawers. The product is RoHS certified, reflecting responsible manufacturing practices. With Richelieu BP140450090, your storage solutions will not only be secure but also stylishly finished.
Cam Lock for Panel Thickness up to 38 mm (1-1/2'')
Application: Single Drawer, Drawer Lock, Cabinet Doors
Brand: Richelieu
Cam Length (from center): 40 mm
Cylinder Diameter: 19 mm
Cylinder Length: 45 mm
Finish: Black
Key No.: Keyed Different
Key Turn Degree: 90°
Key Type: Keyed Different
Material: Zinc Alloy
Mechanism Type: Wafer
Panel Thickness: Max. 38 mm
Position: Reversible
Product #: BP140450090
Product number: BP140450090
Product №: BP140450090
Security Level: Standard
Standards and Certifications: RoHS
Supplier Key No.: Key different
Types of Locks: Cam Locks
Unit: Bag
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 50
Unit 4: master case - 200
Use: Cabinet Doors, Single Drawer
