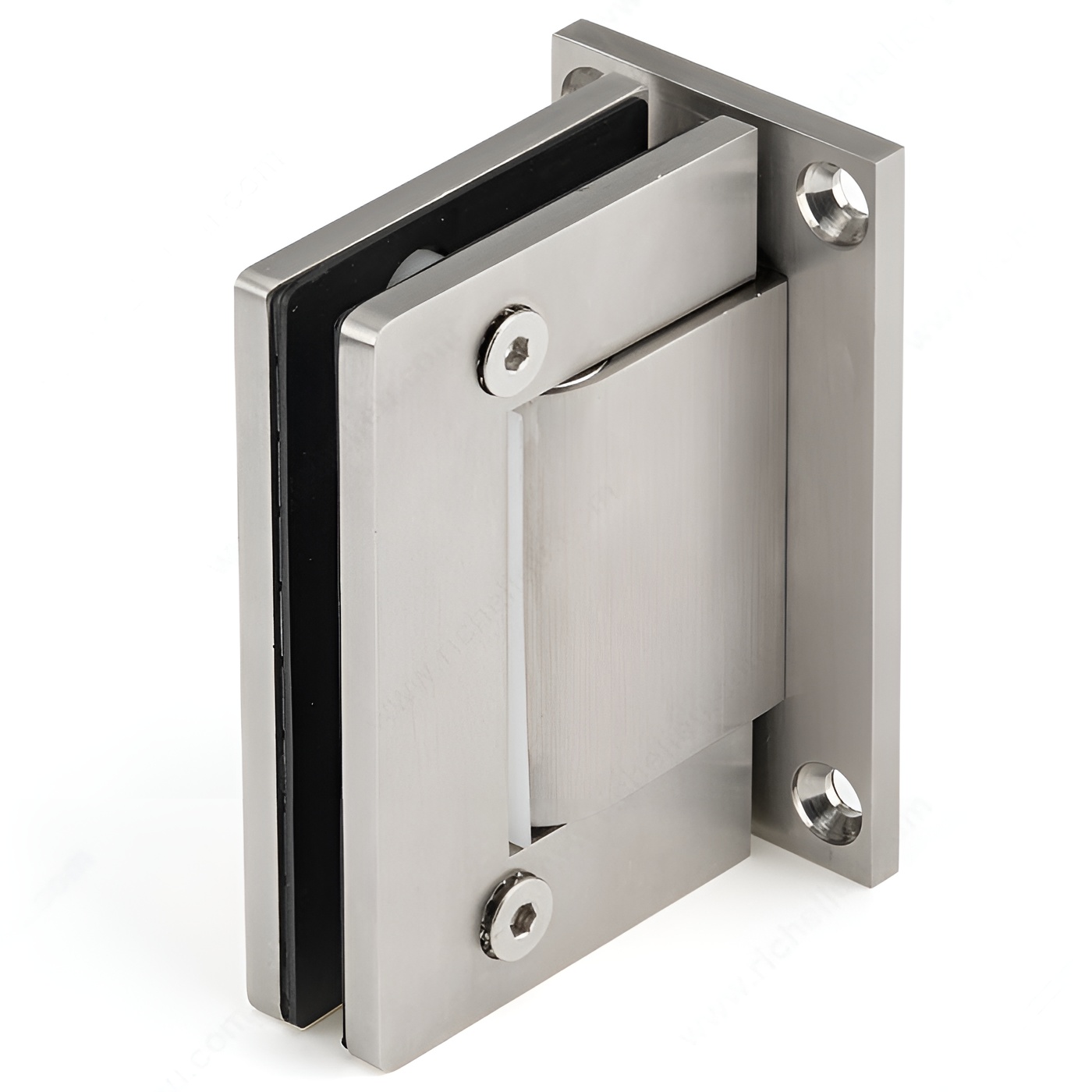

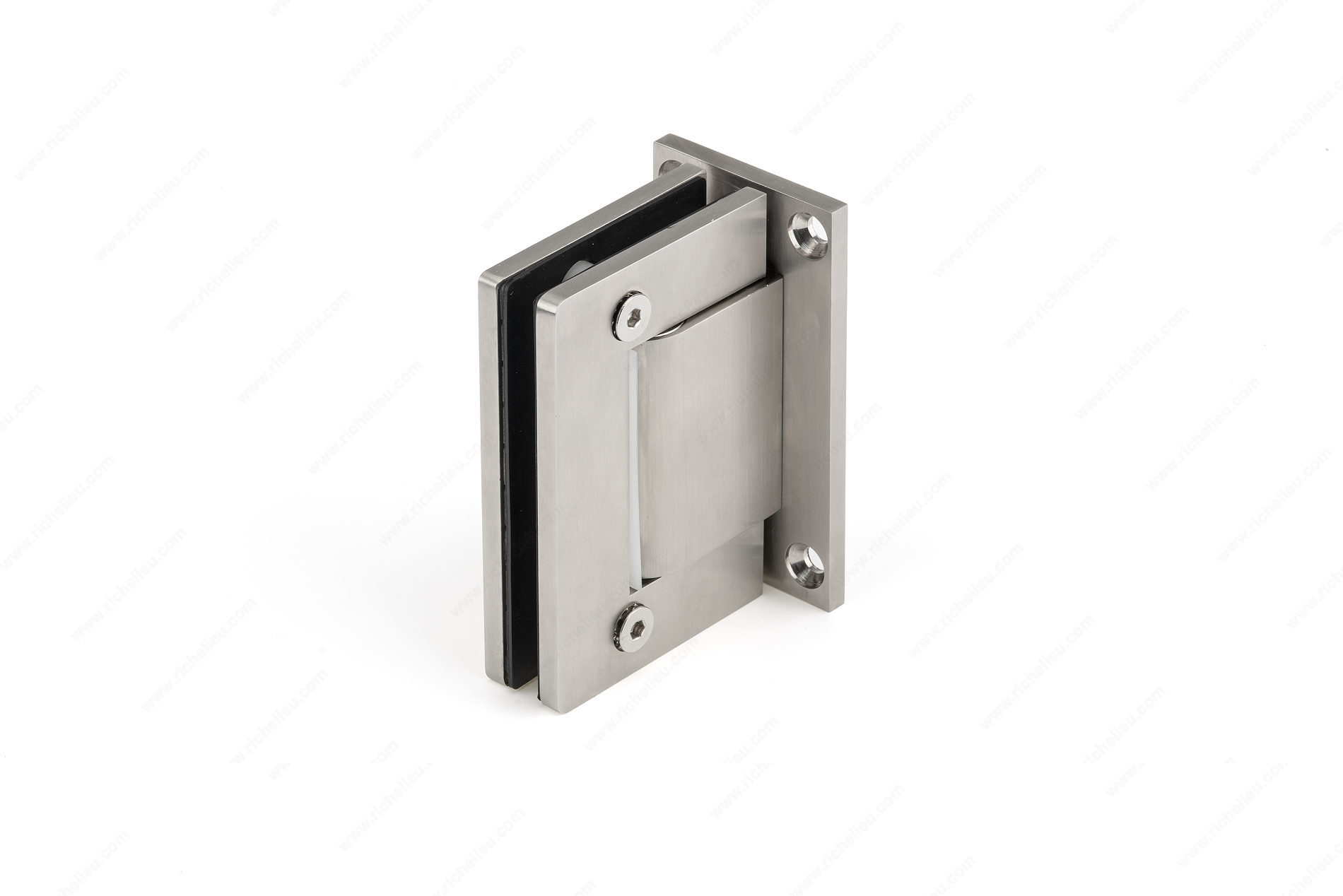

Richelieu CDHH90SS Wall Mount Hydraulic Self-Closing Glass Door Hinge SetRichelieu CDHH90SS Wall Mount 90 Spring and Hydraulic Self-Closing Glass Door Hinge Set offers an innovative solution for interior glass doors, particularly in bathroom or commercial settings. These hinges pivot 90° in both directions and feature integrated valves that allow for adjustable closing speeds, ensuring a smooth and controlled closure. With a flush design that eliminates the need for floor or ceiling mounting devices, this hinge set simplifies installation in existing openings, saving both time and money on modifications. Crafted from durable 316 stainless steel with a sleek brushed finish, the hinges support glass thicknesses between 13/32 to 15/32 inches and can accommodate doors weighing up to 132 pounds. The reversible mounting method allows for flexibility in installation, and the design is suitable for heavy-duty usage, making it ideal for a variety of applications. With a maximum door width of 39 3/8 inches and a recommended height of up to 86 5/8 inches, the Richelieu CDHH90SS hinges are both functional and aesthetically pleasing. This hinge set is perfect for those looking to enhance their space with stylish and reliable hardware.
Wall Mount 90 Spring and Hydraulic Soft-Closing Glass Door Hinge Set
These hinges pivot 90° inward and outward, and stop at 0°, +90° and -90°.
The closing speed can be adjusted with the help of valves that are integrated into the pivot and hidden under the hinge.
Designed for interior glass doors leading to a bathroom area or as hardware for gates.
These hinges will allow you to create a door that closes automatically without having to use a mounting device on the floor or ceiling.
You can therefore install a glass door in an existing opening without having to spend money on expensive modifications to the floor or ceiling hardware.
Application
Designed for interior glass doors leading to a bathroom area or commercial zone.
Attributes
Color: Stainless Steel
Color Number: 170
Finish: Brushed
Function: No Hold-Open
Glass Thickness: 10 to 12 mm
Height: 110 mm
Length: 73 mm
Load Capacity: Max. 60 kg
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Max. Door Width for 2 Hinges: Max. 800 mm
Mounting Method: Glass-to-Wall/90°
Mounting Side: Reversible
Mounting method: Glass-to-Wall/90°
Mounting side: Reversible
Product #: CDHH90SS
Product number: CDHH90SS
Product №: CDHH90SS
Recommended Door Height: Max. 2 200 mm
Recommended Location Usage: Interior, Exterior
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Unit: Pair
Unit 1: case - 6
Unit 2: case - 6
Usage: Heavy-Duty
Weight Capacity for 2 Hinges: Max. 60 kg
Width: 55 mm
