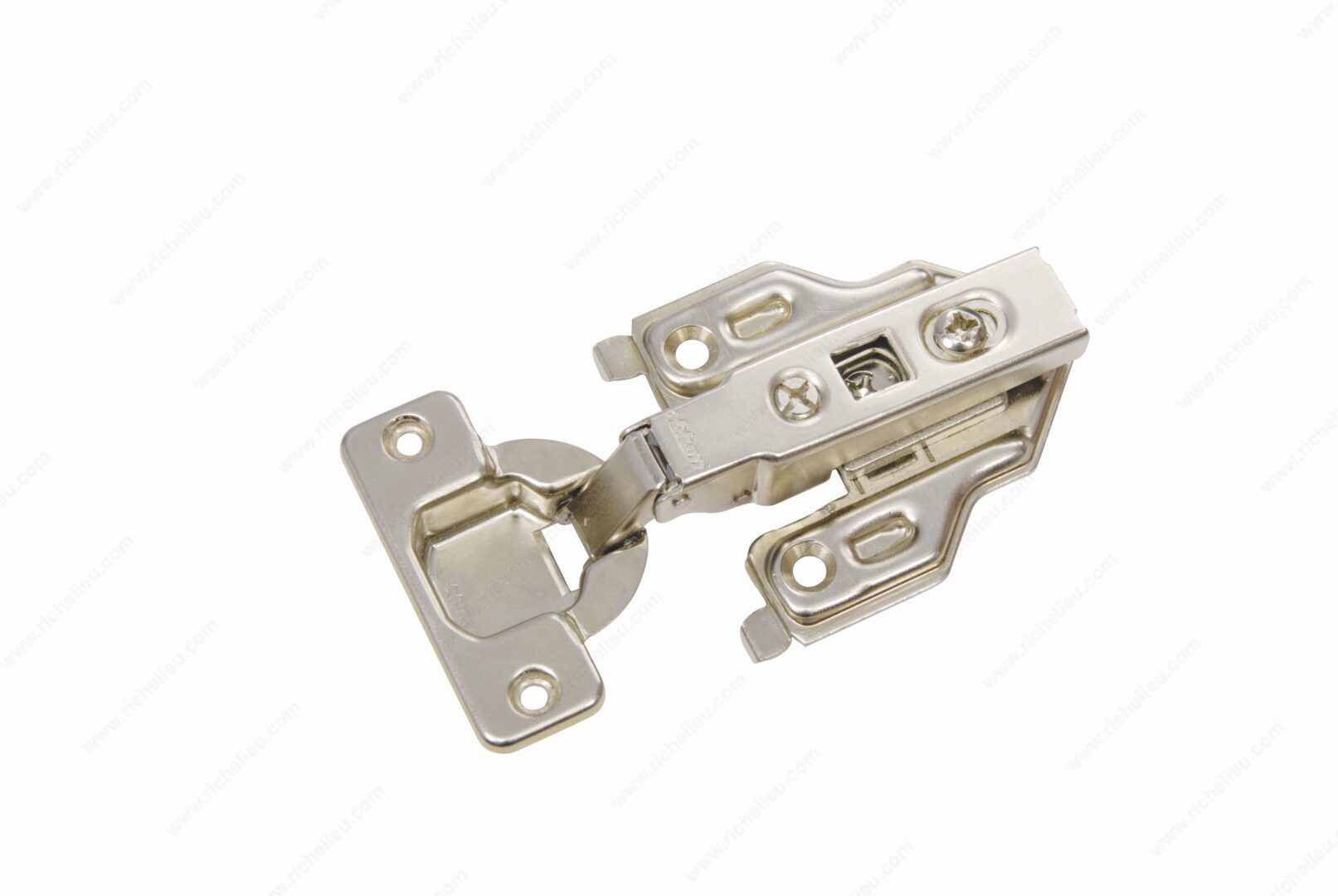

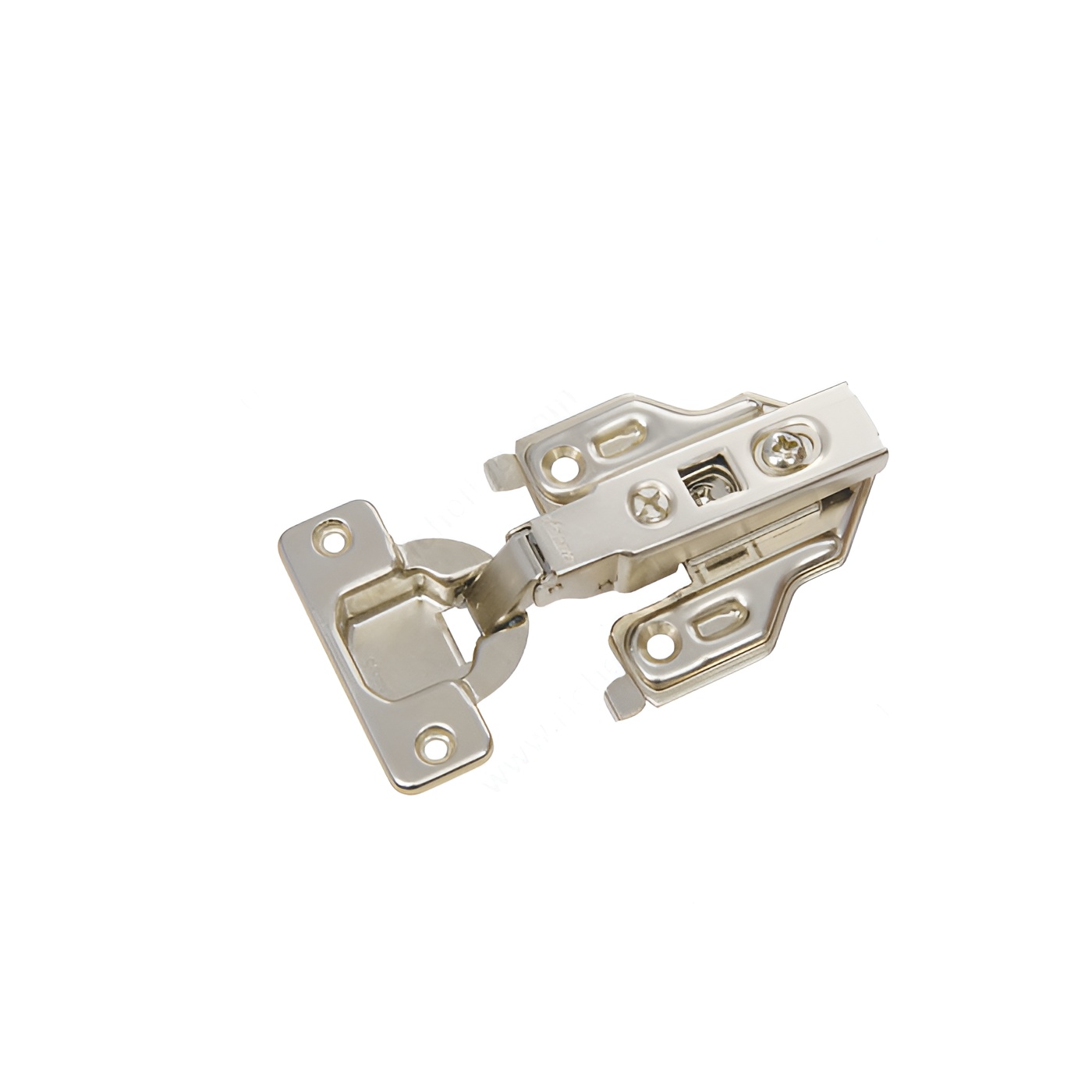

Richelieu BP71M25560180 CLIP Hinge - 100 offers a seamless blend of functionality and ergonomic design, making it an ideal choice for any cabinetry project. This hinge is specifically crafted for face frame cabinets with a thickness of 5/8 inch, ensuring a perfect fit for standard doors with a minimum thickness of 5/8 inch. Its unique clip mechanism allows for quick and secure connections to the mounting plate, simplifying the installation process. With a generous hinge opening angle of +100°, the BP71M25560180 provides ample access to cabinet interiors, enhancing usability. The spring closing mechanism ensures that doors close gently and efficiently, maintaining a polished look in your space. The hinge requires a milling depth of 13/32 inch and a milling diameter of 1 3/8 inch, making it compatible with various cabinetry designs. Each package contains two units, complete with wood screws for easy installation. This hinge not only improves the functionality of your cabinetry but also adds a touch of modern elegance. Ideal for both building professionals and knowledgeable homeowners, the Richelieu BP71M25560180 CLIP Hinge - 100 is the perfect solution for enhancing your cabinetry's performance and appearance.
CLIP Hinge - 100
Cabinet Thickness: 16 mm
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing
Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Bag of 2 units
Product #: BP71M25560180
Product number: BP71M25560180
Screw/ Nail: Wood Screw (Included)
Unit: Bag of 2 units
Unit 2: package - 10
Use Type: Standard Door
