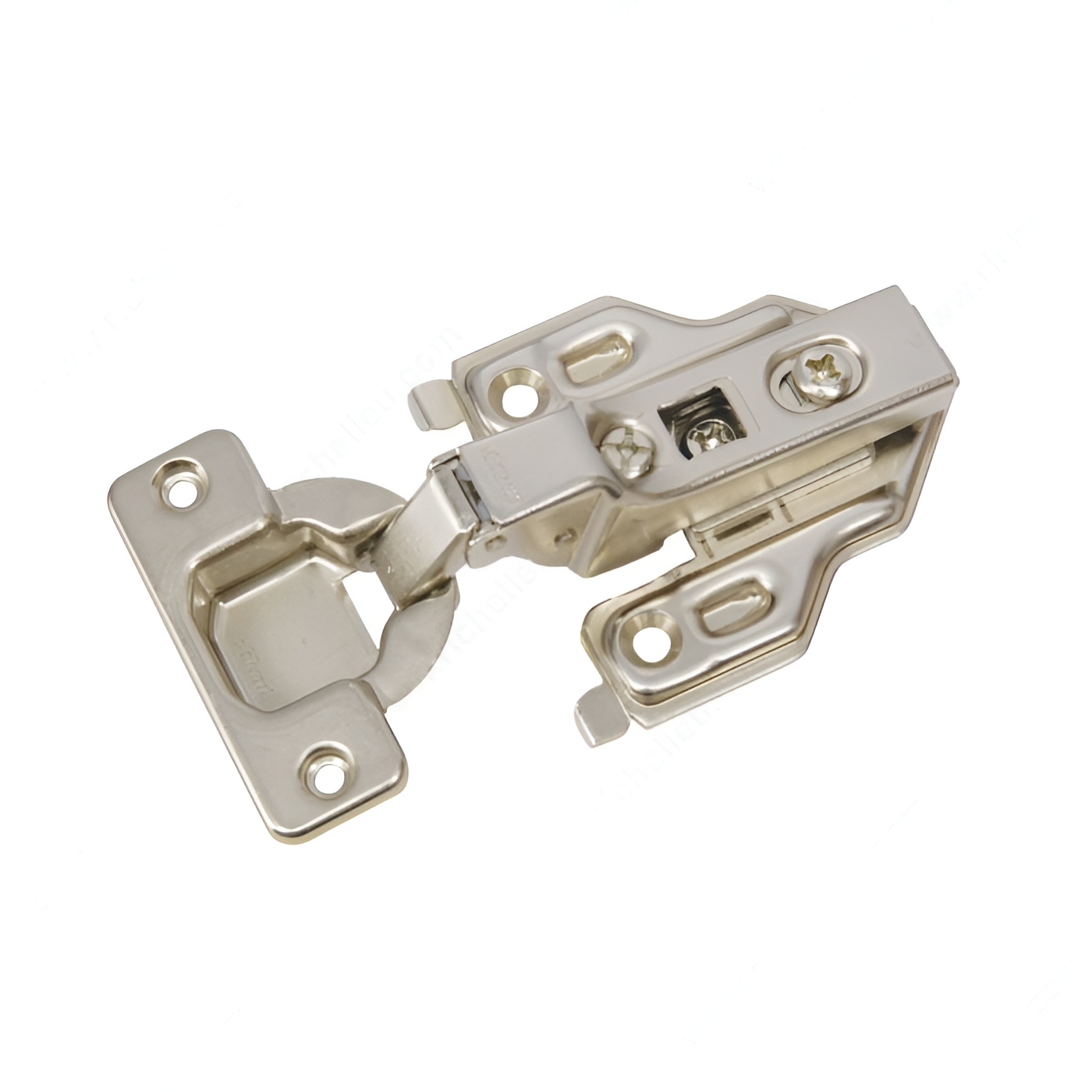

Richelieu BP71M26560180 CLIP Hinge offers an ergonomic design that ensures effortless handling, making installation a breeze. This hinge features a unique fixing mechanism that enables rapid and secure connections to the mounting plate, streamlining your assembly process. Designed specifically for face frame cabinets with a thickness of 5/8 inch, it accommodates doors with a minimum thickness of 5/8 inch and provides a half overlay door position. The hinge opens up to an impressive 100°, allowing for enhanced accessibility and functionality. Its screw-on fixing type ensures a reliable and sturdy attachment, while the spring-closing mechanism guarantees that doors close smoothly and securely every time. With a milling depth of 13/32 inch and a milling diameter of 1 3/8 inch, it fits perfectly into standard applications without fuss. Packaged in bags of two units, the Richelieu CLIP hinge is designed for standard doors, making it an ideal choice for a wide range of cabinetry projects. This product is ready to ship via UPS, ensuring that you can get started on your next project without delay. Elevate your cabinetry with the quality and reliability of Richelieu's hardware solutions.
CLIP Hinge - 100
Cabinet Thickness: 16 mm
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing
Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Bag of 2 units
Product #: BP71M26560180
Product number: BP71M26560180
Screw/ Nail: Wood
Unit: Bag of 2 units
Unit 2: package - 10
Use Type: Standard Door
