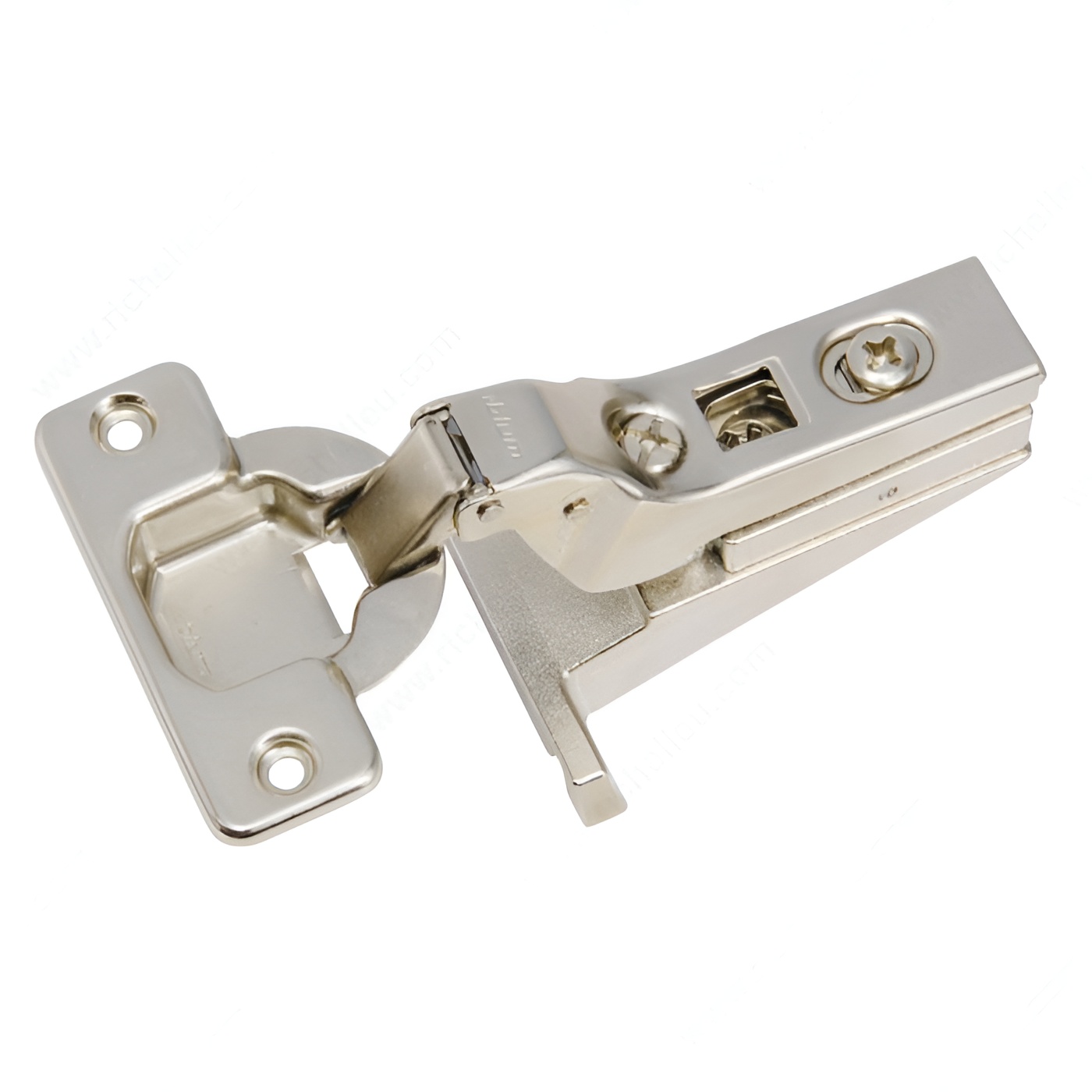

Richelieu BP71M27560180 CLIP Hinge - 100 combines ergonomic design with functionality to enhance your cabinetry projects. This hinge is crafted for ease of use, allowing for simple handling, while its unique fixing mechanism ensures rapid and secure connections to the mounting plate. Designed for cabinets with a thickness of 5/8 inch, it supports doors that are inset and have a minimum thickness of 5/8 inch. The screw-on fixing type provides reliable installation, and the hinge boasts an impressive opening angle of +100°, allowing for maximum accessibility. With a spring closing mechanism, this hinge not only enhances ease of use but also ensures that doors close smoothly and securely. The milling depth of 13/32 inch and diameter of 1 3/8 inches make it compatible with standard installations. Each bag contains two units, complete with wood screws for straightforward assembly, making this product an ideal choice for both professionals and discerning homeowners alike. Richelieu's commitment to quality shines through in the BP71M27560180 CLIP Hinge, providing a robust solution for standard doors that meets the demands of modern cabinetry.
CLIP Hinge - 100
Cabinet Thickness: 16 mm
Closing Mechanism: Spring Closing
Door Position: Inset
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing
Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Bag of 2 units
Product #: BP71M27560180
Product number: BP71M27560180
Screw/ Nail: Wood Screw (Included)
Unit: Bag of 2 units
Unit 2: package - 10
Use Type: Standard Door
