Richelieu BP71T65560180 CLIP top Hinge 170 is the ideal solution for enhancing the functionality and aesthetics of your cabinetry. These concealed hinges are designed to remain out of sight when cabinet doors are closed, providing a clean and streamlined look. With a versatile application in both frameless and face frame cabinets, this hinge features a remarkable opening angle of +170°, allowing for easy access to cabinet interiors. Crafted from durable steel and Zamac, the CLIP top hinge is built to withstand regular use while maintaining its elegant appearance. It supports a minimum cabinet and door thickness of 5/8 inches, making it compatible with a wide range of cabinetry. The screw-on fixing type ensures a secure installation, while the option to upgrade to soft closing BLUMOTION adds an extra layer of sophistication and convenience. Each package contains two units, making it easy to outfit multiple doors. The milling depth of 7/16 inches and a diameter of 1 3/8 inches provide the necessary specifications for precise installation. Richelieu's CLIP top hinge not only offers flexibility and reliability but also seamlessly integrates into any design, making it a perfect choice for professional builders and discerning homeowners alike.

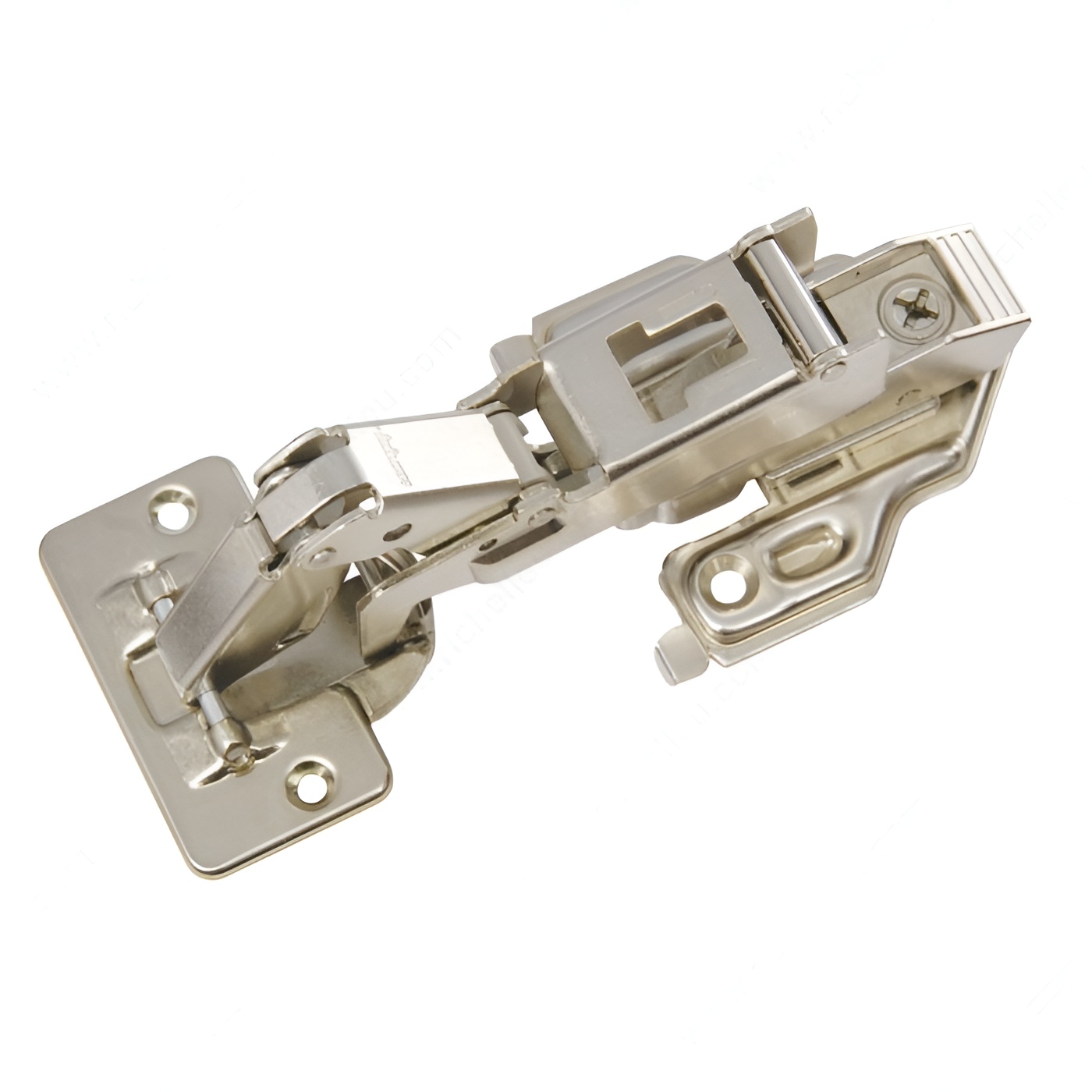

CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Spring Closing
Milling Depth: 11 mm
Milling Diameter: 35 mm
Packaging format: Bag of 2 units
Product #: BP71T65560180
Product number: BP71T65560180
Unit: Bag of 2 units
Unit 2: package - 10
Unit 3: case - 30
Use Type: Standard Door
