Richelieu CP161130140 Kristal Glass Shelf Pin features a contemporary design that enhances the aesthetic appeal of any shelving unit. Crafted from durable zinc alloy with a sleek chrome finish, this shelf pin not only provides a modern touch but also ensures long-lasting performance. The visible design of the Kristal pin adds a sophisticated flair, making it an excellent choice for both residential and commercial applications. With a drilling diameter of 3/16 inches and an overall height of 23/32 inches, the Kristal shelf pin is designed to accommodate shelves with thicknesses ranging from 3/16 to 1/4 inches. This pin boasts an impressive load capacity of 132 pounds per shelf, allowing for secure and reliable support. Measuring 25/32 inches in length and 9/16 inches in width, it offers a compact profile while ensuring stability. The fixing type is an insert, making installation straightforward and efficient. Each bag contains 100 units, providing excellent value for larger projects. The Kristal shelf pin meets RoHS standards, ensuring compliance with environmental regulations. Elevate your shelving solutions with the Richelieu Kristal Glass Shelf Pin, where functionality meets modern design.

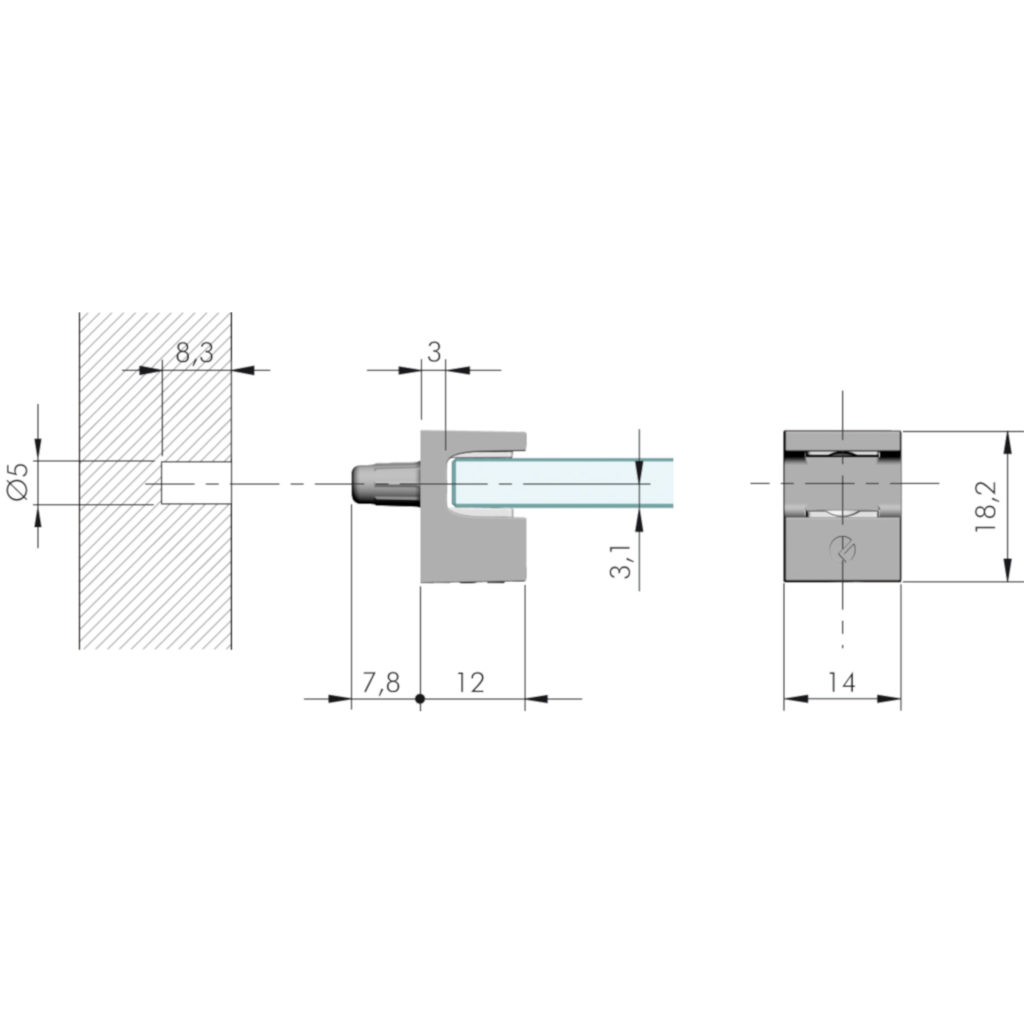

Kristal Glass Shelf Pin
Appearance: Visible
Drilling Diameter: 5 mm
Finish: Chrome
Fixing Type: Insert
Height - Overall Dimensions: 18.2 mm
Length - Overall Dimensions: 19.8 mm
Load Capacity per Shelf: 60 kg
Material: Zinc, Rubber
Packaging format: Bag of 100 units
Product #: CP161130140
Product number: CP161130140
Product №: CP161130140
Projection - Overall Dimensions: 12 mm
Shelf Thickness: 5 to 6 mm
Standards and Certifications: RoHS
Unit: Bag of 100 units
Unit 1: case - 10
Unit 2: case - 10
Width - Overall Dimensions: 14 mm
