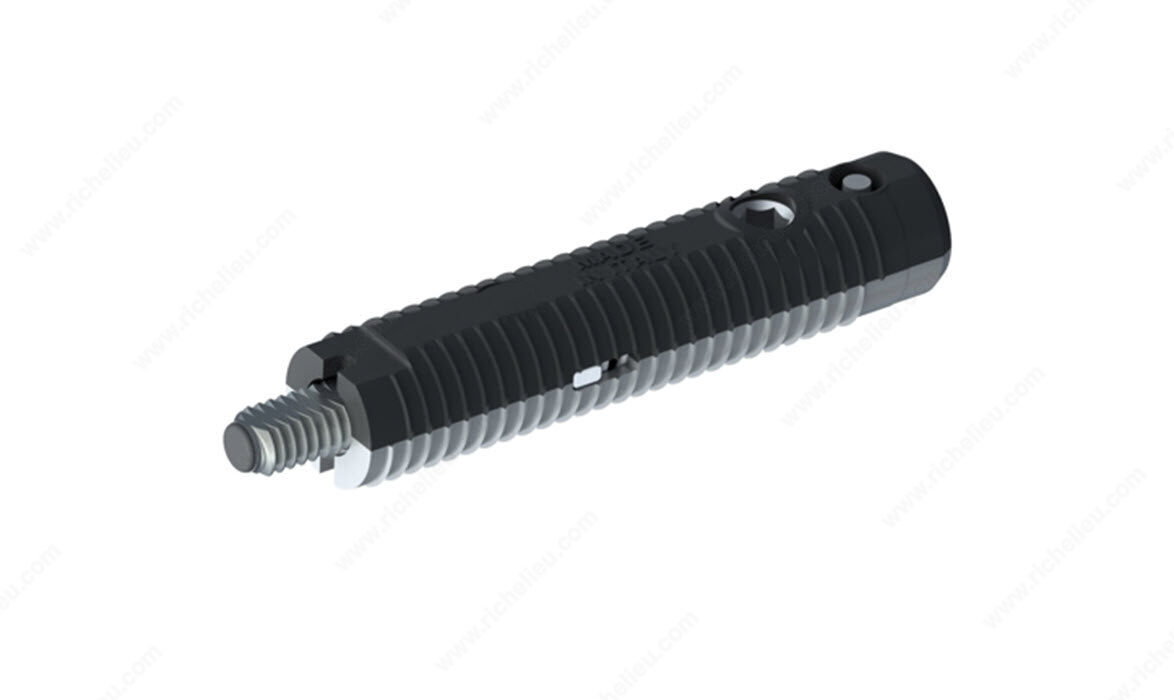

Richelieu CP508900174 Invisi-Link ConnectorRichelieu CP508900174 Invisi-Link is a cutting-edge structural connector designed for seamless integration in architectural niche installations where aesthetics take precedence. This innovative joining system boasts minimal visibility while ensuring maximum reliability, making it an ideal choice for discerning builders and homeowners. The Invisi-Link features a spring-loaded self-engaging locking mechanism that simplifies assembly. Upon installation, the stud retracts automatically on contact and re-engages securely within the insert, providing precision support for shelves. This design allows for fast, fully concealed assembly, perfect for existing niches or cabinets. With a milling specification of Ø8 mm x 38 mm and a keyhole size of Ø44 mm, this connector accommodates a minimum panel thickness of 12 mm for solid wood or materials and 14 mm for chipboard or soft materials. The Invisi-Link offers impressive load capacity, with a pull-out force of 132 lb (60 kg) and a total load capacity of 132 lb (60 kg). Constructed from durable Zamac, steel, and plastic, the Invisi-Link is packaged in bags of 100 units, ensuring you have enough connectors for your projects. Elevate your design with Richelieu's CP508900174 Invisi-Link, where function meets elegance.
Invisi-Link
The Invisi-Link structural connector features a near-invisible joining system, designed for clean, architectural niche installations where aesthetics matter.
Minimal Visibility. Maximum Reliability.

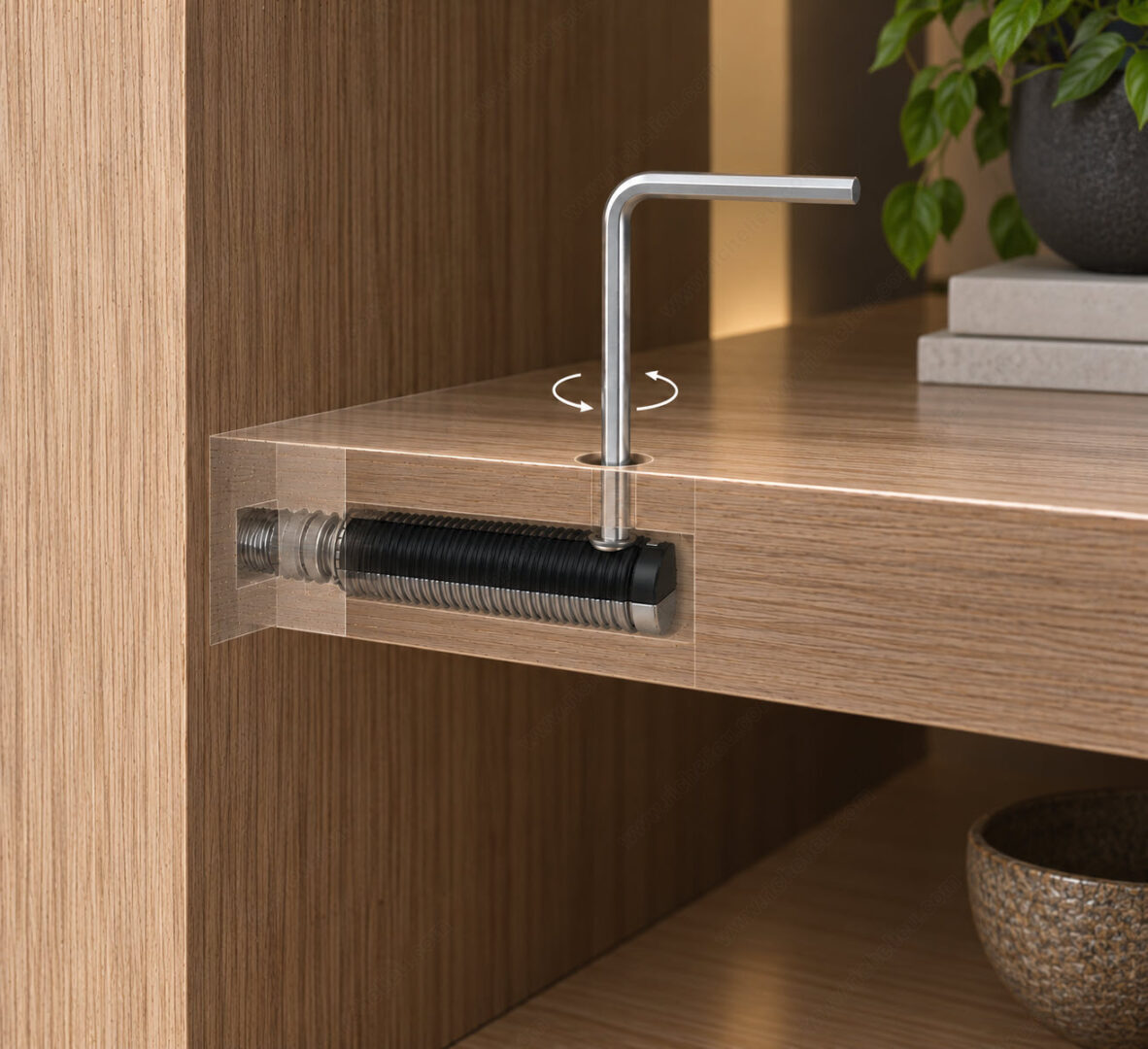

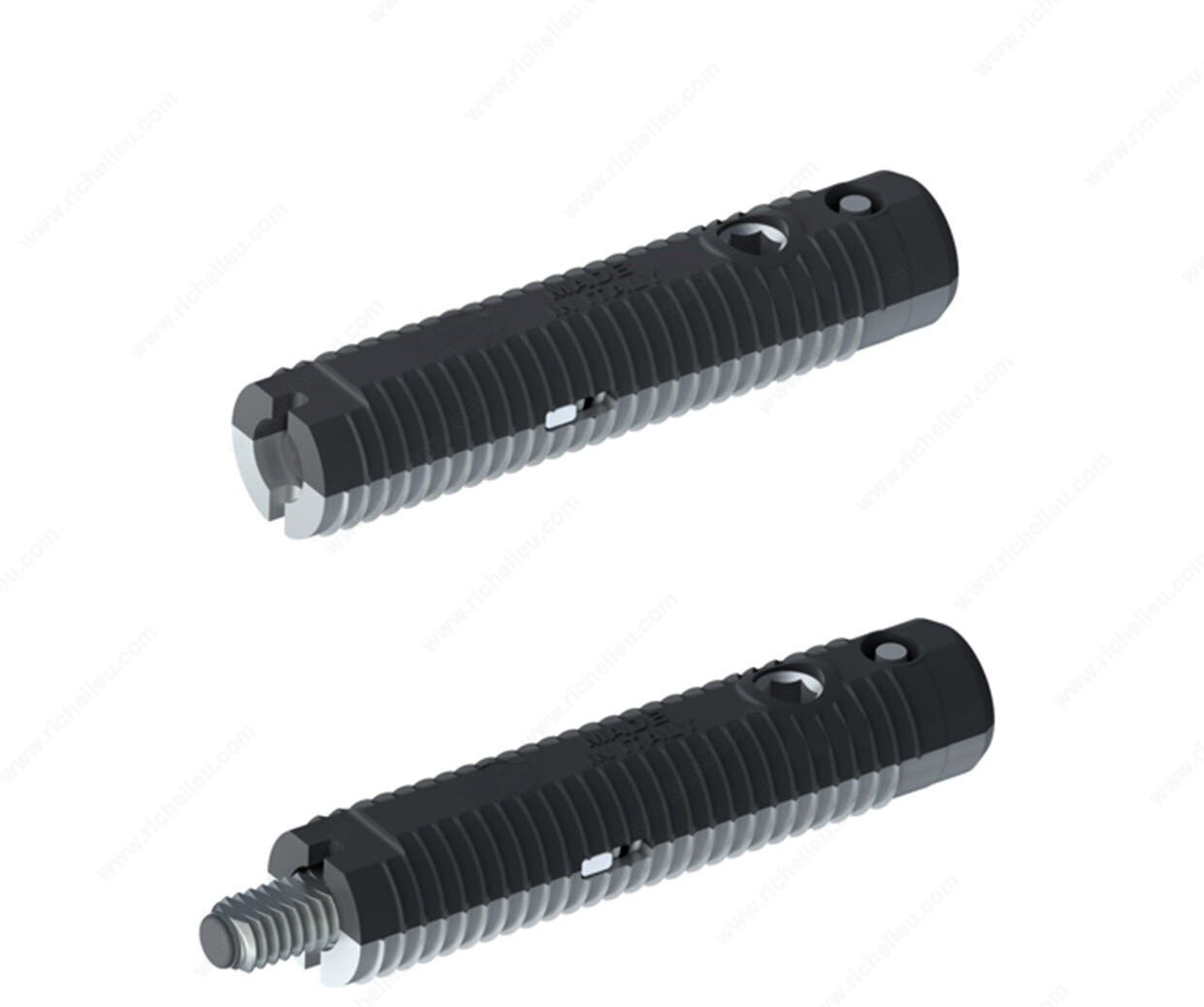

The Invisi-lock structural connector features a spring-loaded self-engaging locking system. When installed, the stud retracts automatically on contact and then re-engages inside the insert to secure the shelf with precision. Ideal for fast, fully concealed assembly, even in already installed niches or cabinets.
Important information
Milling (mm):
508900174: Ø8 mm x 38 mm, key hole Ø 44 mm
512900174: Ø 12 mm x 38 mm, key hole Ø 5 mm
Minimum panel thickness:
508900174: 12 mm solid wood or solid material and 14 mm chipboard or soft material
512900174: 16 mm solid wood or solid material and 18 mm chipboard or soft material
Pull out force:
508900174: 132 lb (60 kg)
512900174: 200 lb (100 kg)
Load capacity:
508900174: 132 lb (60 kg)
512900174: 331 lb (150 kg)
Attributes
Material: Zamac, Steel / Plastic
Packaging format: Bag of 100 units
Product #: CP508900174
Thread: M4
