Richelieu DD02906120030 Safety Interlock Disconnect Kit with Corner Mount SwitchRichelieu DD02906120030 Safety Interlock Disconnect Kit with Corner Mount Limit Switch offers a comprehensive solution for safely managing power in your appliance garage. Designed to connect and protect up to four devices, this kit ensures that all connected appliances are powered off when the cabinet door is closed, thanks to the innovative corner mount limit switch. Featuring two 20-amp AC outlets, the Safety Interlock Disconnect allows for multiple devices-such as toasters, coffee makers, and grinders-to be conveniently plugged in without compromising safety. This is particularly beneficial in homes, rentals, or regions like Canada, where regulations mandate that outlets inside enclosed cabinets must be de-energized when the door is shut. The kit is ready for installation and includes all necessary components, ensuring a hassle-free setup. With an automatic power shut-off feature, it adds an extra layer of security, making it compliant with U.S. and Canadian safety standards (NEC, UL, CSA, ETL certified). Constructed from durable plastic and metal, the kit is designed for recessed or surface mounting and includes a generous 72-inch power cable for flexible installation options. Enhance your kitchen's safety and efficiency with this essential Richelieu solution.
Docking Drawer Safety Interlock Disconnect Kit with Corner Mount Limit Switch

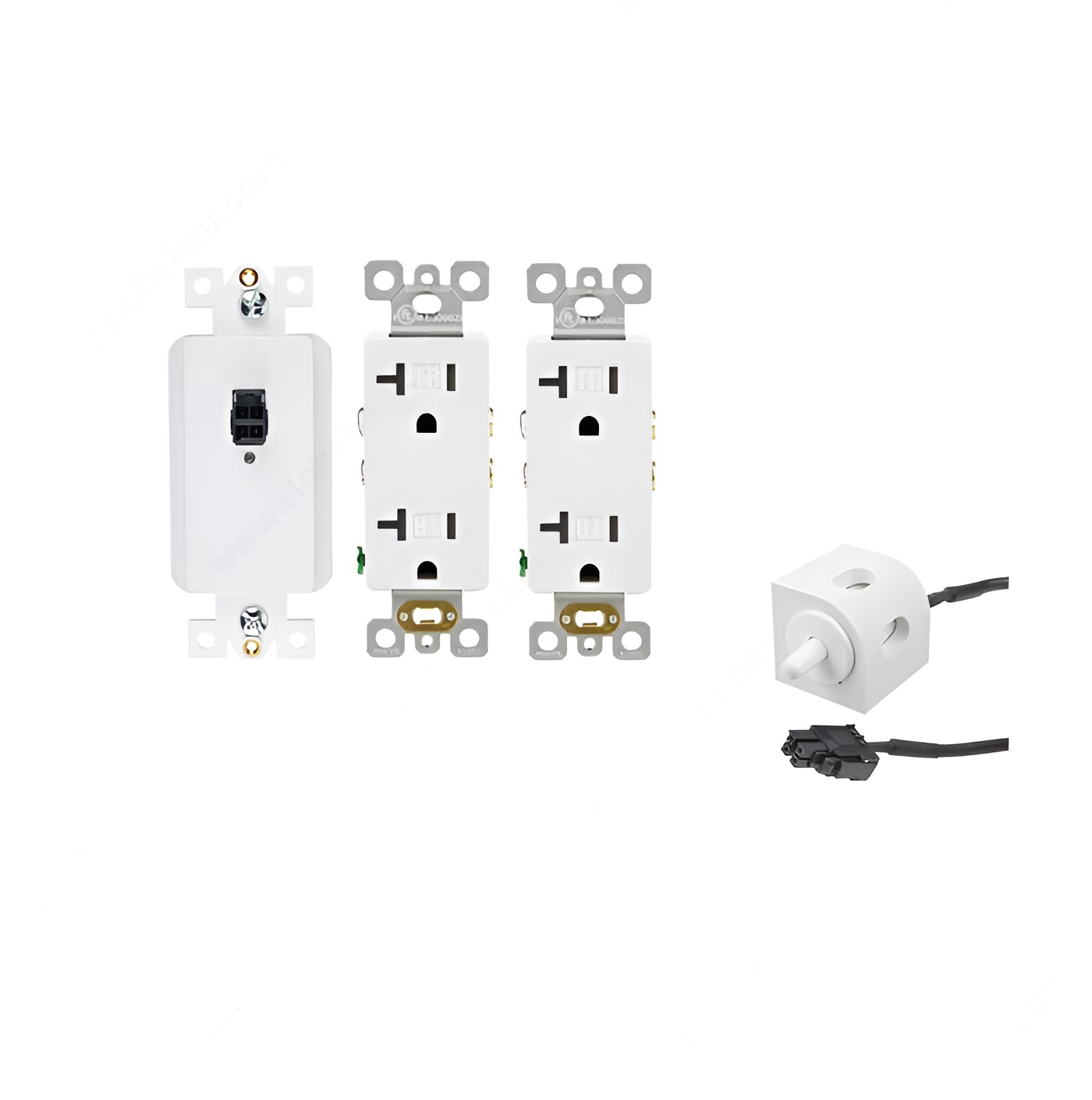

The Safety Interlock Disconnect Kit with Corner Mount Limit Switch includes everything needed to connect and protect up to four devices in your appliance garage.

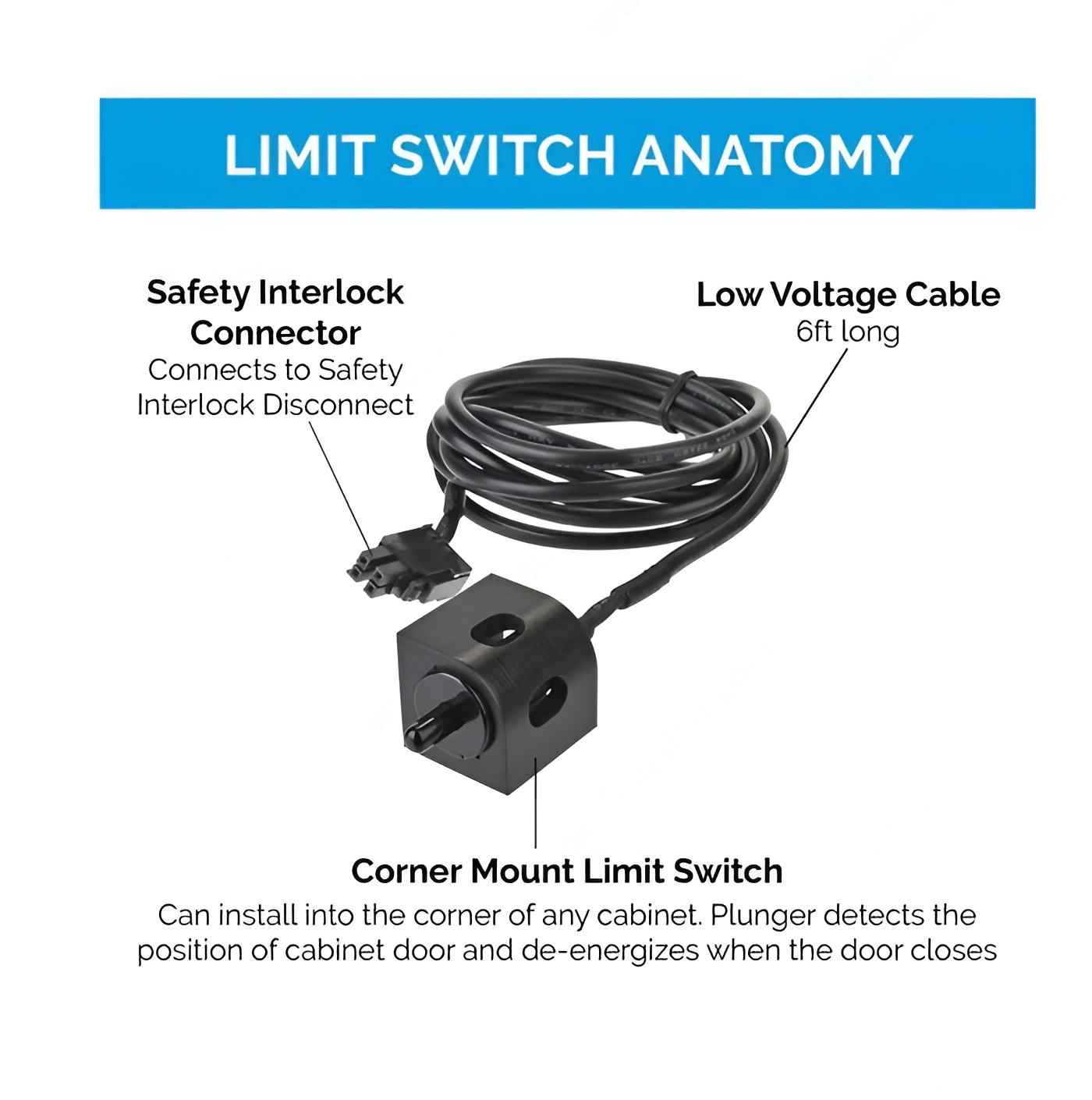

The corner mount switch will trigger the disconnect to de-energize the included outlet, ensuring all connected devices are powered off inside a closed cabinet space.
This kit provides a complete power solution and protects in-cabinet appliances safely. It includes a Safety Interlock Disconnect with two 20-amp AC outlets and a Corner Mount Limit Switch, which automatically cuts power when the cabinet door is closed--adding an extra layer of safety.
Unlike previous 15A or 20A models that only support one device, this kit allows for multiple connections (e.g., toaster, coffee maker, grinder). It's ideal for homes, rentals, or areas like Canada where code requires outlets inside enclosed cabinets to be de-energized when the door is shut.
Key Benefits:
All-in-one kit ready for installation.
Automatic power shut-off for added safety.
Supports multiple devices.
Code compliant in the U.S. and Canada (NEC, UL, CSA, ETL certified).
Attributes
Amperage ( A): 20 A
Finish: White
Height: 1 in*
Length: 1 in*
Material: Plastic, Metal
Mounting: Recessed, Surface
Power Cable Length: 72 in*
Product #: DD02906120030
Standards and Certifications: ETL
Tension ( V): 120 V
Width: 1 in*
Resources
