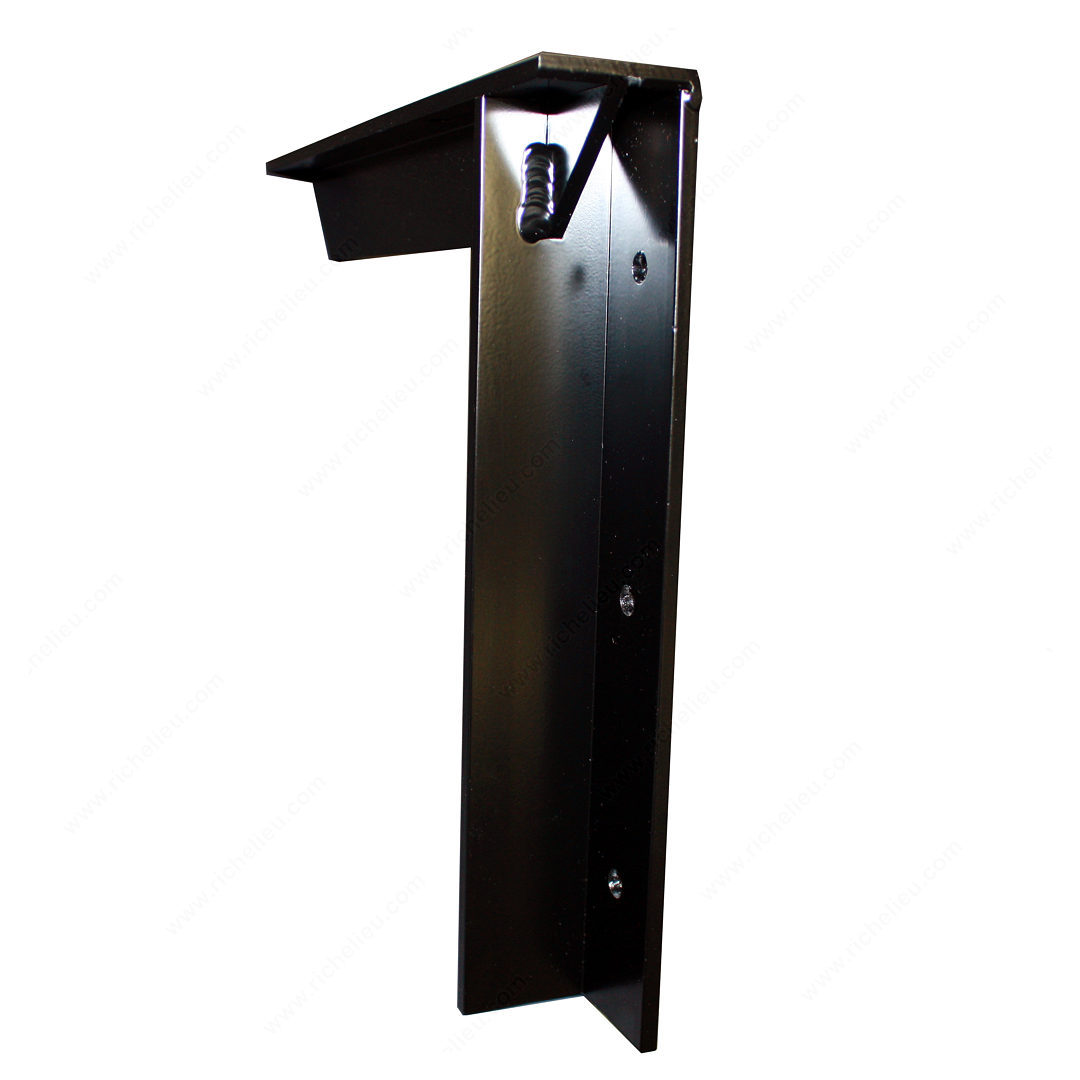

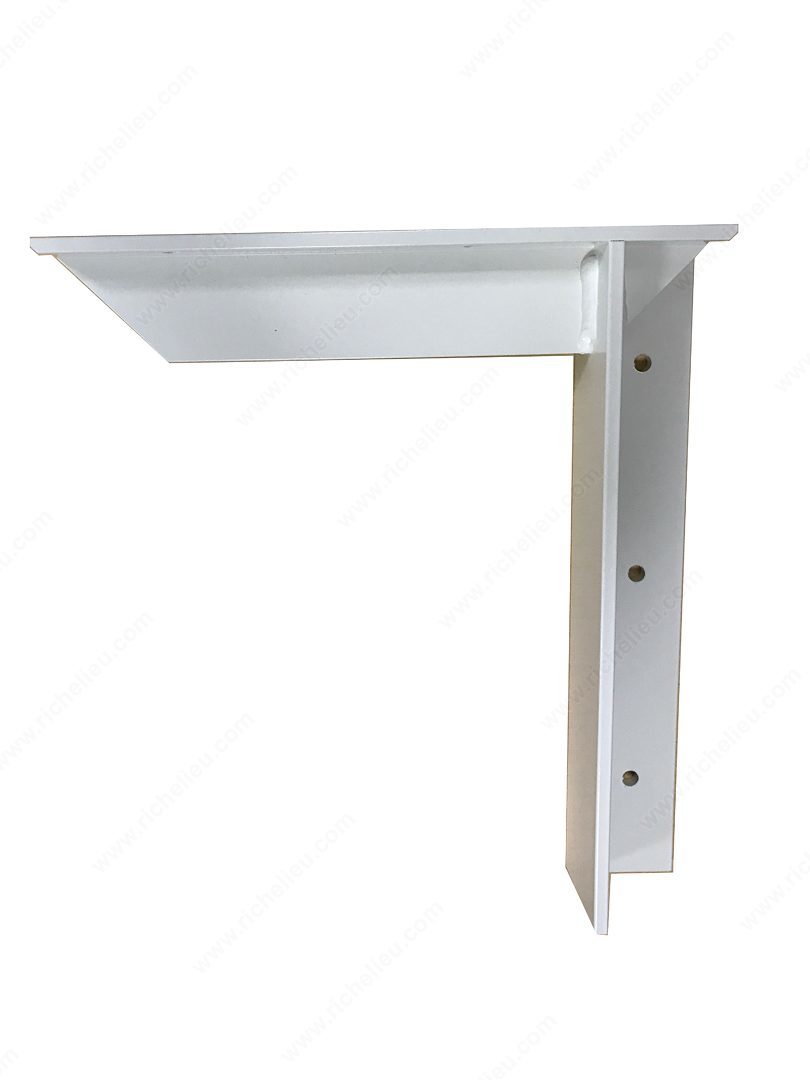

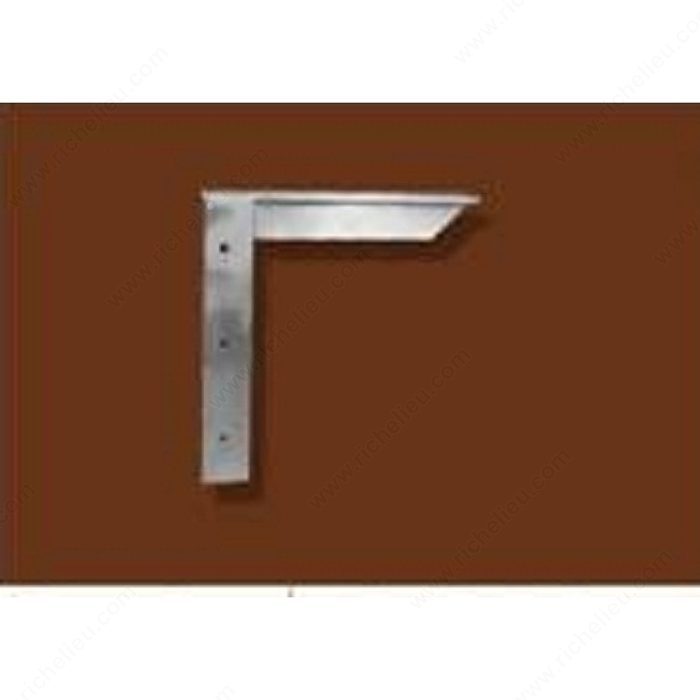

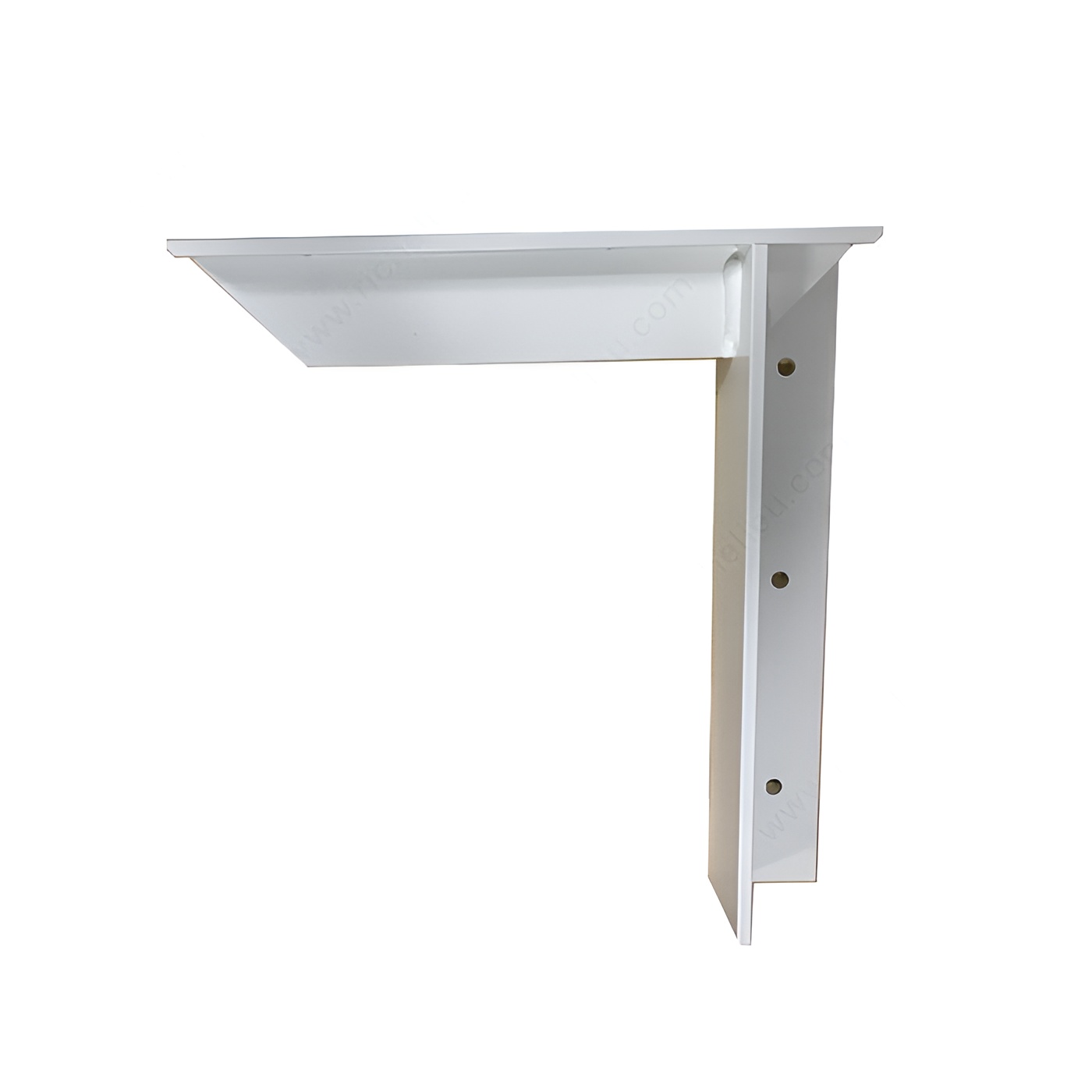

Richelieu EH1209FMP Heavy-Duty Flush Mount Bracket is designed to provide exceptional support for your shelving needs while maintaining a sleek appearance. Featuring an innovative L-shaped vertical leg flange, this bracket screws directly to the right side of the bare stud. Once installed, it allows for drywall to be easily applied around it, leaving only the shelf bracket visible for a clean and seamless look. Constructed from durable 6063-T6 extruded aluminum, the EH1209FMP bracket ensures long-lasting strength and stability. The TIG (tungsten inert gas) welded joints along both 45° mitered sides and across the back enhance its robustness, while all sharp edges are ground and deburred for safety and ease of handling. Designed for easy installation, the bracket features 5/16" holes that accommodate 1/4" screws, and it can be spaced up to 48" apart into studs or blocking, as recommended by the countertop supplier. With overall dimensions of 9 inches in height and a projection of 12 inches, this bracket supports shelves with a width of 9 inches, making it versatile for various applications. Finished in a white primer, it blends well with any décor, ensuring your project looks polished and professional.
Heavy-Duty Flush Mount Bracket
" T- Bar" Dimension: 2" x 2"
Color/ Finish: White Primer
Height - Overall Dimensions: 9 in
Material: 6063-T6 Extruded Aluminum
Product #: EH1209FMP
Product number: EH1209FMP
Product №: EH1209FMP
Projection - Overall Dimensions: 12 in
Shelf Width: 9 in
Unit 1: case - 16
