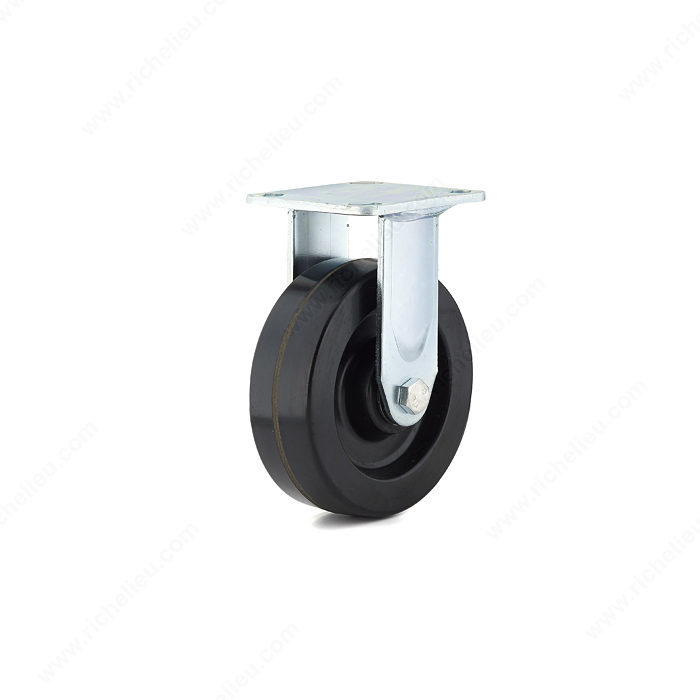

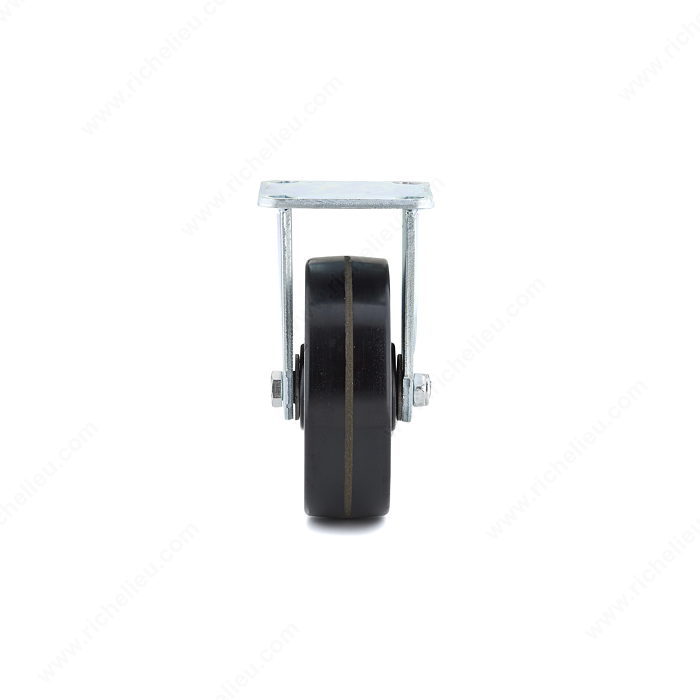

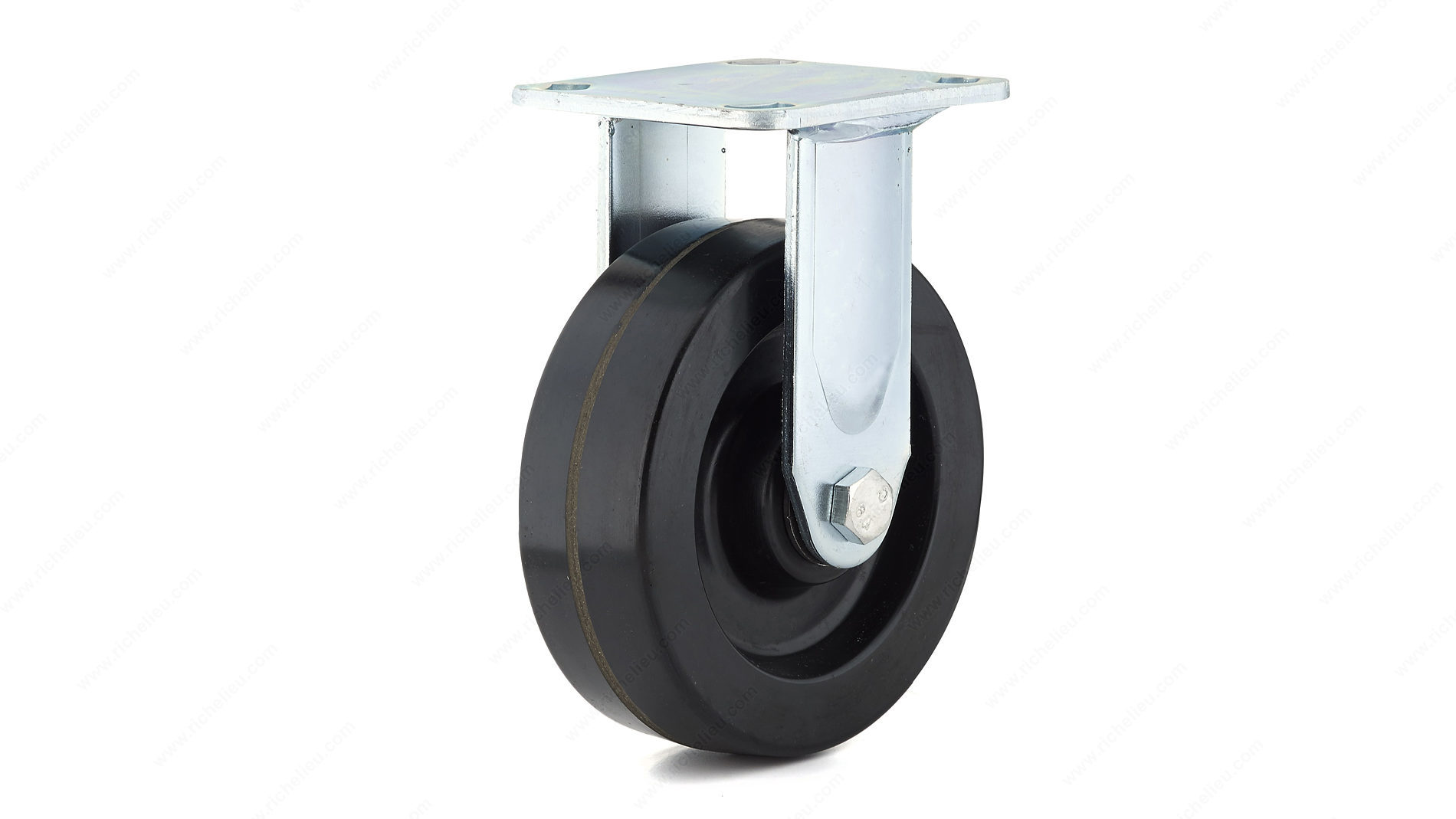

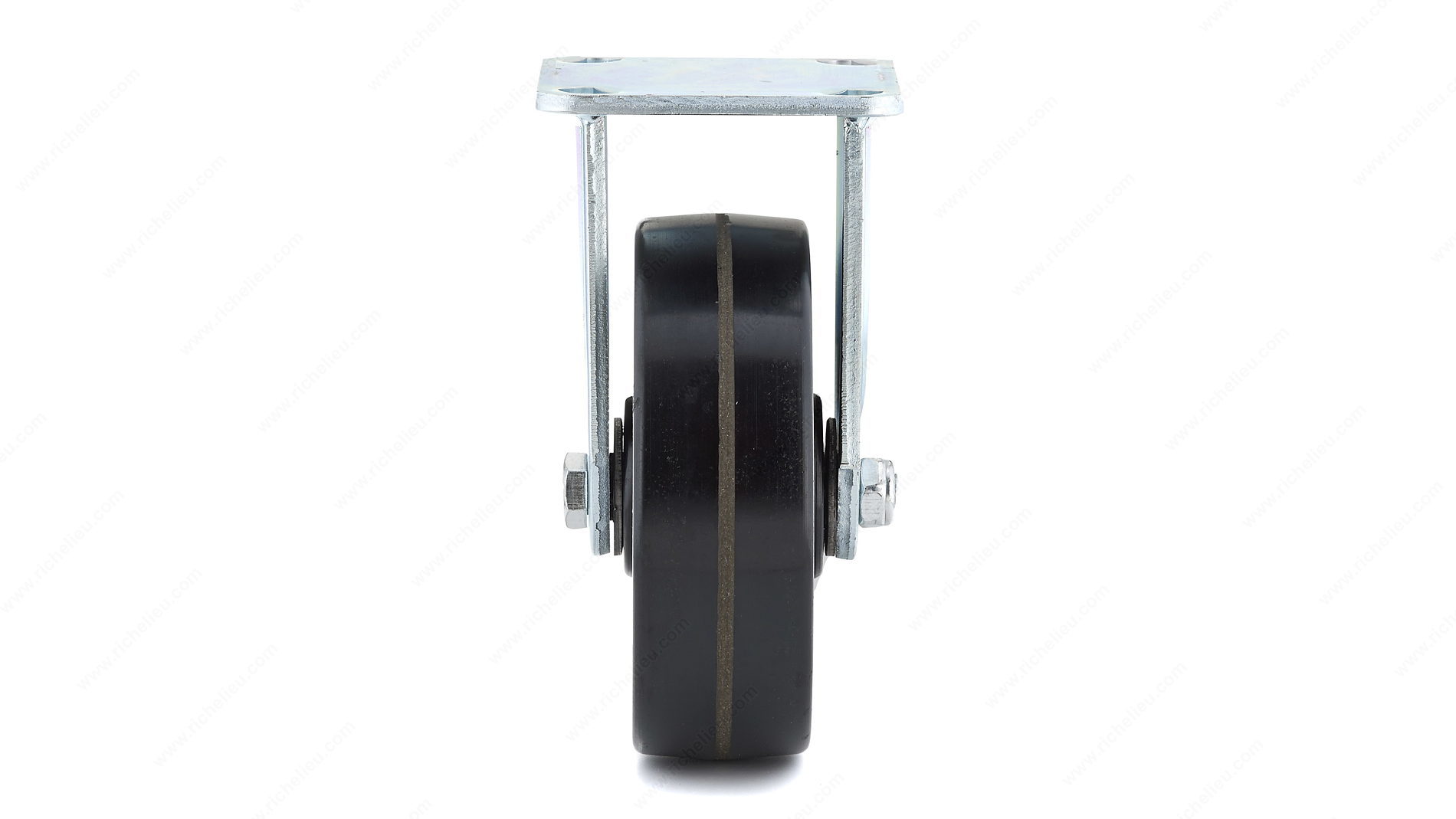

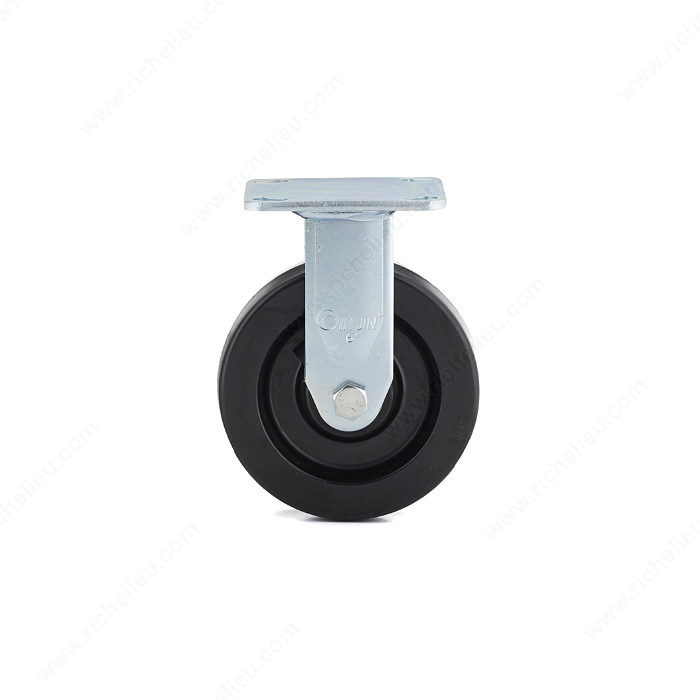

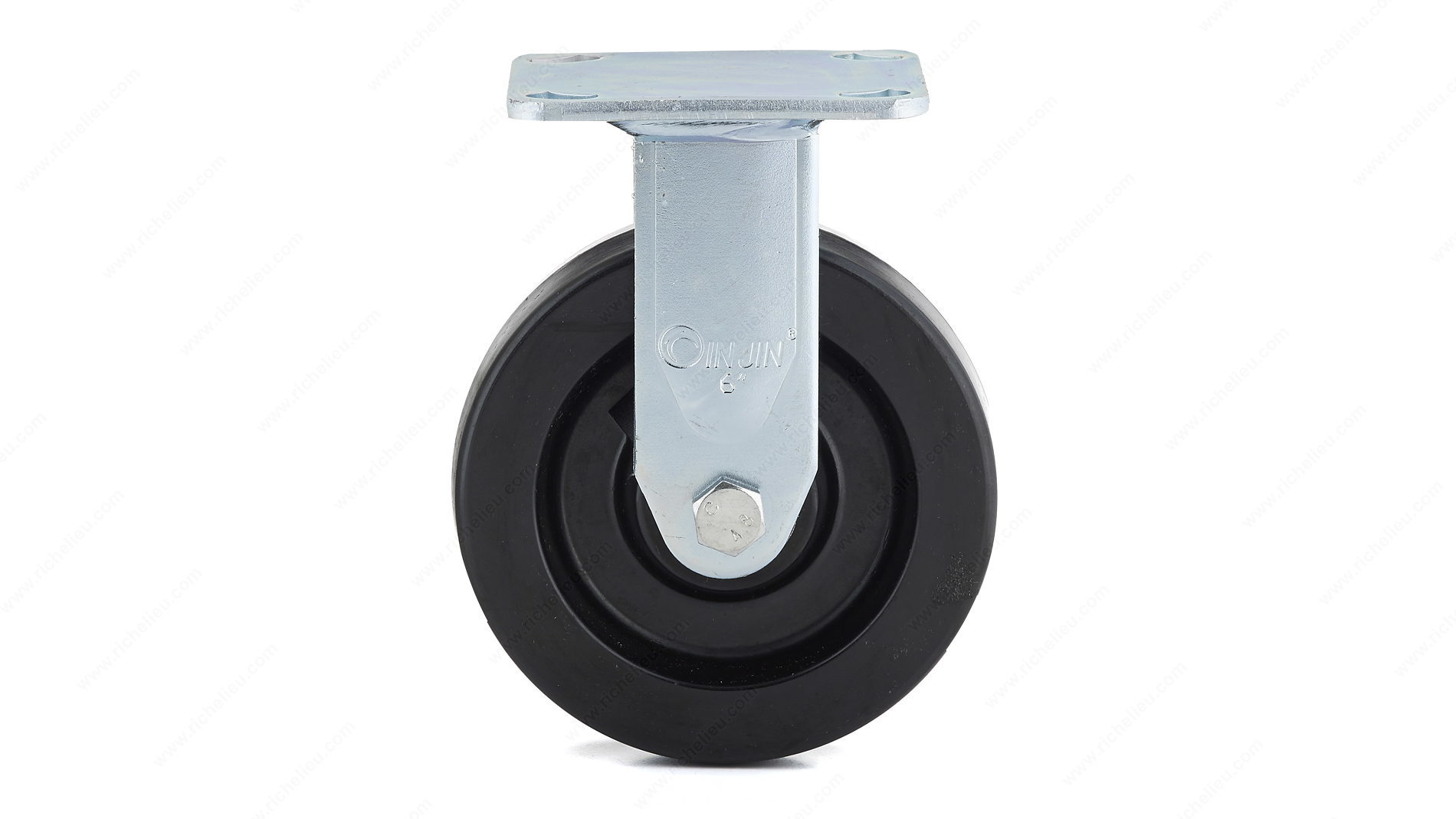

Richelieu F27116 Industrial Black Phenolic Casters are designed to meet the demands of both extreme cold and heat, making them ideal for a wide range of industrial applications. Crafted from durable phenolic material, these heavy-duty casters can support a substantial load capacity of up to 772 pounds per caster, ensuring reliability and strength in any setting. Available in fixed, swivel, or swivel with brake options, these casters offer versatility for different mobility needs. The mounting plate dimensions of 31 5/16 inches by 4 1/2 inches facilitate easy installation, while the 7/16-inch mounting hole diameter ensures compatibility with various surfaces. The total height of 7 5/16 inches and a wheel diameter of 5 31/32 inches provide smooth rolling performance on surfaces like concrete, carpet, wood, and asphalt. Designed for tough conditions, these casters are resistant to petroleum products and dilute acids, making them suitable for use in demanding environments. The tread width of 1 25/32 inches enhances stability, while the lack of lubrication fittings simplifies maintenance. Whether for heavy machinery or mobile workstations, Richelieu F27116 casters deliver the durability and functionality required for professional use.
Black Phenolic Resin Casters
Axle Diameter: 16 mm
Axle Length: 50 mm
Brand: Maxwheels
Conditions: Extreme Cold, Extreme Heat, Petroleum Products, Dilute Acids
Fastening Type: Fixed
Features: Without Lubrication Fittings
Finish: Black
Load Capacity Per Caster: Max. 350 kg
Material: Phenolic
Mounting Hole Diameter: 11 mm
Mounting Plate Dimensions: 31 5/16 in x 4 1/2 in (100 mm x 115 mm)
Mounting Type: Plate
Product #: F27116
Product number: F27116
Product №: F27116
Recommended Surfaces: Concrete, Carpet, Wood/Planking, Asphalt
Total Height: 186 mm
Tread Width: 45 mm
Unit 1: case - 4
Wheel Diameter: 152 mm
