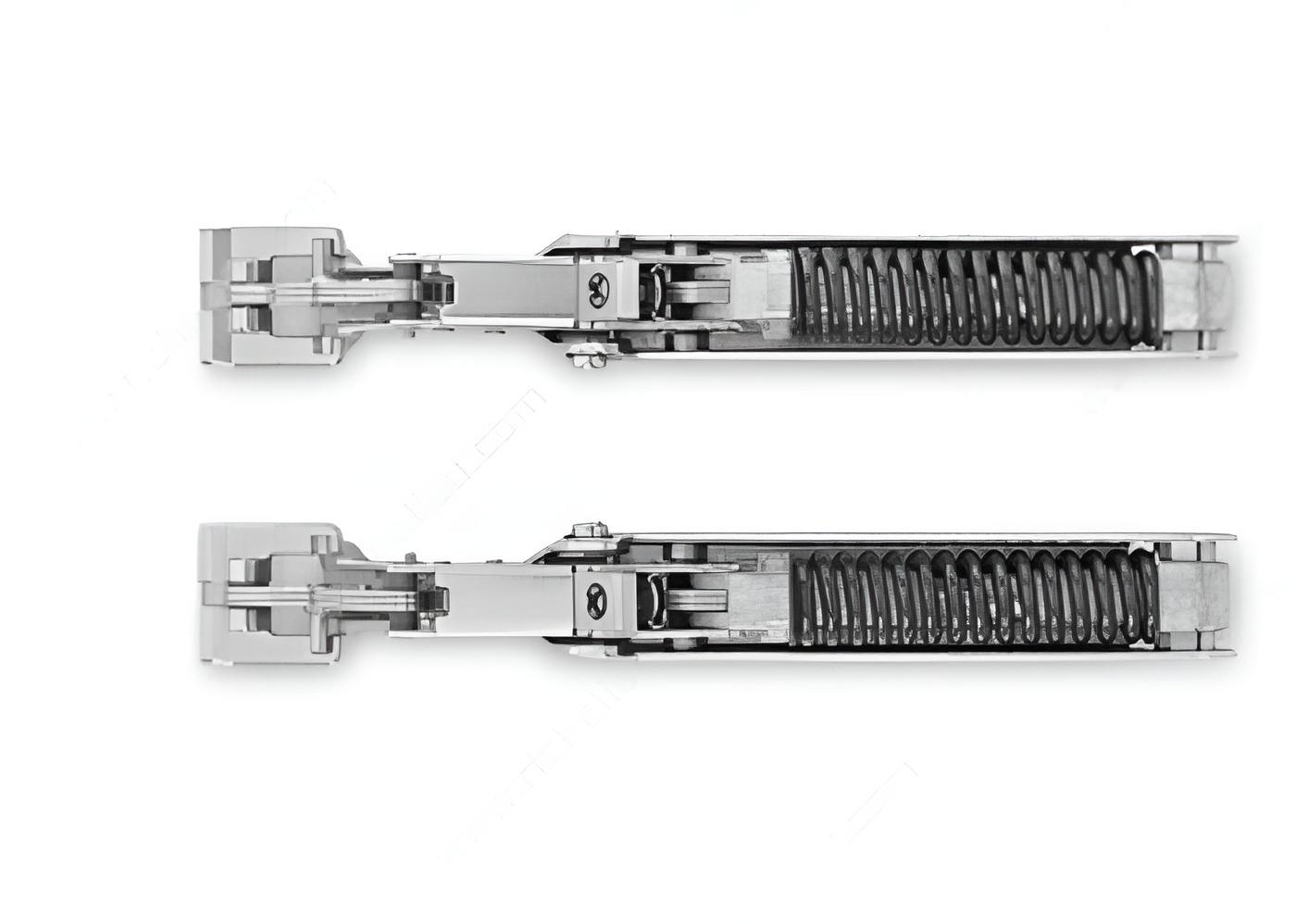

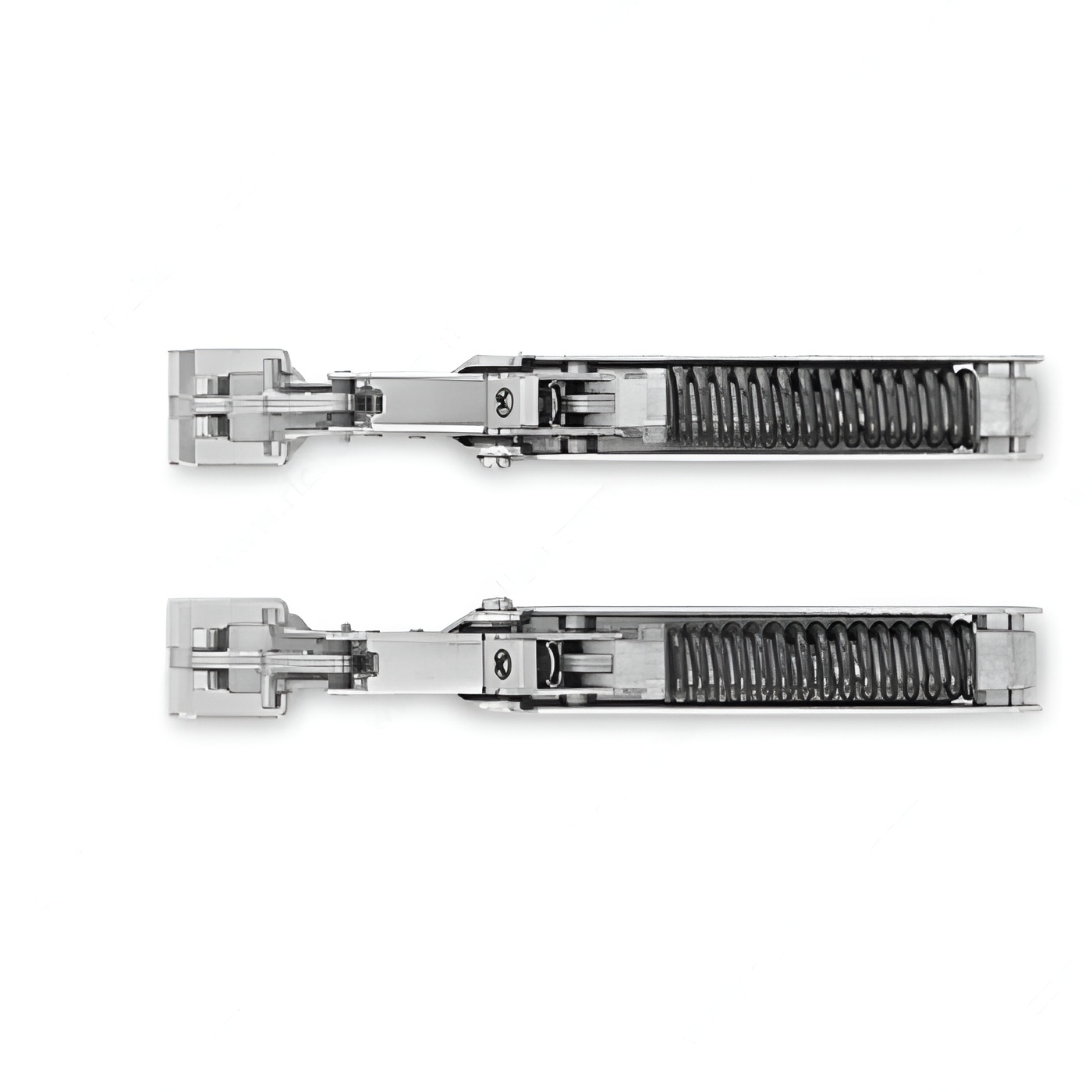

Wind Lift System - Push

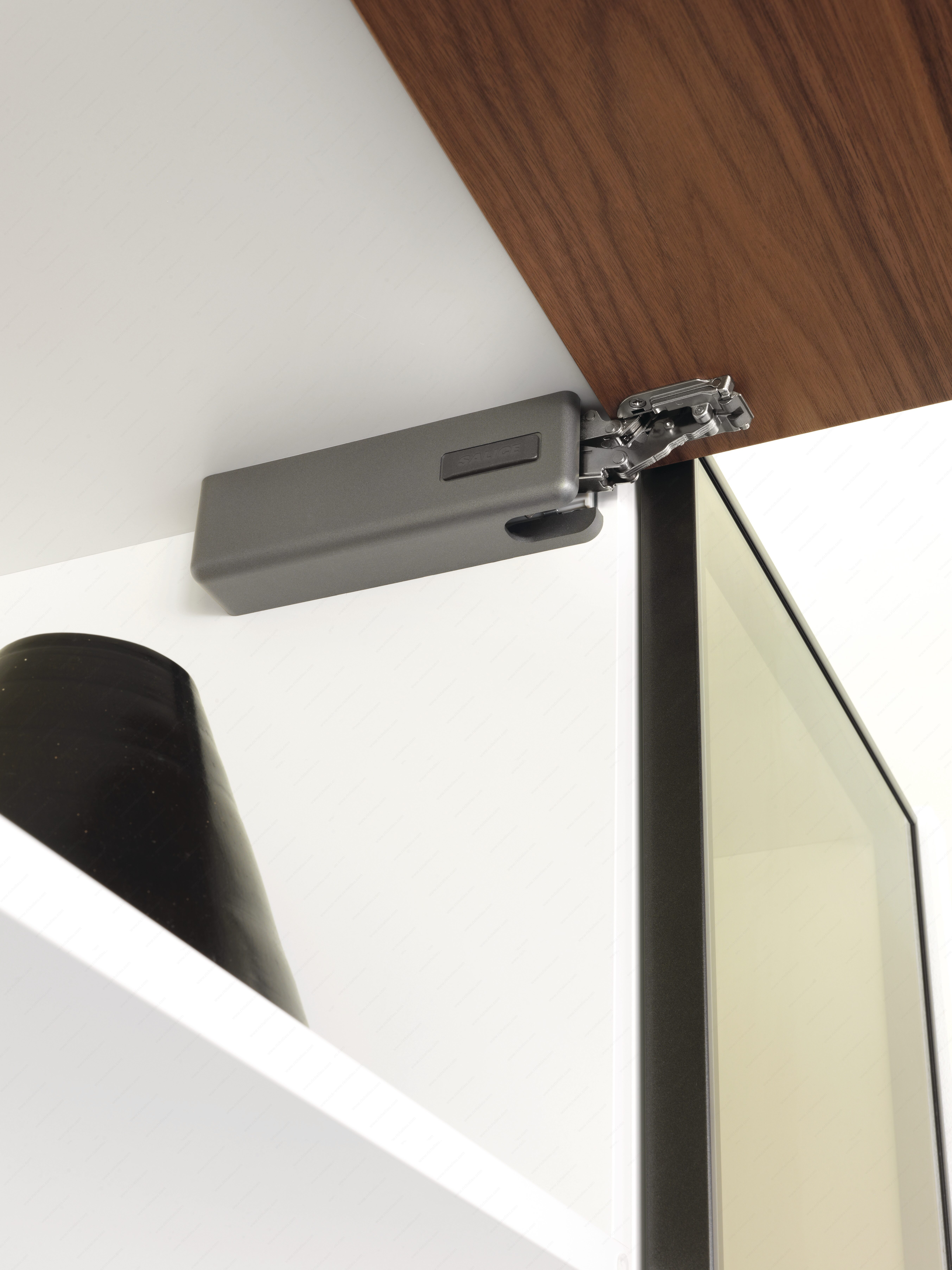

Wind is a new innovative lift door system for flap doors. It stands out for its compact size, elegance and discretion. Thanks to its small size, it takes up minimal space, which makes it ideal for flap doors that are common in kitchens. The Wind Lift System contains an integrated damping system, for a soft closing or a push-to-open system for doors without a handle.
- Opening pressure mechanism (Push series)
- Door thickness - maximum: 28 mm (11/8"), minimum: 16 mm (5/8")
- Overlay from 16 mm to 20 mm

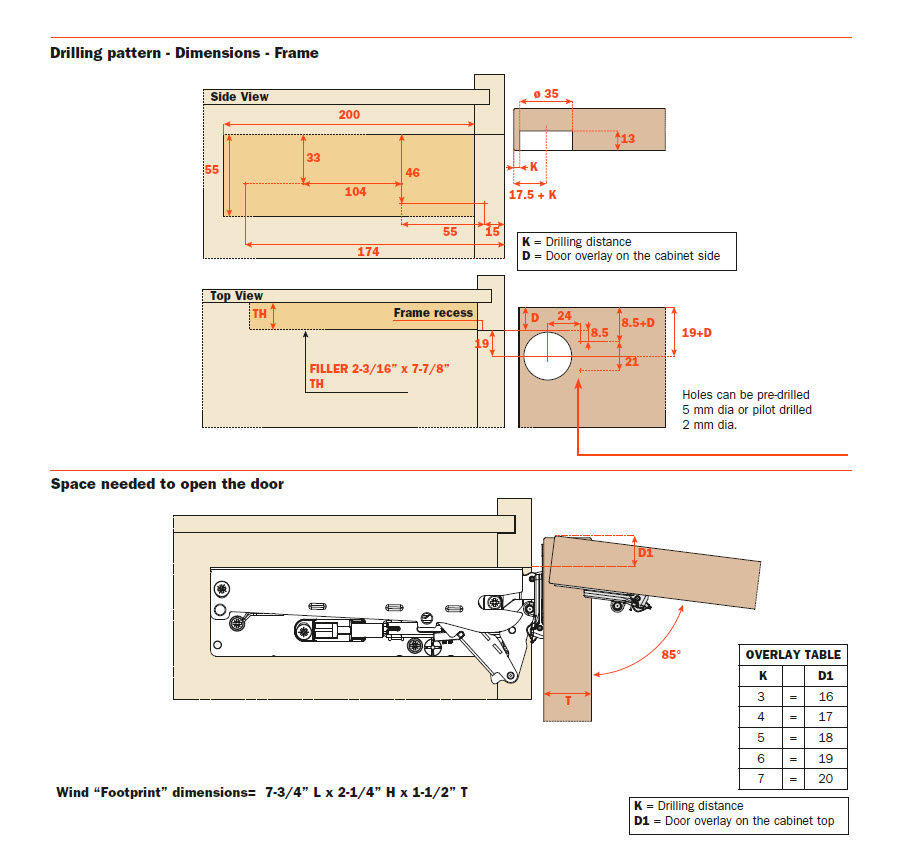

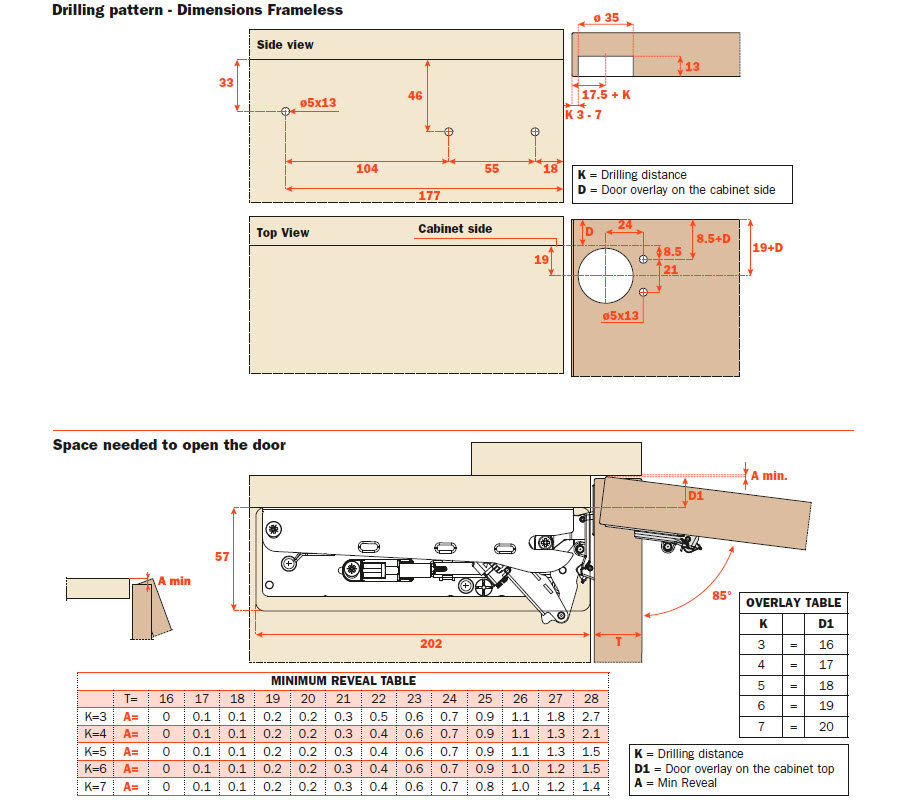

- Drilling of the door from 3 mm to 7 mm of the edge
- Depth adjustment: -1 mm, +3 mm
- Lateral adjustment: +2 mm, -2 mm
- Height adjustment: +2 mm, -2 mm
Attributes
Brand: Salice
Door Height: 320 to 610 mm
Door Type: Wood Door
Hinge Opening Angle: +94°

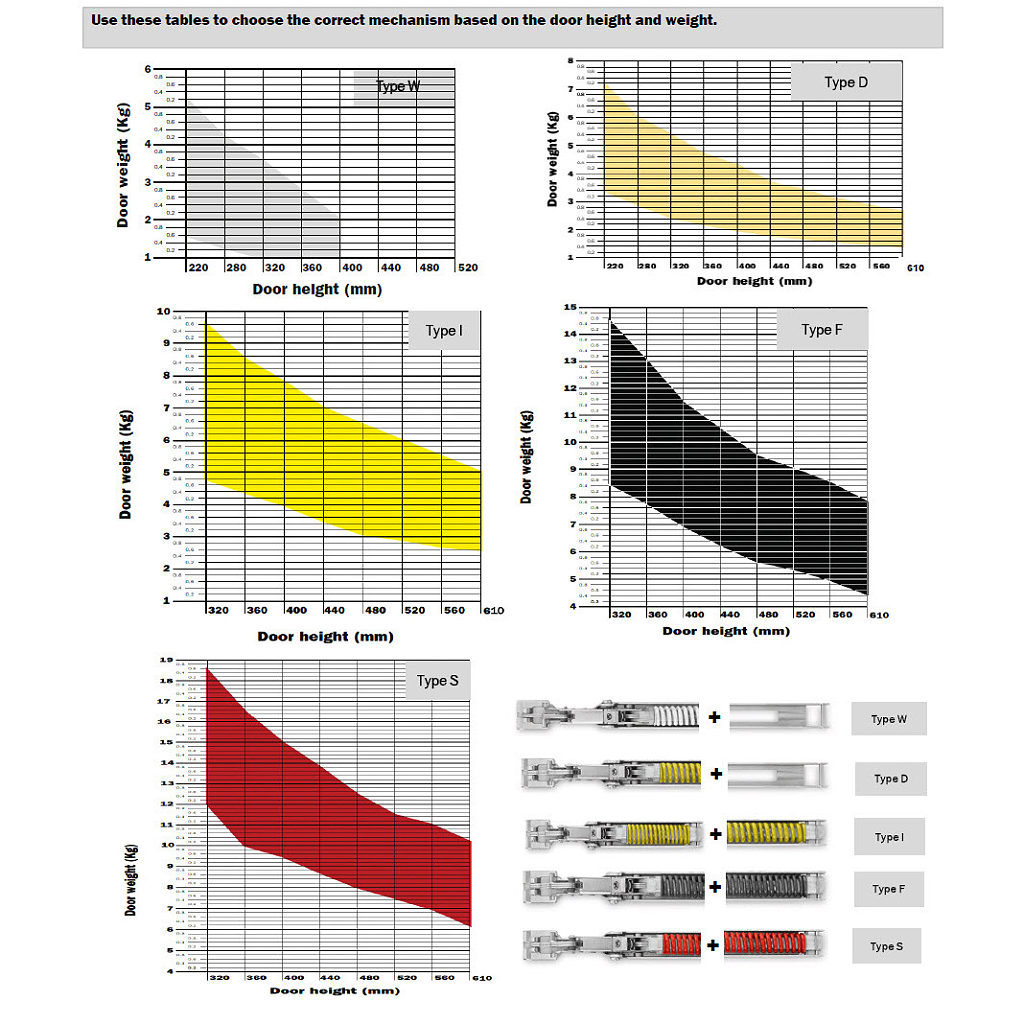

Load Capacity: 4.4 to 14.6 kg
Opening Angle: 94°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 3 001 to 4 640
Product #: FRAKFEPFSN9
Product number: FRAKFEPFSN9
Product №: FRAKFEPFSN9
System Name: Wind F
Unit: Box
Unit 1: case - 10
Unit 2: case - 10
