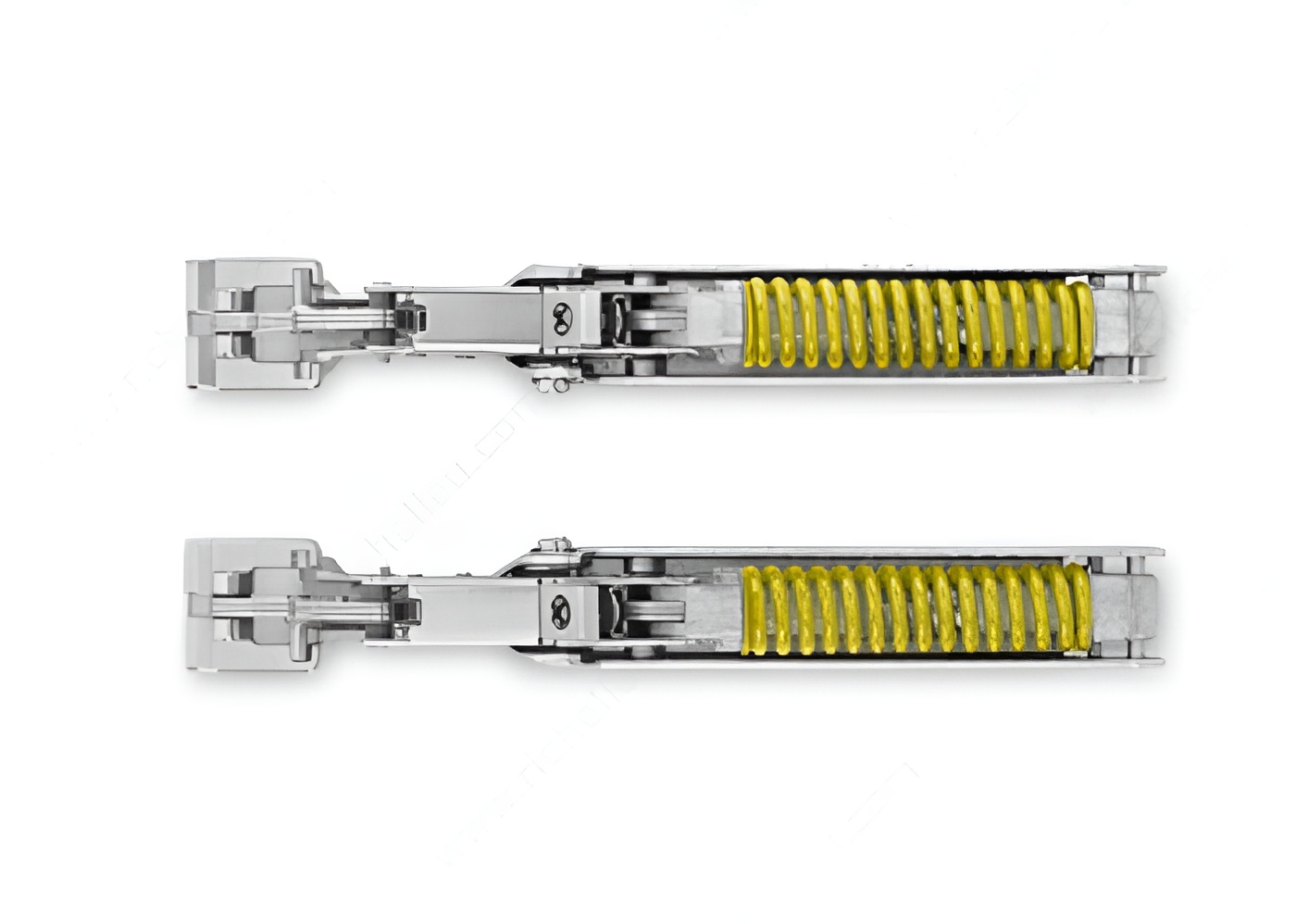

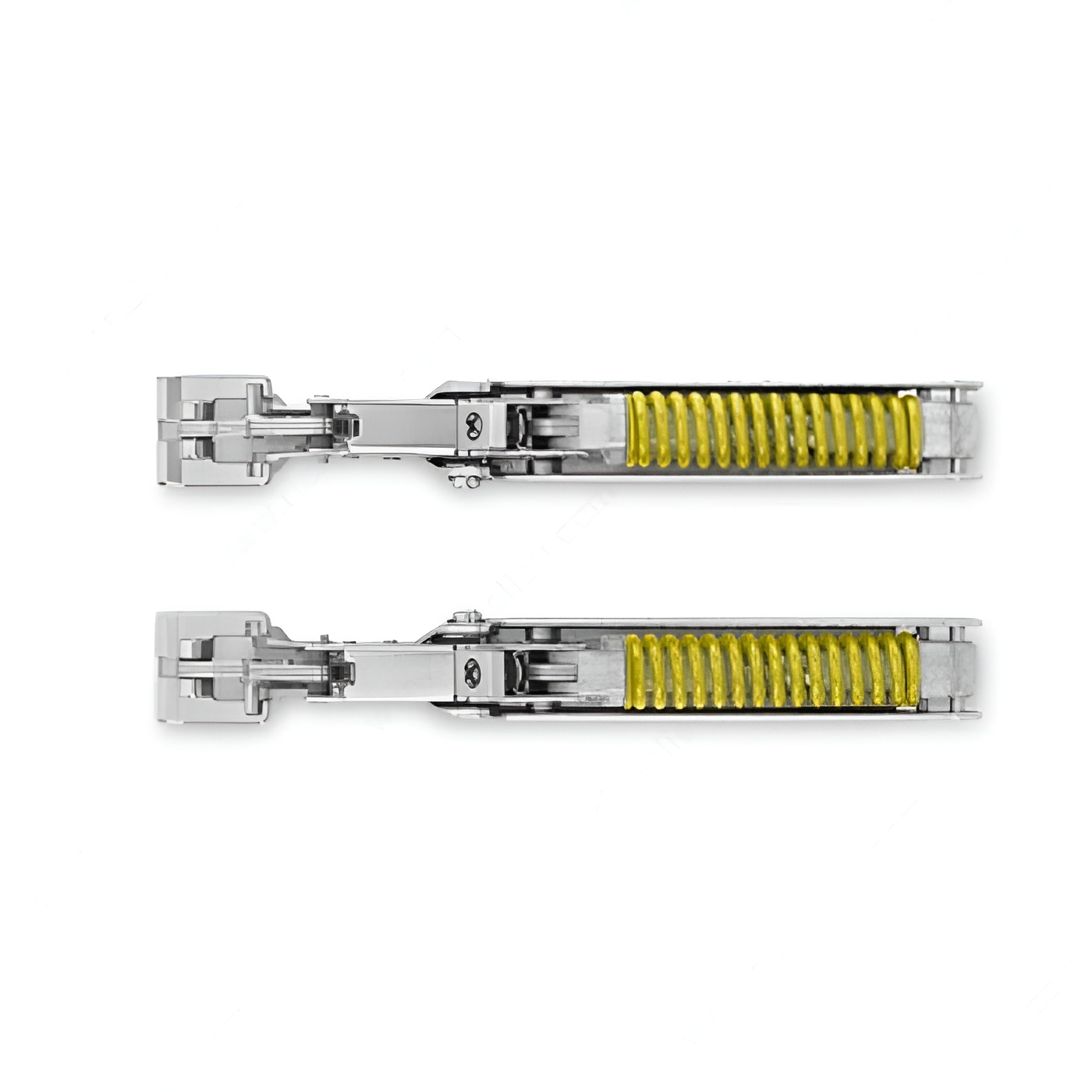

Richelieu FRAKFEPISN9 Wind Lift System - Push is an innovative lift door solution designed for flap doors, perfectly blending functionality with a compact, elegant design. Ideal for kitchen settings, this system occupies minimal space while providing a sleek appearance. The integrated damping mechanism ensures a soft closing action, and the push-to-open feature allows for effortless access to doors without handles. This lift system accommodates a wide range of door thicknesses, supporting a maximum thickness of 28 mm (11/8") and a minimum of 16 mm (5/8"). With an overlay adjustment ranging from 16 mm to 20 mm, it allows for precise installation tailored to your specific needs. The system also offers adjustable drilling depths from 3 mm to 7 mm along the edge of the door, making it versatile for various applications. Height, lateral, and depth adjustments of ±2 mm and ±3 mm ensure that installation is straightforward and accommodates slight variances in door dimensions. Designed for wood doors with a height range of 8 21/32 to 23 5/8 inches, the FRAKFEPISN9 Wind Lift System is a reliable and stylish choice for modern interiors, enhancing both functionality and aesthetic appeal.
Wind Lift System - Push
Brand: Salice
Door Height: 320 to 610 mm
Door Type: Wood Door
Hinge Opening Angle: +94°
Load Capacity: 2.6 to 9.6 kg
Model: Original
Opening Angle: 94°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 1 585 to 3 000
Product #: FRAKFEPISN9
Product number: FRAKFEPISN9
Product №: FRAKFEPISN9
System Name: Wind I
Unit: Box
Unit 1: case - 10
Unit 2: case - 10
