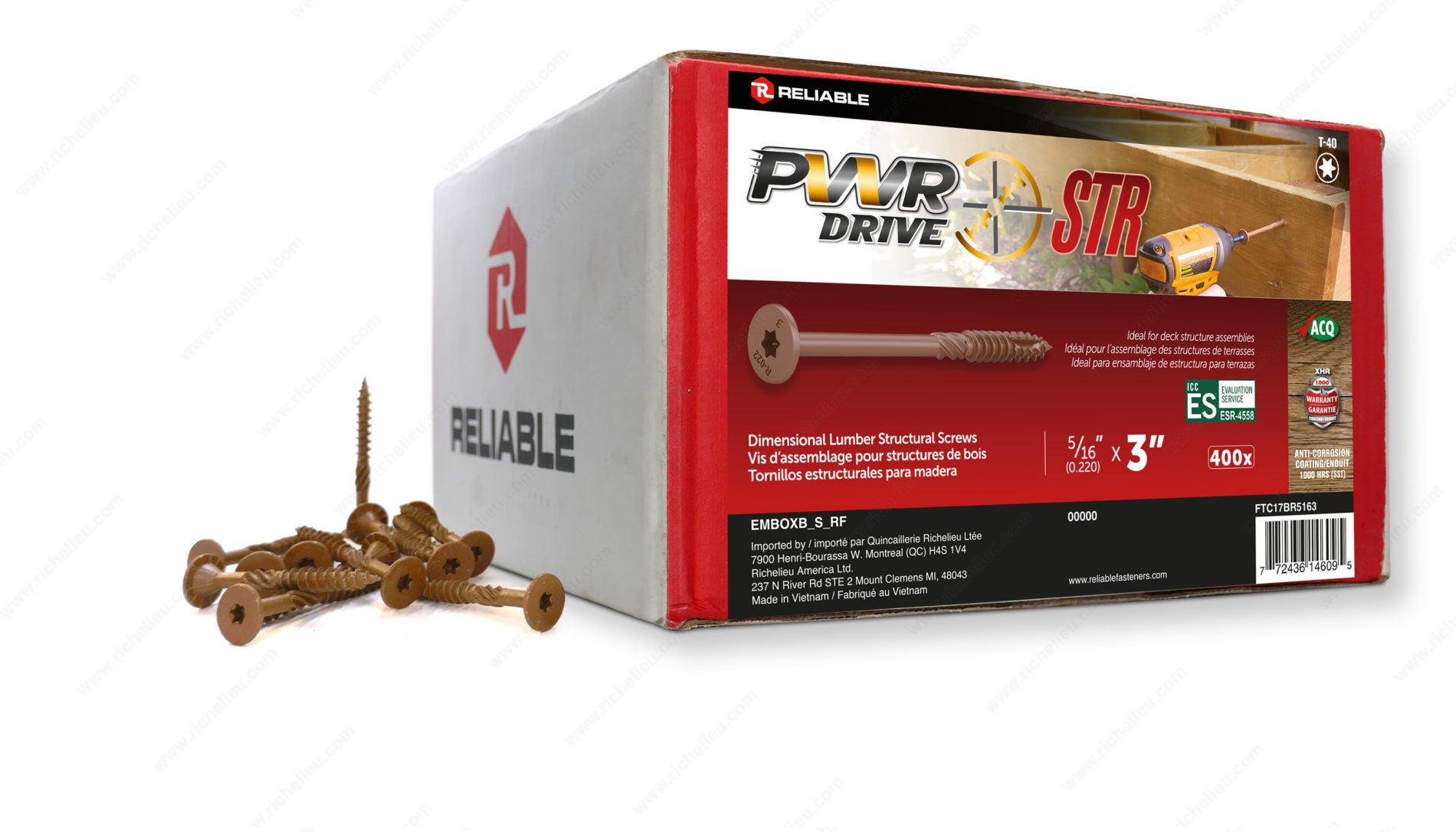

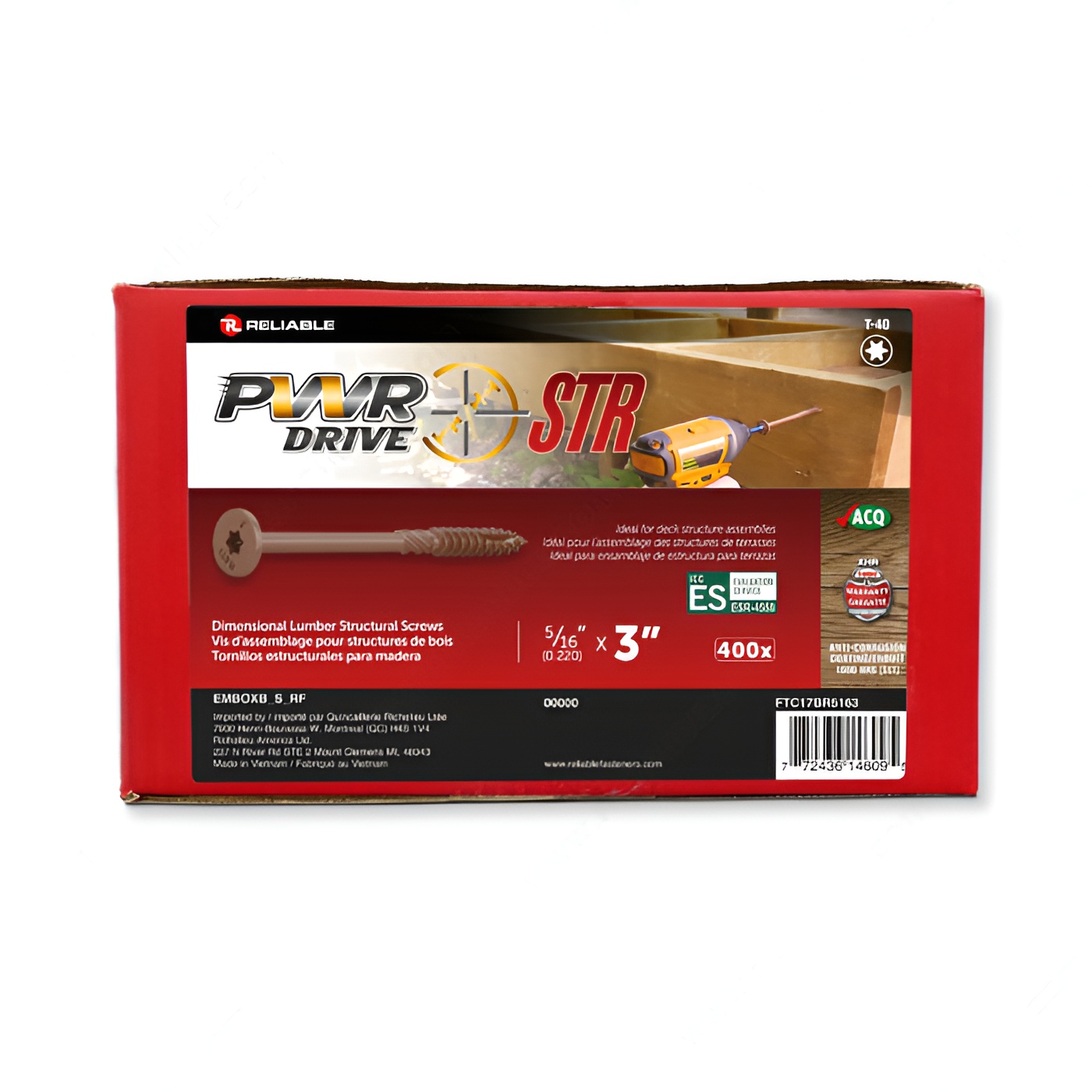

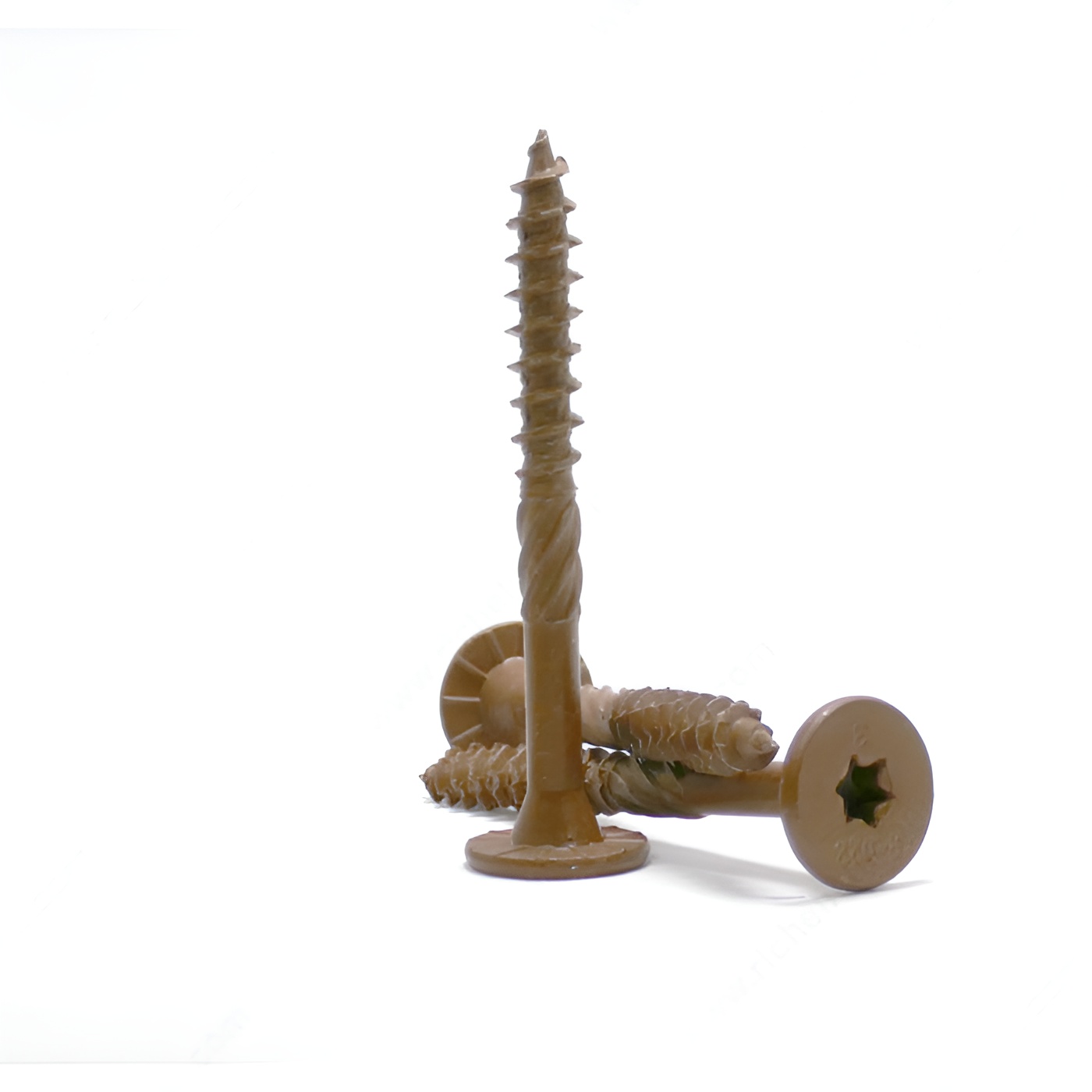

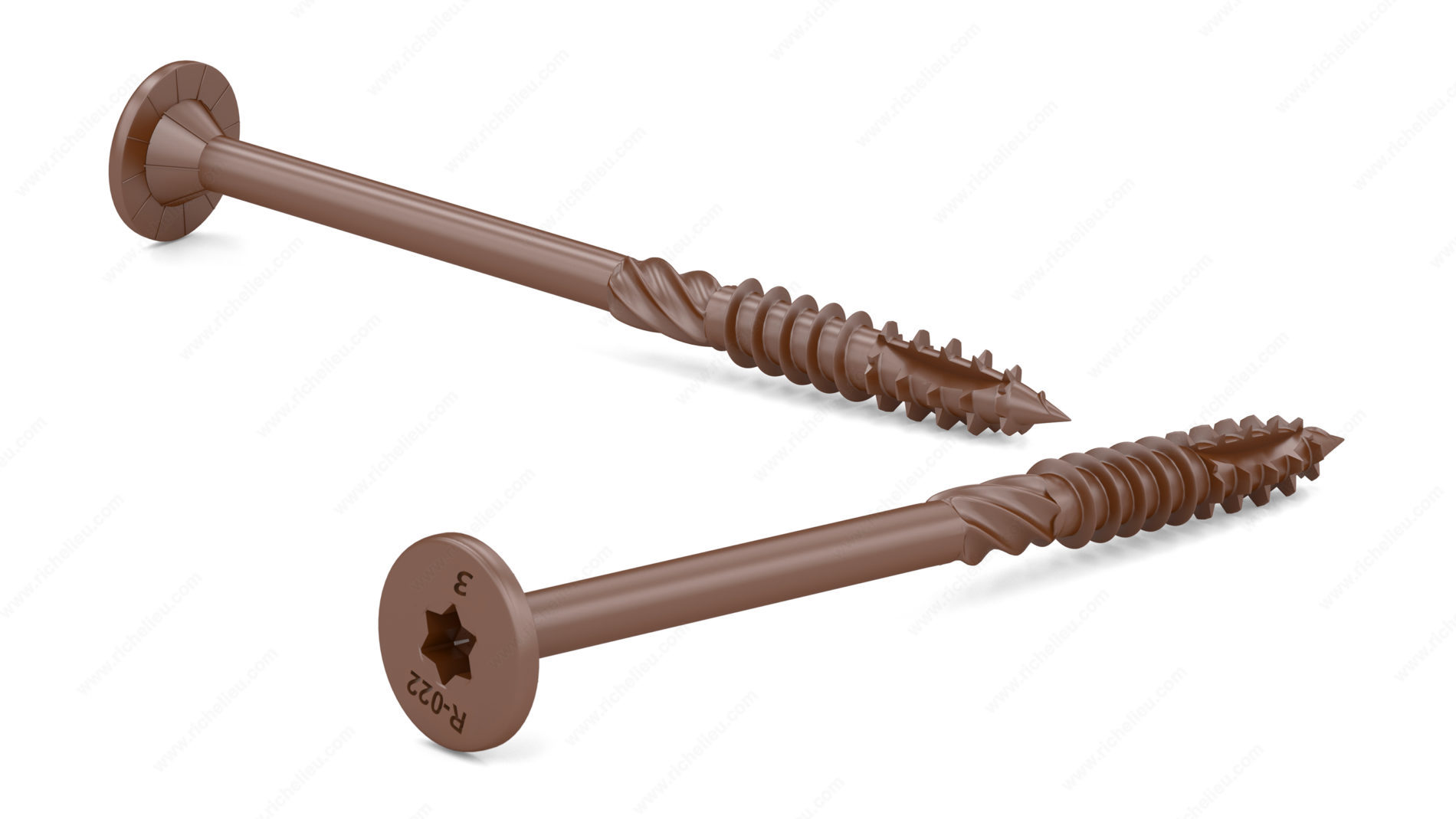

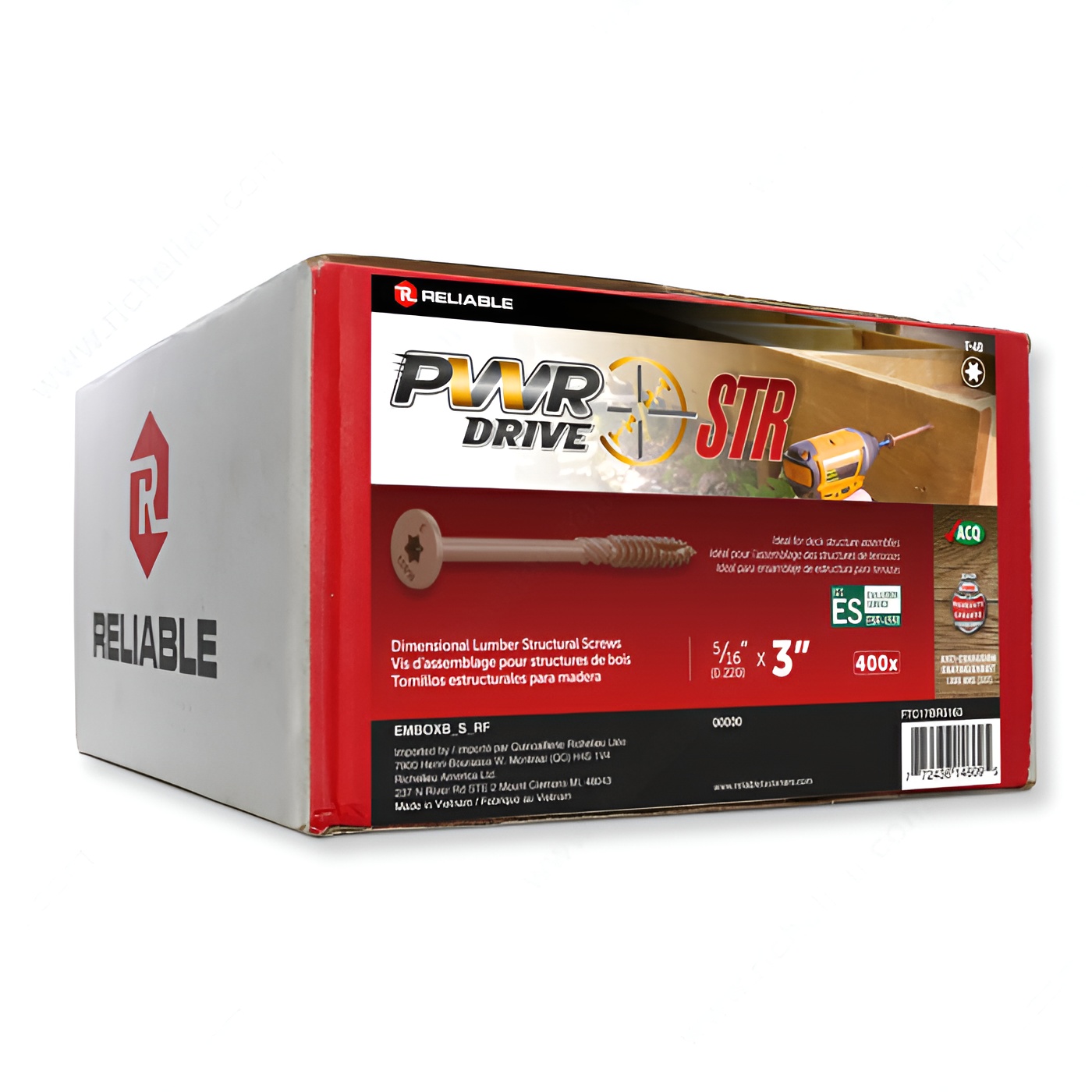

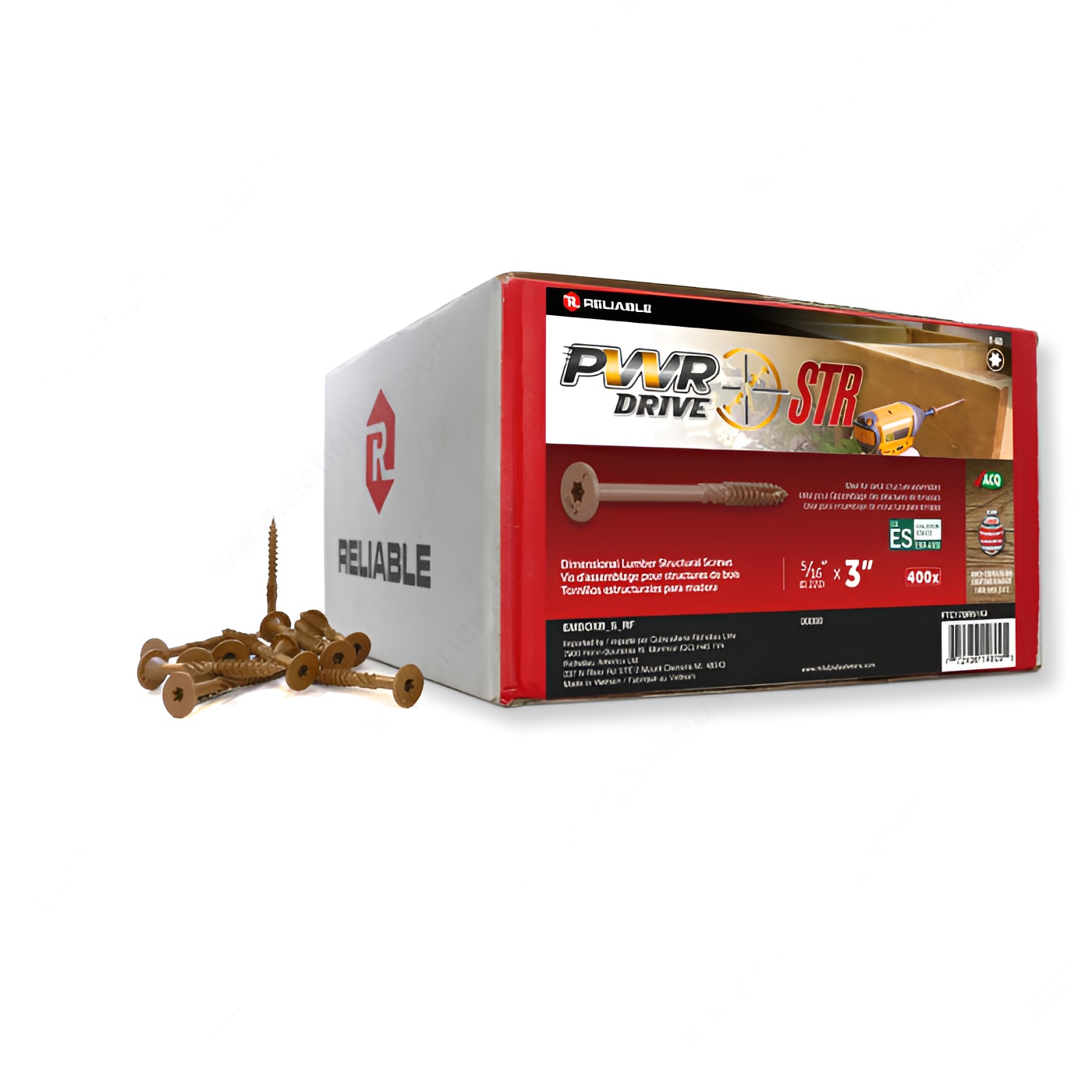

Richelieu FTC17BR5163 PWR DRIVE STR - Structural Framing ScrewRichelieu FTC17BR5163 PWR DRIVE STR is a structural framing screw engineered to replace lag screws in deck framing and construction, providing a stronger and more reliable alternative to standard #10 deck screws. This innovative design caters to the specific needs of dimensional lumber, ensuring maximum assembly strength in deck structures and other framing applications. With only five different lengths available, the PWR DRIVE STR covers a wide array of lumber sizes, including 2 x 6 in, 2 x 8 in, 2 x 10 in, 4 x 4 in, and 6 x 6 in, streamlining your inventory and reducing the number of screws required on the job site. Each pack includes a convenient reference guide, helping you identify the ideal lumber combinations for each screw length. The screw features a durable ACQ rustproof finish and a 5/16 screw size, ensuring longevity and performance, even in demanding conditions. It comes equipped with an oversized flat head with nibs for enhanced grip and easier installation. The T-40 drive tip is included in every pack, except for bulk orders. Compliant with ICC ES: ESR-4558 standards, the PWR DRIVE STR is the ideal choice for any structural assembly project, combining efficiency and strength in one reliable product.
PWR DRIVE STR - Structural framing screw

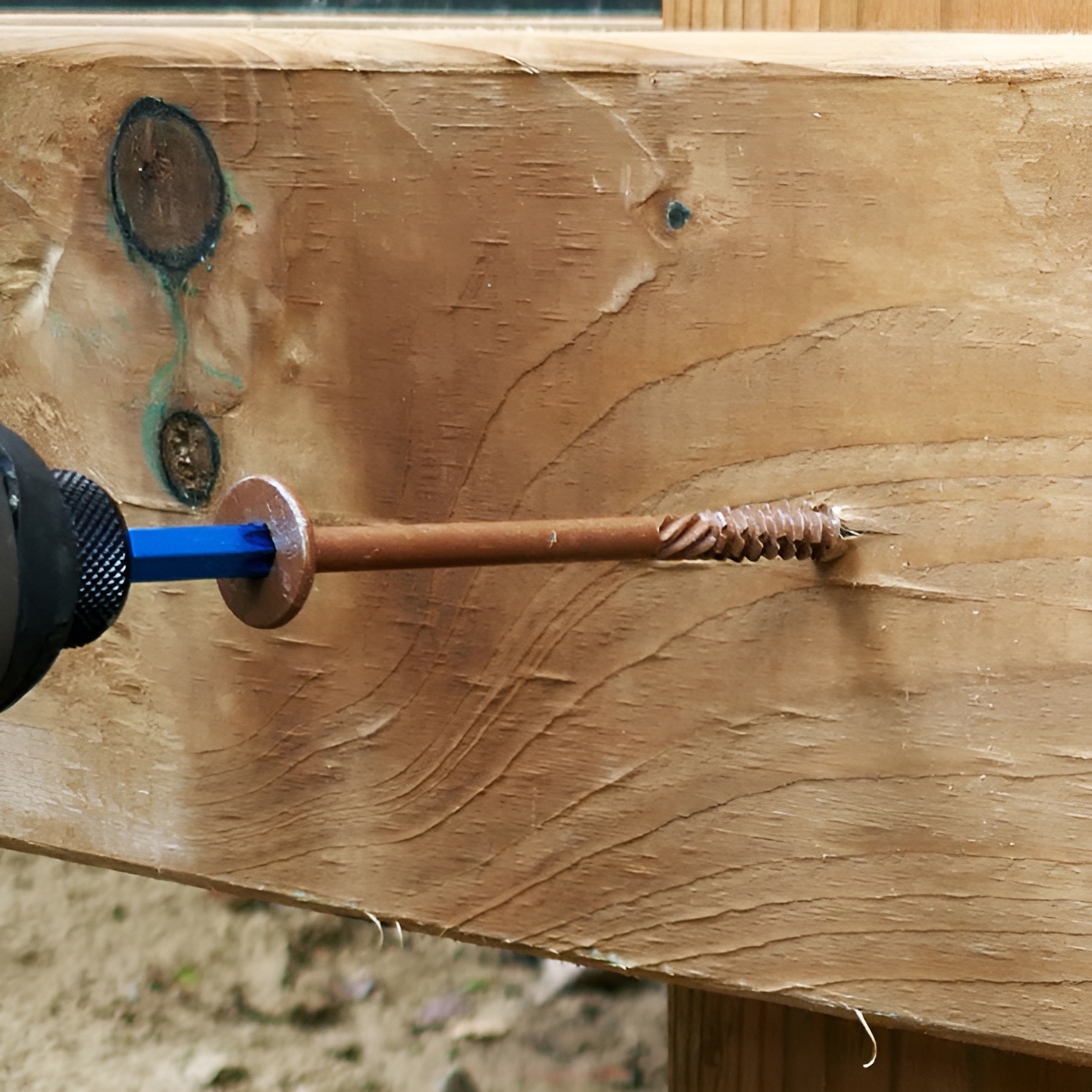

The PWR DRIVE STR is designed to replace lag screws for framing decks or to alleviate the need for standard #10 deck screws leading to potential structural problems. The design of the STR is specific to dimensional lumber used in deck structures and pretty much any other framing needs for that matter, which allows maximum assembly strength.
By figuring out all the possible assemblies of a structure, using a mix of 2 x 6 in (152 mm), 2 x 8 in (203 mm), 2 x 10 in (254 mm), 4 x 4 in (101.6 mm), and 6 x 6 in (152 mm), you can cover all possible combinations with only five different lengths of the STR. Fewer screws are necessary to cover anything you may encounter on the jobsite.

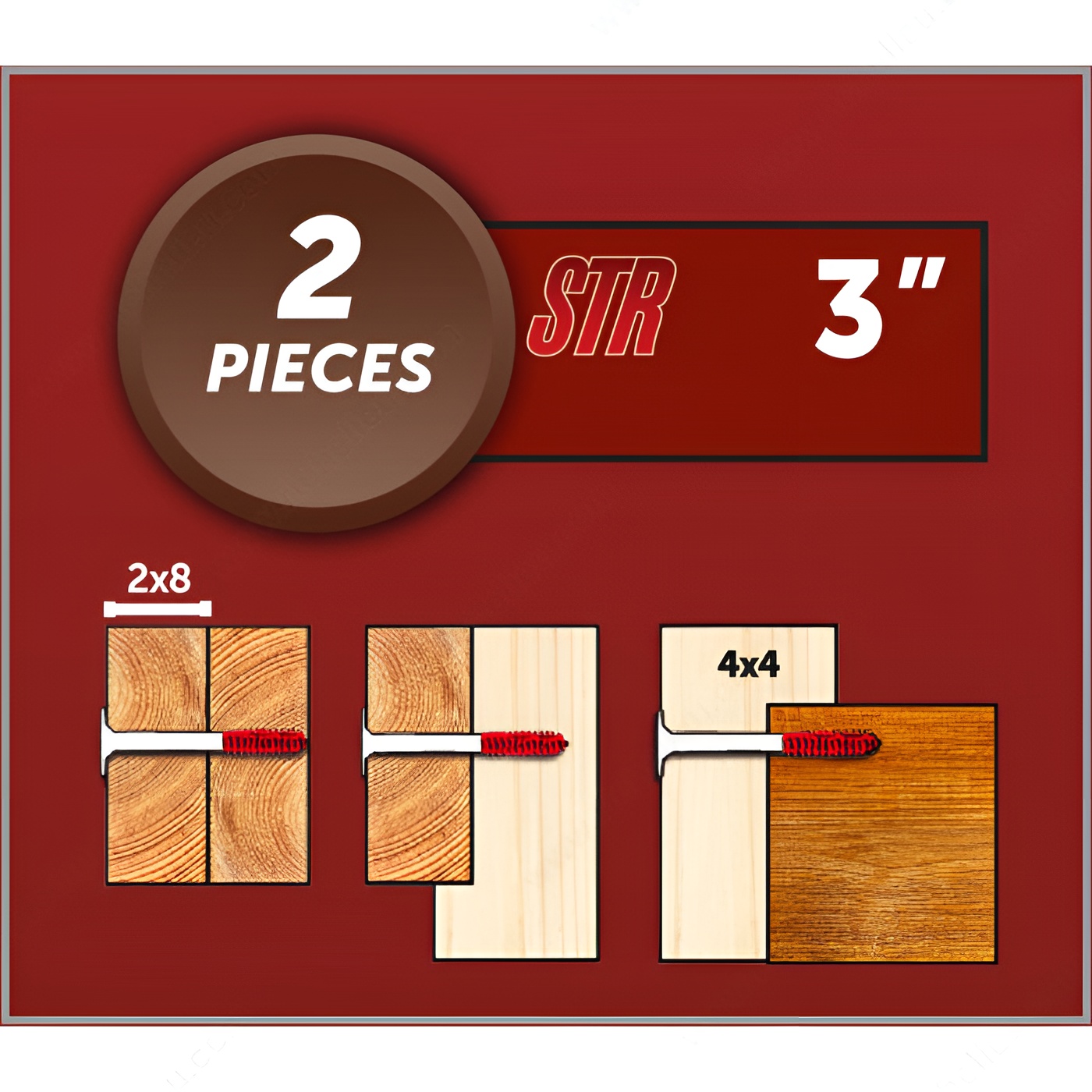

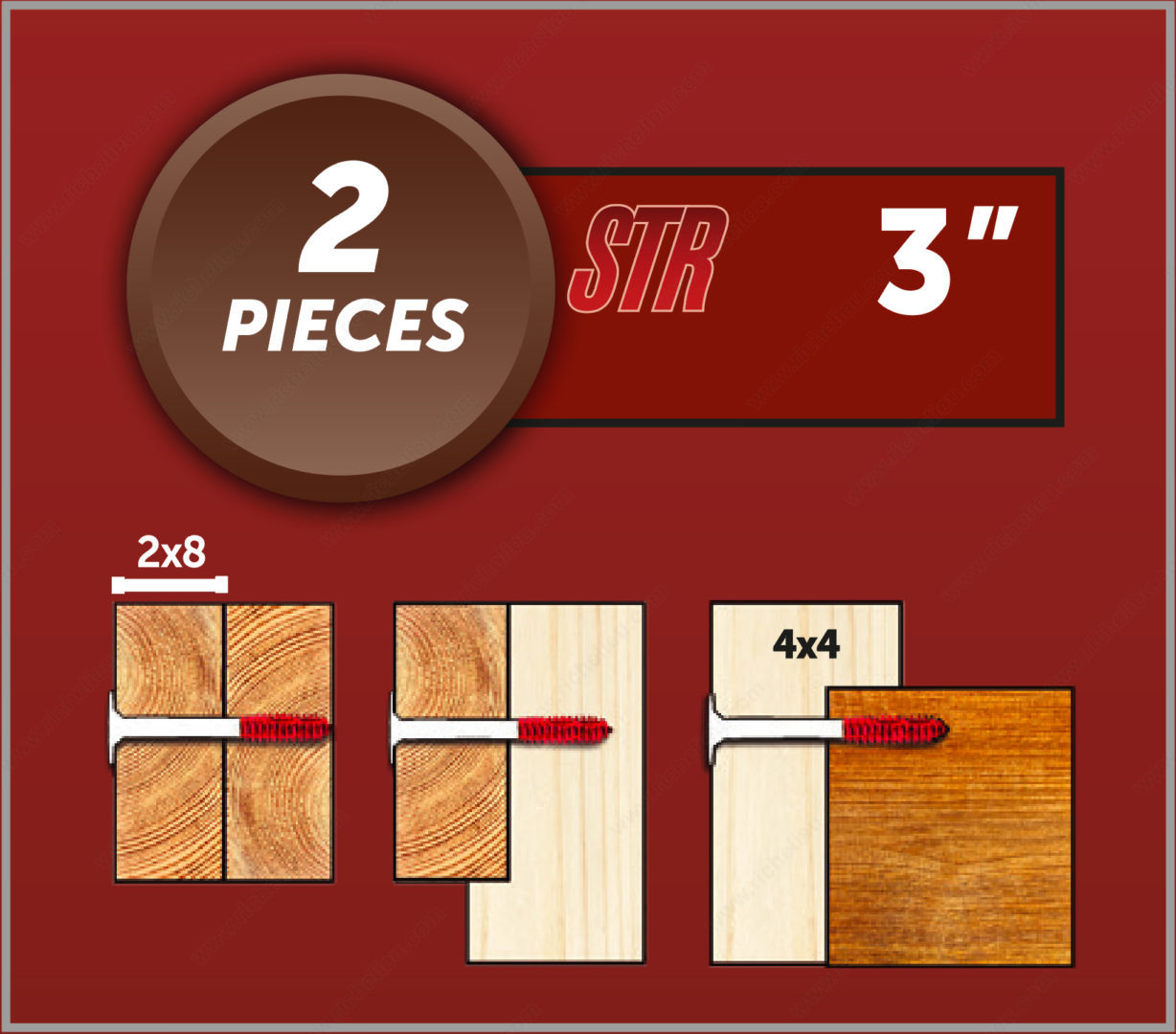

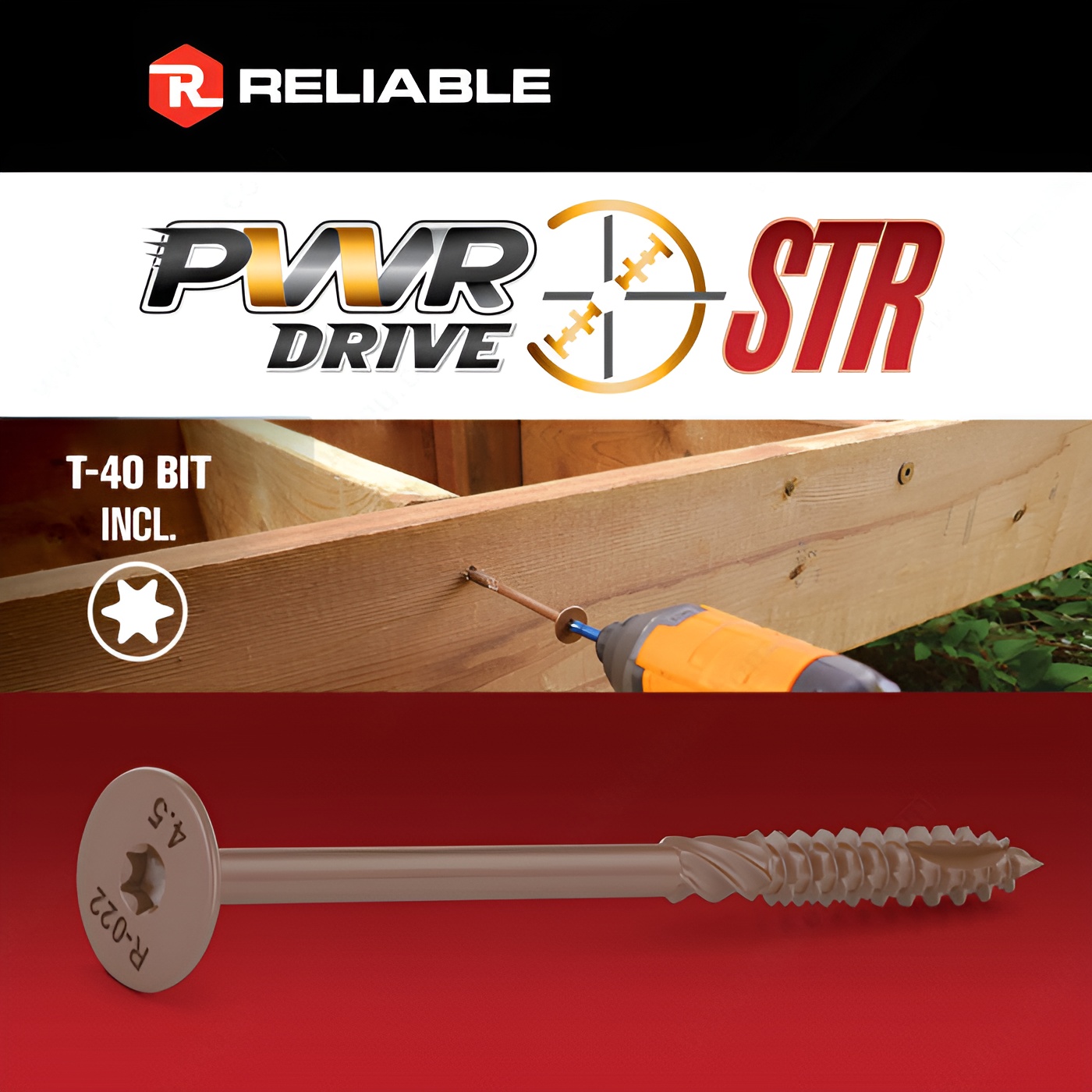

Each pack of the STR includes a handy reference for the correct lumber combinations ideal for a specific length. Note that the required T-40 tip is included in each pack except in bulk.
Attributes
Brand: PWR DRIVE
Drive required: Torx T40
Finish: Sienna Brown, ACQ Rustproof
Function: Framing Deck Structures

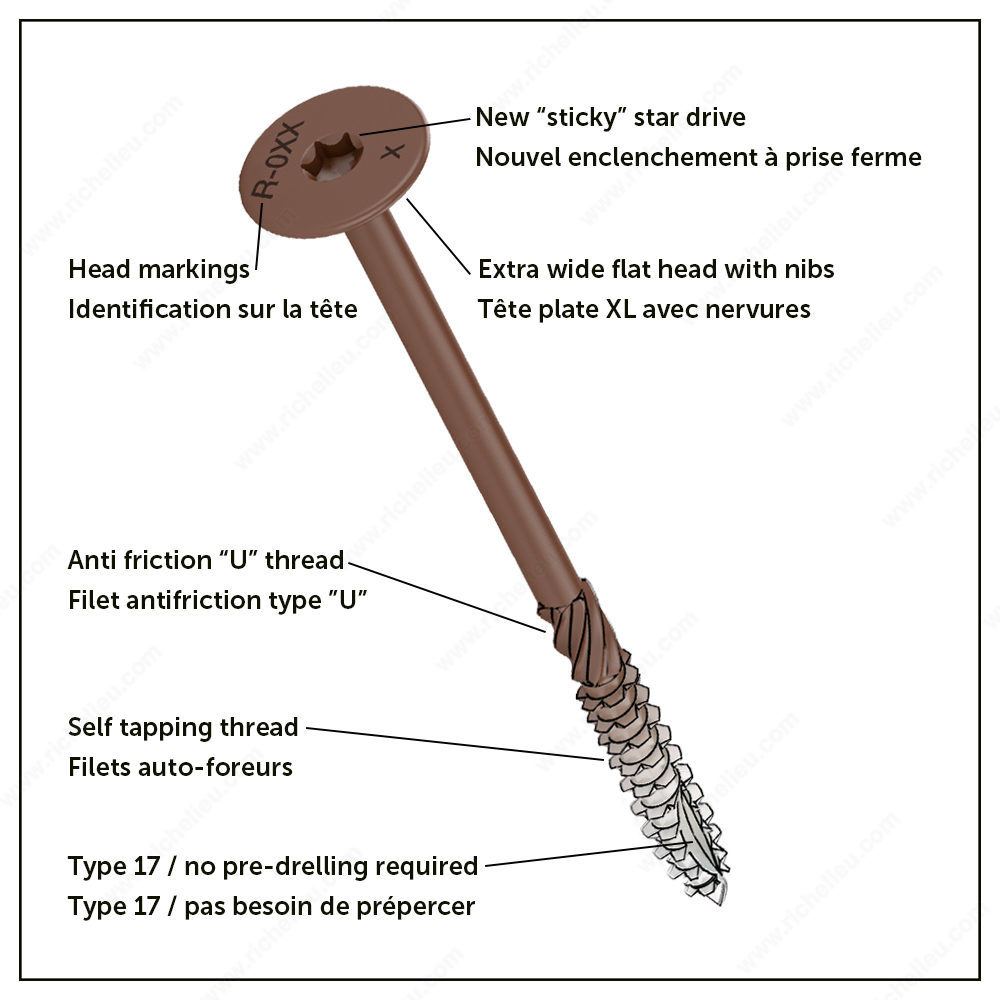

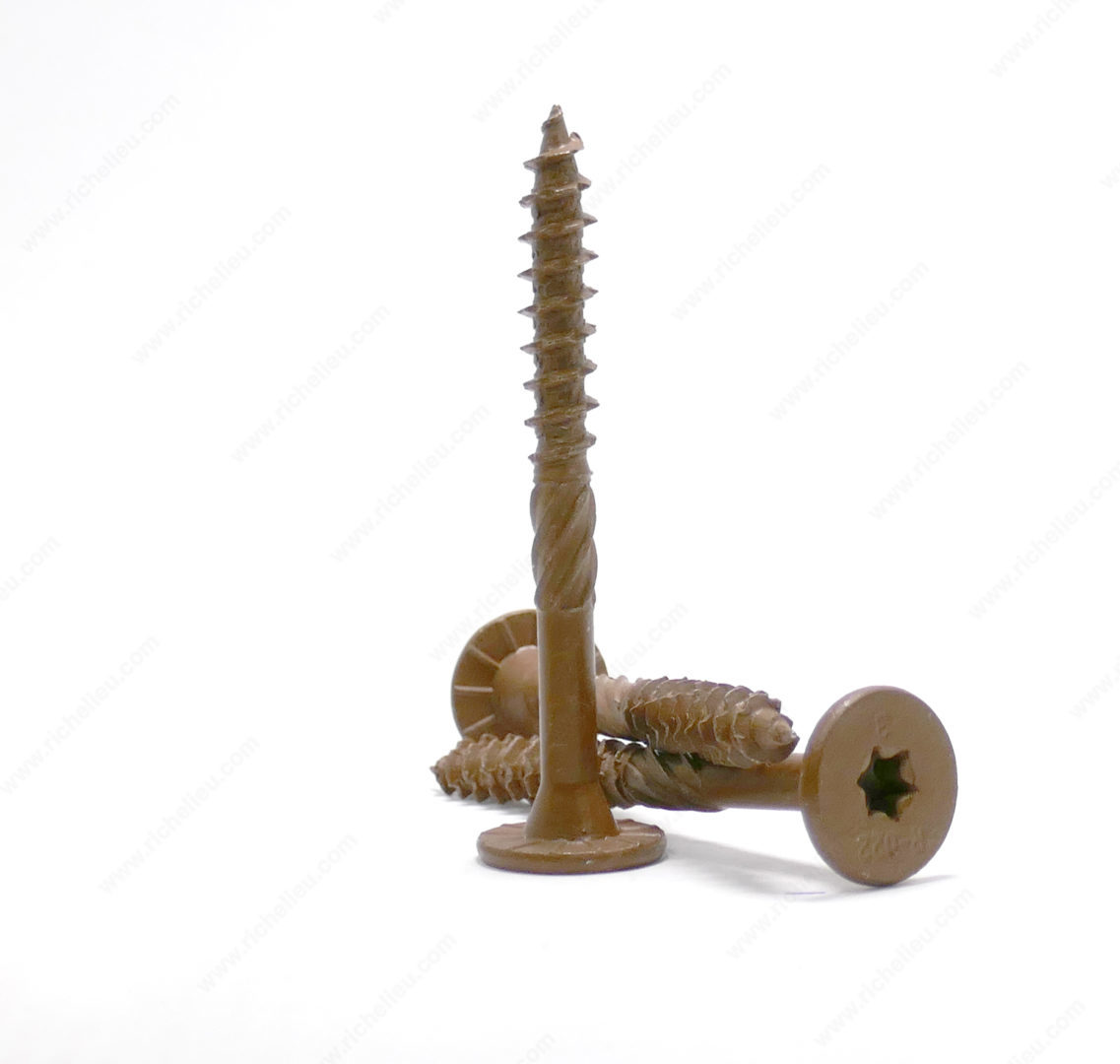

Head Type: Oversized Flat Head with Nibs
Length: 3 in

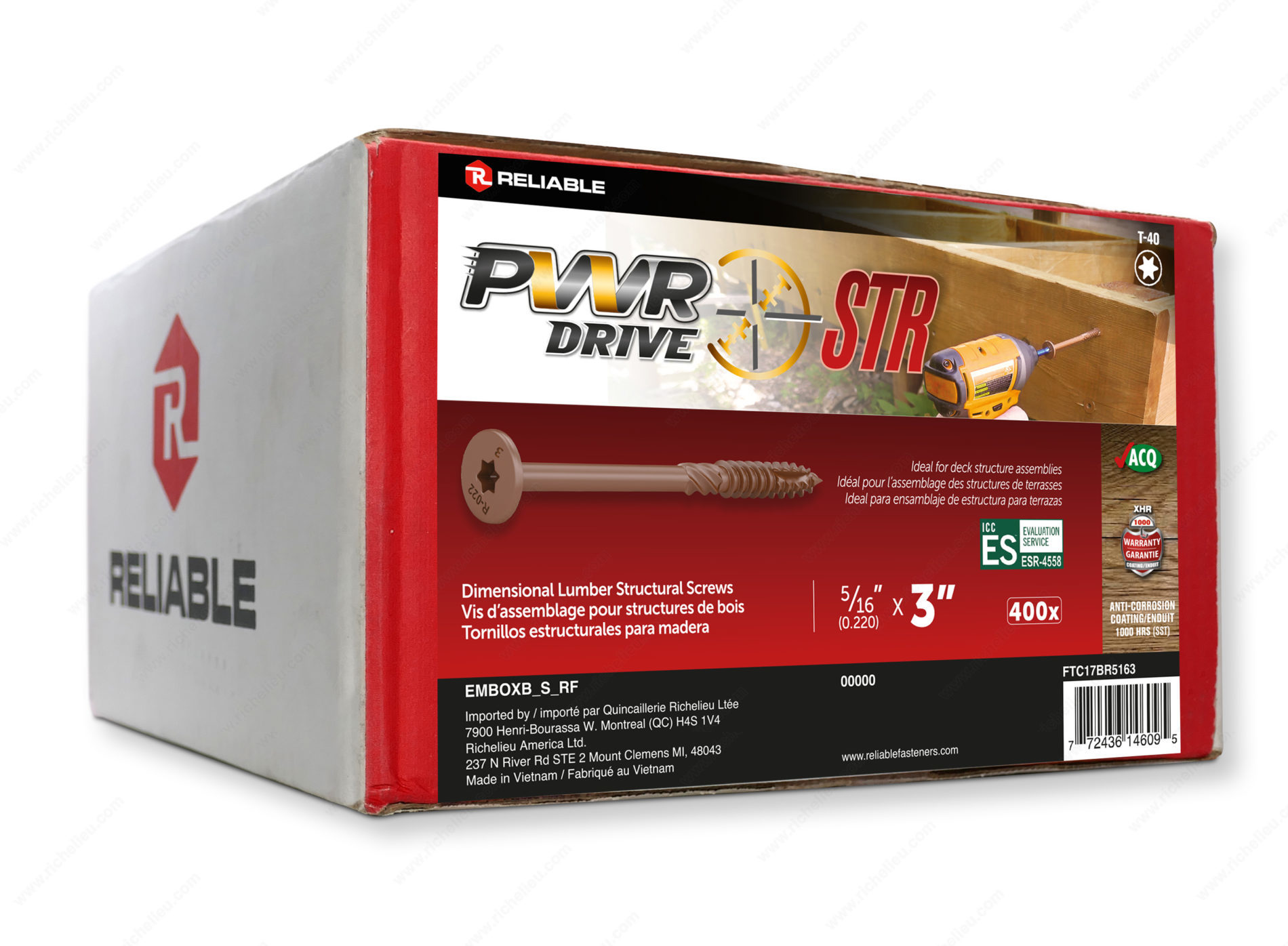

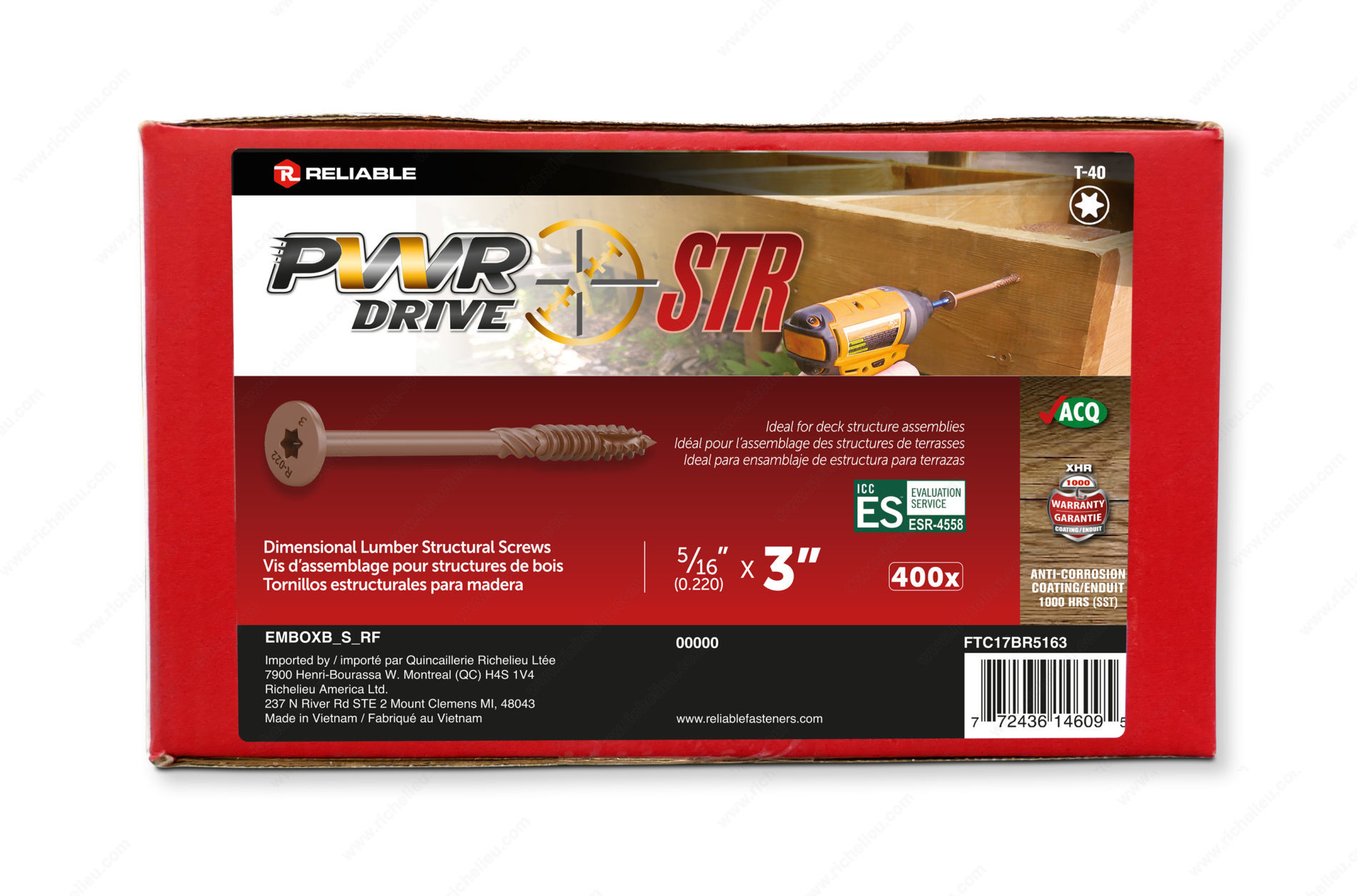

Packaging format: Box of 400
Point Type: Type 17
Product #: FTC17BR5163
Product number: FTC17BR5163
Product №: FTC17BR5163
Screw Size: 5/16
Specific Application: Structure Assembly, Deck Structure Assembly
Standards and Certifications: ICC ES: ESR-4558
Steel Grade: Tempered
Thread Type: Coarse Thread and Type 17
Threading: Threaded Optimized for Dimensional Lumber
Type of Wood: Lumber, Treated Wood
Unit: Box of 400
Unit 1: skid - 48
Unit 2: skid - 48
