Richelieu FTC17BR5163MR PWR DRIVE STR - Structural Framing ScrewRichelieu FTC17BR5163MR PWR DRIVE STR is a structural framing screw engineered to replace lag screws in deck framing, providing enhanced strength and reliability. Specifically designed for use with dimensional lumber, this screw significantly reduces the risk of structural issues by effectively accommodating various assembly needs. With its versatile design, the STR is compatible with an array of lumber sizes, including 2 x 6 in, 2 x 8 in, 2 x 10 in, 4 x 4 in, and 6 x 6 in, allowing you to tackle multiple jobsite requirements with just five different lengths. This efficiency means fewer screws are necessary, streamlining your assembly process. Each pack includes a convenient reference guide for determining the ideal lumber combinations for each screw length, ensuring that you make informed choices on-site. The PWR DRIVE STR features a 3-inch length and a 5/16 screw size, equipped with an oversized flat head with nibs for optimal grip. The Type 17 point type and 1-1/2" coarse threading enhance penetration and holding power, making it particularly effective for treated wood. Packaged in blisters of 10 units and equipped with a T-40 drive tip, the FTC17BR5163MR is ICC ES certified (ESR-4558) and finished with ACQ rustproof protection, ensuring durability and performance in demanding conditions.
PWR DRIVE STR - Structural framing screw
The PWR DRIVE STR is designed to replace lag screws for framing decks or to alleviate the need for standard #10 deck screws leading to potential structural problems. The design of the STR is specific to dimensional lumber used in deck structures and pretty much any other framing needs for that matter, which allows maximum assembly strength.

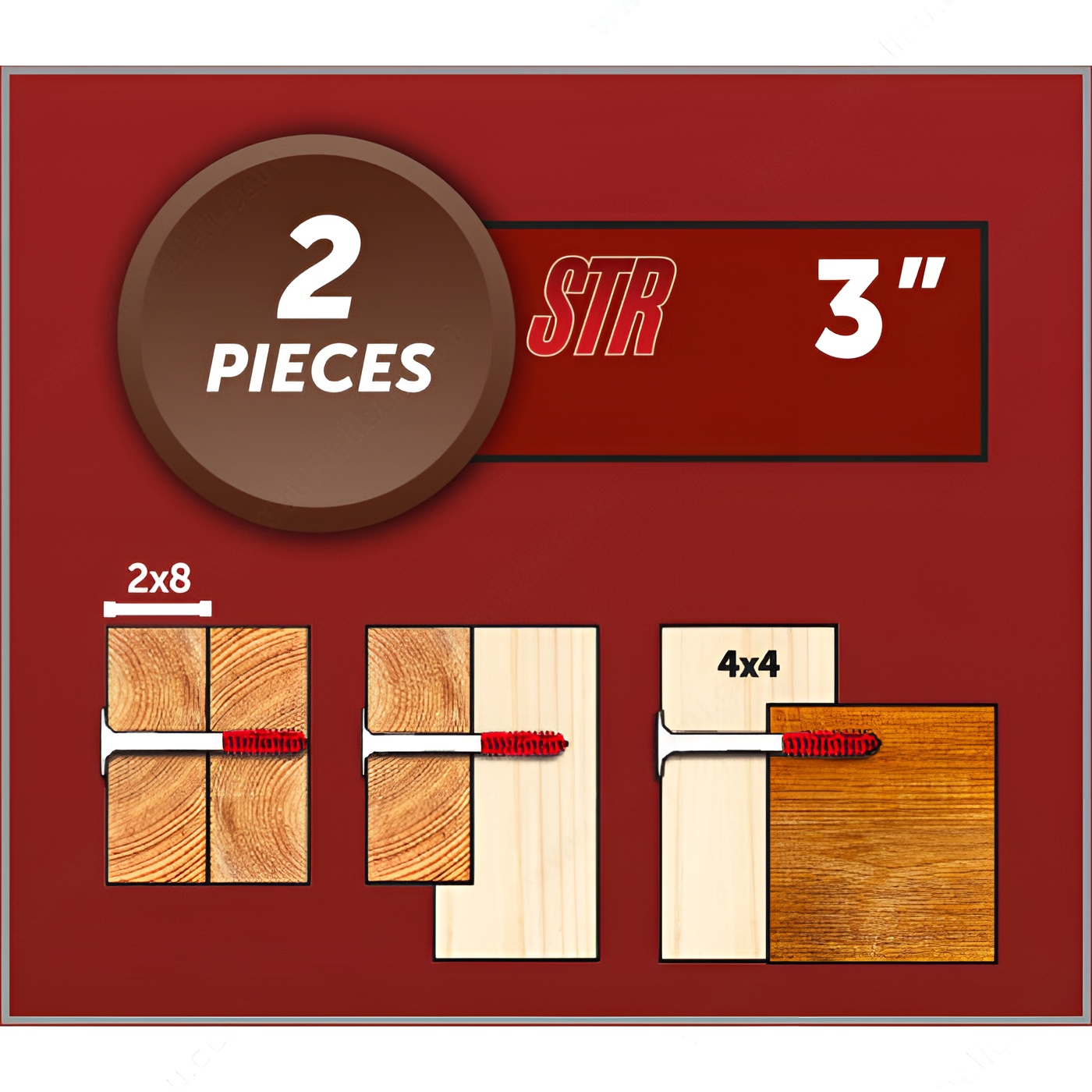

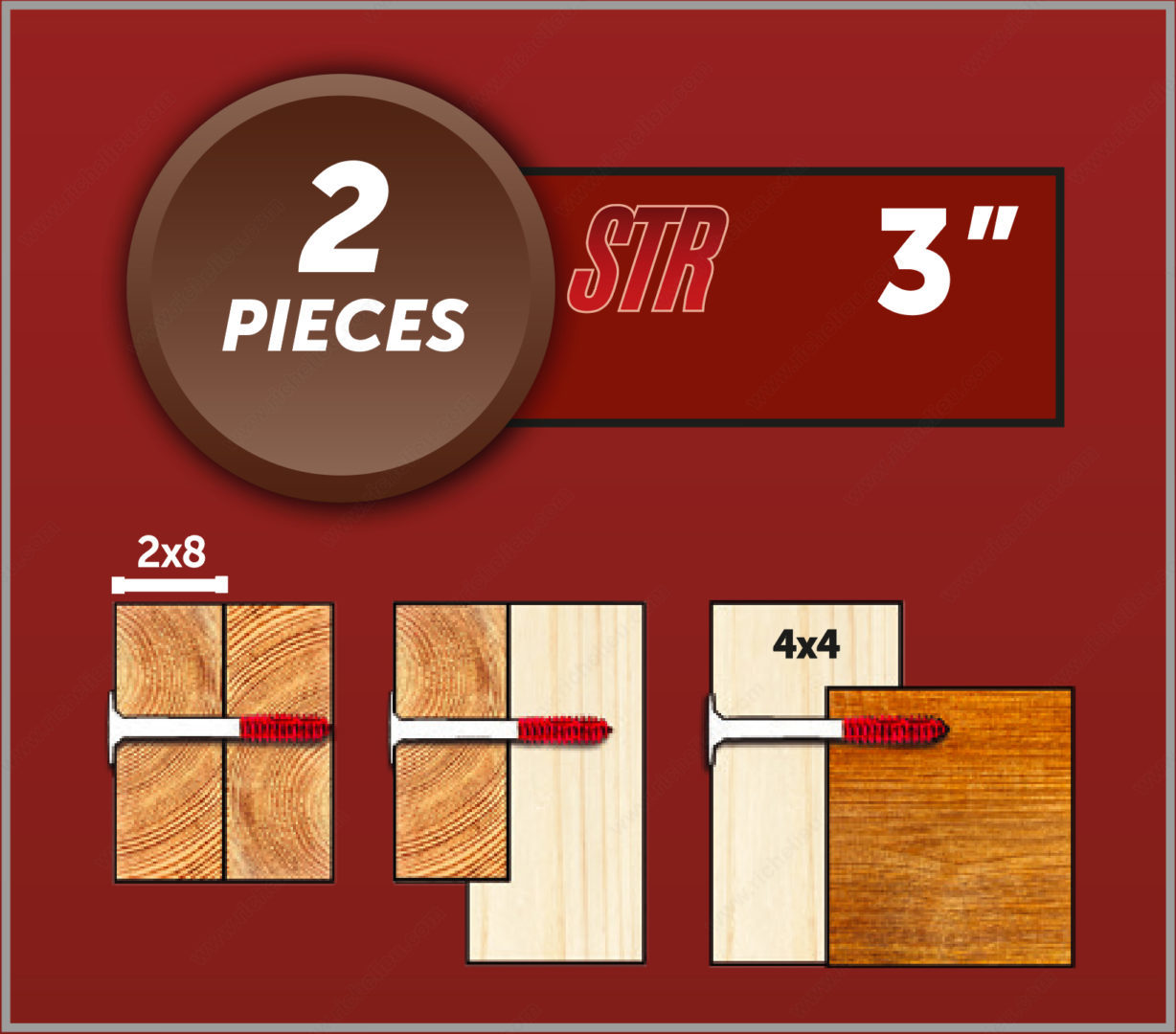

By figuring out all the possible assemblies of a structure, using a mix of 2 x 6 in (152 mm), 2 x 8 in (203 mm), 2 x 10 in (254 mm), 4 x 4 in (101.6 mm), and 6 x 6 in (152 mm), you can cover all possible combinations with only five different lengths of the STR. Fewer screws are necessary to cover anything you may encounter on the jobsite.
Each pack of the STR includes a handy reference for the correct lumber combinations ideal for a specific length. Note that the required T-40 tip is included in each pack except in bulk.
Attributes
Brand: PWR DRIVE
Drive required: T-40
Finish: ACQ Rustproof
Function: Deck Framing Structures

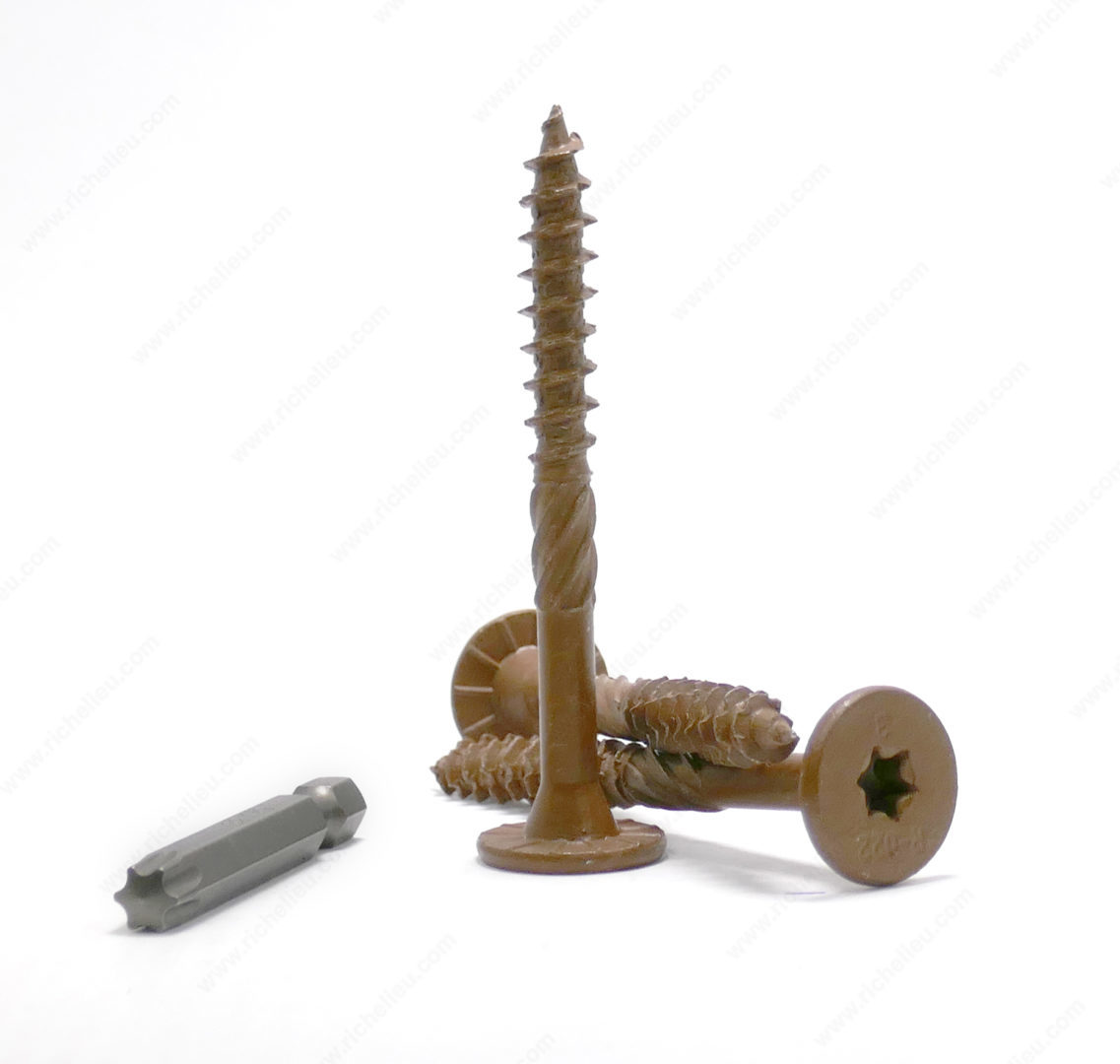

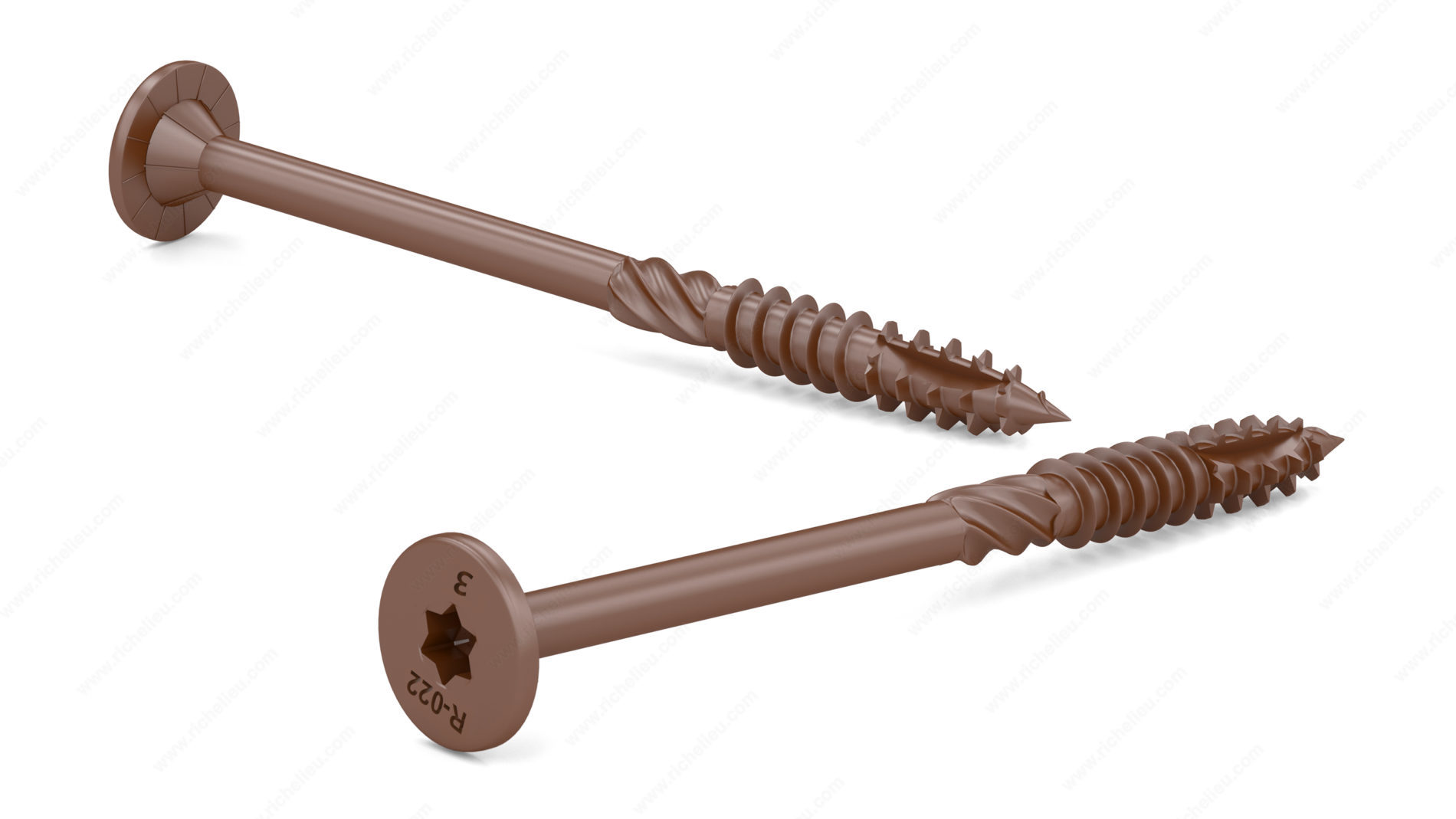

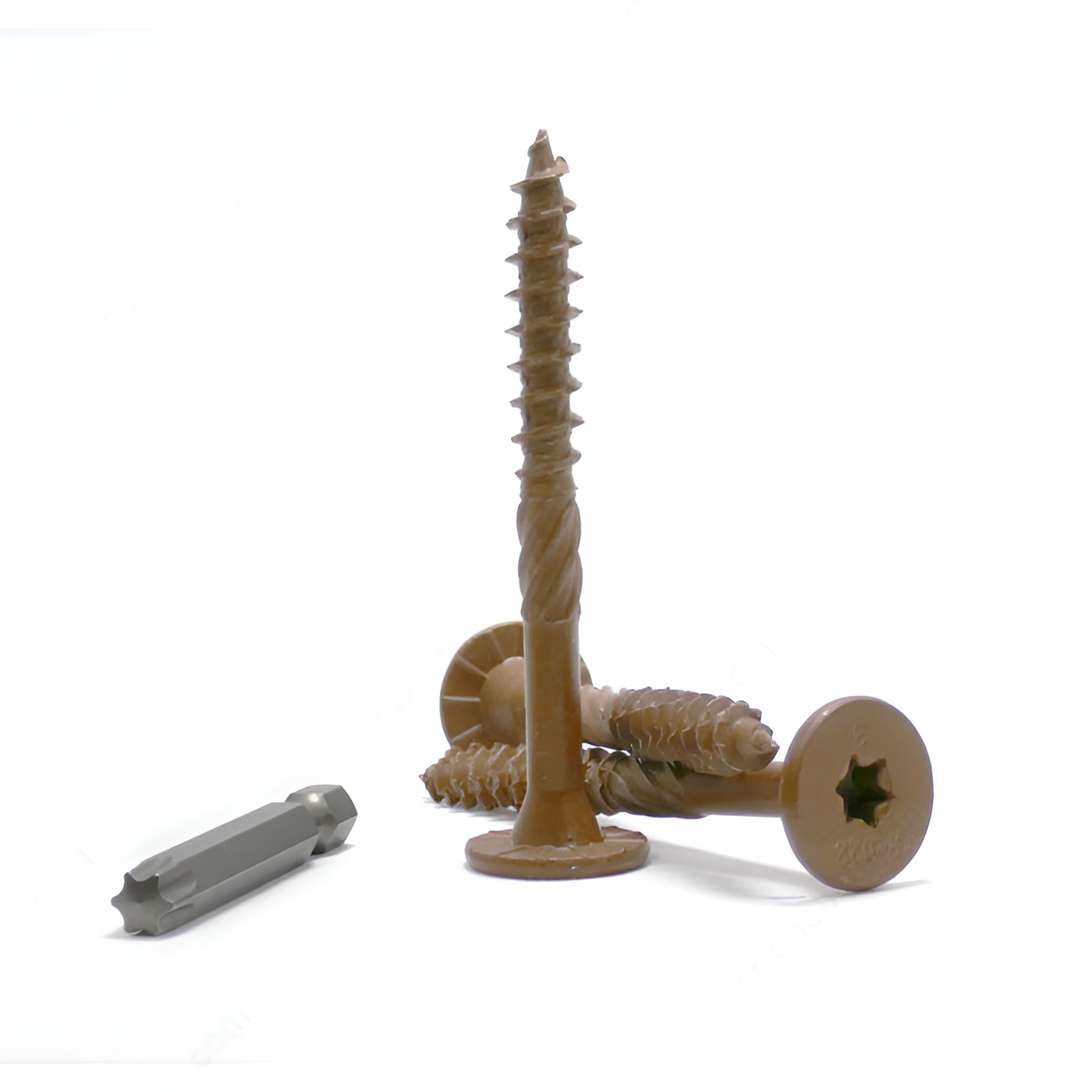

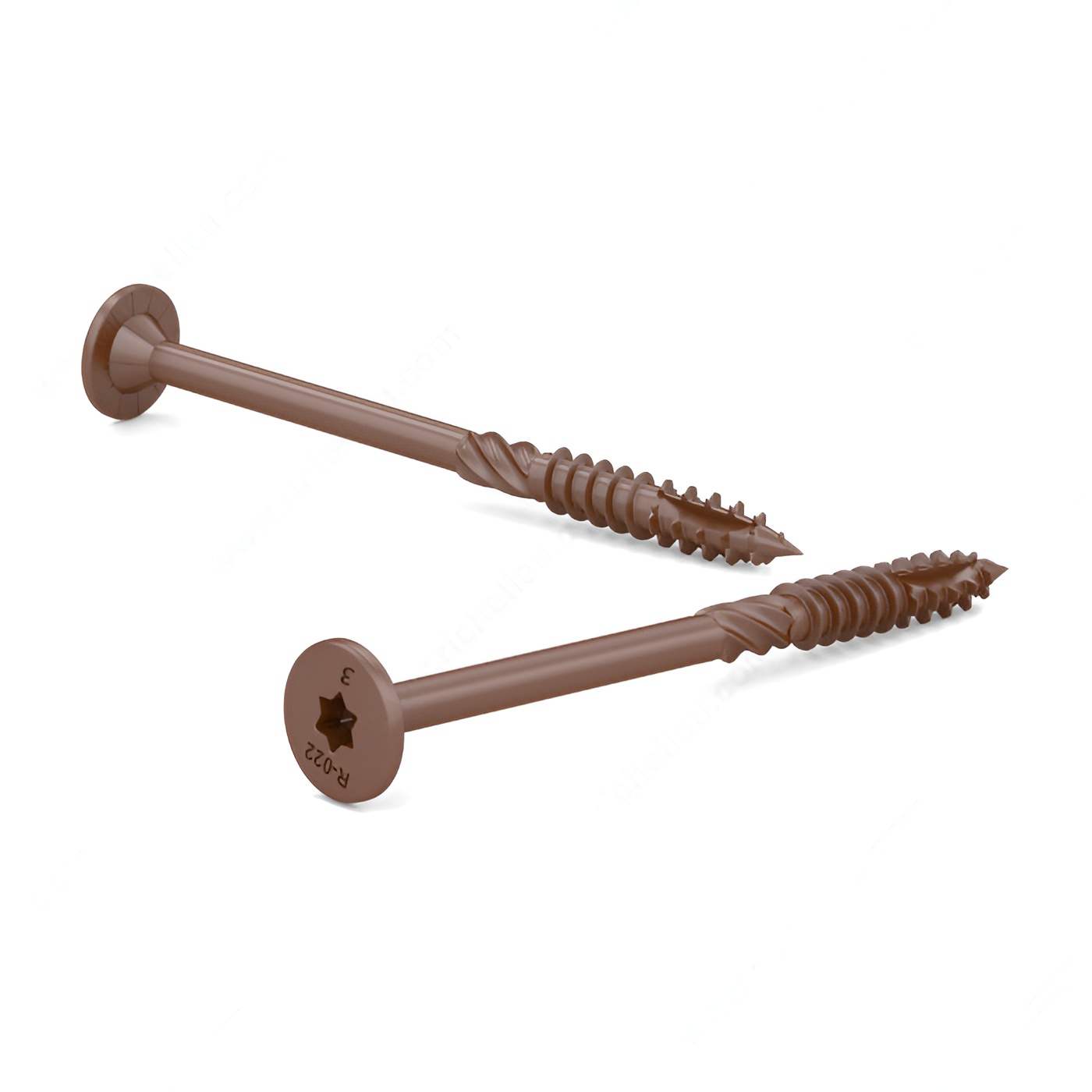

Head Type: Oversized Flat Head with Nibs
Length: 3 in

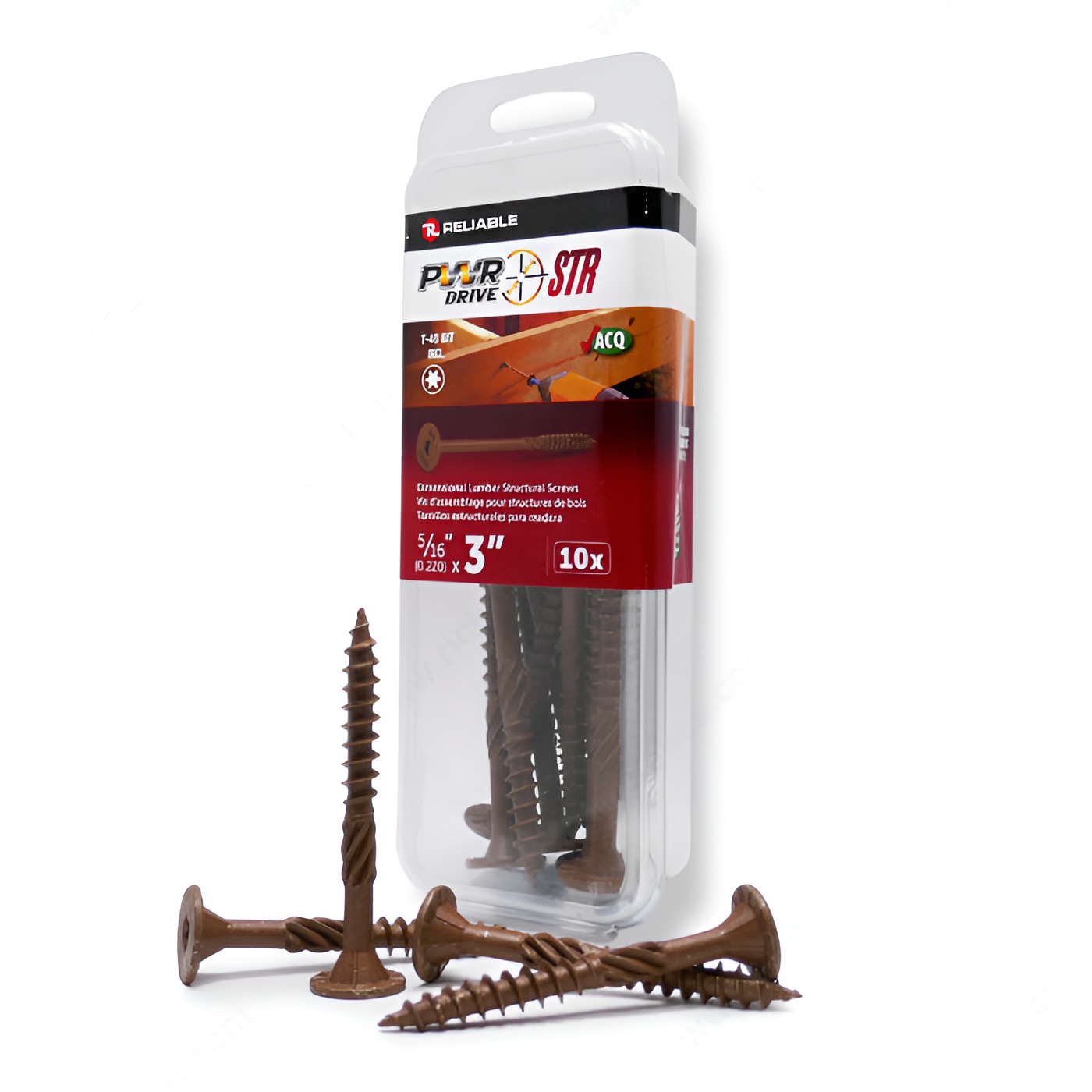

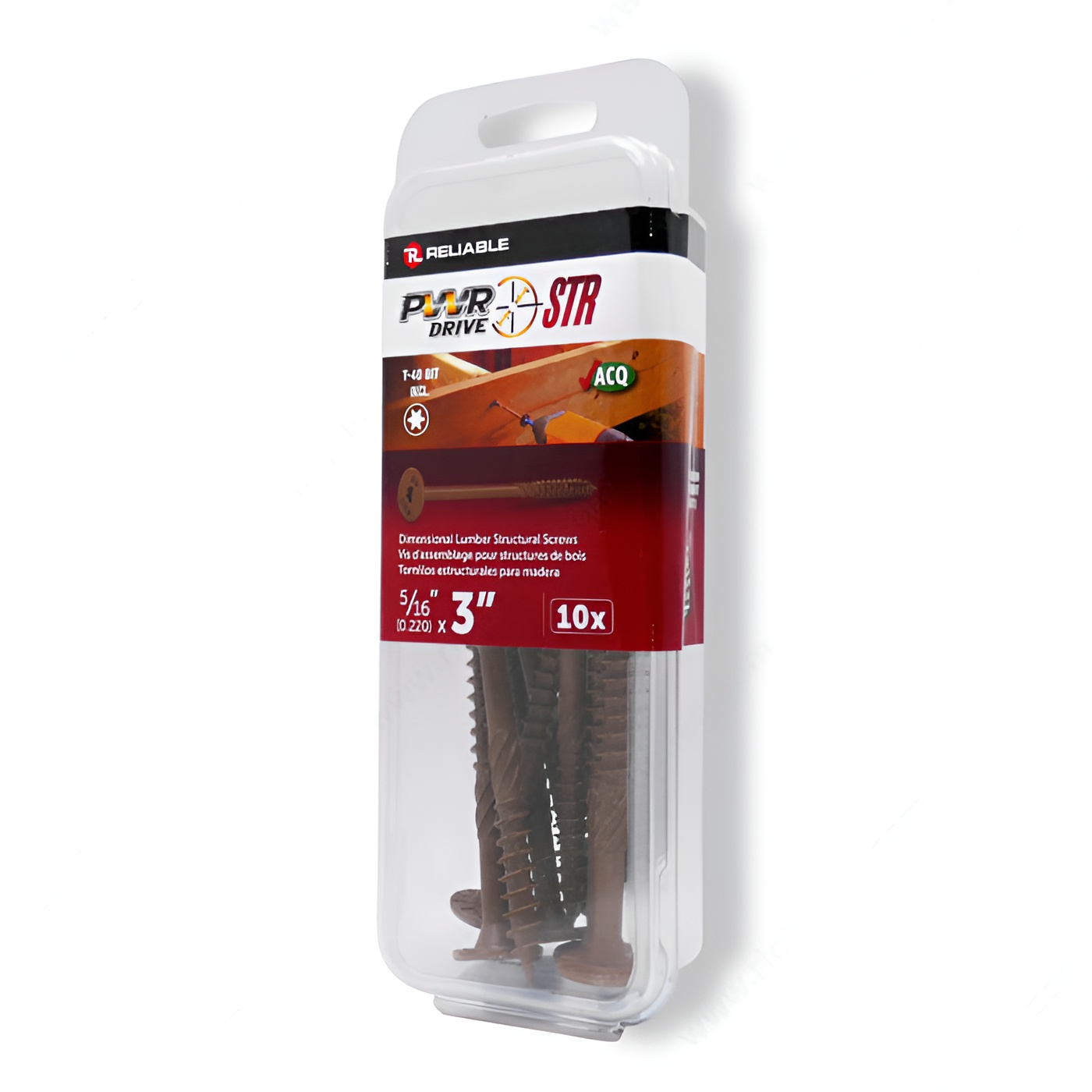

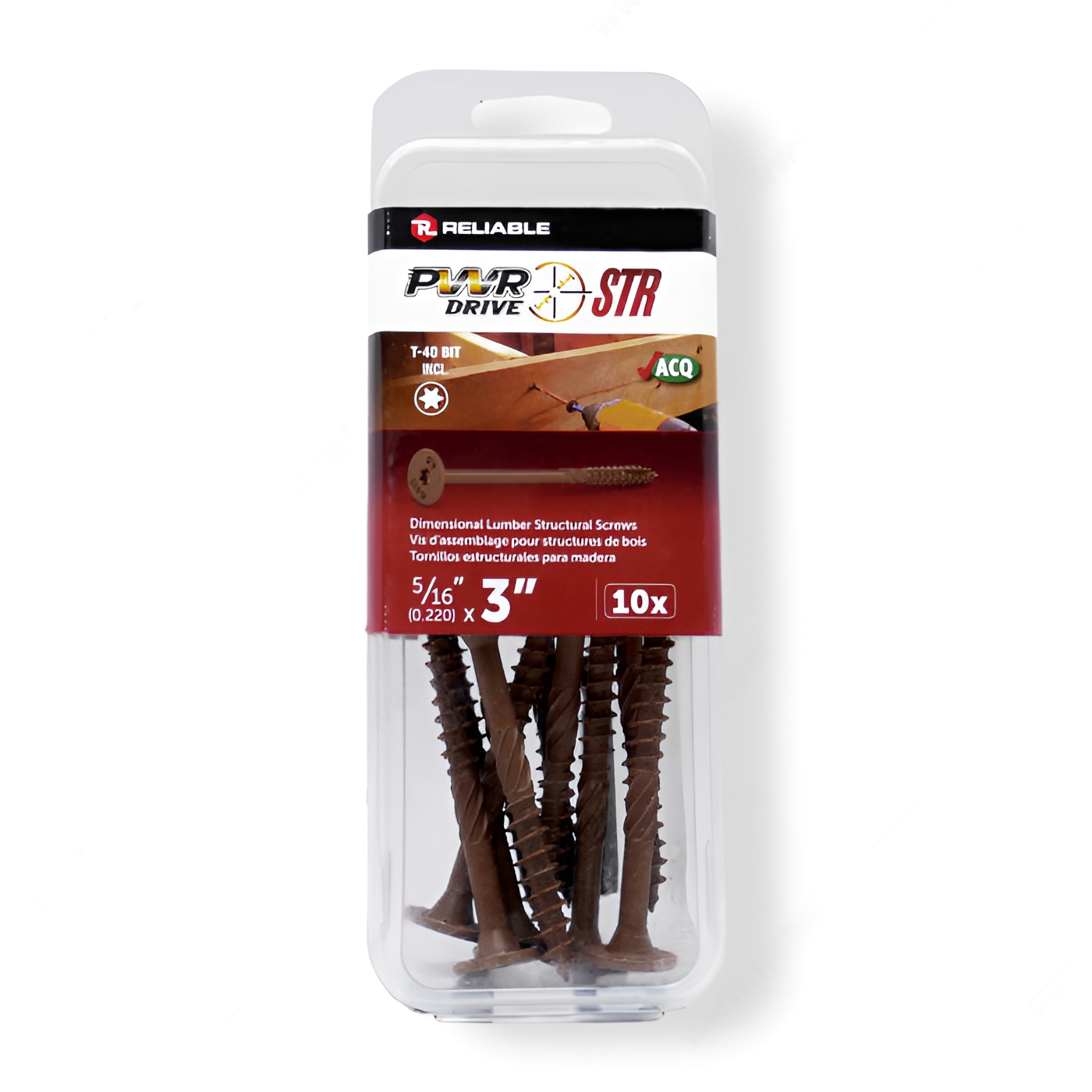

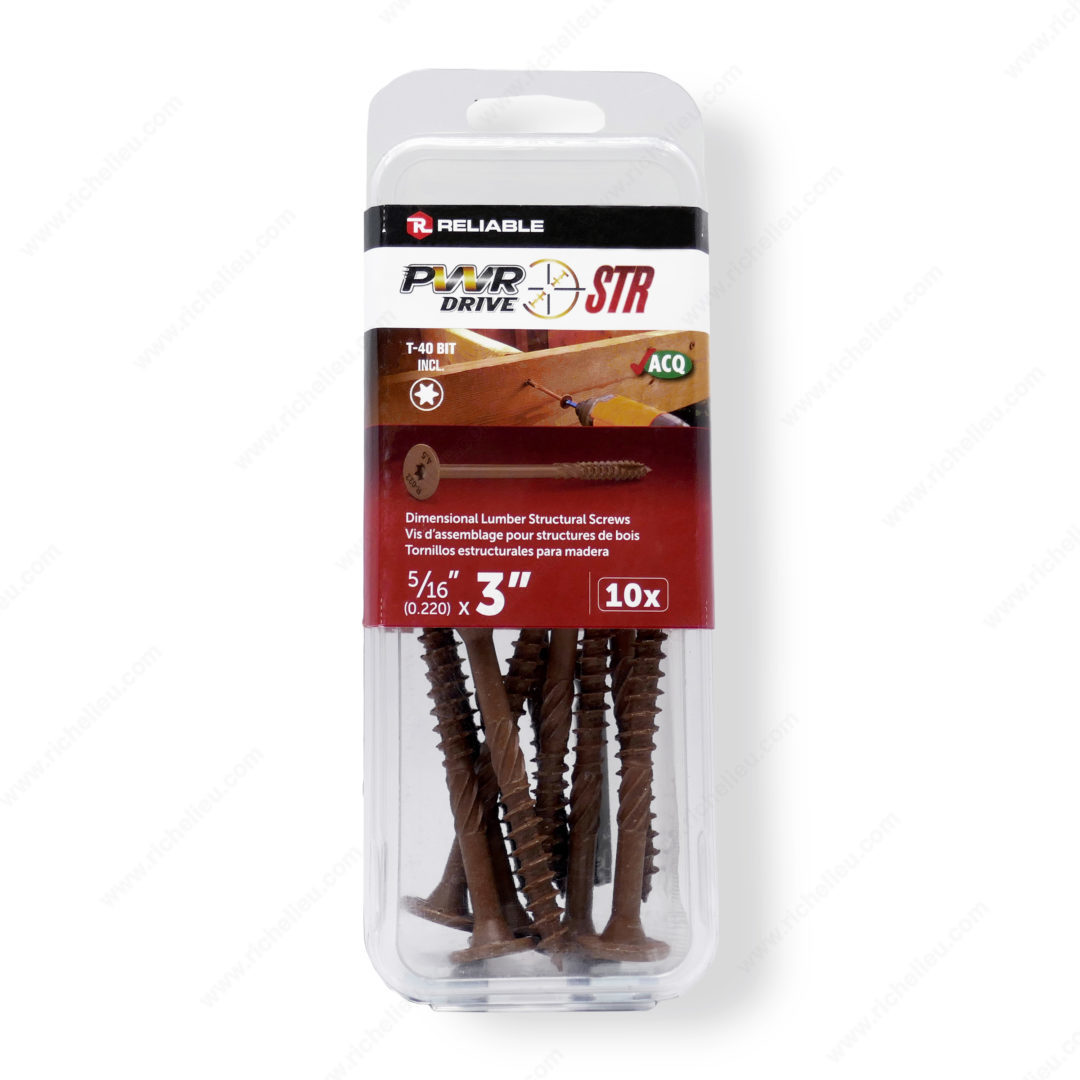

Packaging format: Blister of 10 units
Point Type: Type 17
Product #: FTC17BR5163MR
Screw Size: 5/16
Specific Application: Structure Assembly
Standards and Certifications: ICC ES: ESR-4558
Steel Grade: Tempered
Thread Type: Coarse Thread and Type 17
Threading: Threaded Optimized for Dimensional Lumber
Type of Wood: Lumber, Treated Wood
