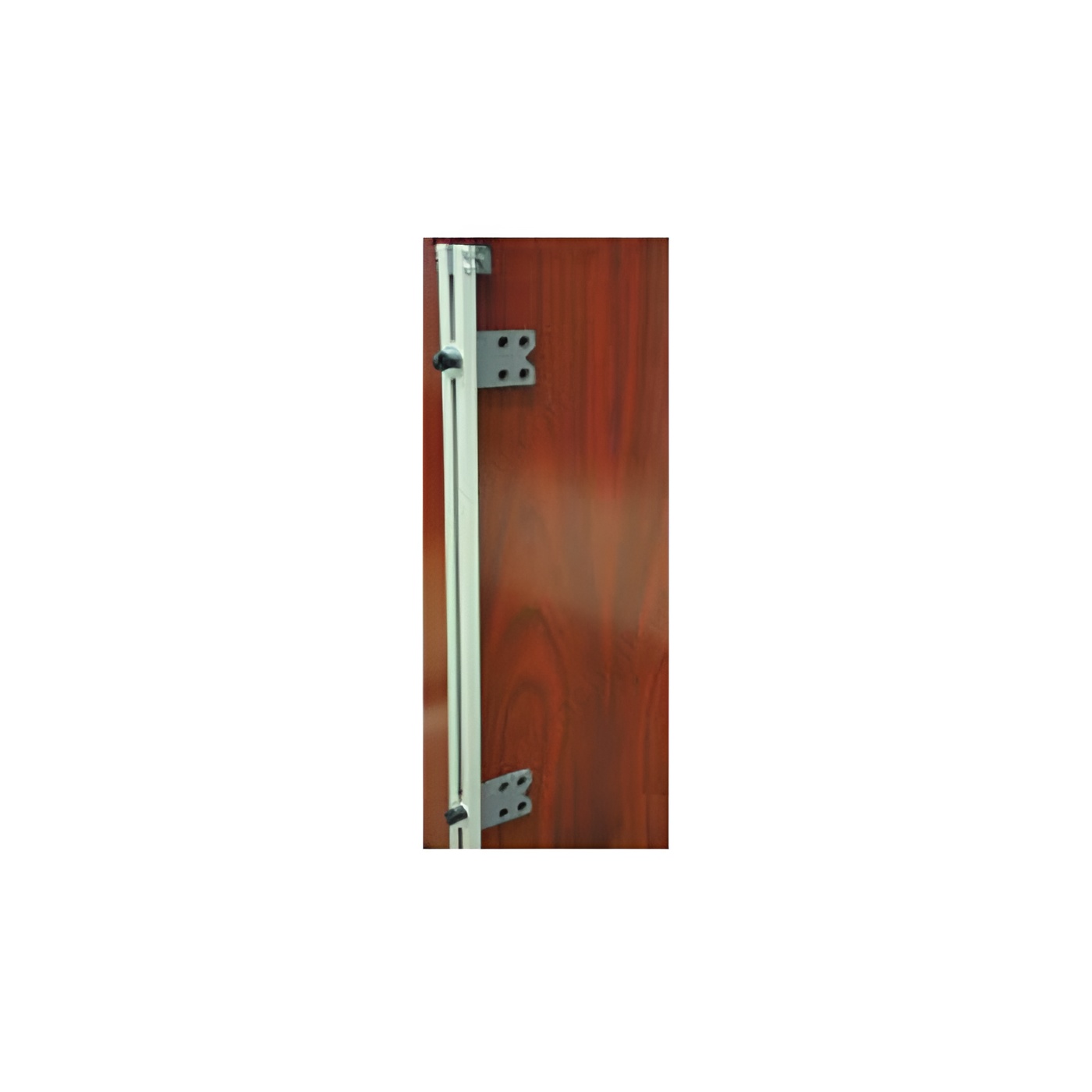

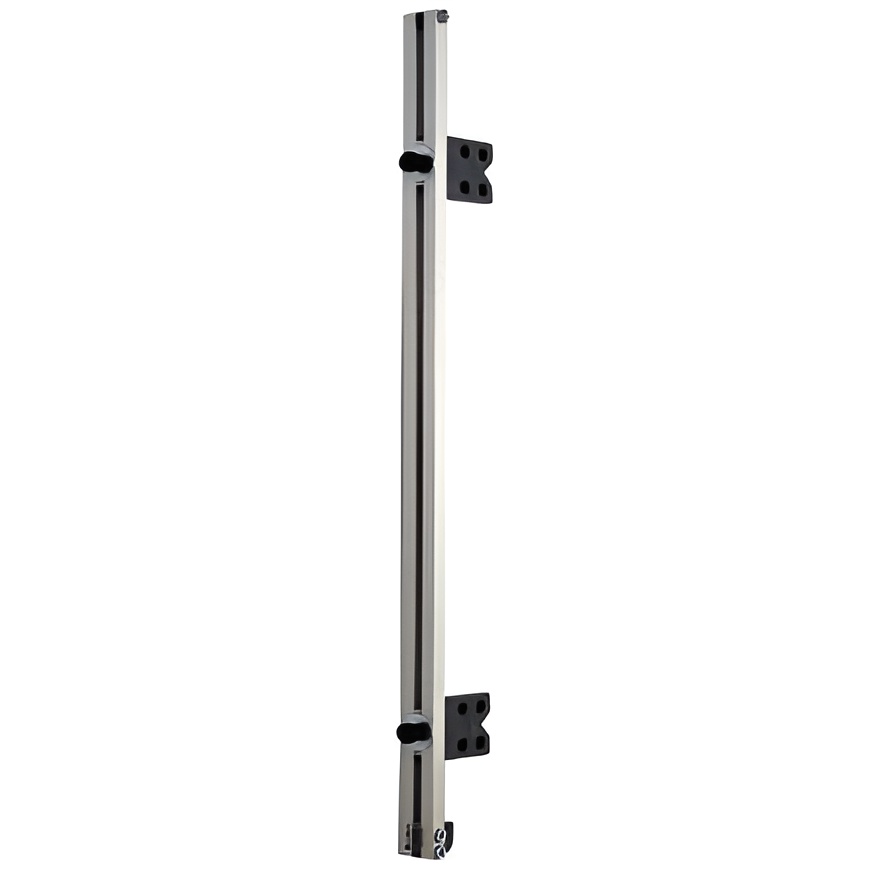

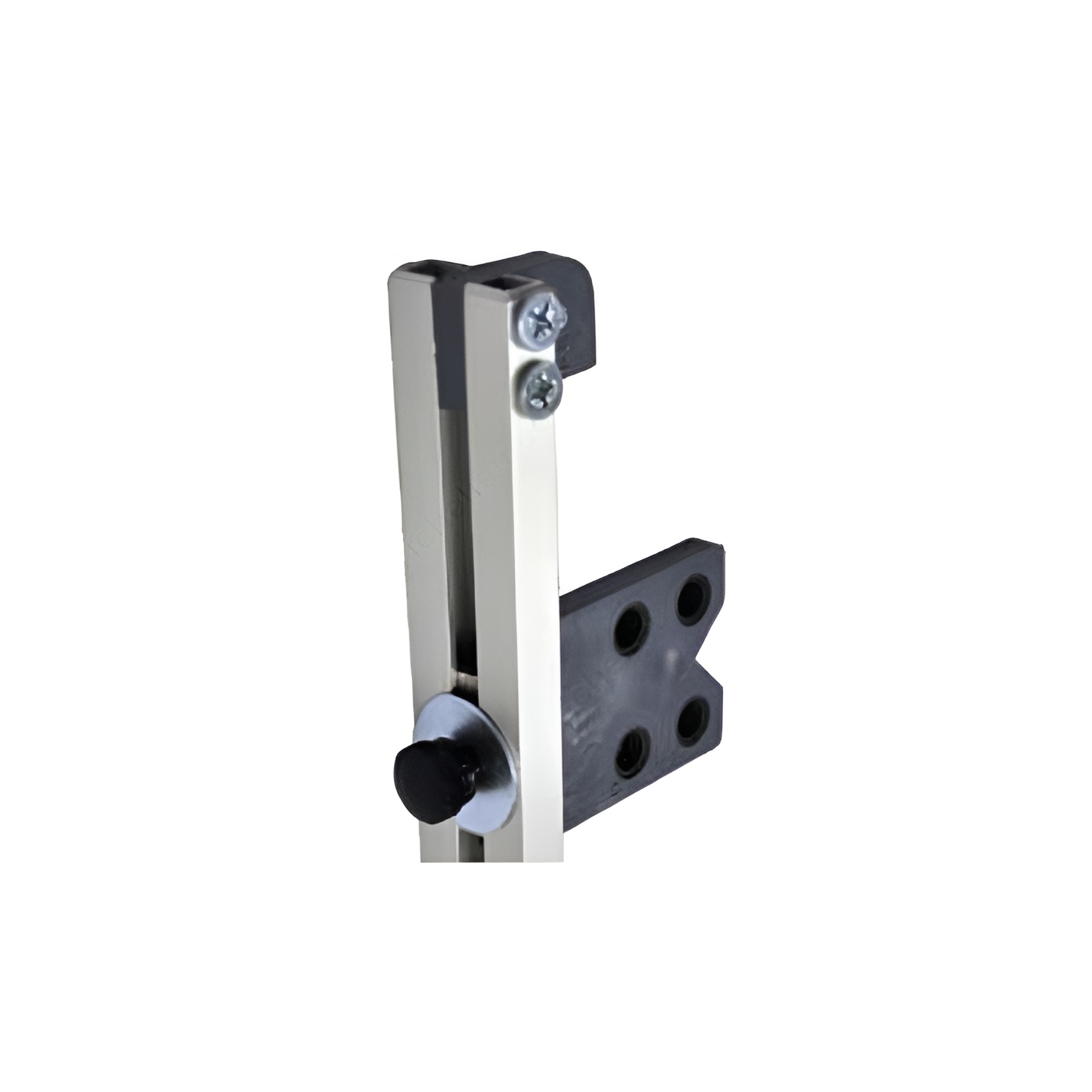

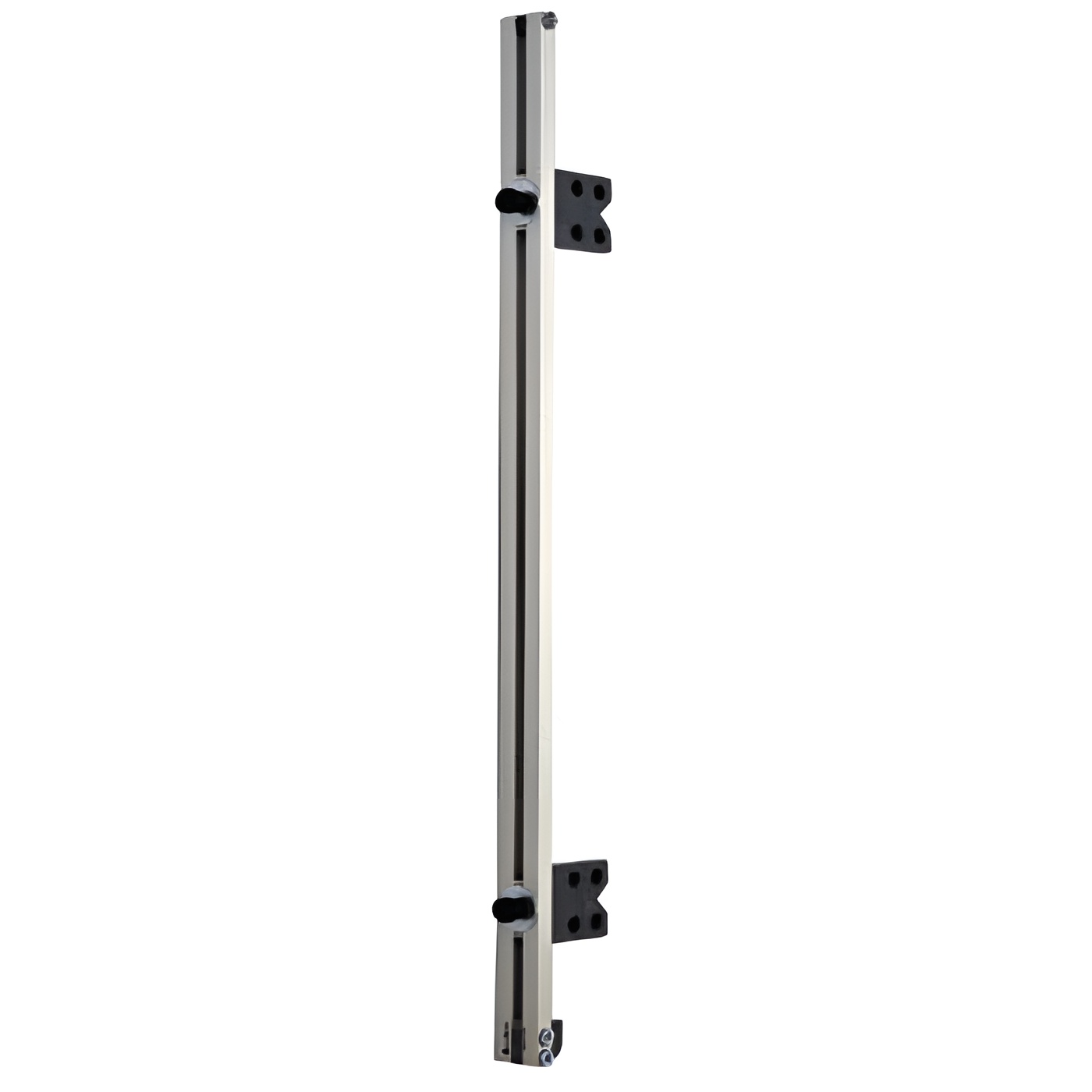

Richelieu GENEL200 Concealed European Hinge Mounting Plate Drilling Tool simplifies the process of installing concealed hinges in cabinet walls with precision and efficiency. This versatile jig is designed to quickly and accurately locate drilling holes for concealed hinge mounting plates, making it compatible with all brands of European hinges and mounting plates, regardless of cup size. Crafted to accommodate both overlay and inset mounting plate conditions, the GENEL200 is suitable for doors up to 50 inches tall, ensuring adaptability for a variety of cabinetry projects. The construction features durable extruded aluminum rails paired with lexan-polycarbonate templates, which enhance stability and accuracy during use. Additionally, it comes equipped with aluminum bushings that assist in maintaining precision while drilling. With dimensions of 28.75 inches in length, 4 inches in width, and a depth of 1.5 inches, this jig is compact yet robust, making it easy to handle and store. Finished in anodized aluminum, it offers both durability and an appealing aesthetic. Whether you're a building professional or a knowledgeable homeowner, the Richelieu GENEL200 is an indispensable tool for achieving flawless hinge installations.
Concealed European Hinge Mounting Plate Drilling Tool
Brand: Euro Limited
Depth: 1.5 in
Finish: Anodized Aluminum
Length: 28.75 in
Material: Plastic, Steel, Ceramic Nylon
Product #: GENEL200
Product number: GENEL200
Product №: GENEL200
Type of Jig: For Mounting Plate Installation
Type of Template: For Mounting Plate Installation
Unit 1: case - 10
Width: 4 in
