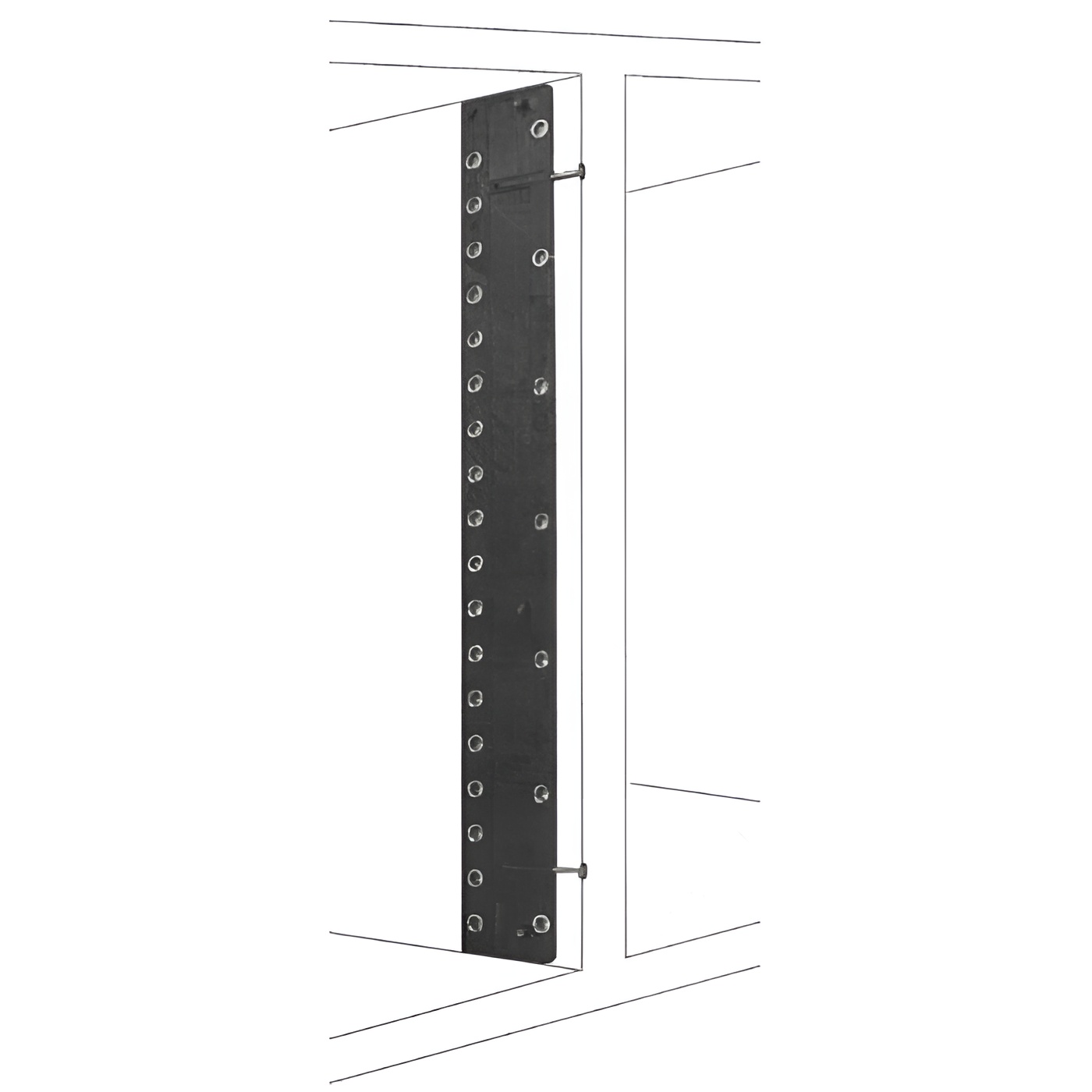

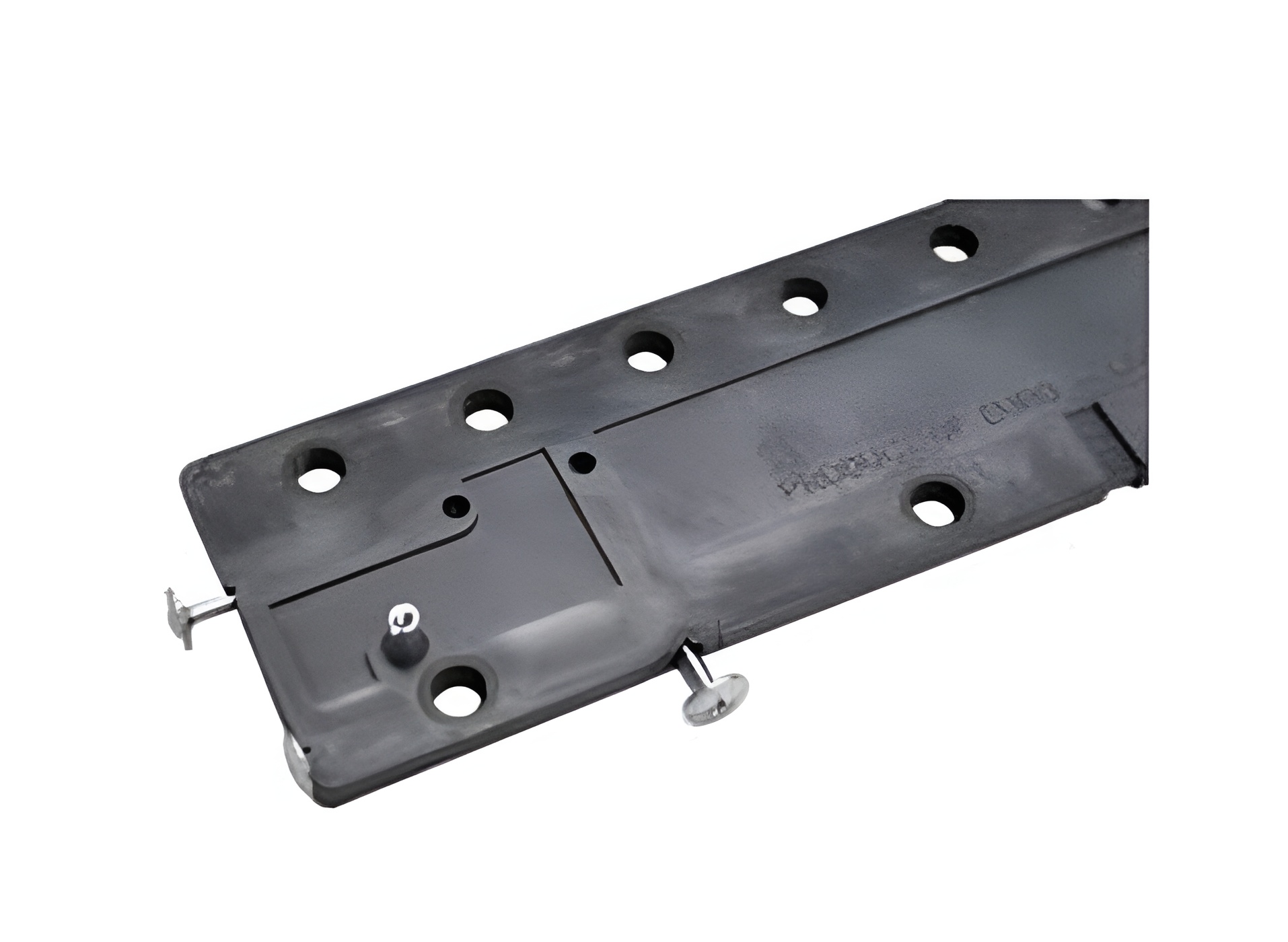

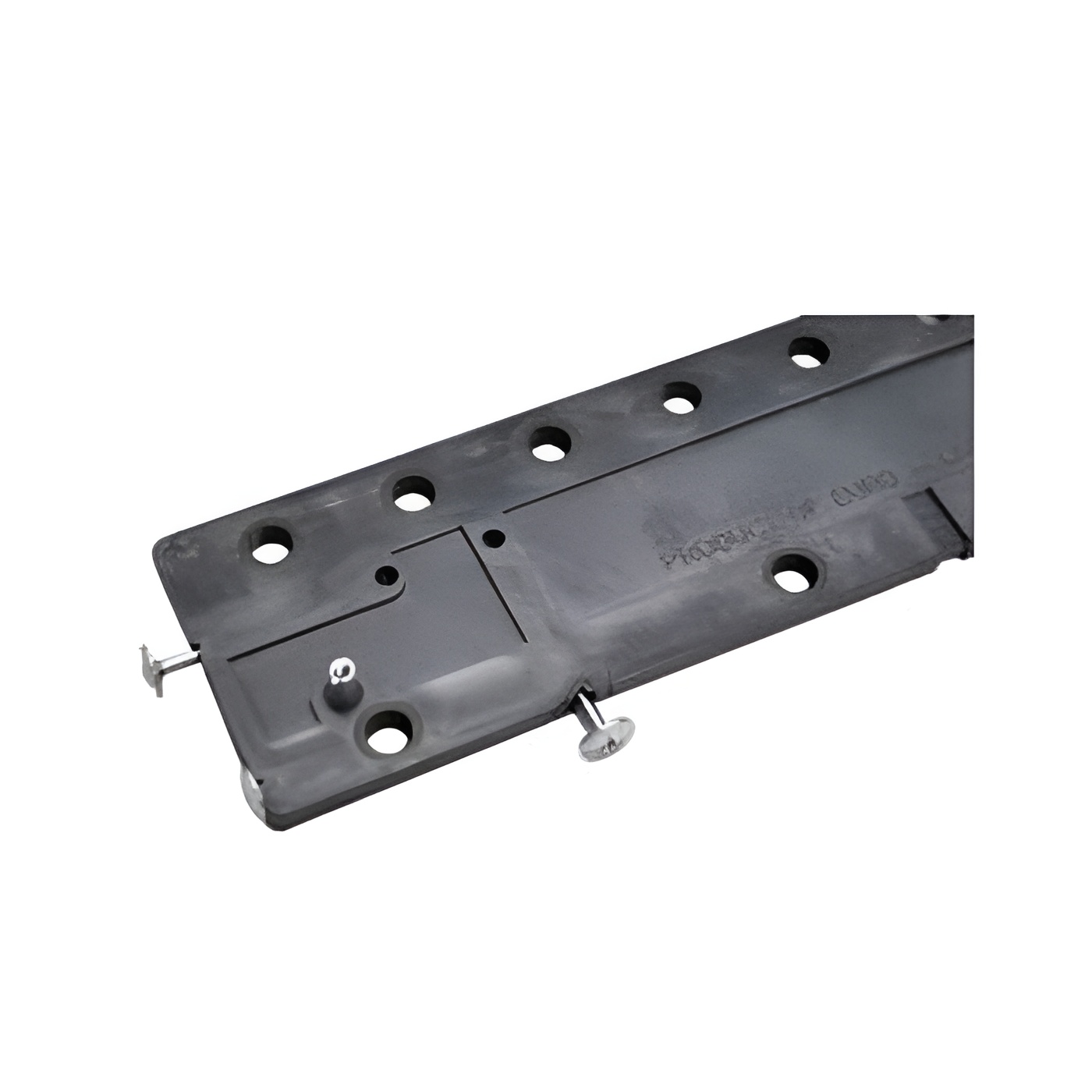

Richelieu GENEL32 Line Boring and Shelf Pin Drilling Jig - 32 mm is engineered for precision in drilling adjustable shelf holes and line boring, making it an essential tool for any professional or skilled DIYer. This innovative Euro-32 Template is designed to work seamlessly with the Euro-Bit self-centering drilling tool, eliminating the need for hardened drill guide bushings and significantly boosting drilling efficiency. Constructed with durable heat-treated steel bushings and a robust Lexan-polycarbonate template, the GENEL32 ensures long-lasting performance. Its design allows for the creation of an infinite length row of holes specifically for 32 mm construction and cabinet shelf pins. The jig features slide pins that facilitate 35 mm inset positioning, while adjustable stops accommodate insets greater than 37 mm, providing versatility for various project needs. The locating pins on the template enable quick setup for a 37 mm hole setback, ensuring accuracy with every use. This jig can be utilized on assembled cabinets as well as on cabinet components, and it includes adjustment screws for precise hole elevation, making it equally effective for drilling dowels for cabinet construction. With its thoughtful construction and user-friendly design, the Richelieu GENEL32 is a must-have for efficient shelving installation.

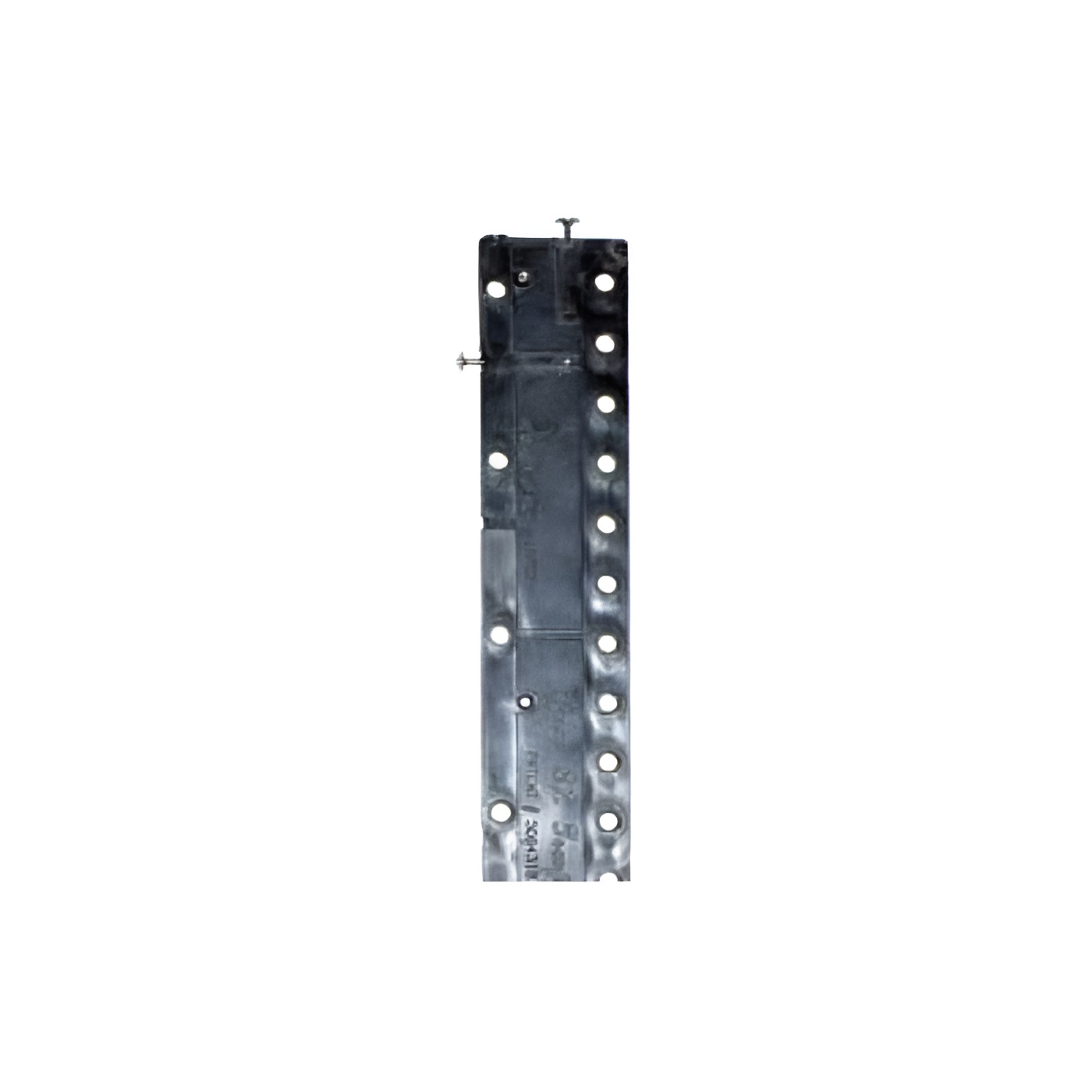

Line Boring and Shelf Pin Drilling Jig - 32 mm
Brand: Euro Limited
Finish: Grey
Length: 24 in
Material: Plastic, Steel
Product #: GENEL32
Product number: GENEL32
Product №: GENEL32
Thickness: 0.25 in
Type of Jig: For Shelving Installation
Type of Template: For Shelving Installation
Unit 1: case - 10
Width: 2.81 in
