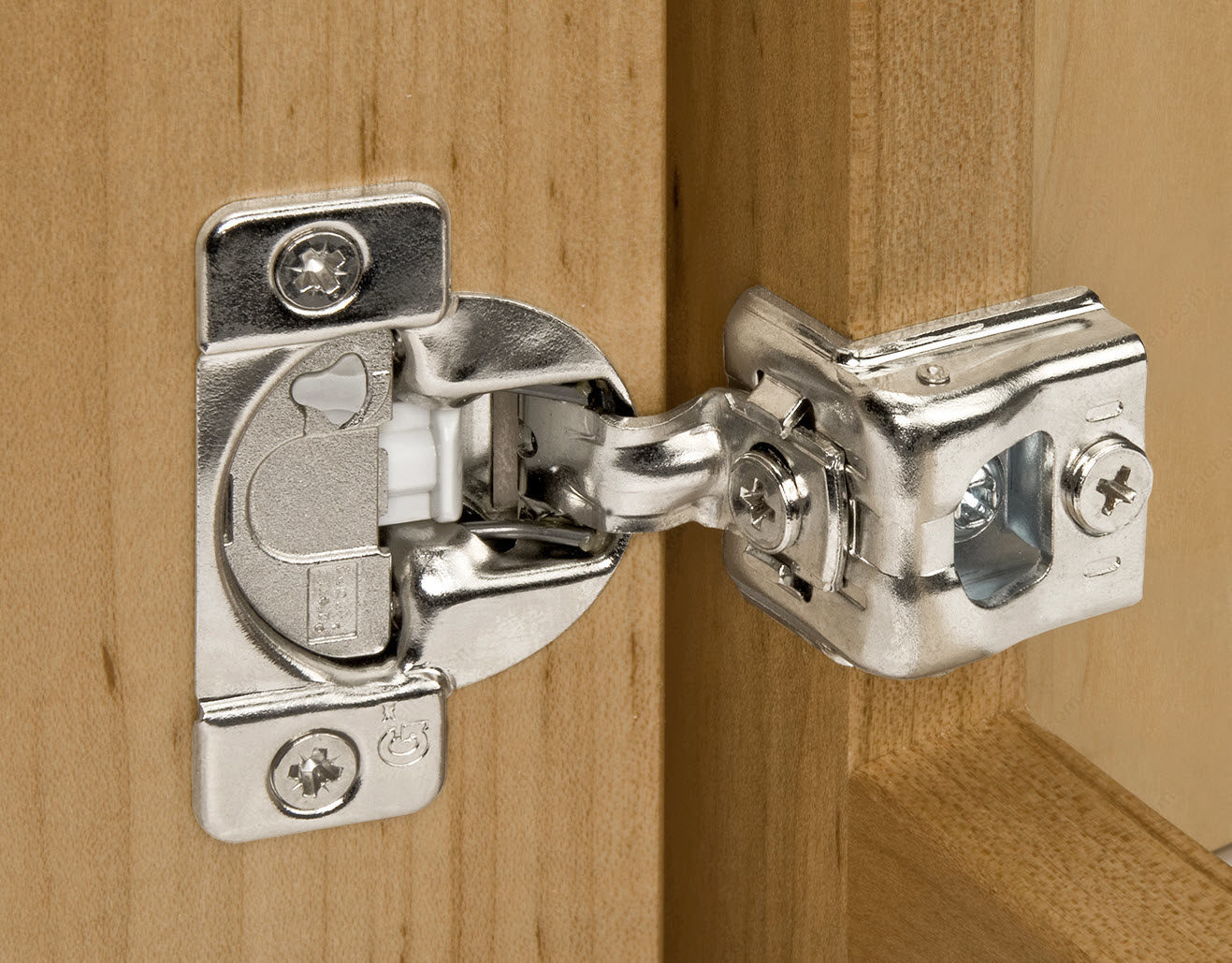

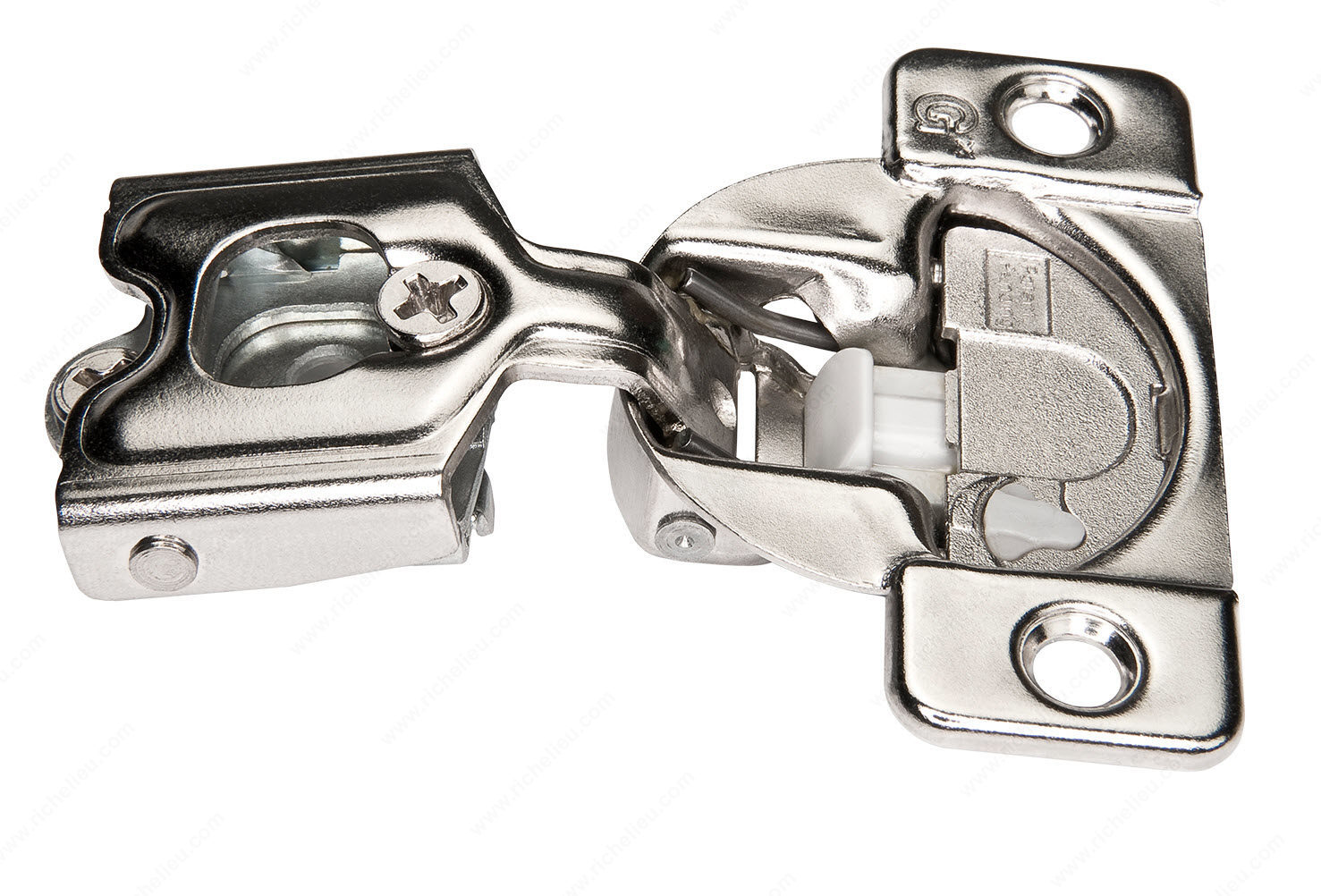

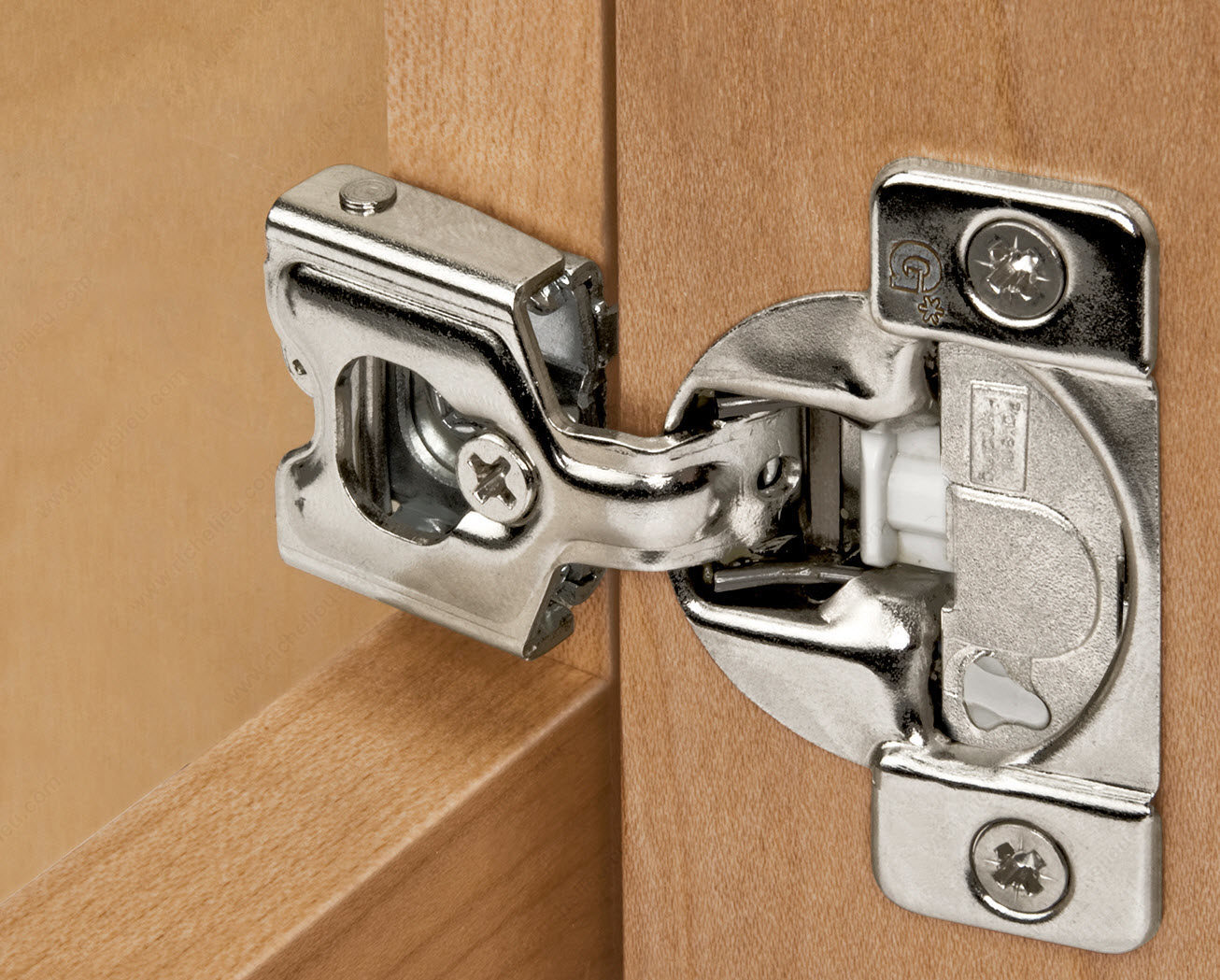

Richelieu GR864SC31WVS8 TEC 42 mm Soft-Close Wrap-Around Hinge offers a groundbreaking solution for modern cabinetry with its innovative soft-closing mechanism. Designed specifically for face frame cabinets, this hinge ensures a seamless and quiet closing action, enhancing both functionality and aesthetics in your kitchen or living space. With a 42 mm spread from dowel to dowel and a door overlay of 1-1/4", this hinge accommodates a variety of cabinet styles while providing a sturdy and reliable connection. Its soft-closing feature not only prevents slamming but also prolongs the life of your cabinetry, making it an ideal choice for high-traffic areas. The hinge opens to an impressive angle of +108°, allowing for easy access to cabinet interiors. Installation is made simple with a dowel fixing type, and the precise milling specifications-7/16 in depth and 1 3/8 in diameter-ensure a perfect fit. Designed by Grass, a trusted name in hardware, the Richelieu GR864SC31WVS8 hinge is a high-quality choice that combines advanced engineering with user-friendly operation. Experience the difference that this state-of-the-art hinge can make in your cabinetry projects.
TEC 42 mm Soft-Close Wrap-Around Hinge
Brand: Grass
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing
Door Overlay: 1-1/4"
Door overlay: 1 1/4 in
Fixing Type: Dowel
Hinge Opening Angle: +108°
Mechanism: Soft-Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Product #: GR864SC31WVS8
Product number: GR864SC31WVS8
Product №: GR864SC31WVS8
Unit 1: case - 300
Use Type: Compact
