Richelieu GT9200616 Grant TopLine Straight Sliding Door SystemRichelieu GT9200616 Grant TopLine Straight Sliding Door System offers a robust solution for both commercial and residential spaces, accommodating wood doors weighing up to 500 lb (227 kg). Designed for versatility, this system supports single sliding, biparting, and bypassing door applications, making it ideal for closets, walk-in closets, cabinets, and storage areas. Equipped with precision ball bearing wheel trolleys, the GT9200616 glides smoothly on durable aluminum box tracks, ensuring a seamless operation. For added comfort, a Silent System soft-close and soft-open mechanism is available separately, suitable for doors weighing up to 325 lb (147 kg), enhancing user experience with quiet functionality. This system is available in two packaging formats: as a complete kit with hardware and track or in bulk, allowing for tailored selection based on project needs. The system supports door heights up to 9 ft 10 in and widths ranging from 30 to 94 1/2 in, with a minimum door thickness of 31/32 in. With a maximum load capacity of 150 lb, the Grant TopLine Straight Sliding Door System ensures reliability and style in any setting, while its ceiling mount design provides a clean and modern aesthetic.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.

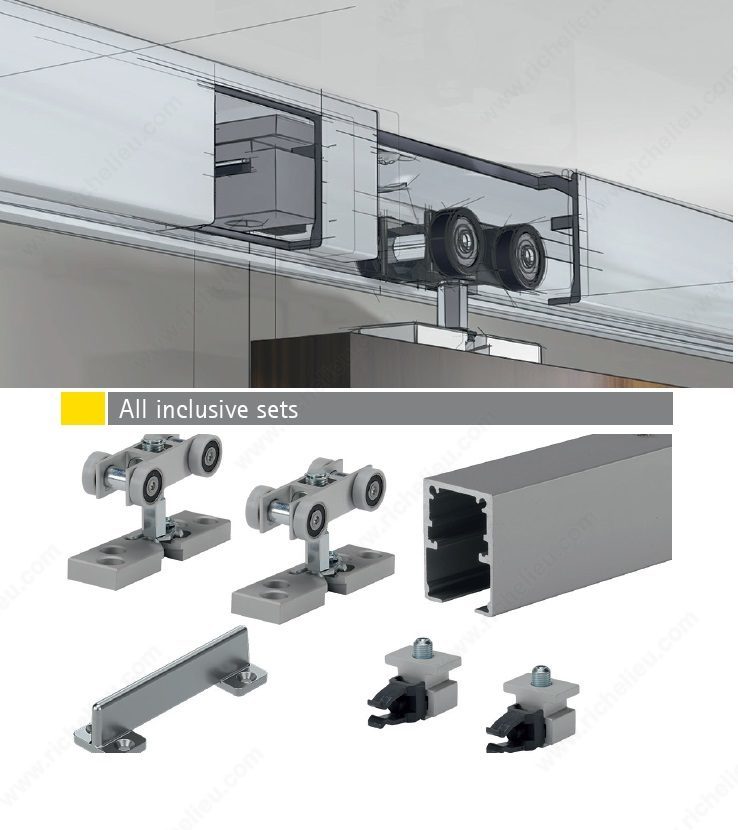

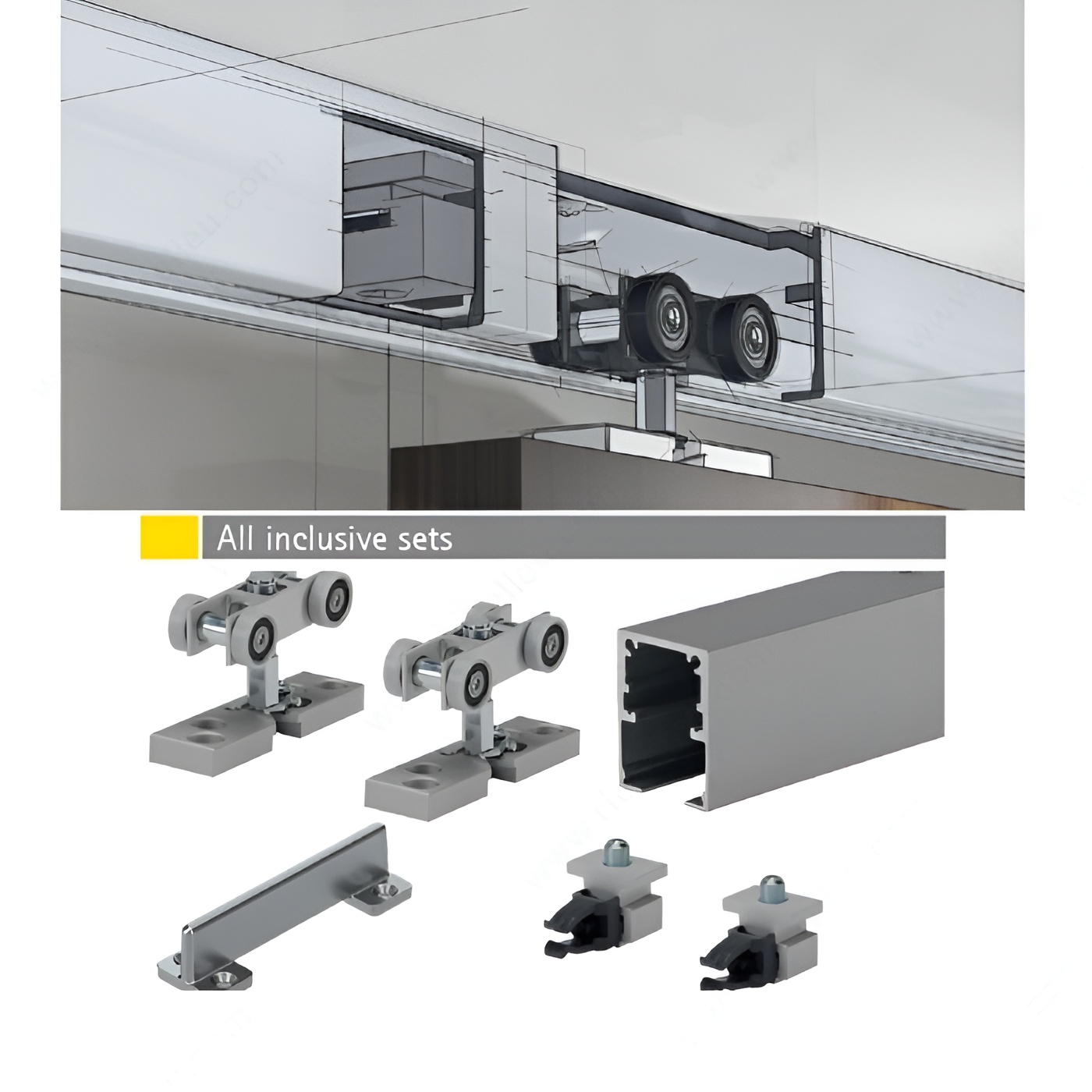

- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine SD
Length - Overall Dimensions: 96 in*
Load Capacity: Max. 150 lb*
Number of Doors: 1
Overall Length: 2 438 mm
Packaging format: Length of 8 linear foot
Product #: GT9200616
Product number: GT9200616
Product №: GT9200616
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 2 438 mm
Track Mounting: Ceiling Mount
Unit: Length of 8 linear foot
Weight Capacity per Door: Max. 68 kg
