Richelieu GT9200617 Grant TopLine Straight Sliding Door System InstructionsRichelieu GT9200617 Grant TopLine Straight Sliding Door System offers a robust solution for both commercial and residential applications, accommodating wood doors weighing up to 500 lb (227 kg). This system features precision ball bearing wheel trolleys that glide smoothly along aluminum box tracks, ensuring a reliable and quiet operation. Designed for versatile configurations, this sliding door system supports single, biparting, and bypassing door arrangements, making it ideal for closets, walk-in closets, cabinets, and storage spaces. The door height can reach a maximum of 9 ft 10 in, and it is compatible with door widths ranging from 30 to 94 1/2 in, while maintaining a minimum thickness of 31/32 in. For enhanced functionality, a Silent System soft-close and soft-open mechanism is available separately, specifically engineered for doors weighing up to 325 lb (147 kg). The Grant TopLine system is offered in two packaging formats: a complete kit with hardware and track or bulk options for customized selections. With an overall length of 10 ft, this ceiling-mounted system is designed to provide seamless movement and durability, making it a perfect choice for those seeking both aesthetic appeal and functional excellence in their sliding door solutions.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.

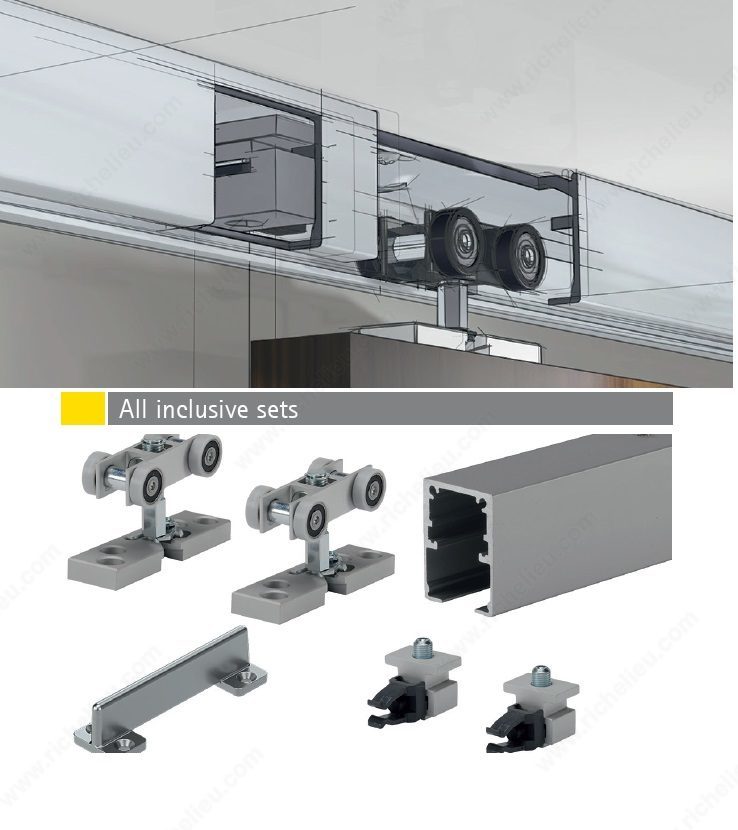

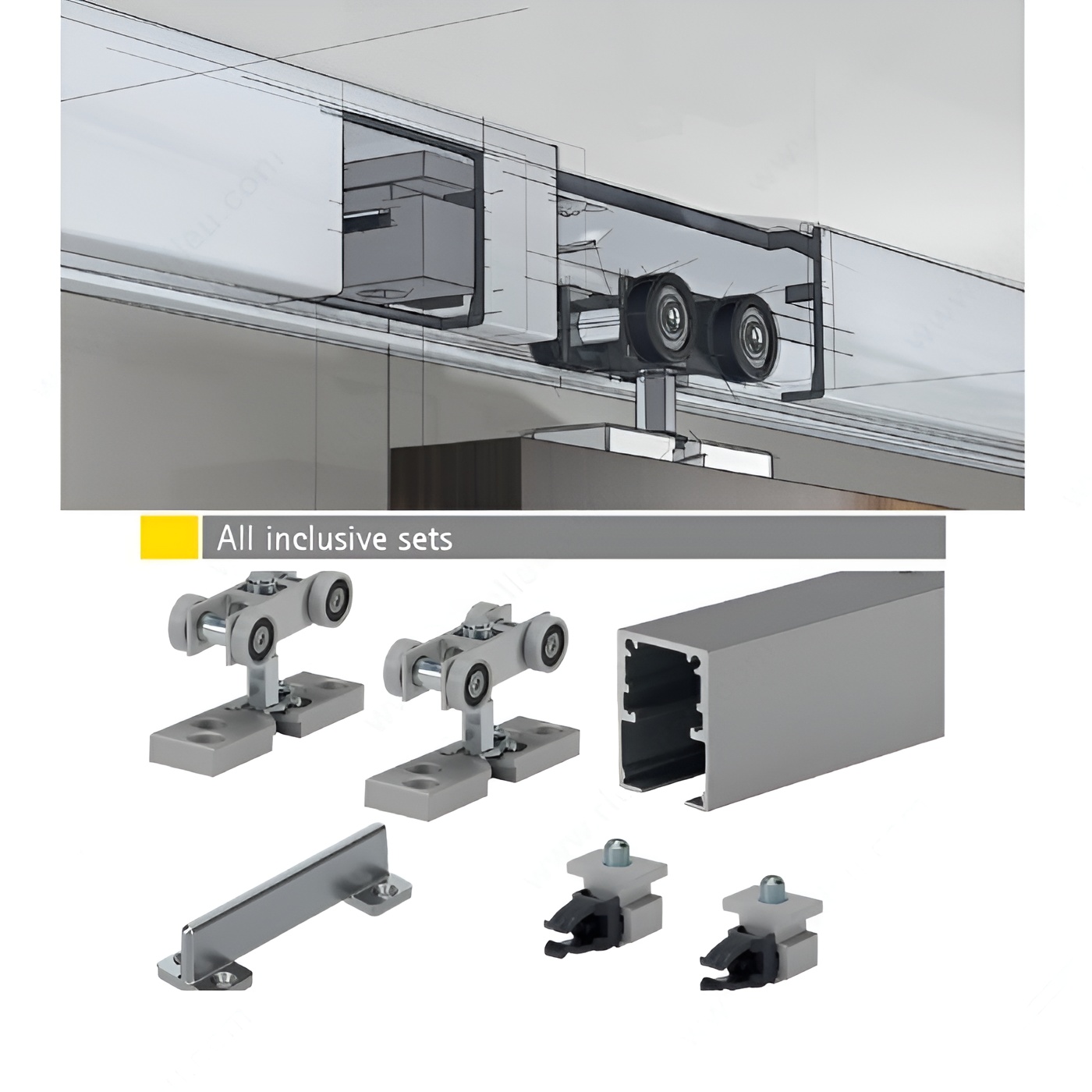

- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine SD
Length - Overall Dimensions: 10 ft*
Load Capacity: Max. 150 lb*
Number of Doors: 1
Overall Length: 3 048 mm
Packaging format: Length of 10 linear foot
Product #: GT9200617
Product number: GT9200617
Product №: GT9200617
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 3 048 mm
Track Mounting: Ceiling Mount
Unit: Length of 10 linear foot
Weight Capacity per Door: Max. 68 kg
