Richelieu GT9201507 Grant TopLine Straight Sliding Door System InstructionsRichelieu GT9201507 Grant TopLine Straight Sliding Door System offers a robust solution for both commercial and residential applications. Designed to accommodate wood doors weighing up to 500 lb (227 kg), this system ensures seamless functionality and durability. Precision ball bearing wheel trolleys glide effortlessly along sturdy aluminum box tracks, providing smooth operation for your sliding doors. The system includes options for single, biparting, and bypassing door configurations, making it versatile for various spaces, including closets, walk-in closets, cabinets, and storage areas. For added convenience, a Silent System soft-close and soft-open mechanism can be purchased separately, supporting doors up to 325 lb (147 kg) for a quieter user experience. The Grant TopLine system is available in two packaging formats: a complete kit with hardware and track or bulk options where components are selected independently. With a maximum door height of 9 ft 10 in and a width range of 30 to 94 1/2 in, it can accommodate various door sizes. The minimum door thickness is 31/32 in, ensuring compatibility with your wood doors. Installation is straightforward with ceiling mounting, making it a practical choice for enhancing your living or working environment.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.

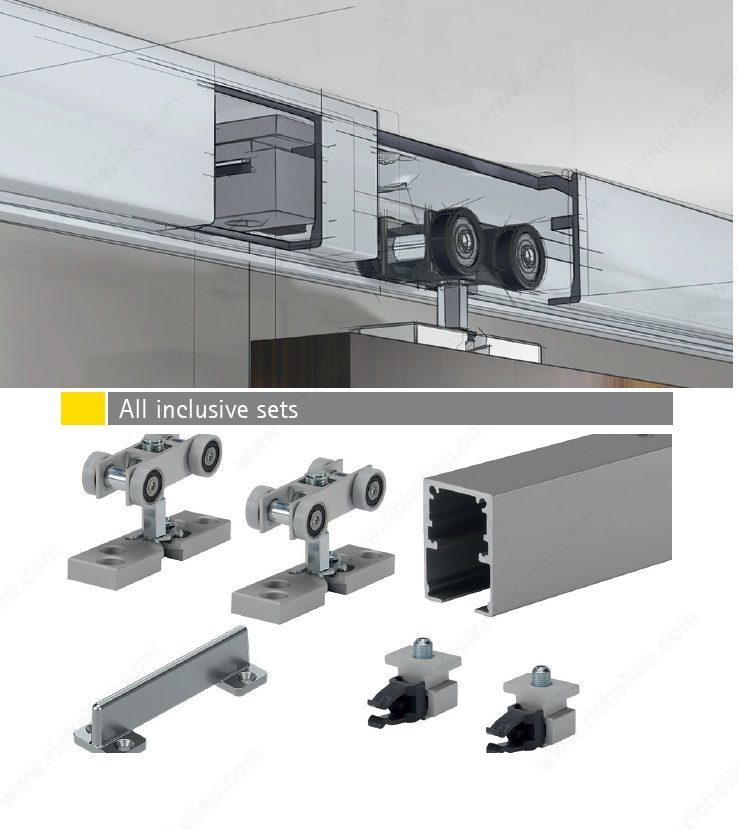

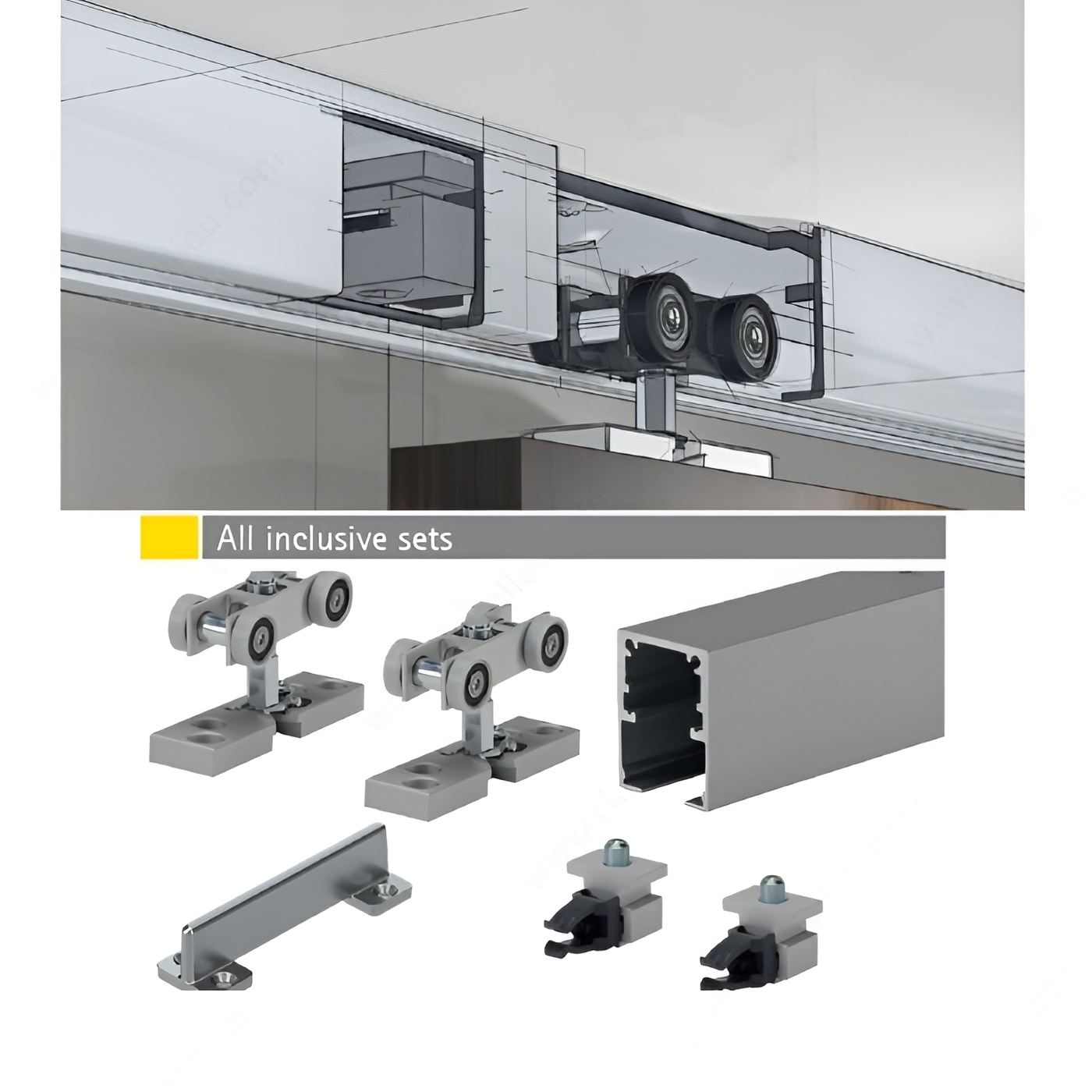

- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine HD
Length - Overall Dimensions: 60 in*
Load Capacity: Max. 324 lb*
Number of Doors: 1
Overall Length: 1 524 mm
Packaging format: Length of 5 linear foot
Product #: GT9201507
Product number: GT9201507
Product №: GT9201507
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 1 524 mm
Track Mounting: Ceiling Mount
Unit: Length of 5 linear foot
Weight Capacity per Door: Max. 147 kg
