Richelieu GT9201508 Grant TopLine Straight Sliding Door SystemRichelieu GT9201508 Grant TopLine Straight Sliding Door System is expertly engineered for both commercial and residential applications, accommodating wood doors weighing up to 500 lb (227 kg). This system is versatile, allowing for single, biparting, and bypassing configurations, making it ideal for closets, cabinets, and storage areas. The system features precision ball bearing wheel trolleys that glide smoothly along robust aluminum box tracks, ensuring effortless door movement. For added convenience, a Silent System soft-close and soft-open mechanism is available separately, supporting doors up to 325 lb (147 kg). Designed to fit doors with a maximum height of 9 ft 10 in and a width ranging from 30 to 94 1/2 in, it provides flexibility in design. With a minimum door thickness of 31/32 in, the system supports a load capacity of 324 lb and comes packaged in a length of 6 linear feet. The ceiling mount installation adds to its aesthetic appeal, maintaining a clean look in any space. Whether you’re enhancing your home or outfitting a commercial area, the Richelieu Grant TopLine Straight Sliding Door System delivers both functionality and style.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.

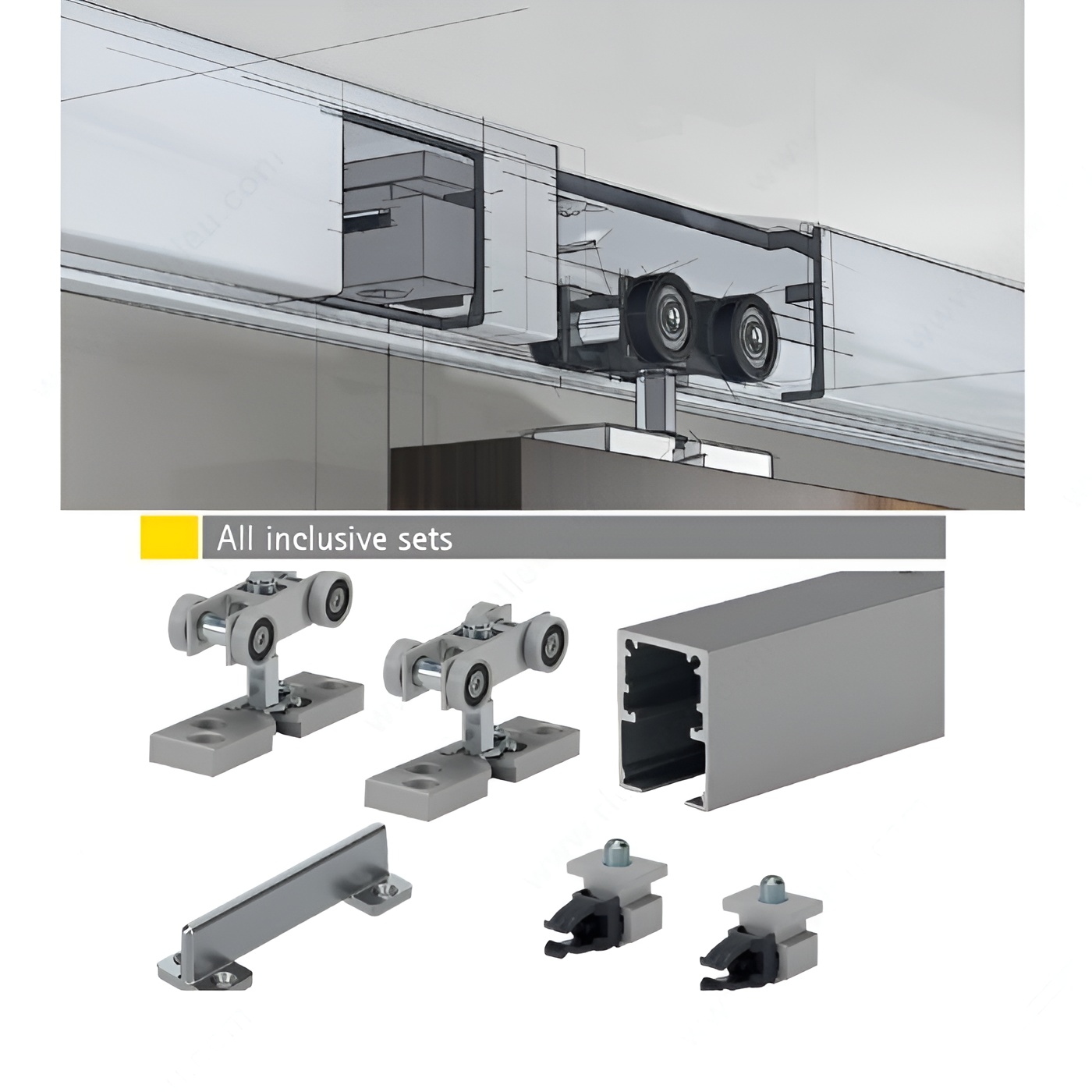

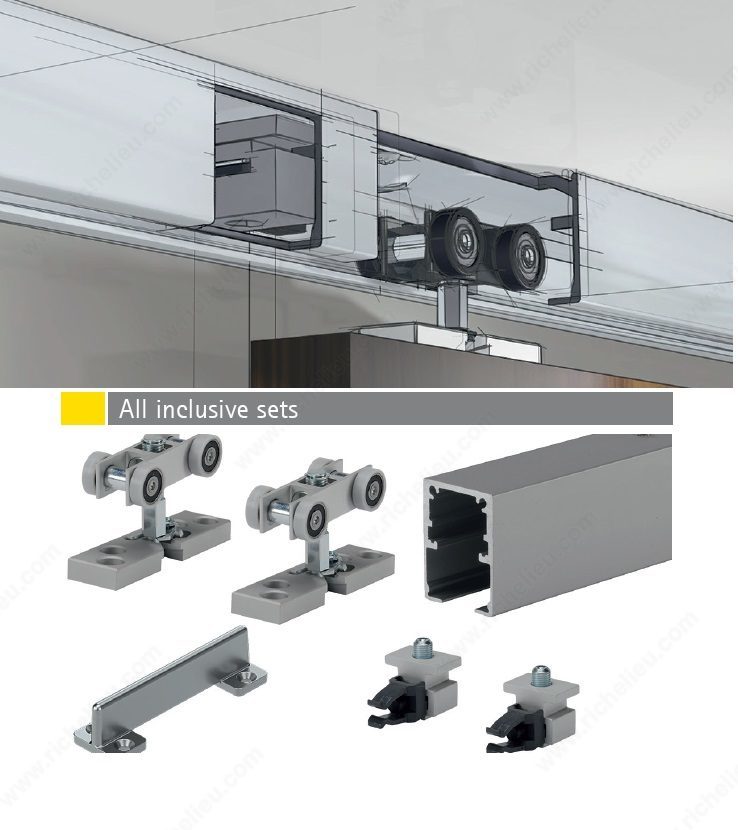

- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine HD
Length - Overall Dimensions: 72 in*
Load Capacity: Max. 324 lb*
Number of Doors: 1
Overall Length: 1 829 mm
Packaging format: Length of 6 linear foot
Product #: GT9201508
Product number: GT9201508
Product №: GT9201508
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 1 829 mm
Track Mounting: Ceiling Mount
Unit: Length of 6 linear foot
Weight Capacity per Door: Max. 147 kg
