Richelieu GT9201511 Grant TopLine Straight Sliding Door System InstructionsRichelieu GT9201511 Grant TopLine Straight Sliding Door System offers an exceptional solution for both commercial and residential applications, accommodating wood doors weighing up to 500 lb (227 kg). This robust system features precision ball bearing wheel trolleys that glide effortlessly along durable aluminum box tracks, ensuring smooth and reliable operation. Designed for versatility, the Grant TopLine system supports various configurations, including single, biparting, and bypassing door applications, making it ideal for closets, walk-in closets, cabinets, and storage areas. The system can handle a maximum door height of 9 ft 10 in and widths ranging from 30 to 94 1/2 in, with a minimum door thickness of 31/32 in. For enhanced functionality, a silent system soft-close and soft-open mechanism is available separately for doors weighing up to 325 lb (147 kg), promoting a quiet and gentle operation. The system is packaged in two formats: a complete kit with hardware and track or bulk options for selecting components individually. With an overall length of 10 ft, the GT9201511 is designed for ceiling mount applications, ensuring a sleek and unobtrusive installation. Upgrade your space with the reliability and elegance of the Richelieu Grant TopLine Sliding Door System.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.

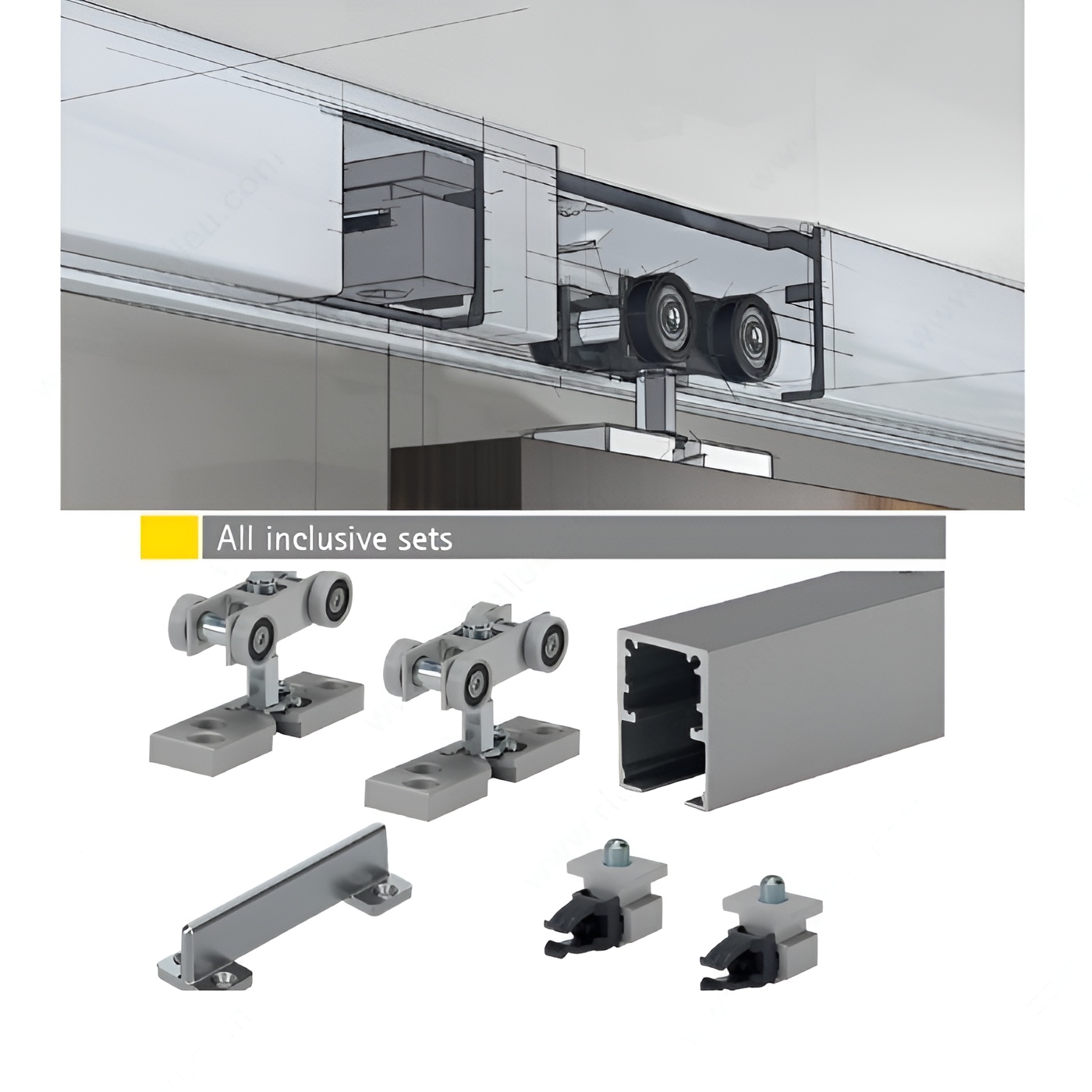

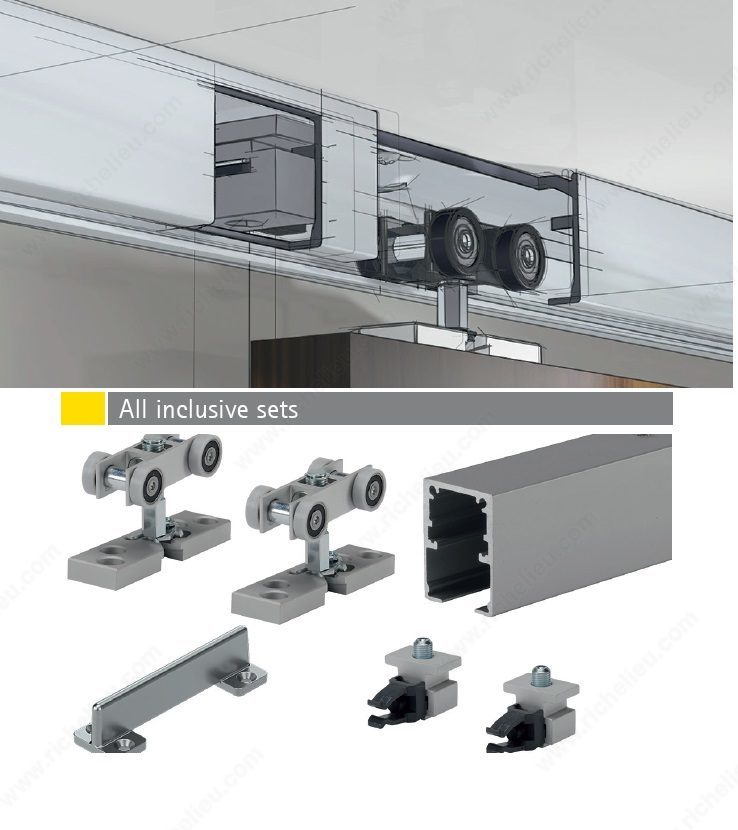

- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine HD
Length - Overall Dimensions: 10 ft*
Load Capacity: Max. 324 lb*
Number of Doors: 1
Overall Length: 3 048 mm
Packaging format: Length of 10 linear foot
Product #: GT9201511
Product number: GT9201511
Product №: GT9201511
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 3 048 mm
Track Mounting: Ceiling Mount
Unit: Length of 10 linear foot
Weight Capacity per Door: Max. 147 kg
