Richelieu GT9235674 Grant TopLine Straight Sliding Door System InstructionsRichelieu GT9235674 Grant TopLine Straight Sliding Door System is engineered to accommodate wood doors weighing up to 500 lb (227 kg), making it an ideal choice for both commercial and residential spaces. This sliding door system features precision ball bearing wheel trolleys that glide effortlessly along sturdy aluminum box tracks, ensuring smooth and reliable operation. The system offers versatility with options for single, biparting, and bypassing door applications. With a maximum door height of 9 ft 10 in and a width range of 30 to 94 1/2 in, it can be tailored to fit a variety of openings while maintaining a minimum door thickness of 31/32 in. For added convenience, a Silent System soft-close and soft-open mechanism is available separately, catering to doors weighing up to 325 lb (147 kg). The Grant TopLine system is packaged in two formats: a complete kit with hardware and track or bulk options for individual selection. It is designed for ceiling mount installation, ensuring a streamlined appearance in any setting. Enhance your closet, walk-in closet, or storage area with this robust and stylish sliding door solution from Richelieu.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.

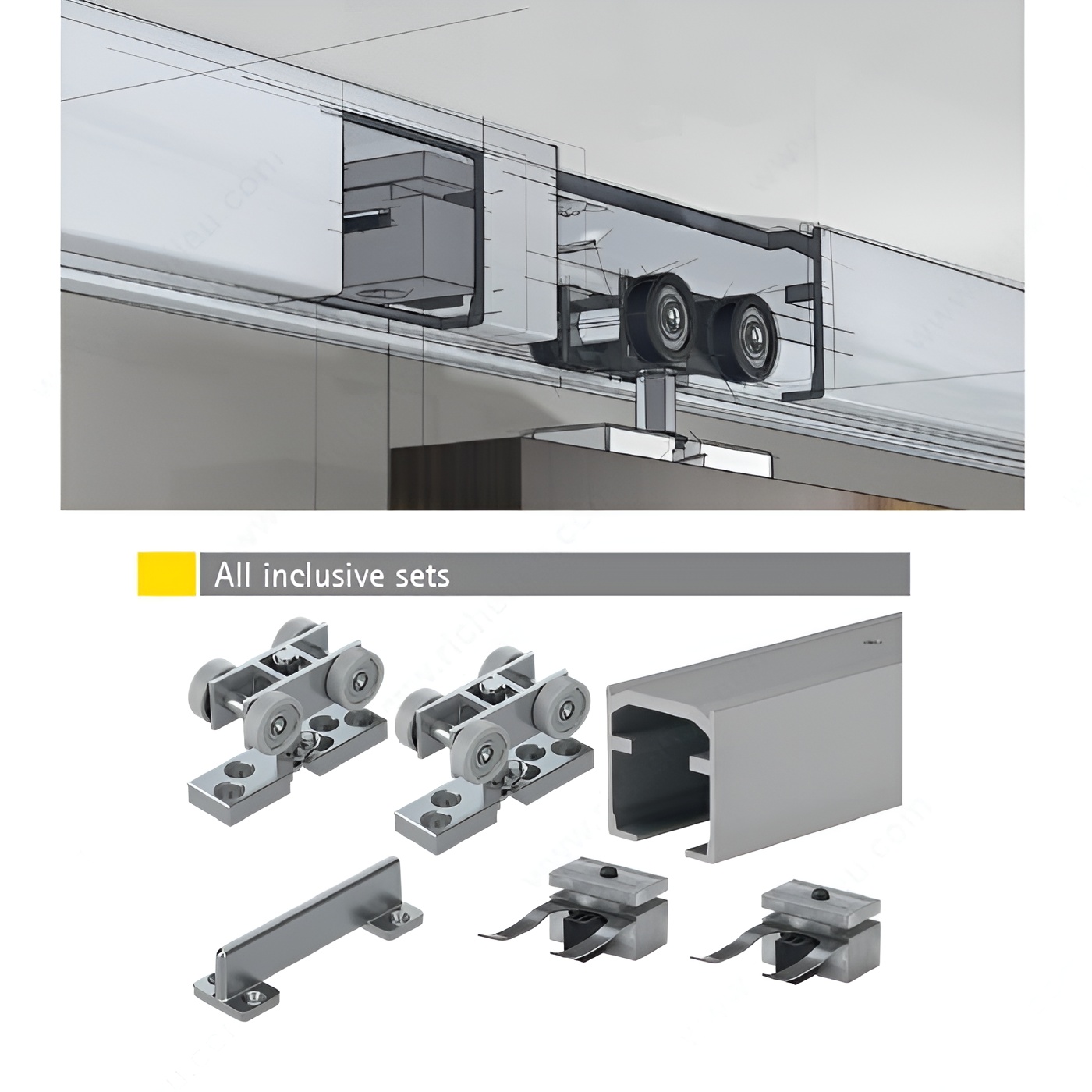

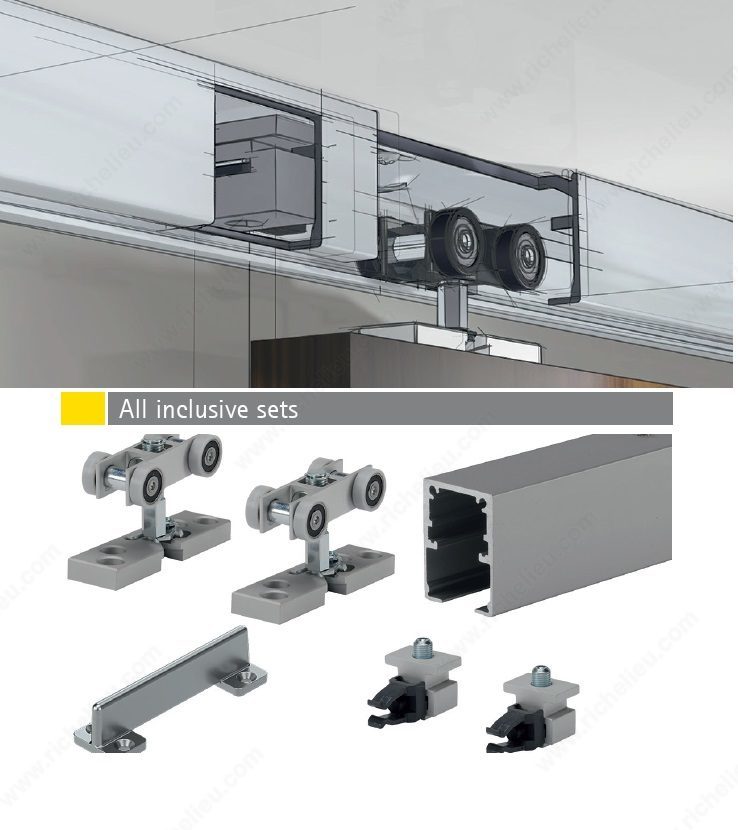

- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine XHD
Length - Overall Dimensions: 96 in*
Load Capacity: Max. 500 lb*
Number of Doors: 1
Overall Length: 2 438 mm
Packaging format: Length of 8 linear foot
Product #: GT9235674
Product number: GT9235674
Product №: GT9235674
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 2 438 mm
Track Mounting: Ceiling Mount
Unit: Length of 8 linear foot
Weight Capacity per Door: Max. 227 kg
