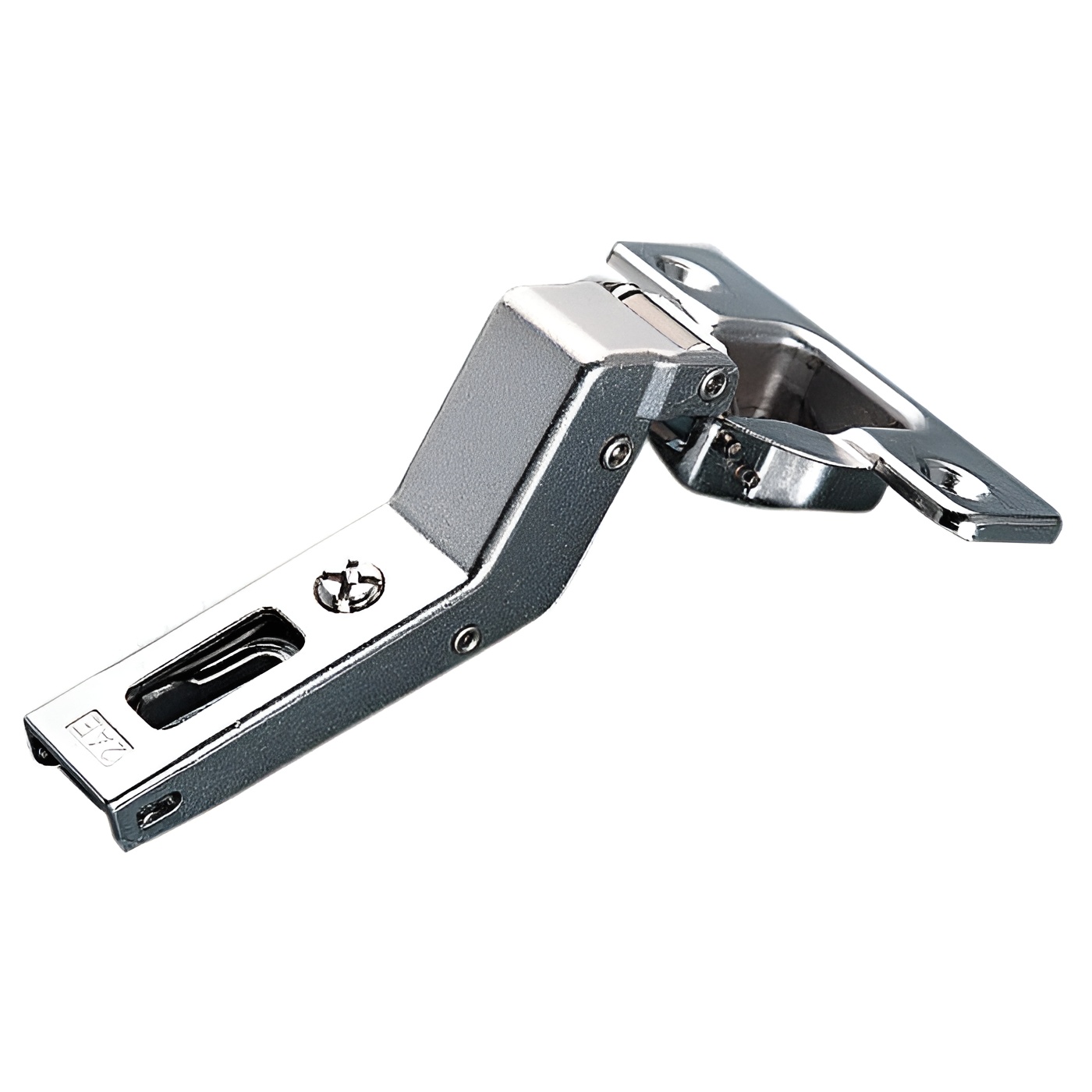

Richelieu H045C2RBM99AC Hinges for Positive Angle Doors offer a robust solution for doors that require precise angle adjustments. Designed for corner and bi-fold applications, these hinges facilitate a seamless installation process, even when doors are not mounted at a perfect 90° to the carcass. The hinge features a drilling distance on the door ranging from 3 mm to 8 mm, allowing for flexibility in installation. With a deep 11 mm metal cup and a standard diameter of 35 mm, this hinge ensures durability and stability. It is compatible with traditional mounting plates of the series 200 as well as DOMI snap-on mounting plates, providing versatility for various projects. The doweled, self-closing version enhances functionality while the spring closing mechanism ensures that doors close securely. The finish in nickel not only adds a modern touch but also enhances resistance to wear and tear. Whether tackling frameless cabinets or specialized angle cabinets, the Richelieu H045C2RBM99AC hinges make assembly straightforward and reliable. Packaged at 100 per box, these hinges are an excellent choice for building professionals looking for efficiency and quality in their hardware solutions.
200 Series - Positive Angled Hinges 94 for Thick Doors
Brand: Salice
Cabinet Angle: +45°
Closing Mechanism: Spring Closing
Diameter: 1 3/8 in*
Door Position: Corner / Bi-Fold
Door Thickness: 3/4 to 1 3/8 in*
Drilling Distance: 3 to 9 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +45°
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Product #: H045C2RBM99AC
Product number: H045C2RBM99AC
Product №: H045C2RBM99AC
Production Time: Stock
Series: 200 Series
Unit 1: case - 150
Use Type: Angle Cabinet
