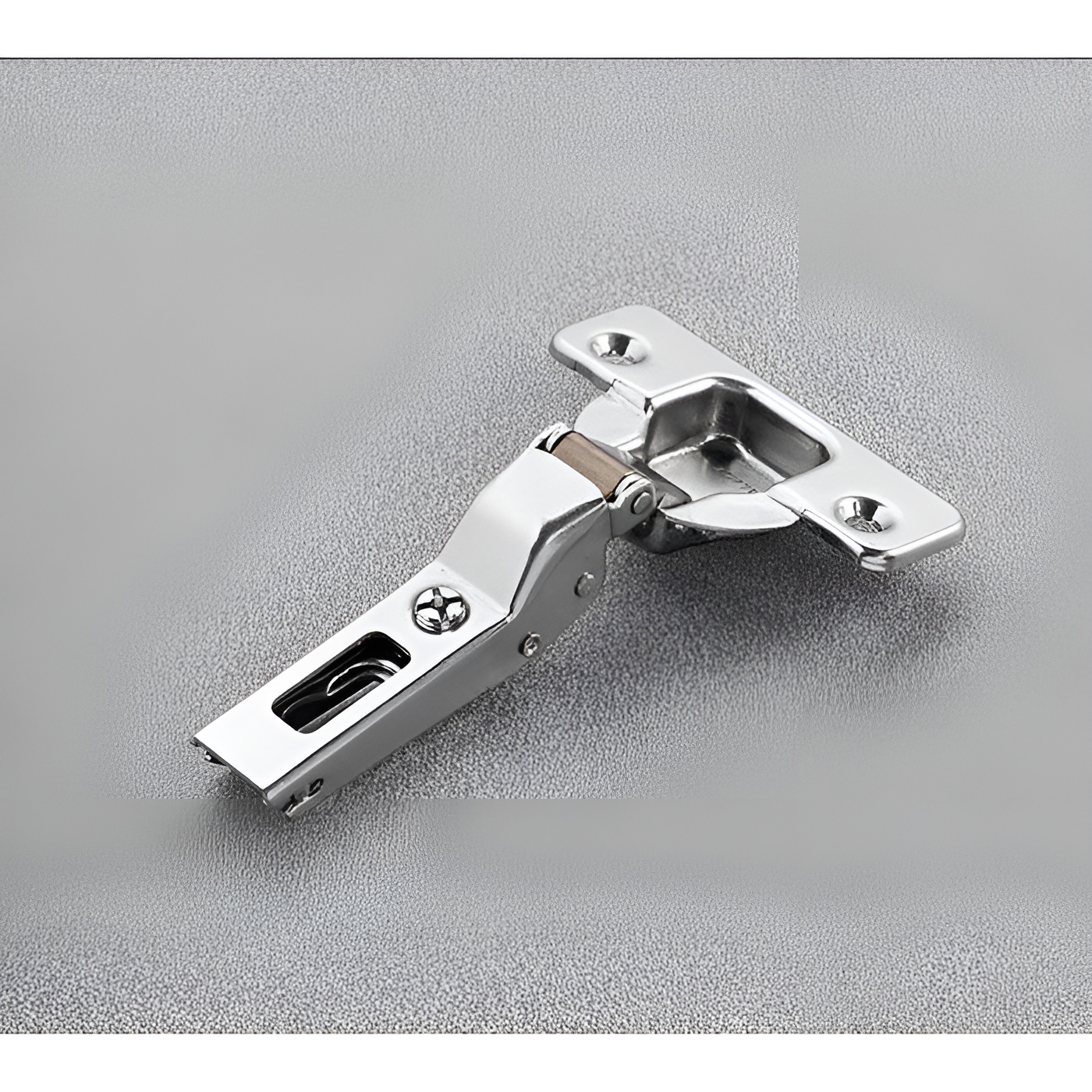

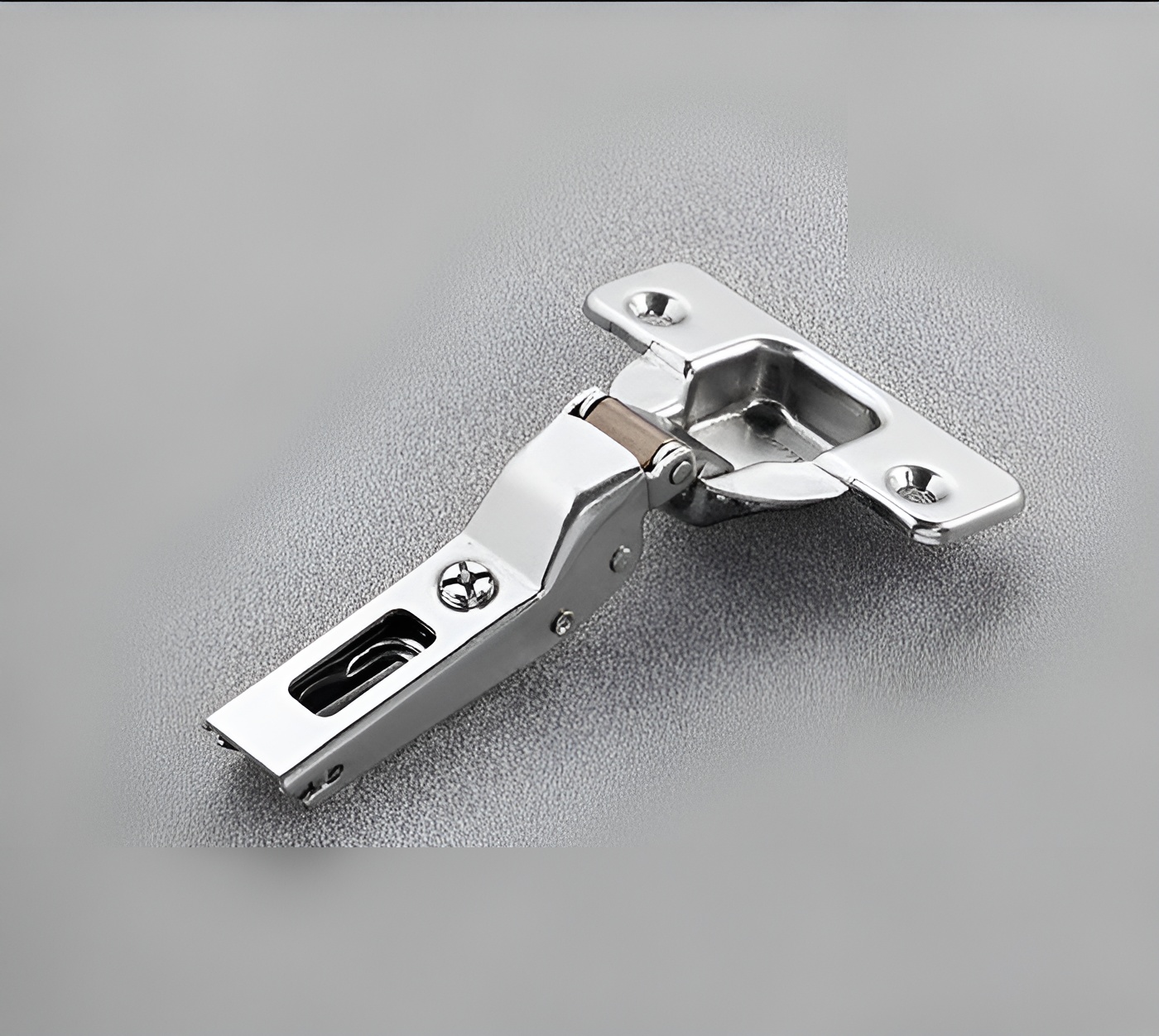

Richelieu H094C2P7G99 Series 200 Concealed Hinge is the ideal solution for frameless cabinets requiring reliable and discreet hinge functionality. Designed by Salice, this integrated hinge system offers independent and compensation adjustments, ensuring optimal alignment and performance. With a hinge opening angle of +94°, it allows for smooth access and operation, making it perfect for half overlay door configurations. The hinge is equipped with a safety stop device, accommodating both symmetrical and asymmetrical installations. Its snap-on mounting feature simplifies the installation process, while the compatibility with all Domi series quick-release mounting plates enhances versatility. Crafted from durable materials, the hinge boasts a chic nickel finish, seamlessly blending with modern cabinetry styles. Designed for use with thick doors, this hinge supports a load capacity of 10 lb, making it suitable for various applications. The recommended drilling distance ranges from 1/8 to 11/32 inches, with a milling diameter of 1 3/8 inches and a milling depth of 5/8 inches, providing flexibility in installation. With its screw-on fixing type, the Richelieu H094C2P7G99 ensures a secure and lasting fit, making it a dependable choice for building professionals and discerning homeowners alike.

200 Series - Concealed Hinges 94 for Thick Door

Resources

• Installation
• Instructions
• Line art

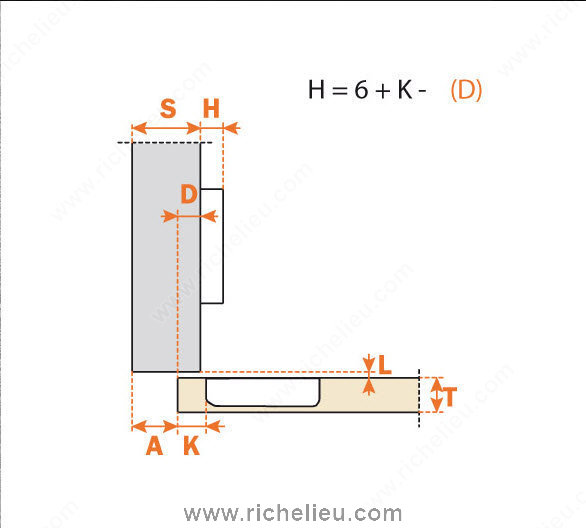

• Overlay Chart
