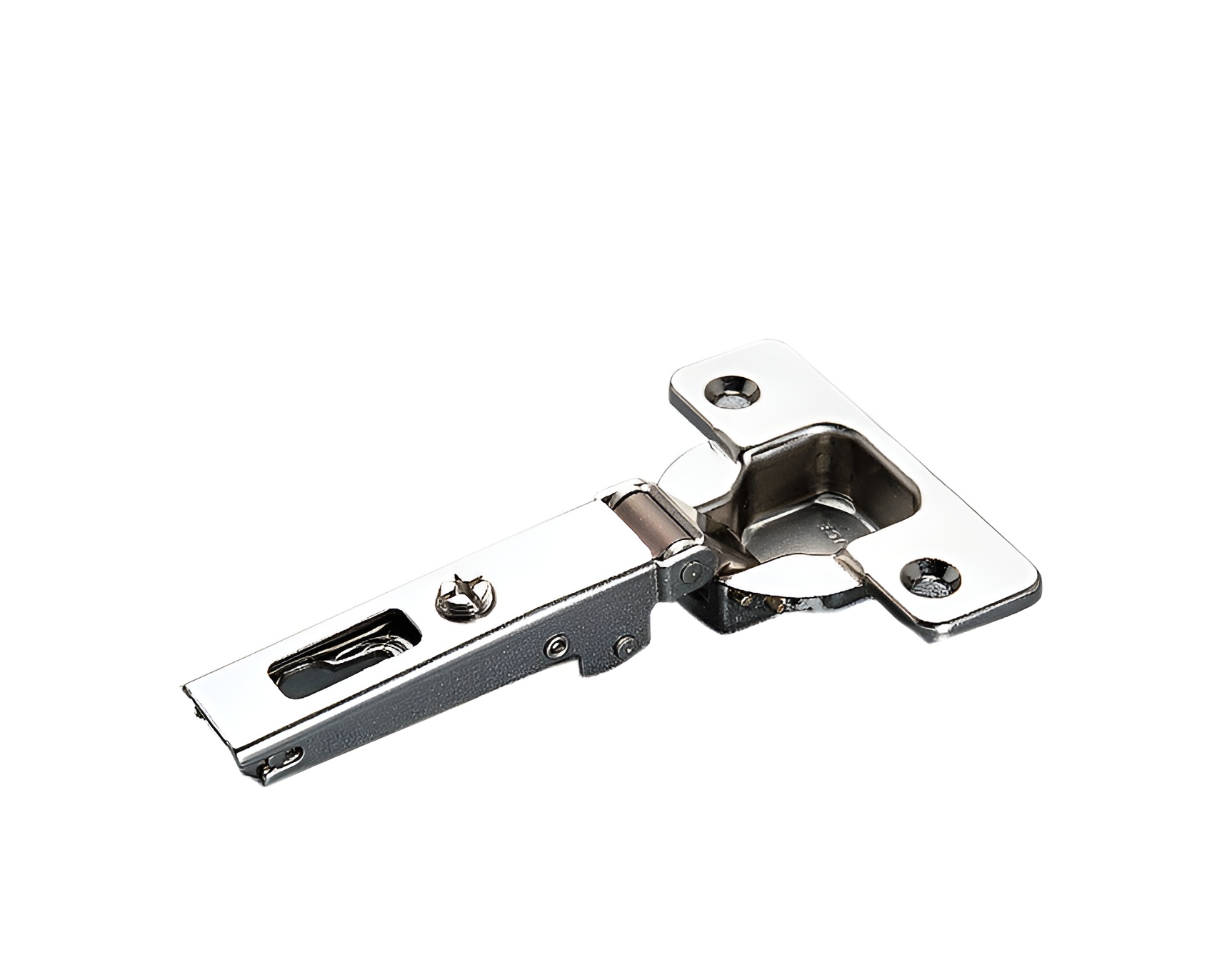

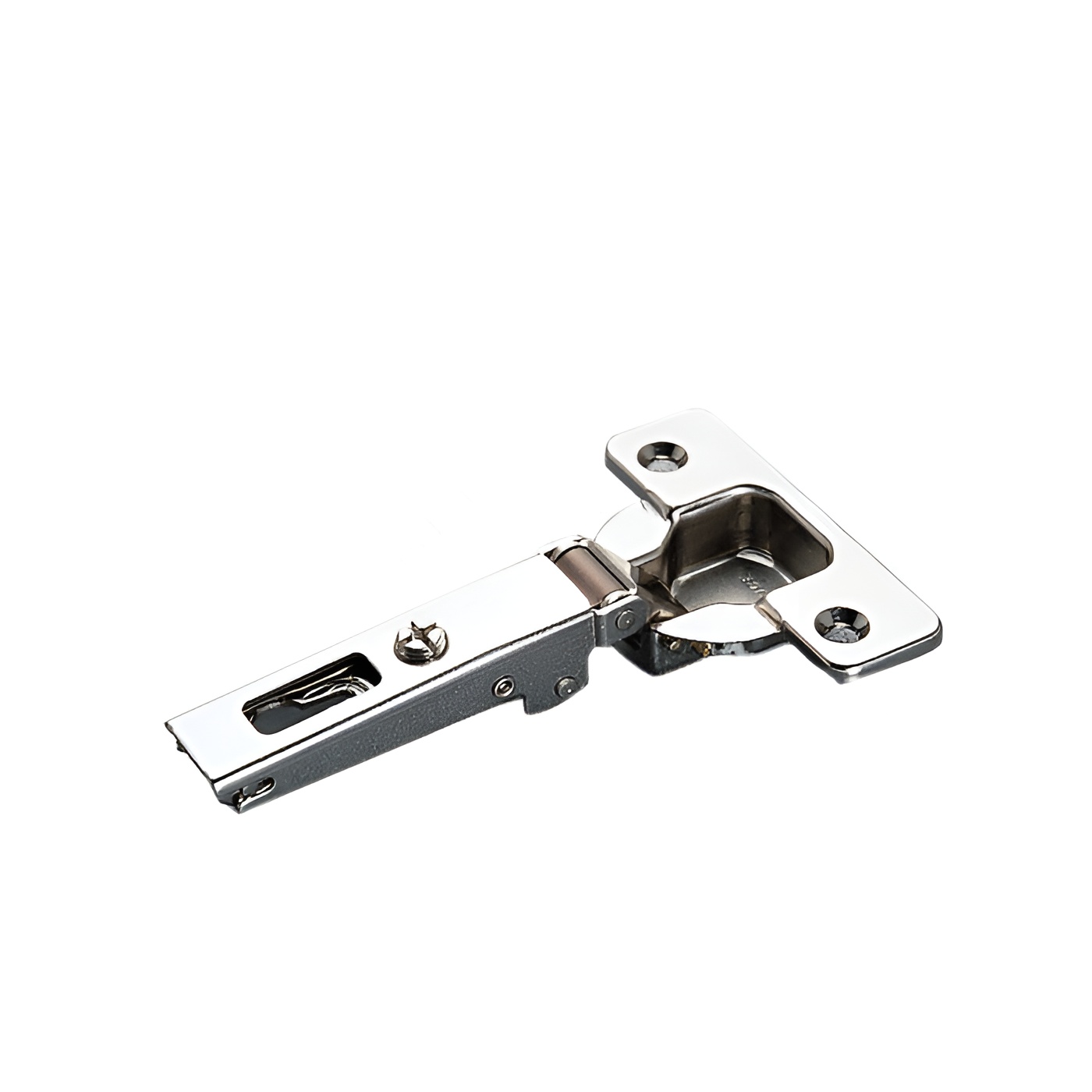

Richelieu H094C2PBA99 Series 200 Concealed Hinge offers a sophisticated solution for frameless cabinet doors requiring concealed hinges. Designed with versatility in mind, this hinge features independent and compensation adjustments, ensuring precise alignment for a flawless installation. With a safety stop device, it accommodates both symmetrical and asymmetrical door setups, enhancing its adaptability. The hinge is engineered for full overlay applications and is compatible with all Domi series quick-release mounting plates, making installation seamless with its convenient snap-on mounting system. Constructed from durable materials and finished in nickel, it not only ensures longevity but also maintains an appealing aesthetic for modern cabinetry. The hinge supports a load capacity of up to 10 pounds, making it suitable for thick doors with a milling depth of 5/8 inch and a diameter of 1 3/8 inches. It opens to an impressive angle of +94°, providing ample access. Designed for screw-on fixing, the H094C2PBA99 is an excellent choice for building professionals and knowledgeable homeowners alike, looking for reliable hardware that combines functionality with style. With stock availability, this hinge is ready for quick shipping via UPS, ensuring your project stays on schedule.
200 Series - Concealed Hinges 94 for Thick Door
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 3/4 to 1 3/8 in*
Drilling Distance: 3 to 9 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +94°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 15.5 mm
Milling Diameter: 35 mm
Overlay: 0.75 in
Product #: H094C2PBA99
Product number: H094C2PBA99
Product №: H094C2PBA99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Thick Door
