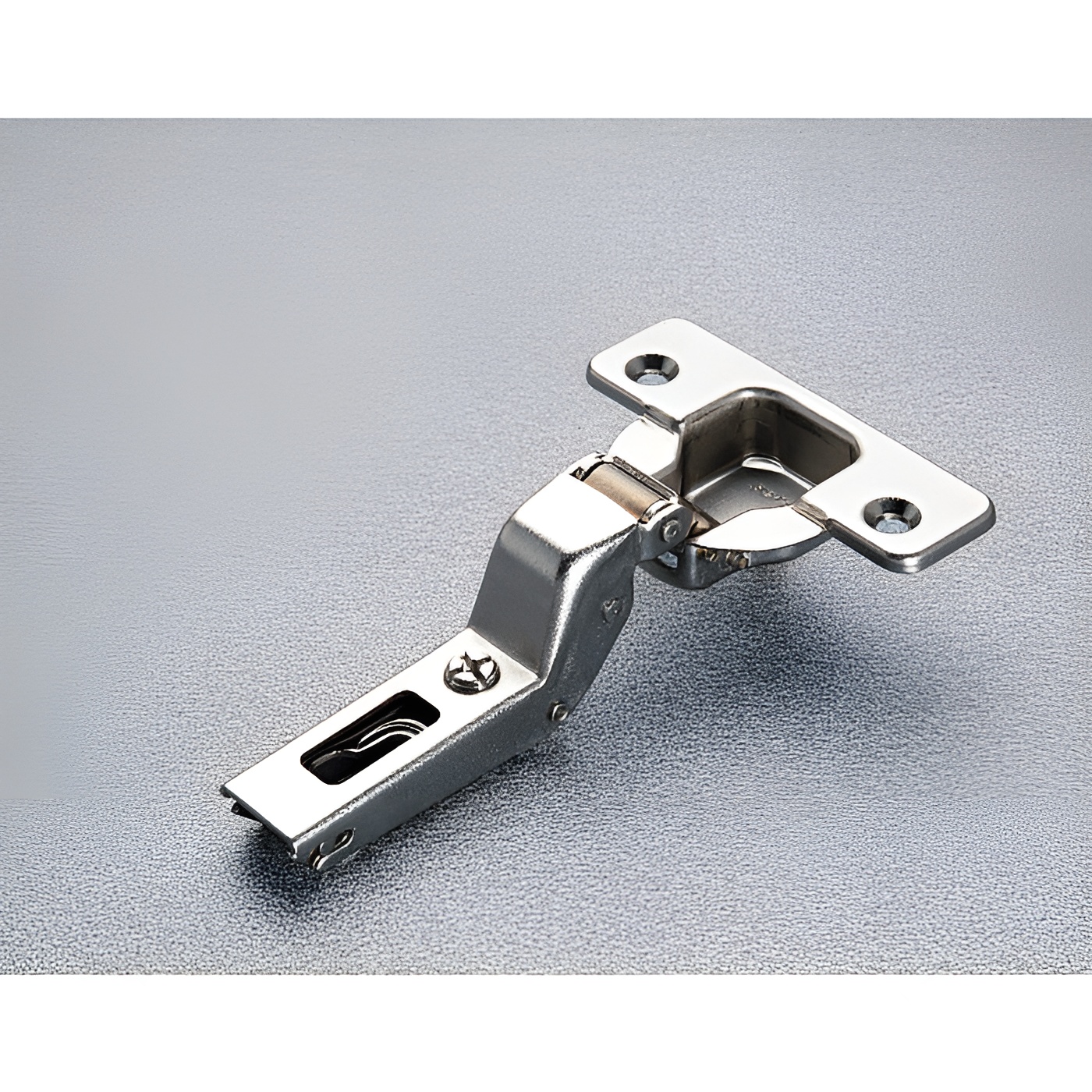

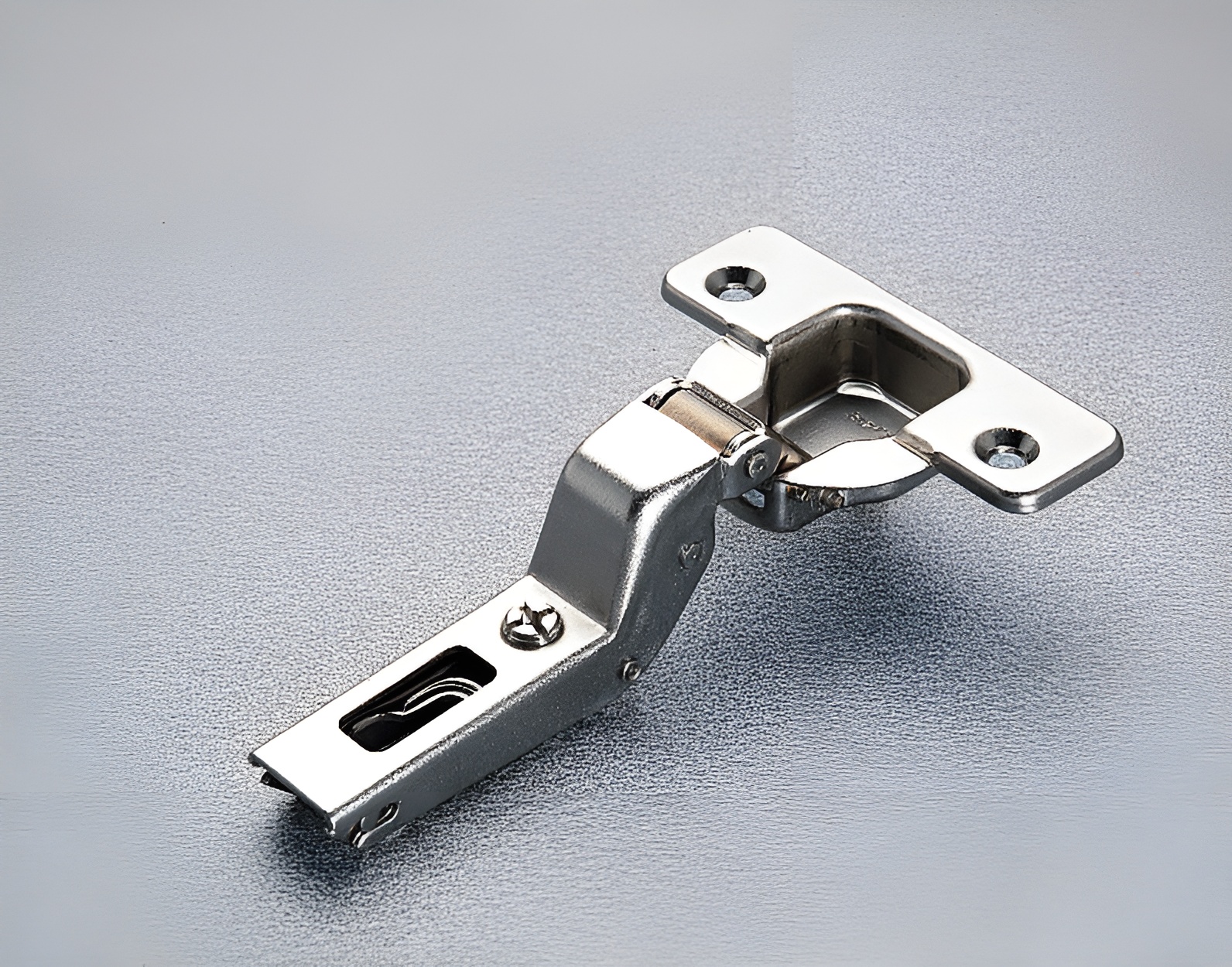

Richelieu H094C2PBP99 Series 200 Concealed Hinge - 94 offers an innovative solution for those seeking concealed hinges in frameless cabinet applications. Designed by Salice, this hinge features independent and compensation adjustments, ensuring a precise fit for various installations. The hinge is equipped with a safety stop device, accommodating both symmetrical and asymmetrical door designs, which enhances reliability and performance. The snap-on mounting system simplifies installation, allowing for quick and easy setup. This hinge is adaptable to all Domi series quick-release mounting plates, providing flexibility in design choices. With a hinge opening angle of +94°, it allows for maximum accessibility, while its load capacity of 10 lbs ensures it can handle standard door applications with ease. The H094C2PBP99 also boasts a nickel finish, adding a touch of elegance to your cabinetry. Key specifications include a drilling distance of 1/8 to 11/32 in, milling depth of 5/8 in, and a milling diameter of 1 3/8 in, making it suitable for a variety of cabinet designs. Whether you're a building professional or a knowledgeable homeowner, this hinge is an excellent choice for enhancing functionality and aesthetics in any project.
200 Series - Concealed Hinges 94 for Thick Door
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 3/4 to 1 3/8 in*
Drilling Distance: 3 to 9 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +94°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 15.5 mm
Milling Diameter: 35 mm
Overlay: 0.0781 in
Product #: H094C2PBP99
Product number: H094C2PBP99
Product №: H094C2PBP99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
