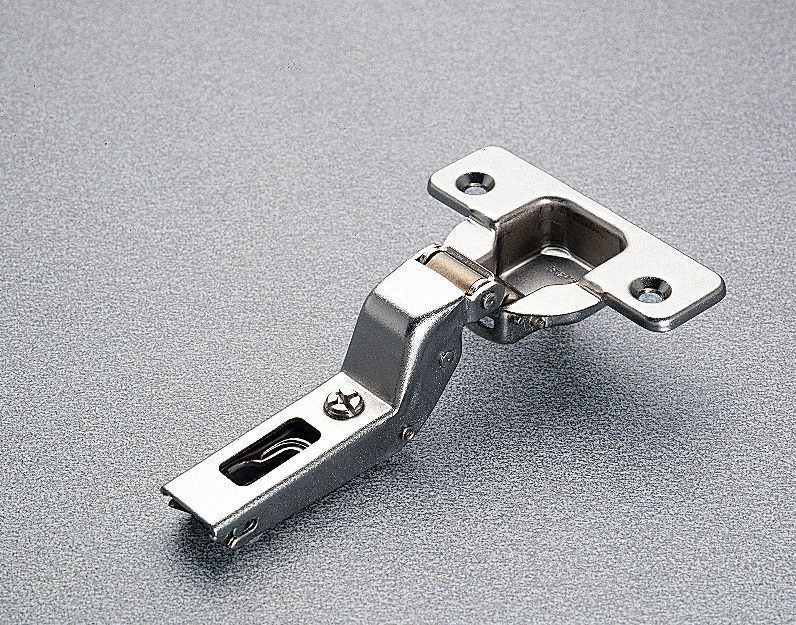

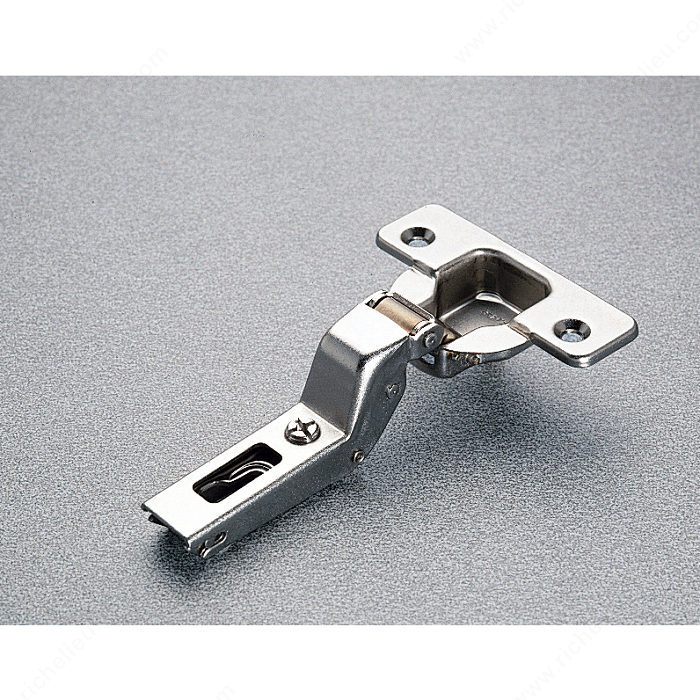

Richelieu H094C2RAP99 Series 200 Concealed Hinge - 94 is an exceptional solution for frameless cabinetry, offering a sleek and functional design that integrates seamlessly into your projects. This hinge features independent and compensation adjustments, ensuring precise alignment for flawless door operation. Equipped with a safety stop device, it accommodates both symmetrical and asymmetrical applications, enhancing versatility in installation. The snap-on mounting system streamlines the installation process, allowing for quick and efficient setup without compromising on strength. Designed for use with the Domi series quick-release mounting plates, this hinge supports a robust load capacity of 10 lbs, making it suitable for thick doors. The hinge opens to a generous angle of +94°, providing ample access to cabinet interiors. Manufactured with a nickel finish, the H094C2RAP99 not only delivers durability but also adds a modern touch to your cabinetry. With a milling depth of 5/8 in and a diameter of 1 3/8 in, installation is straightforward, making it an ideal choice for experienced builders and knowledgeable homeowners alike. Choose Richelieu for a reliable, high-quality concealed hinge that exceeds expectations in both performance and aesthetics.
200 Series - Concealed Hinges 94 for Thick Door
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 3/4 to 1 3/8 in*
Drilling Distance: 3 to 9 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +94°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 15.5 mm
Milling Diameter: 35 mm
Overlay: 0.0781 in
Product #: H094C2RAP99
Product number: H094C2RAP99
Product №: H094C2RAP99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Thick Door
