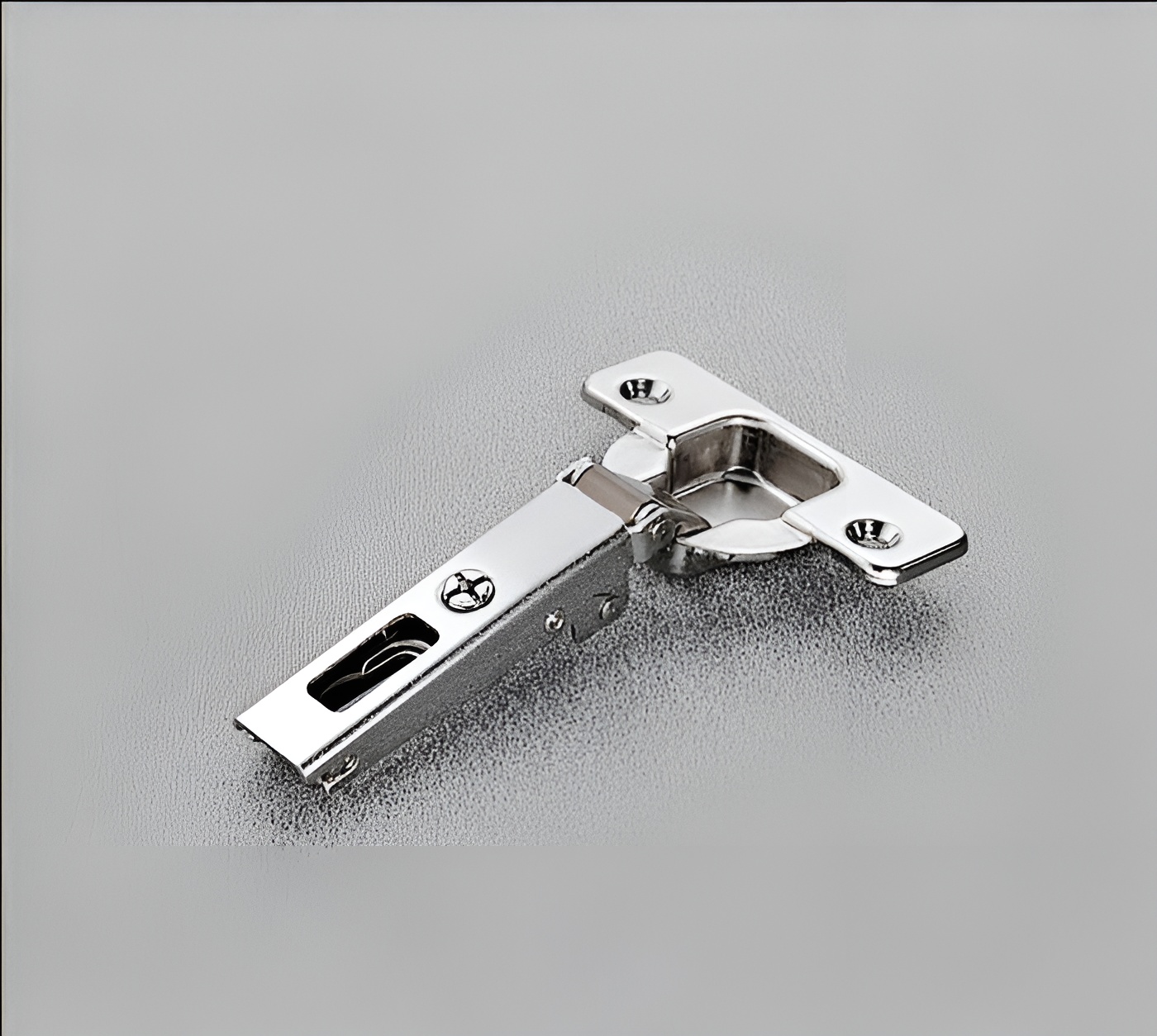

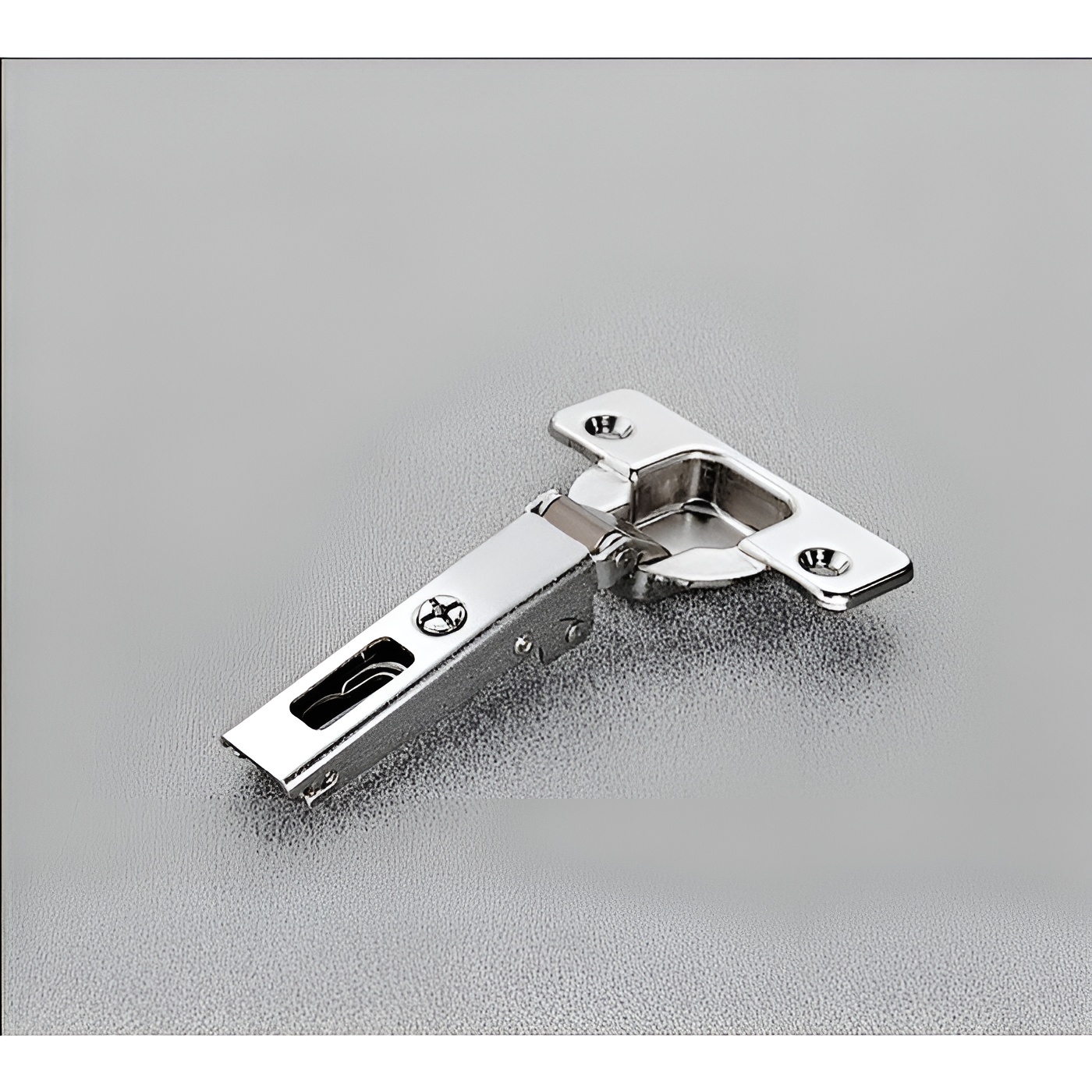

Richelieu H094C2RBA99 Series 200 Concealed Hinge - 94 offers a sophisticated solution for frameless cabinets requiring concealed hinges. This hinge system is specifically designed to accommodate full-overlay door positions, providing seamless integration into your cabinetry. With a hinge opening angle of +94°, it allows for easy access while maintaining an elegant look. The hinge features independent and compensation adjustment, ensuring optimal alignment and functionality regardless of installation conditions. A safety stop device enhances stability, making it suitable for both symmetrical and asymmetrical applications. The snap-on mounting mechanism simplifies installation, saving time on the job site while providing a secure fit. Compatible with all Domi series quick-release mounting plates, the H094C2RBA99 ensures versatility and ease of use. With a load capacity of 10 lbs, it is ideal for thick doors, and the nickel finish adds a modern touch that complements various design aesthetics. The milling depth of 5/8 in and diameter of 1 3/8 in ensure precise fitting, while the dowel fixing type provides robust support. Designed for professional use, the Richelieu H094C2RBA99 is a reliable choice for builders and homeowners seeking quality and performance in their cabinetry solutions.

200 Series - Concealed Hinges 94 for Thick Door

Resources

• Installation
• Instructions
• Line art

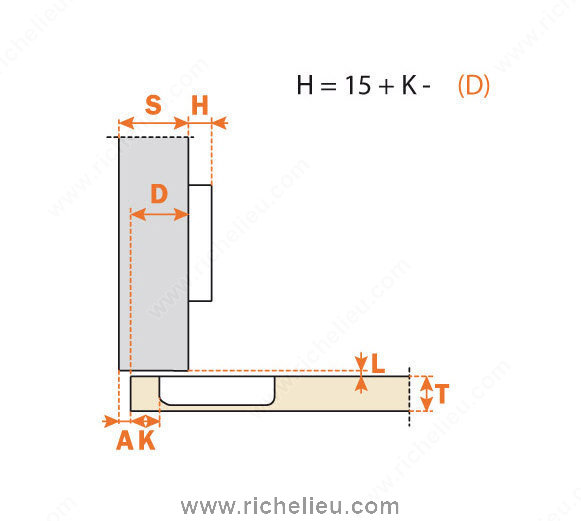

• Overlay Chart
