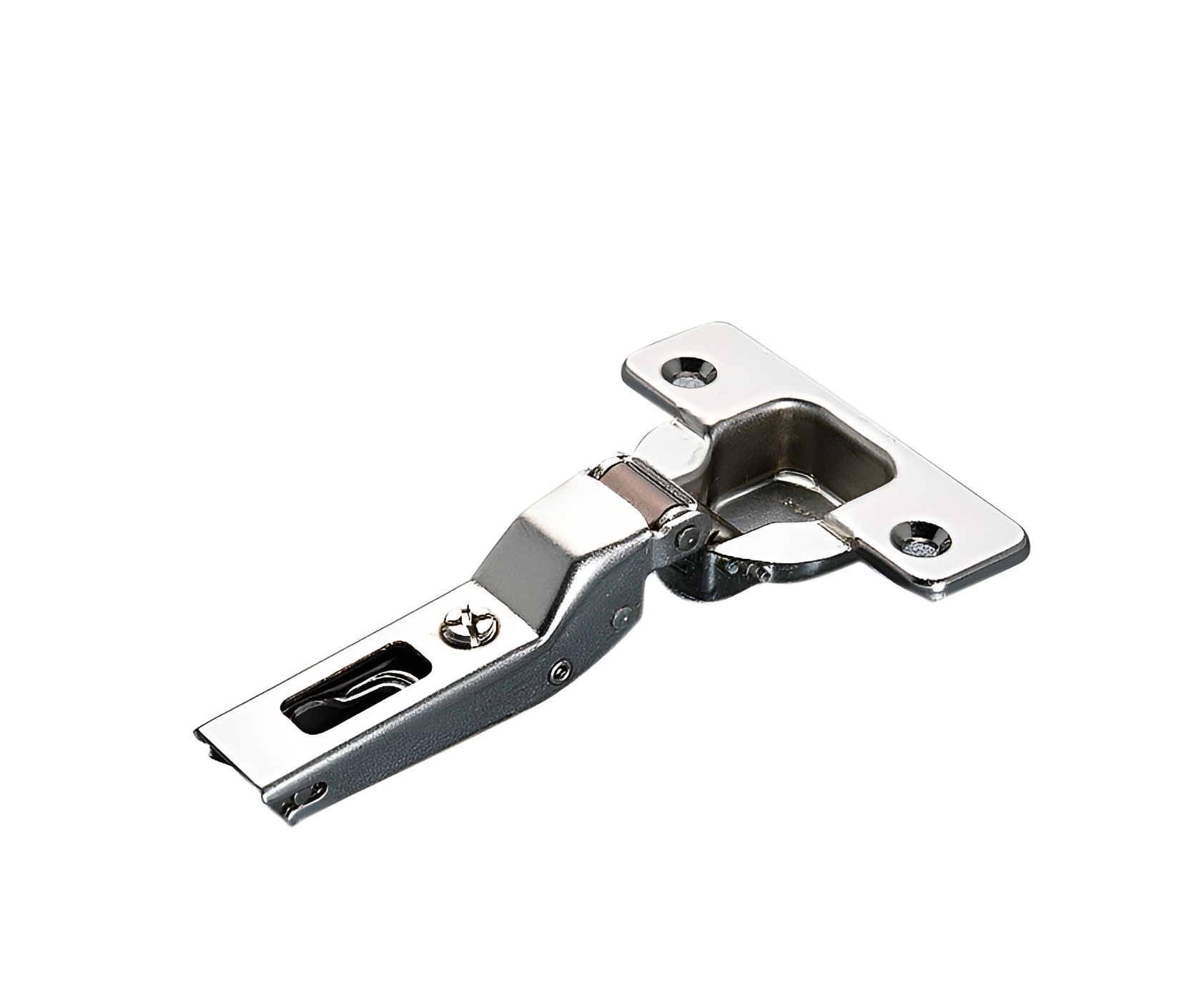

Richelieu H094C3RBA99 Series 200 Concealed Hinge offers a sophisticated solution for frameless cabinet applications that require concealed hinges. Designed by Salice, this integrated hinge system ensures a seamless look while maintaining functionality. The hinge features independent and compensation adjustments, allowing for precise alignment and easy installation. Equipped with a safety stop device, this hinge supports both symmetrical and asymmetrical door positions, making it versatile for special applications. The snap-on mounting simplifies the installation process, ensuring a secure fit. It is compatible with all Domi series quick-release mounting plates, further enhancing its adaptability. With a hinge opening angle of +94°, the Richelieu H094C3RBA99 supports standard doors with a load capacity of up to 10 lbs, making it suitable for various cabinet designs. The nickel finish adds an elegant touch, ensuring durability and resistance to wear over time. For optimal installation, this hinge requires a milling depth of 5/8 in and a milling diameter of 1 3/8 in, with a drilling distance ranging from 1/8 to 11/32 in. Whether you are a building professional or a knowledgeable homeowner, this concealed hinge is an excellent choice for modern cabinetry solutions.
300 Series - Concealed Mini Hinge 94 for Thick Doors
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 0 in*
Door Position: For Special Application
Door Thickness: 3/4 to 1 3/8 in*
Drilling Distance: 3 to 9 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +94°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 15.5 mm
Milling Diameter: 35 mm
Overlay: 0.75 in
Product #: H094C3RBA99
Product number: H094C3RBA99
Product №: H094C3RBA99
Production Time: Stock
Unit 1: case - 300
Use Type: Standard Door
