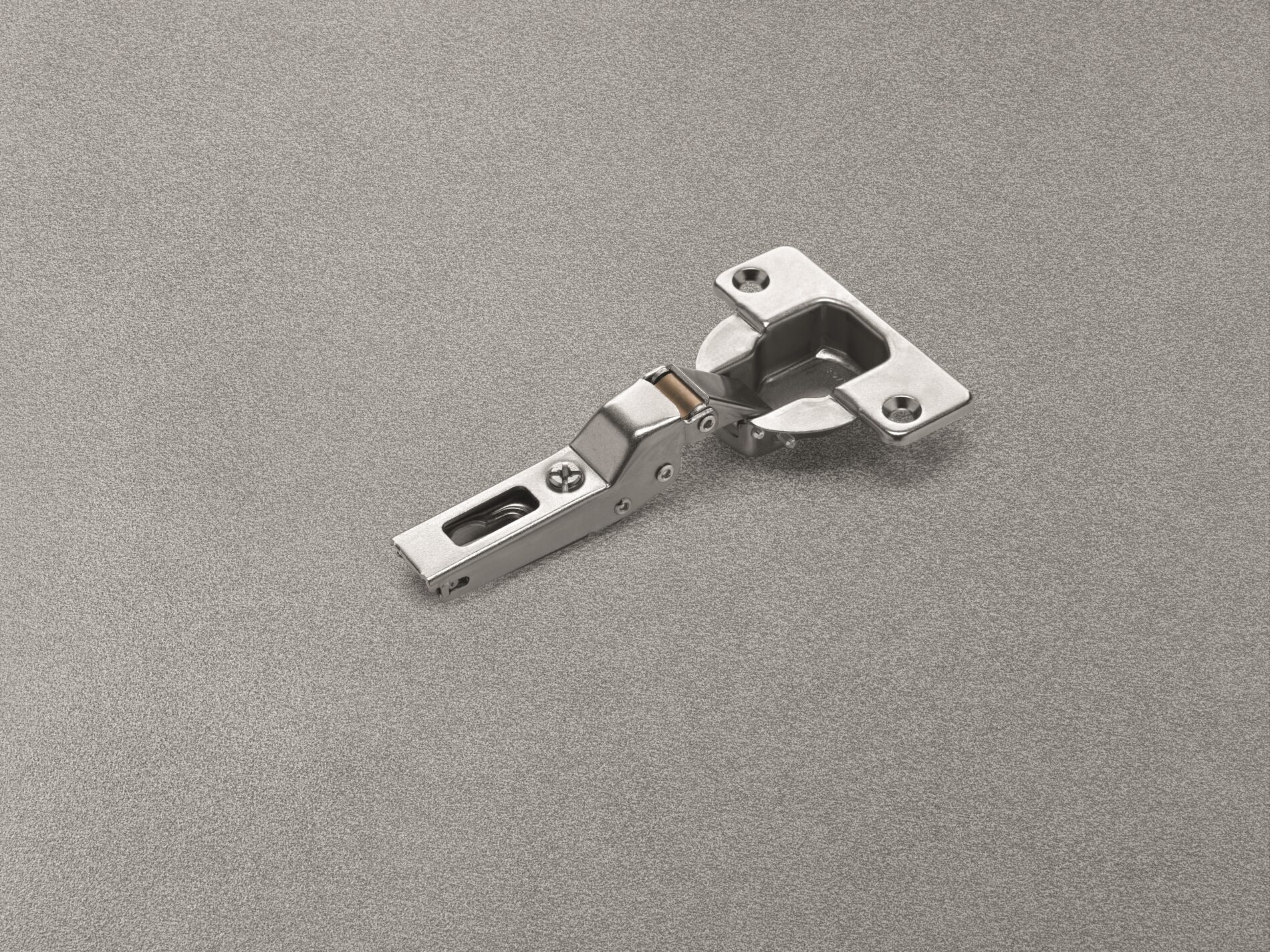

Richelieu H094CNA5G99 N Series Concealed Hinges are expertly designed for thick doors up to 40 mm (1 9/16") in thickness, making them an ideal choice for a variety of applications. With a sleek nickel finish, these hinges not only provide durability but also enhance the overall aesthetic of your installation. They feature a half overlay door position, ensuring a seamless look when your doors are closed. Capable of a hinge opening angle of +94°, the H094CNA5G99 hinges allow for unrestricted access, making them suitable for high-traffic areas. The free swing mechanism ensures smooth operation, while the screw-on fixing type provides reliable installation. Drilling distances ranging from 1/8 to 9/16 in and a milling depth of 15/32 in allow for versatile application in diverse settings. Designed for heavy-duty usage, these concealed hinges are perfect for professional use or discerning homeowners looking to upgrade their hardware. The combination of functionality and style makes the Richelieu H094CNA5G99 an essential component for modern cabinetry and thick door applications. Ship via UPS for convenient delivery, ensuring you have the right hardware on hand when you need it most.
N Series - Concelead Hinges 94 for Thick Doors up to 40 mm (1 9/16")
Brand: Salice
Crank: 11/32 in*
Door Position: Half Overlay
Door Thickness: 25/32 to 1 9/16 in*
Drilling Distance: 1/8 to 9/16 in*
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +94°
Mechanism: Free Swing
Milling Depth: 15/32 in*
Milling Diameter: 1 9/16 in*
Product #: H094CNA5G99
Use Type: Thick Door
