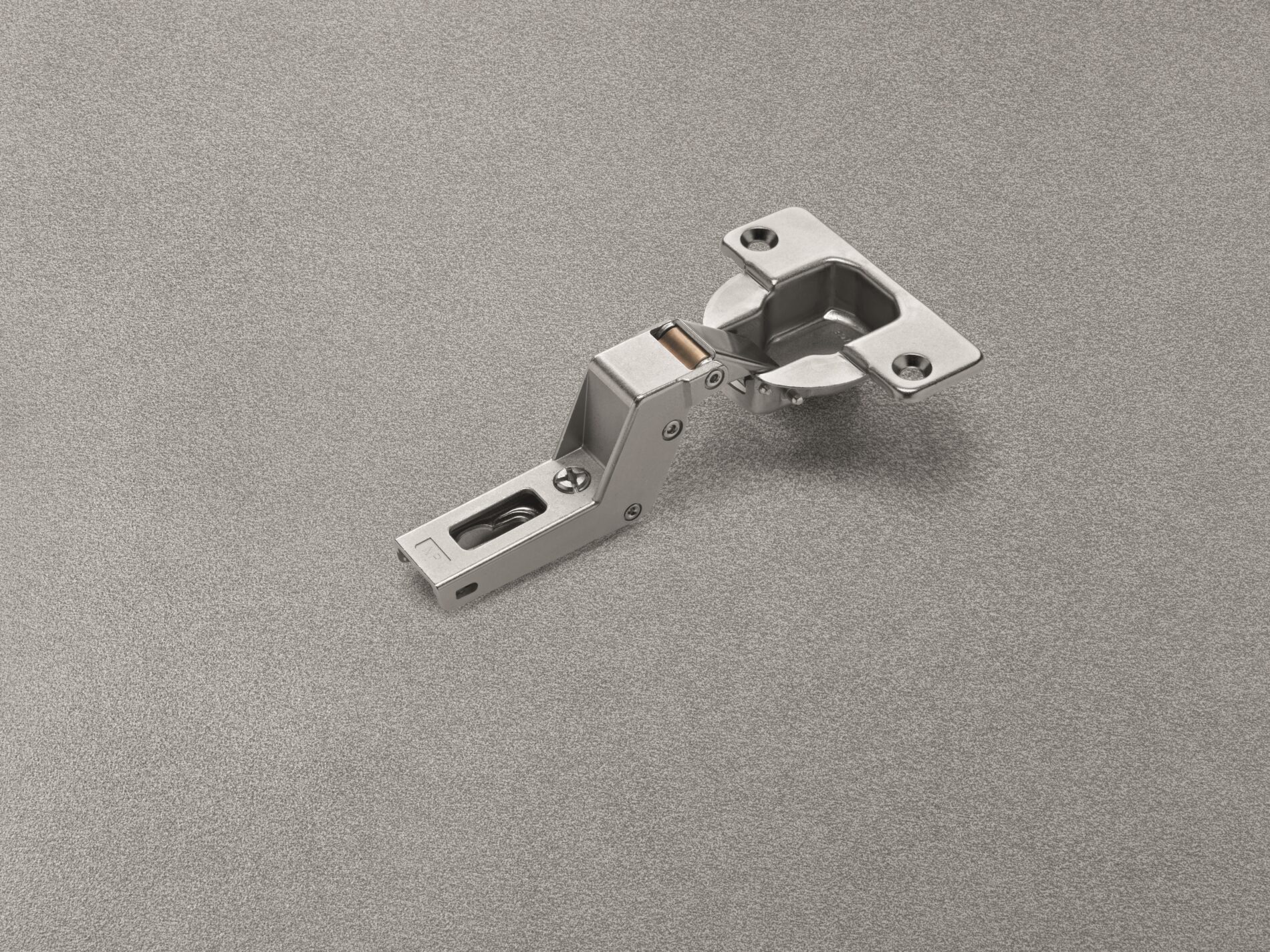

Richelieu H094CNA5P99 N Series - Concealed Hinges 94 for Thick Doors up to 40 mm (1 9/16"). These expertly crafted hinges are designed specifically for thick doors, accommodating a thickness range of 25/32 to 1 9/16 inches. With a sleek nickel finish, they not only provide a modern aesthetic but also ensure durability and longevity in high-use environments. The H094CNA5P99 features a free swing mechanism that allows for smooth and effortless door operation, with an impressive hinge opening angle of +94°. This design is particularly beneficial for inset door applications, allowing for seamless integration with cabinetry and furniture. Installation is straightforward, thanks to the screw-on fixing type, which enhances stability and ease of use. The precise milling requirements, with a milling depth of 15/32 inches and a diameter of 1 9/16 inches, ensure a perfect fit every time. Additionally, the hinge's drilling distance options of 1/8 to 9/16 inches provide versatility for various projects. Designed for professionals and knowledgeable homeowners alike, the Richelieu H094CNA5P99 is the ideal choice for achieving a polished and functional finish in any interior space.
N Series - Concelead Hinges 94 for Thick Doors up to 40 mm (1 9/16")
Brand: Salice
Crank: 21/32 in*
Door Position: Inset
Door Thickness: 25/32 to 1 9/16 in*

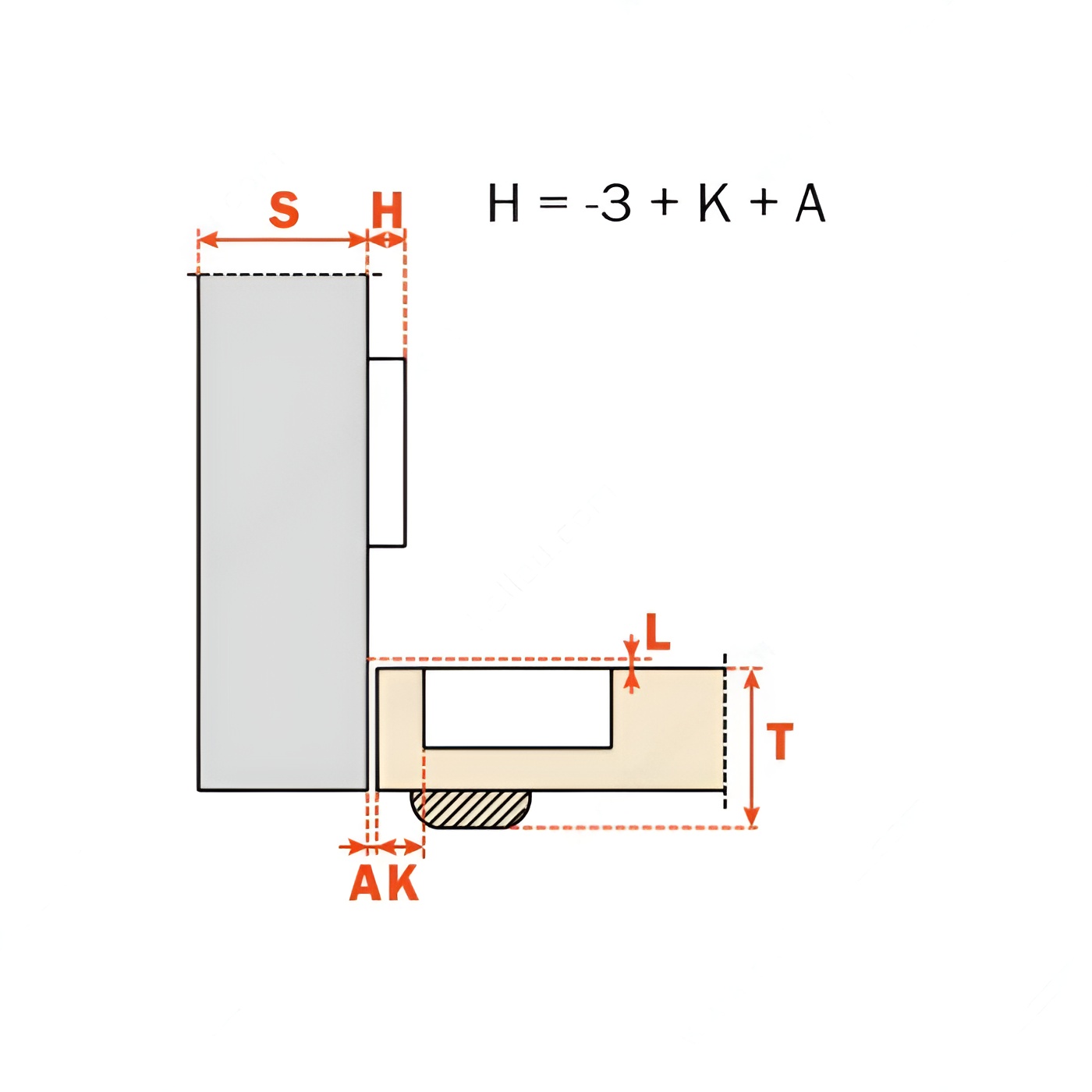

Drilling Distance: 1/8 to 9/16 in*
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +94°
Mechanism: Free Swing
Milling Depth: 15/32 in*
Milling Diameter: 1 9/16 in*
Product #: H094CNA5P99
Use Type: Thick Door
