Richelieu H094CNA7G99 N Series Concealed Hinges are expertly designed for thick doors, accommodating thicknesses ranging from 25/32 inches to 1 9/16 inches. Ideal for half overlay applications, these hinges enhance the aesthetic appeal of your cabinetry while providing superior functionality. The nickel finish not only adds a touch of elegance but also ensures durability, making them suitable for a variety of environments. Featuring a spring closing mechanism, these hinges offer a smooth and reliable operation, contributing to the longevity of your doors. With a hinge opening angle of up to +94°, they allow for ample clearance, facilitating easy access to stored items. The milling diameter of 1 9/16 inches and milling depth of 15/32 inches ensure precise installation, while the drilling distance of 1/8 to 9/16 inches offers flexibility during setup. Designed for screw-on fixing, the Richelieu H094CNA7G99 hinges make installation straightforward, providing a secure fit for your project. These hinges can ship via UPS, making them a convenient choice for building professionals and homeowners alike. Upgrade your cabinetry with these functional and stylish concealed hinges that promise both performance and visual appeal.

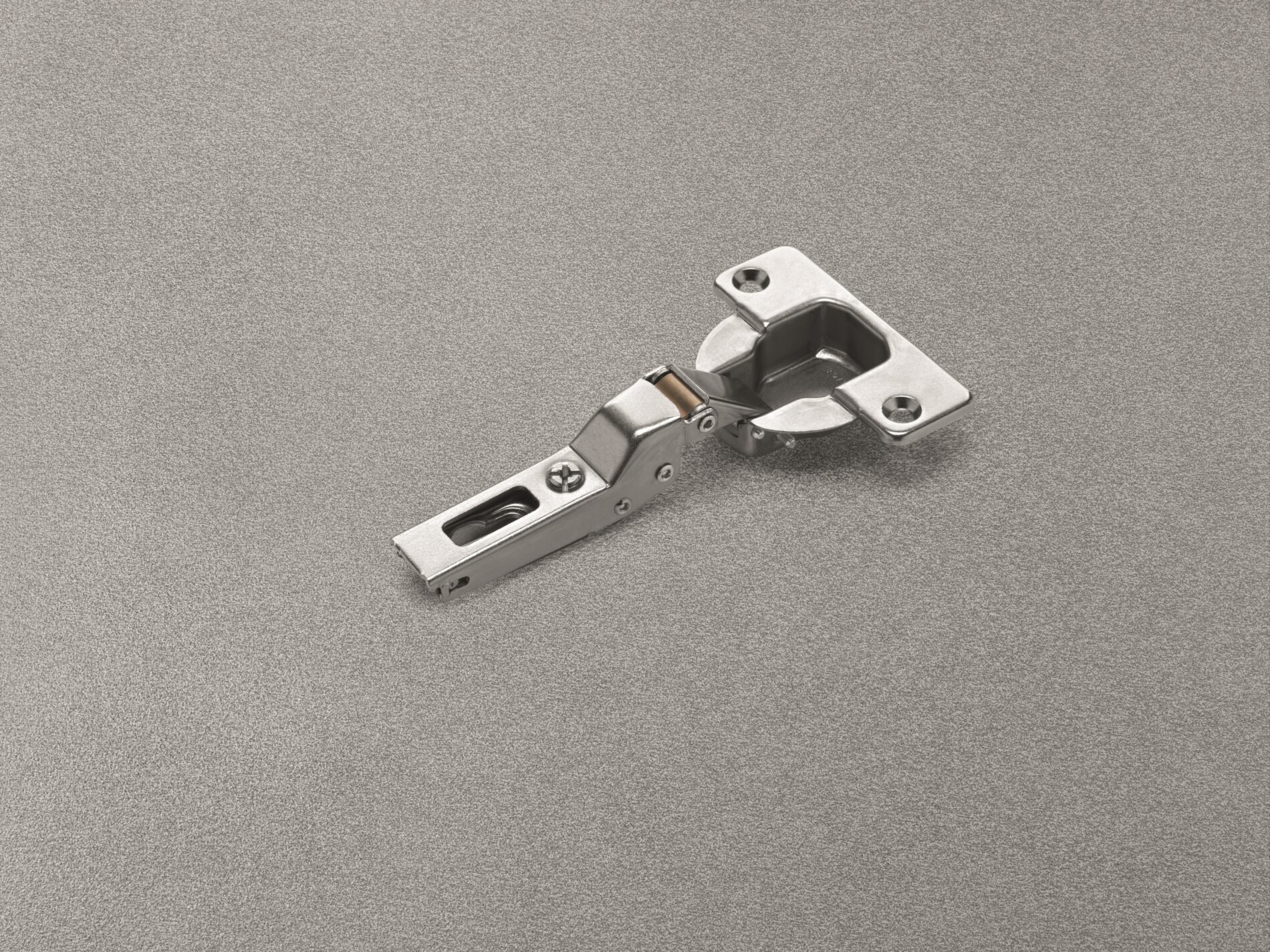

N Series - Concelead Hinges 94 for Thick Doors up to 40 mm (1 9/16")
Brand: Salice
Crank: 11/32 in*
Door Position: Half Overlay
Door Thickness: 25/32 to 1 9/16 in*
Drilling Distance: 1/8 to 9/16 in*
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +94°
Mechanism: Spring Closing
Milling Depth: 15/32 in*
Milling Diameter: 1 9/16 in*
Product #: H094CNA7G99
Use Type: Thick Door
