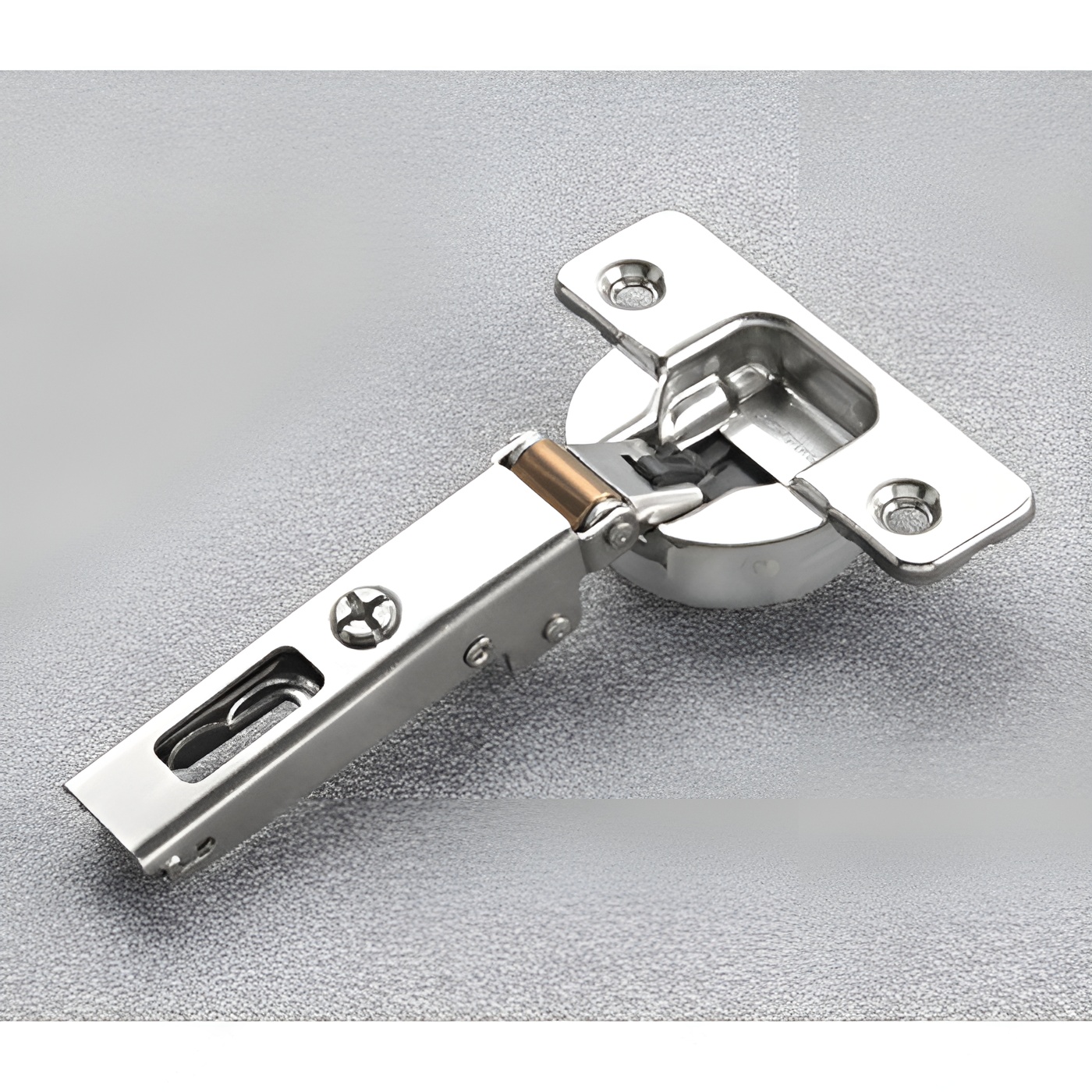

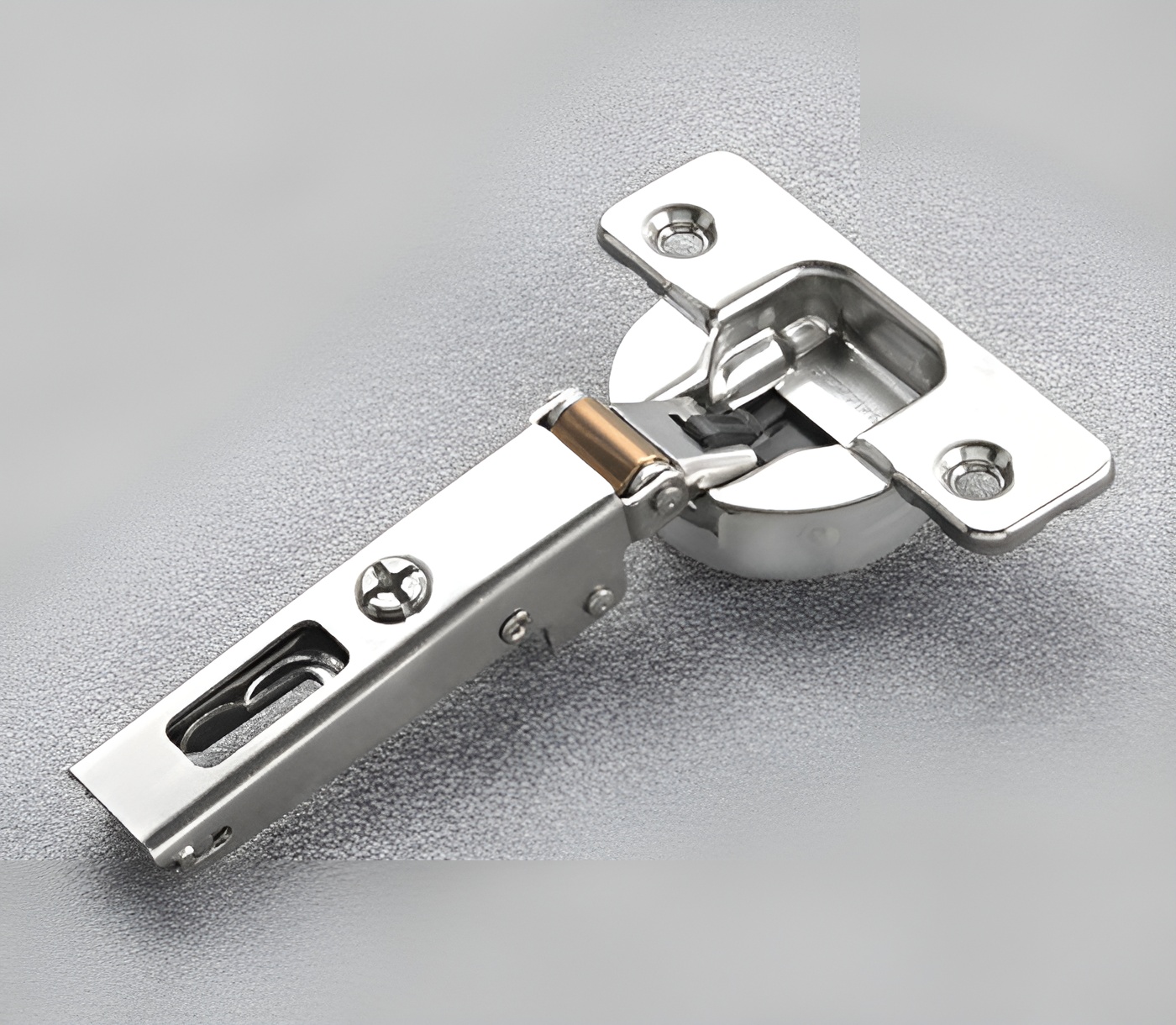

Richelieu H105C1P6AE9 Series 100 Concealed Hinges 105 offer an ideal solution for frameless cabinet applications, ensuring a sleek and modern aesthetic. Designed for full overlay doors, these hinges provide a clean look while allowing the door to open a generous +105°, making access effortless. The soft-closing mechanism enhances usability by preventing slamming, ensuring a quiet, smooth operation every time. With a load capacity of 10 lbs, these hinges are perfectly suited for standard doors, making them versatile for various applications. The nickel finish not only adds a touch of sophistication but also offers durability, ensuring longevity in high-traffic areas. Installation is straightforward, thanks to the screw-on fixing type, while the precise drilling distance of 1/8 to 1/4 inch and milling diameter of 1 3/8 inches provide flexibility for different cabinetry designs. Whether you're a building professional or a knowledgeable homeowner, the Richelieu H105C1P6AE9 hinges are a reliable choice for enhancing your cabinetry. In stock and ready to ship via UPS, these hinges are not just functional but also an elegant addition to any kitchen or living space. Elevate your project with this exceptional hardware solution from Richelieu.
100 Series - Silentia+ Concealed Hinges 105
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 19/32 to 25/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Load Capacity: 10 lb
Mechanism: Soft-Closing
Milling Depth: 12 mm
Milling Diameter: 35 mm
Overlay: 0.75 in
Product #: H105C1P6AE9
Product number: H105C1P6AE9
Product №: H105C1P6AE9
Production Time: Stock
Silentia+ Series: 100 Series
Unit 1: case - 300
Use Type: Standard Door
